Sleep stage classification using extreme learning machine and particle swarm optimization for healthcare big data

Abstract

Recent developments of portable sensor devices, cloud computing, and machine learning algorithms have led to the emergence of big data analytics in healthcare. The condition of the human body, e.g. the ECG signal, can be monitored regularly by means of a portable sensor device. The use of the machine learning algorithm would then provide an overview of a patient’s current health on a regular basis compared to a medical doctor’s diagnosis that can only be made during a hospital visit. This work aimed to develop an accurate model for classifying sleep stages by features of Heart Rate Variability (HRV) extracted from Electrocardiogram (ECG). The sleep stages classification can be utilized to predict the sleep stages proportion. Where sleep stages proportion information can provide an insight of human sleep quality. The integration of Extreme Learning Machine (ELM) and Particle Swarm Optimization (PSO) was utilized for selecting features and determining the number of hidden nodes. The results were compared to Support Vector Machine (SVM) and ELM methods which are lower than the integration of ELM with PSO. The results of accuracy tests for the combined ELM and PSO were 62.66%, 71.52%, 76.77%, and 82.1% respectively for 6, 4, 3, and 2 classes. To sum up, the classification accuracy can be improved by deploying PSO algorithm for feature selection.

Introduction

During good sleep, muscle and tissue rejuvenate. Memory consolidation also occurs. Therefore, maintaining the quality of sleep is crucial for human beings. Based on the survey of the National Sleep Foundation on 1000 participants from USA [1], 13% of the participants did not have enough sleep on non-workdays. The percentage was higher on workdays, in which 30% of the participants did not have enough sleep. The findings of this survey show that many people lack sleep, particularly on workdays.

The lack of sleep may disturb individuals’ life by reducing productivity due to energy loss [2]. Early detection of sleep related disorders may prevent further sleep disorders in which evaluating sleep stages can be a good method for sleep study and early indication. According to the gold standard of sleep study, several stages of sleep can be classified as awake, REM, and NREM [3]. The NREM contains several stages such as light sleep (stage 1 and 2) and deep sleep (stage 3 and 4).

Classification of sleep stages can be done by visiting a sleep specialist. An experiment will be conducted to patients in the specific room to monitor their psychological conditions during sleep. Common devices such as electroencephalography and ECG can be employed for detecting brain wave and heart rate, respectively. For this work, ECG was chosen rather than EEG because it provides more comfort, where in EEG installation, EEG electrodes need to be placed on the patients [4]. For ECG case, a non-contact ECG sensor already exists [5]. The ECG produces signal as the result, as shown in Fig. 1. Each data generated can be identified by sleep specialists. However, manual identification is very tedious and exhausting. Automatic identification of sleep stages will be very helpful for sleep research as the initial diagnosis.

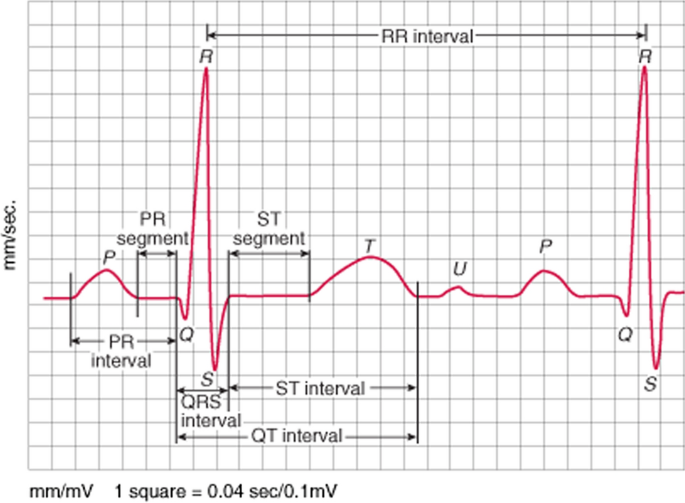

Fig. 1
figure1

Several components of ECG signal

Recent developments of portable sensors, embedded system, cloud computing, and machine learning algorithms have led to the emergence of big data analytics for healthcare. Sleep monitoring system is developed using these technologies to allow patients to monitor their sleep condition on a regular basis. The ECG signal collected using a portable ECG sensor can be aggregated in the data aggregator before being sent to cloud computing for signal processing [6]. Sleep stage can be classified automatically by machine learning algorithm for early diagnostic. The sleep stages classification can be used to predict the proportion of each sleep stage. Where sleep stages proportion information can provide an insight of human sleep quality. For example, when it is found that the patient wakes up more than once during the night sleep, it is one indication of poor sleep quality.

In the field of machine learning, artificial neural network has been known as a promising and emerging method which can be applied in many fields. One of the advantages of applying neural network in sleep study is that it has tolerance for some undesirable data or events [7] with the ability to learn non-linear and complex relations [8]. On the other hand, neural network has some drawbacks, such as slow backpropagation learning which can lead to local optima solution [9].

Considering the time required for learning algorithm, neural network algorithm such as ELM provides a faster processing ELM can be considered as a feedforward neural network algorithm which usually has input, hidden, and output layer learned only in a single step. According to the previous implementation of ELM algorithm, it gives the best accuracy compared to SVM and BPNN with faster processing time [10]. The faster processing time of ELM is due to a better generalization ability where ELM chooses the input weights randomly and uses simple matrix computations to determine the output weights.

SVM is another commonly used machine learning algorithm. It is the algorithm that operates using an optimal hyperplane and utilizes it for separating data based on the classes. Using this concept, a reliable classification tool can be achieved, in which it is widely applied in signal processing [11]. Due to SVM popularity and well-known performances, SVM was deployed in this work.

The data features must be extracted in order to use ELM and SVM algorithm for identifying sleep stages. Features can be extracted based on heart rate variability from ECG. The HRV is one of physiological phenomena showing the continuous beating of the heart which varies during sleeping. To extract the features of HRV, several methods can be employed, such as geometrical [12], time domain [12], poincare [13] as well as frequency domain [14]. Some features can be irrelevant and redundant for the classification model, especially when using a large number of features. Hence, the optimum features should be carefully selected to obtain low processing time for the model. To aid the feature selection process and determining hidden node number, PSO is chosen as algorithm in this work. Previous study has shown a promising result in using PSO for selecting features [15]. PSO showed minor accuracy reduction with significantly faster performance compared to other algorithms such as GA [16].

The study was conducted using several methods. The classification of sleep stages was conducted using ELM and SVM. PSO was later integrated with ELM for finding optimum features and determining the number of hidden nodes. The performance of ELM, SVM, and the combination of ELM and PSO were evaluated to obtain the optimum algorithm by calculating the accuracy percentage.

The main contributions of this study are:

  1. 1.

    Building a classifier model using the combination of ELM-PSO to achieve optimal accuracy in terms of sleep stages classification using HRV features obtained from ECG signal;

  2. 2.

    Evaluating the performance of the proposed ELM-PSO model in 6, 4, 3, and 2 sleep stage classes.

The rest of the paper is arranged as follows: Sect. “Related Works” discusses related works. Sect. “Methods” presents the dataset and the algorithm used in this study. Finally, in sect. “Results and discussion”, the steps, results, and analysis are presented. Section “Conclusions” provides the conclusion of the paper.

Related works

Since the invention of standardized sleep scoring in 1968, it has become a gold standard for studies on sleep [3]. Along with the standard, algorithm for automatic sleep stage classification has been developed since 1969 using EEG signal [17]. It was found that sleep stages can be identified using several physiologic parameters which can be extracted from EEG, ECG, electro-oculogram, electromyogram, pulse oximetry, airflow and respiratory effort [18]. Studies on sleep stage classification use ECG signal, rather than multi signal to reduce the complexity and increase comfort because the use of ECG signal could produce high accuracy [19]. Several methods of machine learning have been used to analyze the data from ECG to identify sleep stages (e.g., sleep, NREM, REM, awake) [20,21,22,23,24,25] and sleep disorders [26,27,28]. The sleep disorders are not covered in this work since the study is focused on sleep stage classification.

Adnane et al. used MITBPD for signal input and categorized sleep stages into two classes, which are sleep and awake [20]. SVM was utilized as machine learning algorithm, and MITBPD was deployed to record physiologic signal in that study. Twelve features were extracted based on HRV, the detrended fluctuation analysis (DFA), and windowed DFA; 20% of the data were utilized for training, while the remaining 80% were dedicated for classification. The testing was divided into two sets of features, which are 12 and optimum 10 features, in which the optimum ten features were determined using SVM-RFE. After 5 repeated testing for each set, the generated accuracies were 79.31 ± 4.52% for 12 features (Cohen’s kappa value, k = 0.41) and 79.99 ± 4.64% for 10 features (k = 0.43). Also, it was concluded that HRV performed better than DFA and windowed DFA.

Xiao et al. classified sleep stages into three categories, which are awake, REM, and NREM sleep [21]. RF was used for the machine learning method. The data were gathered from SHRSV, resulting in 41 HRV features in which 25 features were novel. Using RF method, two scenarios were conducted, which were subject specific and subject independent classifier. In subject specific classifier scenario, data were divided into 80% training and 20% testing for each recording, followed by 10 repetitions of randomized data set to minimize bias. In the subject independent classifier scenario, 44 recordings were grouped as training data while one recording was set as testing data. The process was repeated 45 times, and the resulting data were averaged. The resulting accuracies were 88.67% for subject specific classifier (k = 0.7393) and 72.58% for subject independent classifier (k = 0.4627). Xiao et al. suggest that the proposed method could be used as an alternative or aiding technique for solving complex usage of PSG system and convenient sleep stages classification.

Werteni et al. defined two classes of sleep stages, namely sleep and awake [22]. MITBPD was used in this study, and the features were extracted using HRV and DFA based on QRS detection times. ELM was used as algorithm and compared to SVM and BPNN. One-third of the data were assigned as training data while the remaining 2/3 were testing data. The resulting accuracies were 78.33%, 76.74%, 78.12% respectively for ELM, BPNN, and SVM. One must note that the ELM algorithm exhibited significantly faster detection time compared to BPNN and SVM. Werteni et al. presents a simple automatic sleep–wake stages classifier using only RR series obtained from ECG. Seven features were extracted from the RR series by three methods, HRV, DFA and WDFA.

Rahimi et al. utilized SVM with extension of ECOC and RBF as kernel algorithm for sleep stage classification [25]. Two sets of classes were used in the study, which were sleep–wake and wake-REM-NREM. The methods were HRV, and ECG-derived respiration (EDR) extracted from ECG signal using neural principal component analysis (PCA). The features were extracted by nonparametric Kruskal–Wallis test and optimized using the mRMR algorithm. The resulting accuracies were 81.76% for two sleep stages and 76% for three sleep stages. Rahimi et al. present a sleep stage classification using HRV and EDR features with multi-class SVM classification.

Radha et al. conducted a massive study involving 292 participants within the period of 1997 to 2000 in 7 labs from 5 European countries [23]. The sleep stages were classified into four stages as wake, REM, N1/N2, N3 in which N1, N2, N3 are the stages of NREM sleep. To incorporate long-term temporal dependencies, Long Short-Term Memory (LSTM) network was used in this work as algorithm. The study was performed based on HRV data and achieved 77.00 ± 8.90% for four classes of sleep stages. Our previous study combined SVM with PSO in which SVM was deployed for classification while PSO was utilized for feature selection [24]. By using HRV as a method to classify 2 sleep stages, PSO was able to increase accuracy from ≈ 72% to 78.41%. In light of those related works, the rapid detection algorithm such as ELM was combined with PSO for feature selection to improve the resulting accuracy. Radha et al. present HRV-based sleep stage classification using LSTM. However, there are still some issues until the system can reach the expected accuracy of EEG-based sleep stage classification.

Yücelbaş et al. conducted research on sleep stage classification with Morphological method using MITBPD public dataset [29]. The classifier model used 15 features extracted based on HRV resulting into 3 sleep stage classes and achieved 77.02% accuracy for the model performance. Yücelbaş et al. present an automatic sleep staging system using morphological method based on ECG signal.

On the other hand, Wei et al. carried out research to classified sleep stages into 3 sleep stages such as awake, REM and NREM [30]. By using 11 HRV features extracted from MITBPD, Wei et al. classified the sleep stages with 77% accuracy. Wei et al. suggest that the values of RR interval can be used as the features and can reduce the number of wearable devices for sleep tracking.

In the previous research, there is a room for improvement for the model performance in 2 and 3 classes. Also, the models implemented on the health monitoring system are required to perform fast and precisely. Therefore, in this study, we propose the sleep stage classification using ELM-PSO. The proposed algorithm was tested in terms of accuracy and processing time. The summary of related works on sleep stage classifications using ECG is presented in Table 1.

Table 1 Summary of related works on sleep stage classifications using ECG

Methods

The methodology includes: (1) data collection, (2) pre-processing of data, (3) feature extraction of HRV, and (4) model building and evaluation. The algorithms used in this work were SVM, ELM, and the integration of ELM and PSO. Performance comparison was made. The phases of the methodology is presented as shown in Fig. 2.

Fig. 2
figure2

The phases of the methodology

Data collection of MIT-BIH polysomnographic dataset

The data obtained [31] contained recordings of physiological signal of the human body during sleeping. ECG, EEG, blood pressure, and respiration were included in MITBPD. The reason for using MITBPD dataset is because it is one of public ECG datasets which has labelled annotations and has been used by many previous research to make sure that the results of comparison carried out are fair. For simplicity, only ECG signal was used, which was digitized with 12 bit per sample and sampling frequency of 250 Hz. The eighteen files recorded during the sleeping period of 2 female and 16 male subjects were utilized. The participants’ ages ranged from 32 to 56 years old (\(\overline{x}\) = 43) with weight 89–152 kg (\(\overline{x}\) = 119 kg). Prior to pre-processing, 10274 samples were retrieved in which each sample recording has a duration of 30 s. The MITBPD data distribution are 17.79%, 38.28%, 4.76%, 1.78%, 6.89% and 30.5% for NREM1, NREM2, NREM3, NREM4, REM and awake sleep stage, respectively.

Pre-processing of the data

Data annotation and RR interval were recorded and pre-processed. RR interval is a time delay between the current and previous heart beats [32]. By calculating the time which elapsed between two consecutive R waves of ECG signal, RR interval was obtained. Data annotation was labelled by a sleep specialist confirming the sleep stage for every 30 s.

Firstly, problematic data were removed. In this step, the annotation data and RR interval were synchronized. The problematic data refer to the missing timestamp that makes both data do not synchronize. The data will be removed. Each annotation data may contain many RR intervals. If the annotation data did not match the scope of the research (such as awake, NREM, REM), then the data were removed. Then, feature extraction was performed to those set of RR interval from each annotation.

Feature extraction of heart rate variability

To track and interpret the electric activity of the heart, ECG can be used [33]. There is a constant variation in human heart beat, which is recorded by ECG. The nervous systems such as parasympathetic and sympathetic nerves control the heart rate fluctuation. In this work, those variabilities were utilized to extract the 18 features as shown in Table 2.

Table 2 The list of features extracted from HRV

First algorithm: extreme learning machine

Compared to BPNN, ELM provides faster processing time due to better generalization; hence it is easier to implement the algorithm [9]. ELM is a feedforward neural network algorithm which usually has input, hidden, and output layer learned in only one step and does not need iterative training. ELM randomly chooses hidden nodes and analytically determines the output weights of hidden layer and all the parameters are tuned once [34].

Second algorithm: support vector machine

The optimum decision boundary, which separates data, can be found with SVM algorithm. Usually, high value of margin indicates the best decision boundary. Herein, the gap between adjacent data to decision boundary is denoted as margin. For the most real-world problems, the data can be categorized as non-linearly separable in which kernel function can be used to solve the problem. Using kernel function, the data can be separated linearly by mapping the data from input to feature space with higher dimension. Two types of kernel functions can be used in SVM which is linear kernel function and RBF kernel. RBF was chosen in this work, which provided better accuracy in our previous work [24].

Feature selection by particle swarm optimization

PSO is a population-based optimization technique inspired by the social behaviour of certain animals in colonies such as bird swarm that work together to achieve goals by moving together, spreading out of the group, and re-group [35]. In PSO, each position of a bird is denoted as particle in which the fitness value will be optimized. A particle with the best fitness value is denoted as g-best while p-best is indicated by the best fitness value for each particle. All of the particles have velocity which is used to evaluate the particle movement to the next position. PSO algorithm is as follows [36]:

  1. (a)

    Randomly initializing velocity and particle population;

  2. (b)

    Starting new iteration;

  3. (c)

    Evaluating the fitness function for all particles;

  4. (d)

    Determining p-best of each particle and replacing the p-best when it is better than the previous one;

  5. (e)

    Determining g-best value;

  6. (f)

    Updating each particle velocity by Eq. (15).

$$V_{id}^{t + 1} = WV_{id}^{t} + c_{1} \cdot r_{1} \; \cdot \left( {pbest_{id}^{t} - x_{id}^{t} } \right) + c_{2} \; \cdot r_{2} \; \cdot \left( {p_{gd}^{t} - x_{id}^{t} } \right).$$
(15)

where \(V_{id}^{t}\) is the i-th particle velocity of the t-th iteration, W is inertia weight, and d-th variable [31]. Meanwhile, \(c_{1}\) is each particle tendency to follow its p-best. \(r_{1}\) and \(r_{2}\) is a random factor of 0 to 1. \(pbest_{id}^{t}\) is denoted as the best i-th particle position. \(c_{2}\) is each particle tendency for following its g-best while \(p_{gd}^{t}\) is g-best. \(x_{id}^{t}\) is the position of i-th particle.

  1. (g)

    Updating the position of each particle by Eq. (16).

$$x_{id}^{t + 1} = x_{id}^{t} + v_{id}^{t + 1}$$
(16)
  1. (h)

    The iteration must be stopped when the termination conditions are met. Otherwise, the process must be repeated from point c).

Third algorithm: the integration of ELM with particle swarm optimization

In this work, ELM was integrated with PSO where PSO was used for selecting features and determining hidden node number. Table 3 shows each particle representation in binary containing total hidden nodes and feature mask [37].

Table 3 Particle representation of ELM and PSO integration

The feature selection was represented in the part of feature mask where \(n\) is the total features to be selected, where “1” means that the feature has been chosen or else the value is “0”. As an example, the binary of “101011” means the features of 1, 3, 5, and 6 have been selected with a total of 6 features.

The determination of hidden node number was performed in the part of total hidden nodes where \(n_{c}\) is the maximum bit number representing the maximum hidden node number. As an example, the binary of “00111” indicates that 7 hidden nodes were used by the particle.

To define the fitness function, the model was evaluated using the total selected features and the accuracy of ELM. The formula for fitness function is shown in Eq. (17) where \(W_{F}\) and \(W_{A}\) are weighting factors indicating the significance of high accuracy with less selected features. Meanwhile, \(f_{j}\) is j-th bit of feature mask and \(n_{f}\) is total number of features. In the integration of ELM with PSO, the accuracy of the particle was evaluated by ELM algorithm.

$$fitness_{i} = W_{A} \times acc_{i} + W_{F} \times \left[ {1 - \frac{{\left( {\mathop \sum \nolimits_{j = 1}^{{n_{f} }} f_{j} } \right)}}{{n_{f} }}} \right]$$
(17)

Results and discussion

The algorithms were used to classify 4 sets of data, which are 6, 4, 3, and 2 number of sleep stages in which the sets can be categorized as follows (1) 6 classes: awake, stage 1, stage 2, stage 3, stage 4, and REM, (2) 4 classes: awake, deep sleep, light sleep, and REM, (3) 3 classes: awake, NREM, and REM, (4) 2 classes: awake and sleep. The MITBPD dataset distribution are 17.79%, 38.28%, 4.76%, 1.78%, 6.89% and 30.5% for NREM1, NREM2, NREM3, NREM4, REM and awake sleep stage, respectively. To validate the data, the 70% training and 30% testing data were implemented using stratified sampling where the training and testing data were used further for accuracy evaluation. The number of retrieved data was adjusted proportionally. The training and testing results data from train-test split are different from data that used in previous works.

Pre-processing

The invalid data without annotation or irrelevant annotation as well as incomplete RR interval were taken out. 1.17% of total data removed amounted to 120 data. The rest of the 98.83% data which is 10154 samples were synchronized with annotation data, data normalization, feature extraction, and RR interval.

First algorithm: extreme learning machine

Twenty-five experiments consisting of 100 ELM iterations for each experiment were performed to evaluate ELM algorithm. All 18 features were executed without a prior selection process. As shown in Fig. 3, the mean accuracy of training data for 6, 4, 3, and 2 classes were respectively 74.86%, 83.02%, 86.97%, and 92.85%. Consecutively, the mean accuracies of testing data for 6, 4, 3, and 2 classes were 57.62%, 66.83%, 72.2%, and 78.12%. According to the accuracy evaluation, the difference of training and testing accuracy was significant in which the differences were 17.24%, 16.19%, 14.77%, and 14.73% for 6, 4, 3, and 2 classes. The large differences may lead to overfitting. The large differences caused by ELM does not do well with multiple class classification where ELM needs a large number of hidden nodes to ensure generalization performance, but also easy to lead to overfitting. To solve the overfitting problem, we propose the ELM with PSO, which is explained in Sect. Third algorithm: the integration of extreme learning machine with particle swarm optimization.

Fig. 3
figure3

The testing accuracy of ELM algorithm in 4 sets of classes

Second algorithm: support vector machine

All 18 features were used for SVM study without feature selection. RBF was utilized as kernel function. As shown in Fig. 4, the mean accuracy of training data for 6, 4, 3, and 2 classes by SVM were 68.72%, 77.25%, 81.8%, 85.93% respectively and the mean accuracy of testing were 51.66%, 62.52%, 66.94%, and 72.2%. Similar to ELM, the training and testing accuracy which showed significant differences were 17.06%, 14.73%, 14.86%, 13.73% for 6, 4, 3, and 2 classes, which can also lead to overfitting. The RBF kernel more likely exposed to overfitting than the linear kernel.

Fig. 4
figure4

The testing accuracy of SVM algorithm in 4 sets of classes

Third algorithm: the integration of extreme learning machine with particle swarm optimization

According to ELM and SVM study, the accuracy differences of training and testing data from ELM and SVM algorithm led to overfitting. Hence, the integration of ELM with PSO was proposed to overcome the overfitting problem. Twenty-five experiments were performed with 100 PSO iterations applied on each experiment for feature selection. The parameter of PSO was outlined as follows: W was 0.6, c1 and c2 values were 1.2, 20 particles, WF and WA and were 0.05 and 0.95. With those set of parameter combination, the small difference of the training and testing accuracy was expected. In Fig. 5, ELM with PSO feature selection exhibited mean accuracy of testing data for 6, 4, 3, and 2 classes of 62.66%, 71.52%, 76.77%, 82.1% while the mean accuracy of training data were 69.09%, 72.73%, 77.97%, 84.9%. The differences were shown to be less significant compared to ELM and SVM, in which those are 6.43%, 1.21%, 1.2%, 2.8% for 6, 4, 3, and 2 classes. It occurs because the feature selection by PSO can reduce redundancy in the the information given by the selected features. Therefore, it improves the generalization of the model. Table 4 shows the selected features for each recorded subject in 6 class classification. It shows that different best subsets of features are selected for each recorded subject using PSO.

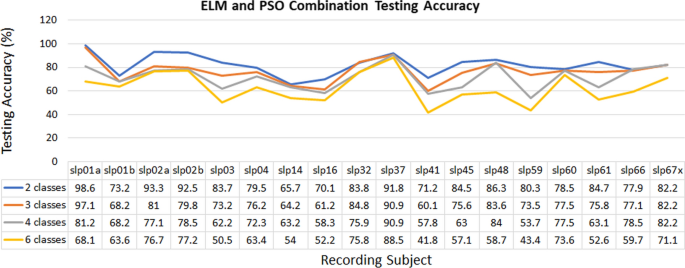

Fig. 5
figure5

The testing accuracy of the integration of ELM with PSO in 4 sets of classes

Table 4 The selected features for 6-classes classification

The comparison of three algorithms

The new data were deployed to evaluate the generalization ability and the accuracy of testing data from ELM, SVM, and the integration of ELM with PSO, as shown in Fig. 6. There is also a simple MLP experiment carried out as another comparison to the three algorithms. The integration of ELM with PSO exhibited the best testing accuracy compared to ELM, SVM and MLP in which PSO improved the testing accuracy of ELM methods by 5.04%, 4.69%, 4.57%, 3.98% for 6, 4, 3, and 2 classes. It is clear from the results that the selection of the best subset of features and the right number of hidden neurons will increase the classification accuracy of the proposed ELM-PSO method.

Fig. 6
figure6

The testing accuracy comparison of ELM, SVM, and ELM with PSO combination

The processing time of ELM with PSO was compared with SVM with PSO in Fig. 7, and it can be concluded that the model using SVM with PSO was not effective for multiclass calculation due to the significant increment of processing time with the increase of the number of classes. In ELM with PSO, there was no significant difference in processing time for 2, 3, 4, and 6 classes. More time was required in SVM to process the training data, in which the number of SVM to be trained can be described as k(k − 1)/2, where k is the number of classes. In ELM, the processing time correlated with the time spent to generalize inverse matrices of the hidden layer output matrix.

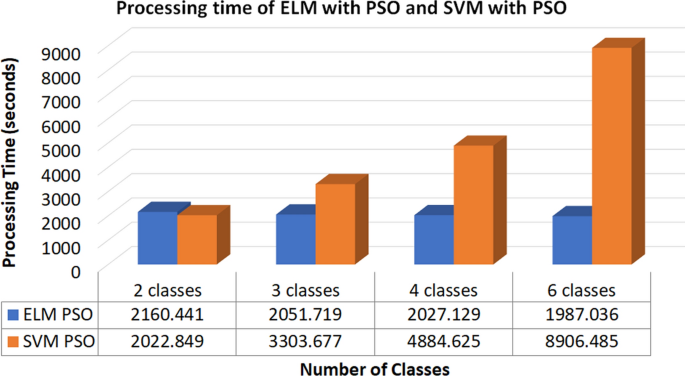

Fig. 7
figure7

The processing time of ELM with PSO and SVM with PSO

The comparison with previous works

In this section, the result of the proposed method is compared with previous works in 2 class classification. Compared with the previous research presented in Table 5 conducted by Werteni et al. [22], the proposed combination of ELM and PSO has an accuracy rate of 5.81%, 8.29%, 6.07%, and 3.72% higher than the ELM method, BPNN and SVM. Meanwhile, compared with research conducted by Adnane et al. [20], the combination of ELM and PSO has an accuracy rate of 2.79% and 2.11%, respectively higher than the SVM method (12 features) and SVM (10 features).

Table 5 Comparison with previous research

Essentially, ELM has a limitation in calculating the appropriate number of hidden nodes to achieve sufficient accuracy. In addition, a comparison of the two previous studies [20, 22] indicates that the selection of features plays a very important role in defining the sleep cycle in order to achieve a better accuracy. With the combination of ELM and PSO for the selection of features and the determination of the number of hidden nodes, the particles in the PSO will help each other to achieve one objective function even if they originate from different positions. It is proven that PSO is able to boost the ability of the ELM to make stronger generalizations. Therefore it can achieve the best performance in 2 classes classification compared to the references in Table 5, even though the other references [20, 22] use more than HRV signal to predict the sleep stage. The comparison of our algorithm with the previous research is shown in Table 5.

The result of proposed method is also compared to previous works in multi-class classification using HRV signal only. Compared with the previous research in Table 6 conducted by Werteni et al. [22], the proposed combination of ELM and PSO has an accuracy rate of 3.77%, 5.36% and 3.98% higher than the ELM method, BPNN and SVM. Meanwhile, when compared with research conducted by Adnane et al. [20], the combination of ELM and PSO has an accuracy rate of 2.79% and 2.11%, respectively higher than the SVM method (12 features) and SVM (10 features). Compared with research conducted by Xiao et al. [21], the RF method (41 features) has an accuracy rate of 11.9% higher than proposed combination ELM and PSO. Compared with research conducted by Yücelbaş et al. [29], the morphological has an accuracy rate of 11.9% higher than proposed combination ELM and PSO. However, both Xiao et al. [21] and Yücelbaş et al. used SHRSV dataset, not MITBPD. Meanwhile, when compared with research conducted by Wei et al. that used PSG dataset [30], the combination of ELM and PSO has an accuracy rate of 0.23% lower than the DNN method. The comparison of our algorithm with the previous research is shown in Table 6.

Table 6 Comparison with Previous Research

Conclusions

In this study, sleep stage classification from Heart Rate Variability of ECG signal was performed using 3 types of algorithm, 4 set of classes, and 2 set of features. Meanwhile, ELM, SVM, and the integration of ELM with PSO were used as algorithms. The set of classes are 6, 4, 3, 2 sleep stages in which the accuracy was compared. The 6 out of 18 features were selected by PSO algorithm.

The study shows that the integration of ELM and PSO exhibited the highest accuracy, followed by ELM and SVM, respectively. It can be concluded that PSO incorporation improved the accuracy of ELM and SVM algorithm. The probability of model overfitting was also decreased by PSO incorporation. There was no significant difference in the processing time of ELM with PSO for 2, 3, 4, and 6 classes.

Availability of data and materials

The datasets used during the current study are available in https://physionet.org/.
