Cooperative coevolution for feature selection in Big Data with random feature grouping
Journal of Big Data volume 7, Article number: 107 (2020)
 The Correction to this article has been published in Journal of Big Data 2020 7:111
Abstract
A massive amount of data is generated with the evolution of modern technologies. This highthroughput data generation results in Big Data, which consist of many features (attributes). However, irrelevant features may degrade the classification performance of machine learning (ML) algorithms. Feature selection (FS) is a technique used to select a subset of relevant features that represent the dataset. Evolutionary algorithms (EAs) are widely used search strategies in this domain. A variant of EAs, called cooperative coevolution (CC), which uses a divideandconquer approach, is a good choice for optimization problems. The existing solutions have poor performance because of some limitations, such as not considering feature interactions, dealing with only an even number of features, and decomposing the dataset statically. In this paper, a novel random feature grouping (RFG) has been introduced with its three variants to dynamically decompose Big Data datasets and to ensure the probability of grouping interacting features into the same subcomponent. RFG can be used in CCbased FS processes, hence called Cooperative CoEvolutionaryBased Feature Selection with Random Feature Grouping (CCFSRFG). Experiment analysis was performed using six widely used ML classifiers on seven different datasets from the UCI ML repository and Princeton University Genomics repository with and without FS. The experimental results indicate that in most cases [i.e., with naïve Bayes (NB), support vector machine (SVM), kNearest Neighbor (kNN), J48, and random forest (RF)] the proposed CCFSRFG1 outperforms an existing solution (a CCbased FS, called CCEAFS) and CCFSRFG2, and also when using all features in terms of accuracy, sensitivity, and specificity.
Introduction
The generation of massive volumes of data in the Big Data era is common in many areas, including, but not limited to, the Internet of Things (IoT), cybersecurity, and healthcare [1]. Big Data opens the door to the research community for explore new knowledge, and often machine learning (ML) algorithms are used to learn, predict, and classify data in this context. The use of ML classifiers in different application domains, for example, healthcare and cybersecurity, have been studied in the literature [2]. Realworld problems across various domains consist of several features (attributes in dataset terminology). However, not all of these features are important, because some are irrelevant or redundant, and as such, may degrade the performance of ML classifiers [3, 4]. Feature selection (FS) is an approach to select the relevant features for reducing the dimension of data in order to improve ML performance [5]. Formally speaking, feature selection is a process to select a subset of s features from a full set of n features (\(s < n\)) in a dataset by removing irrelevant and unimportant features, thereby representing it with less features [2]. A search technique initiates the FS process to discover feature subsets. Then, feature subsets are evaluated by different performance measures, for example, classification accuracy. A terminating criterion, for instance, the maximum number of generations, is used to terminate the FS process. A validation method at the end of the FS process can test the validity of the selected subset of features.
A dataset consisting of n features has \(2^k\) possible solutions, which makes the feature selection process computationally expensive. A wide range of search techniques can be applied to the FS process, for example, greedy search, best search, or evolutionary search [6]. Evolutionary algorithms (EA) are search techniques that are widely used for feature selection [7]. However, with the increase in data samples and features in a dataset, the search space also increases. In most cases, this impacts the effectiveness of EAs. Cooperative coevolution (CC), a metaheuristic algorithm, follows a divideandconquer technique and has been effectively applied in different domains, including a limited number of FS applications. CC decomposes each complex problem into multiple subproblems, optimizes each subproblem individually, and collaborates different subproblems to build a complete solution to the problem [5]. Hence, a CCbased FS approach with a suitable decomposition method, an appropriate optimizer, and a proper collaboration technique can be studied for feature selection problems in different Big Data domains. However, the performance of a CC algorithm (i.e., solution quality) depends on how the problem is decomposed [8,9,10,11,12]. The performance of a CC algorithm may degrade significantly if the problem is nonseparable, such as if the features interact with each other [9, 13, 14]. In the literature, it is suggested that the interdependency between the decomposed subproblems should be minimized because of the collaboration requirement of CC algorithms [15]. However, for realworld problems without any prior information about how the features in a dataset interact, it is difficult to find a suitable problem decomposition technique for feature selection. NonCCbased feature grouping methods are also investigated in the literature [16,17,18]. This paper aims to investigate CCbased feature grouping.
To overcome the aforementioned limitations, this paper introduces a CCbased FS framework with a proposed random feature grouping (RFG) decomposition technique: Cooperative CoEvolutionaryBased Feature Selection with Random Feature Grouping (CCFSRFG). This approach has been evaluated with two variants using six widely used ML classifiers on seven different Big Data datasets from the UCI ML repository^{Footnote 1} and Princeton University Genomics Repository.^{Footnote 2} Based on the analysis of the comparative results, it has been observed that in terms of accuracy, sensitivity, and specificity, CCFSRFG with RFG1 in most cases outperforms CCEAFS [19] and the classifiers when using all features, along with a significant feature reduction.
The rest of the paper is organized as follows. Next section presents feature selection approaches using a taxonomy and an extensive literature review of problem decomposition methods. After that, a novel cooperative coevolution technique and a novel feature selection framework is included. Then, a proposed random feature grouping with three variants is illustrated. The experimental results are presented and analyzed in "Results and discussions" section. The conclusion and future work directions are included in the last section.
Literature review
Many feature selection approaches studied in the literature are based on various metrics, such as information theory, probability distribution, and classification accuracy [20]. Table 1 presents a taxonomy of these.
There are a few FS research works that have been studied in the literature based on CC [21,22,23,24,25,26,27,28,29]. The literature indicates that the FS based on CC is an emerging research field and it is yet to be investigated for optimization problems. Based on this finding, a CCbased FS framework (CCEAFS) has been proposed in our previous study [19]. In CCEAFS, the FS problem has been decomposed into subproblems based on static decomposition; each of these subproblems has been optimized using a genetic algorithm, and a complete solution to the problem has been created using \(N+1\) collaboration with random collaboration for the first generation, and using best individuals as collaborators for further generations. CCEAFS has a promising performance and significant feature reduction capabilities while maintaining classification performance, and in a few cases, it performs better than using all features. Nevertheless, CCEAFS has some limitations: (1) it does not consider feature interactions for features with tightly coupled relationships and which potentially increase classification accuracy; (2) it considers datasets with an even number of features and decomposed datasets statically with an even number of features in each subdataset; however, in practice, datasets may have an odd number of features; (3) it considers datasets with a high number of samples and a low number of features and has not been validated using datasets with other characteristics. The performance of a CC mostly depends on the appropriate decomposition methods, suitable optimizers, and proper collaboration techniques [30]. This paper aims to overcome the limitations of the previously studied CCEAFS framework for feature selection in Big Data, and also to propose a new decomposition method for feature selection.
Preliminaries
This section defines the variable interaction and problem structure, whether it is separable, partiallyseparable, partially additively separable, or nonseparable.
Definition 1
Decision variables i and j from a decision vector x are interacting if the \(i{\text{th}}\) and \(j{\text{th}}\) variables can be replaced by \(x_i^{\prime}\) and \(x_j^{\prime}\) such that [31]:
where x = \(\left\{ x_1, x_2, \ldots , x_n\right\} \) is a decision vector of n decision variables.
Definition 2
Function \(f\left( x\right) \) of n decision variables is called separable if it is represented as a sum of n independent functions having only one independent variable in each [32, 33]:
The Rastrigin function is an example of separable functions [34]:
where − 5.12 \(\leqslant \) \(x_i\) \(\leqslant \) 5.12 and the global minimum of (3) is at the point \(x = \left\{ 0, 0, 0, \ldots , 0\right\} \). One of the characteristics of this function is that it has many suboptimal peaks whose values are increased with the increase of the distance from the global optimal point.
Definition 3
Function \(f\left( x\right) \) of n decision variables is called partially separable having m independent subcomponents of the form [35]:
where \(\left\{ x_1, x_2, \ldots , x_m \right\} \) are disjoint subvectors of decision vector x and \(2 \leqslant m \leqslant n\). Function \(f\left( x\right) \) here can be fully separable when subvectors \(\left\{ x_1, x_2, \ldots , x_m\right\} \) are all onedimensional, i.e., m = n.
Griewank’s function is a classical example of partially separable functions, which is defined as [36]:
where the \(f\left( x\right) \) has only one global minimum at the point \(\left( 0, 0, \ldots , 0\right) \).
Definition 4
Function \(f\left( x\right) \) of n decision variables is called partially additively separable having m independent subcomponents defined as [33, 35]:
where \(x_i\) represents mutually exclusive decision vectors of \(f_i.\)
An example of a partially additive separable function is 7nonseparable, 1separable Shifted and Rotated Rastrigin Function, which is defined as:
where \(s = \left\{ 50, 25, 25, 100, 50, 25, 25, 700\right\} ;\)
Definition 5
Function \(f\left( x\right) \) is a nnonseparable function if n of its decision variables \(x_i\) are not independent [32].
Function \(f\left( x\right) \) is fullynonseparable if any two of its decision variables \(x_i\) are not independent, i.e., every pair of the decision variables interact with each other [33, 35].
The extended Rosenbrock function is an example of a nonseparable function, which is defined as [32]:
where the function has exactly 1 minimum at point \(\left( 1, 1, 1\right) \) for n = 3, and 2 minima for 4 \(\leqslant \) n \(\leqslant \) 7 when the function gradient equals to zero.
Review on problem decomposition approaches using CC
The critical step of a cooperative coevolution (CC) technique is how to decompose the problem into subproblems [37]. Generally speaking, a CC algorithm should decompose a large problem into many subproblems with minimal interdependency between them. The first problem decomposition methods using CC used two simple approaches: onedimensionalbased and splittinginhalf strategies [38]. The former type decomposes an ndimensional problem into n onedimensional subproblems. This strategy is quite simple and can be effective for separable problems. However, this does not consider the interdependencies between subproblems. Therefore, it is not suitable for handling nonseparable problems satisfactorily. In comparison, the splittinginhalf strategy always decomposes an ndimensional problem into two equal \(\frac{n}{2}\)dimensional subproblems. However, when n is large enough, splitting the problem into \(\frac{n}{2}\)dimensional subproblems will still be large resulting computational difficulties [39].
Considering the interdependencies between subproblems, a CC framework, EACCG, was proposed for highdimensional optimization problems based on random grouping (RG) [39]. This framework randomly divides the decision variables of the highdimensional problem into a number of groups with predefined group size. It provides a nonzero probability of assigning interacting variables into the same group. In RG, every decision variable has an equal probability of being assigned to any of the subcomponents, and at the beginning of each cycle, the entire process is repeated. This results in a better performance than onedimensionalbased and splittinginhalf strategy decomposition methods for the CC framework. However, the problem here is to define the optimal group size, which is problemdependent. A small group size may be suitable for separable problems. A larger group size can be useful for nonseparable problems, because this can provide a higher probability grouping for more interacting decision variables into the same group. Furthermore, the selection of group size can be difficult at different stages of optimization for a single problem. A small group size can be helpful for finding solution regions faster at the initial stages; however, for later stages, a large group size is preferable, containing more global information for the subproblems. Hence, the appropriate group size depends on the objective function, optimization, and decision variables. To obtain the appropriate group size, a multilevel CC framework (MLCC) was proposed by the same research group in 2010 [40]. In MLCC, a decomposer pool is built based on different group size and using random grouping strategy, where each decomposer in the pool has various interaction levels between decision variables. The evolution process is divided into several cycles, and at the start of each cycle, a decomposer is selected from the pool depending on their record of performance. The selected decomposer is used to decompose the problem into subproblems having decision variables. The record of performance of each decomposer is updated at the end of each cycle. Following this strategy, MLCC is able to selfadapt to an appropriate interaction level regardless of the decision variables, objective function, and optimization stages. To further improve performance, MLCC also includes a weight vector to coadapt subcomponents. To group interacting variables together, a variable interaction learning (VIL) method was proposed that accounts all decision variables as independent initially and place them into a separate group. It further investigates the variable interactions iteratively, and when interactions are identified by a pairwise interaction between variables using a nonmonotonicity detection, it merges variables into the same group [31]. This method identifies the subcomponents structure and adjusts the component size using two phases: learning and optimization.
Although DECCG and MLCC provide opportunities to decompose a large problem into subproblems efficiently, they suffer from two major weaknesses, which degrade algorithmic performance. The first one is the decrease of probability to group interacting variables in a subproblem when the number of interacting variables is increased. The second one is that the adaptive weighting in MLCC is not important in the entire process and sometimes fails to improve the quality of the solution and also increases the number of fitness evaluations. To improve the performance of MLCC, a more frequent random grouping (DECCML) method has been proposed by Omidvar et al. [14]. The DECCML method reduces the number of fitness evaluations to find a solution without deteriorating solution quality. In this method, to choose a decomposer, a uniform random number generator has been used, unlike MLCC, which uses a sophisticated probability formula. After DECCML, Omidvar et al. [41] also proposed another decomposition method called Delta Grouping. When two interacting variables are grouped into different subcomponents, each variable can have a limit to be improved towards the optimal value in a nonseparable function. They calculated the amount of change called delta value in each decision variable in every cycle, which can identify interacting variables. Delta values measure the averaged difference for a specific variable over the entire population to identify interacting variables. The assumption here is to have smaller delta values for interacting variables. The decision variables are sorted based on delta values, and variables with smaller delta values are grouped into the same subcomponent. Compared to previous techniques, delta grouping is effective to group interacting variables. However, this grouping method performs poorly if the objective function has more than one nonseparable subcomponent.
A metamodelbased decomposition method called highdimensional model representation (HDMR) has also been proposed, which considered two variables nonseparable when they have a cooperative effect on the approximated secondorder HDMR model [42]. HDMR uses a map of linkage between input and output system variables. For largescale fully separable continuous functions, Omidvar et al. introduced a decomposition approach, multilevel softmax (MLSoft), in 2014 [43]. MLSoft is basically a modified MLCC algorithm proposed based on reinforcement learning for adaptively finding the proper subcomponent size. The experimental analysis concludes that a subcomponent size should be as small as possible. Because it is not possible to predict the capacity of an optimizer in advance, optimal subcomponent size still requires empirical analysis.
Random grouping and delta grouping decomposition methods decompose an ndimensional problem into k sdimensional subproblems. However, the major drawback of these approaches is to determine the value of k or s. When the objective function has large groups of interacting variables, a small s value can decrease algorithmic performance. In contrast, when the objective function has several small groups of interacting variables, a large s value cannot ensure proper utilization of decomposition techniques. Although MLCC [40] solves the problem of specifying the value of s through the use of a decomposer pool with a set of possible s values, it still needs to determine the set of potential s values. In addition, selecting an s value in MLCC divides the decision variables into a set of equallysized subcomponents, which is unlikely to have equallysized interacting groups for most realworld problems. To overcome these limitations, an automatic decomposition method, differential grouping (DG) was introduced by Omidvar et al. in 2013 [44]. DG starts investigating the interaction of the first decision variable with the rest of the variables in a pairwise fashion based on the definition of partially additively separable functions. When DG identifies an interaction between the first variable, and any variable, it removes that variable from the set of decision variables and places it in a subcomponent. This process is iterated until all other interactions between the rest of the variables and the first variable is identified and the first subcomponent is built. When no interaction is found, the variable is assumed separable. The entire process is iterated for the rest of the variables to find interactions for all decision variables. Even though DG achieves promising performance in decomposing a large problem into multiple subproblems by grouping interacting variables together, it has some drawbacks, namely, not detecting overlapping functions, being slow to check all interactions, requiring a threshold parameter, and being sensitive to the choice of the threshold parameter.
DG can identify the decision variables, which interact directly, and to identify the indirect interactions between the decision variables, an extension of DG, extended DG (XDG) was proposed by Yuan et al. in 2015 [45]. In XDG, first the variables with direct interactions are grouped to the subcomponents and then the overlappings between subcomponents are detected. When an overlap is detected, the subcomponents with same decision variables are combined. XDG may perform poorer in terms of identifying the interaction among multiple variables. Besides, XDG cannot model the decomposition problem formally, and it inherits the sensitivity issue of DG. To overcome these drawbacks, in 2016, Yingbiao et al. [15] proposed another improvement of DG, called graphbased DG (gDG). This gDG starts by identifying all separable variables and allocating them into the same group. Here, each decision variable is considered as a vertex, and an edge is an interaction between two variables. A graph is then constructed from this arrangement to model the decomposition problem, and the connected components are identified.
In 2016, Mei et al. [46] proposed a global differential grouping (GDG) approach to improve the accuracy of the DG algorithm by adopting the DG mechanism and by maintaining the global information in terms of the interaction matrix between decision variables. In addition, GDG also considers computational error. The authors identified three drawbacks of DG: (1) the comparison between the variables is incomplete; (2) it tends to miss several interactions between decision variables, being the grouping performance sensitive to a threshold parameter; and (3) it cannot work appropriately with fully separable functions or when the functions have a large portion of separable variables. To overcome these limitations, GDG uses three different measures: interaction, independence, and interaction and independence combined. GDG can detect variable dependency and can isolate them into the same groups more accurately. GDG overcomes the sensitivity issue of DG by considering computational errors. However, it is not suitable for imbalanced functions because of the global parameter to identify all interactions.
DG uncovered variable interdependency for making nearoptimal decomposition with the cost of ignoring indirect nonseparable interactions. XDG and GDG solved the indirect nonseparability problem; however, they both need high computational cost for the interaction identification process. This leads to a suboptimal performance in the following optimization process. The identification process required substantial computational time because of using a pairwise fashion to detect the interactions by most of the algorithms. To address this, a fast interdependency identification (FII) algorithm was proposed by XiaoMin et al. in 2016 [11]. FII performs the decomposition by identifying the interdependency information for separable and nonseparable variables. When nonseparable variables are discovered, their interdependency is further investigated. FII requires no complete interdependency for nonseparable variables, because it avoids interdependency identification in a pairwise fashion. As a result, FII can save a significant number of fitness evaluations for the following optimization process. The nearoptimal decomposition can thus be obtained at a small computational cost.
DG is a breakthrough for largescale problem decomposition. However, it has a number of drawbacks, and to address these, several improvements have been proposed based on DG. Similarly, another improvement of DG, called DG2, has been proposed by the same research group who introduced DG [47]. For fully separable functions, DG2 reduces the number of fitness evaluations by half. This, in turn, supports the algorithm to check every pair of interacting variables at a significantly lower computational cost compared to the previous approaches. The overlapping functions can be effectively identified by testing all pairs of variables interaction. If the DG mechanism is used to develop DG2, a systematic generation of sample points maximize the point reuse, which provides lower bound to detect the interactions. Beyond efficiency, grouping accuracy of DG is also improved significantly with DG2. Since DG2 considers the computational roundingerrors to estimate an appropriate threshold level, it can determine the sensitivity to weak variable interactions. The automatic calculation of the threshold value is useful to deal with imbalanced functions. Furthermore, unlike DG, DG2 does not require an external parameter.
Because previous decomposition algorithms required a large number of fitness evaluations (otherwise failed to obtain proper decomposition results), a historical interdependency based differential grouping (HIDG) was proposed in 2018 [12]. Similar to FII, HIDG also uses decision vectors to investigate the interdependencies among vectors in a systematic way. Based on the historical interdependency information, HIDG proposes a criterion to infer interactions for decision vectors without using extra fitness evaluations. To reduce the computational expense of the decomposition algorithm, a recursive differential grouping (RDG) method was proposed by Yuan et al. in 2017 [10]. RDG considers the interaction between decision variables depending on nonlinearity identification. It recursively analyzes the interaction between variable \(x_i\) and the rest of the variables. When an interaction is detected, the rest of the variables are divided into two groups of equal size. Then the interaction between variable \(x_i\) and each group is examined. The process is repeated until all independent variables that interact with \(x_i\) are detected and placed into the corresponding subcomponent as \(x_i\). The analytical methods validate the effectiveness of RDG without the need to examine the variable interactions in a pairwise fashion.
Another improvement of DG was proposed to overcome its drawbacks regarding the threshold parameter and identify indirect interaction, called \(\varepsilon \)based DG (\(\varepsilon \)DG) [8]. In general, \(\varepsilon \) is a predefined threshold value, and \(\varepsilon \) is zero [44]. According to DG, when delta \(> \varepsilon \), the decision variables are considered nonseparable; otherwise, they are separable. However, authors of \(\varepsilon \)DG experimented and observed that \(\varepsilon = 0\) is ineffective because \(\varepsilon > 0\) also occurs with separable variables, i.e., setting \(\varepsilon = 0\) can classify a few decision variables to be nonseparable, which are supposed to be separable. \(\varepsilon \)DG detects that delta \(> 0\) for two separable variables are resulted from a computational error. Hence, \(\varepsilon \)DG first checks whether delta \(> 0\) is resulted from an interaction or computational error. If it results from a computational error, delta is set to zero, which can solve the configuration issue of \(\varepsilon \). In \(\varepsilon \)DG, an n \(\times \) n DG matrix (DGM) is constructed to represent the interactions between every pair of decision variables. The DGM is able to identify both direct and indirect interactions by setting an element of DGM to zero when there is no interaction between two associated variables; otherwise, it sets to a nonzero value.
Based on the concept of partial derivatives of multivariate functions, GDG has been proven to be an effective grouping strategy in automatically resolving the problem by the global information between variables. However, the grouping results of GDG are no longer updated once GDG decomposed a problem into subproblems and it is not automatically adjusted throughout the algorithmic evolution process. Hence, to resolve the problem by updating the grouping results throughout the evolutionary process, an improvement of GDG was proposed by Wu et al. in 2018 [48], called Dynamic GDG (DGDG). Based on GDG, in DGDG, the original data matrix of interacting variables is obtained from the general idea of the partial derivative of multivariate functions. The fuzzy clustering technique is used to discern the dynamic clustering of decision variables during the standardization of the original data matrix and to build the fuzzy relation matrix. The size of each group of interacting variables is limited by the lower and upper bounds of the variable grouping scale. The grouping of variables has been adaptively adjusted according to the algorithmic state throughout the optimization process.
In terms of time complexity, RDG is a very effective decomposition method. However, to identify whether two subsets of variables interact, a proper parameter setting is required to determine a threshold value. Furthermore, one global threshold value may not be sufficient for determining interactions of variables in subcomponents having a dissimilar contribution to the fitness value. To solve these problems, a decomposition method inspired by DG2 and RDG was proposed, called RDG2 [49]. In RDG2, the threshold value is adaptively estimated based on the computational roundoff errors of RDG. An upper bound of the roundoff errors can be adequate to distinguish between separable and nonseparable variables of largescale benchmark problems. Besides, experimental results have shown a higher decomposition accuracy of RDG2 compared to RDG and DG2.
All the preceding decomposition algorithms usually group linked or interacting variables into the same group. However, this does not tend to reduce the size of the original problem. Moreover, overlapping problems pose a further challenge to the decomposition algorithms because of the dependency of the components on each other. To address these issues, the RDG decomposition algorithm has been further modified for decomposing overlapping problems. This new algorithm, RDG3, breaks the linkage at variables, which is shared by more than one component. The performance of RDG3 has been evaluated by overlapping benchmark problems, which confirmed its superiority over RDG and other decomposition algorithms [50]. Table 2 presents a summary of the papers reviewed on problem decomposition techniques with key features.
From the literature, it has been observed that problem decomposition techniques fall into two categories [11, 51]:
Static decomposition A problem is decomposed into subproblems before the evolutionary process of CC starts, and the decomposed subproblems are fixed for the rest of the generations [11]. In the original CC implementation (CCGA), a problem of ndimension was divided into n onedimensional subproblems [34]. With this onedimensionalbased decomposition, CCGA performed better on separable problems than on nonseparable problems (in CCGA, Rosenbrock was used as a nonseparable problem). This concluded two major problems of static onedimensionalbased decomposition. First, the search capacity of CC may degrade drastically if there are interdependencies exist between the subcomponents. Second, onedimensional decomposition may waste computational resources during the evolutionary process. The splittinginhalf static decomposition method cannot handle nonseparable problems properly either [38]. By exploring the interdependency information in the problem, a number of detectionbased static decomposition techniques proposed to make the nearoptimal decomposition. Examples of such static decomposition methods include CCVIL [31], DG [44], XDG [45], GDG [46], RDG [10], DGDG [48], RDG2 [49], and RDG3 [50]. These methods are also called automatic decomposition strategies as they undertake the variable interactions to group the variables [10].
Dynamic decomposition A problem is decomposed into multiple subproblems at the start. However, it has the ability to adapt the subcomponents during the evolutionary process, i.e., the decision variables can be regrouped into subcomponents in each cycle of the evolutionary process [11]. RG is a typical example of a dynamic decomposition technique [39]. In RG, at the start of each evolutionary process, two interacting decision variables have a nonzero probability of being grouped in the same subcomponent. However, as the number of interacting variables increases, RG becomes incapable of grouping all the interacting variables in the same group. Other approaches to improve the performance of dynamic decomposition techniques are also available including MLCC [40], DECCML [14], and delta grouping (DECCD) [28].
The previous extensive literature review on problem decomposition approaches using CC found that the problem decomposition techniques have been widely used, improved, and evaluated on a range of benchmark functions. Apart from these strategies, a number of decomposition methods have also been studied in the literature with CC for some realworld problems. For example, a randombased dynamic grouping method was proposed to group variables for multiobjective optimization problems, which uses a decomposer pool similar to MLCC [40]. In this method, the decomposer pool consists of several groups of varying sizes, and the size is determined by Cmetric based on historical performance [52]. A weighted random (WR) grouping strategy proposed for largescale crossing waypoints location problem (a fully nonseparable and nondifferentiable problem) in air route networks where the space of the problem was updated by extreme weather conditions, breakdowns, and delayed aeroplanes [53]. A Markov random fieldbased decomposition method proposed to solve the stochastic flexible job shop scheduling problem for minimizing the expectation and variance of makespan [54].
Because the number of existing work on FS using CC is limited, problem decomposition techniques using CC for FS are also limited in the literature. A quantuminspired selfadaptive CC incorporated into shuffled frog leaping algorithm was proposed by Ding and Wang in 2013 to reduce the number of attributes [55]. In this framework, the attribute sets were divided into subsets using a selfadaptive technique that selects a decomposer from the decomposer pool based on their historical performance records. The performance of this approach was evaluated on global optimization functions and UCI datasets. Recently, in 2019, Wang et al. [29] proposed a twostage decomposition approach (CCFS/TD) based on CC for FS on highdimensional classification problem. In the first stage, CCFS/TD decomposes the evolutionary cycle into m levels and performs optimization. In the second stage, the evolutionary cycle of each level is further decomposed into a number of independent processes using a majority voting technique. The effectiveness of the proposed CCFS/TD method has been validated by experiments on 10 benchmark datasets. A study by Sun et al. in 2015 [9] on the selection of decomposition methods for largescale fully nonseparable problems performed experiments on decomposition techniques using RG, delta grouping, DG, and XDG. This study observed that RG is the most effective decomposition method for fully nonseparable problems. Because FS problems are fully nonseparable, based on the motivation from the study of [9], in the next section of this paper, a randombased decomposition method, called random feature grouping (RFG) is proposed with three variants.
A novel feature selection approach
In this paper, a CCbased FS framework is introduced with a proposed random feature grouping (RFG) decomposition technique, Cooperative CoEvolutionaryBased Feature Selection with Random Feature Grouping (CCFSRFG). The motivation to propose RFG comes from the success of the random grouping decomposition strategy for nonseparable function optimization problems and because the feature selection problem is a nonseparable optimization problem [9, 13, 14, 39, 56]. CCFSRFG has been applied to the FS problem in Big Data using six widely used ML classifiers, naïve Bayes (NB) [57], support vector machine (SVM) [58], kNearest Neighbor (kNN) [59], J48 [60], random forest (RF) [61], and logistic regression (LR) [62], on seven different datasets from the UCI ML repository.^{Footnote 3} At first, the ML classifiers have been applied to all datasets without reducing the number of features. After that, CCFSRFG with two variants, is applied to all classifiers for reducing the number of features of the datasets. A penaltybased wrapper objective function defined in a previous study has been used as the fitness function in the CCFSRFG framework to deal with the twofold objectives of FS (reducing the dimension of features, and improving classification performance) in process in Big Data. The comparative results have been analyzed based on different performance measures, including accuracy, sensitivity, and specificity [63].
Cooperative coevolution
In 1994, Potter and De Jong [34] introduced the cooperative coevolution (CC) technique to solve optimization problems, which are largescale and complex. This technique uses a divideandconquer approach to divide a large problem into multiple subproblems, and iteratively evolves the interacting coadapted subproblems to build a complete solution.
The CC technique consists of decomposing an ndimensional problem of search information \(S = \left\{ 1, 2, \ldots , n\right\} \) into m subproblems \(\left\{ S_1, S_2, \ldots , S_m\right\} \) [34]. Each subproblem of the n dimensions represents a new search space \(SP^{\left( i\right) }\) for a particular problem, where the rest of the dimensions \(n_j\), with \(j\ne S_i\), are kept fixed. Hence, the entire search space is decomposed into m subproblems with lower dimensions and that can be handled using any populationbased evolutionary computational approach. These subproblems can be optimized individually, and communication between them is required only to evaluate the objective (fitness) function f. This implies that a candidate solution in search space \(SP^{\left( i\right) }\) contains a few elements (comprising an individual I) of the ndimensional problem (\(I \in SP\)). Therefore, in CC, a common ndimensional context vector v is required to build using a collaborative individual (e.g., the current best individual) from each subproblem. A candidate solution to the problem is then formed by a cooperative algorithm to evaluate an individual in a subproblem, a candidate solution is built by joining representative collaborators from the context vector. Potter and De Jong decomposed an ndimensional problem into n 1dimensional subproblems in their original CC idea. In general, the ndimensional problem can be decomposed into m subproblems with same dimension, i.e., \(n_m = n/m\) [64]. Following this, a CC technique can be formally defined as follows [65]:
An ndimensional problem is decomposed as:
and the context vector is built as:
where \({v^{\left( i\right) }}\) is the \(n_m\)dimensional problem, which represents the collaborative individual from the ith subproblem (e.g., the current best individual in \(SP^{\left( i\right) }\)):
Given the jth individual \(I^{\left( i, j\right) } \in SP^{\left( i\right) }\) of the ith subproblem:
The fitness function of this problem is given by \(f\left( v^{\left( i, j\right) }\right) \), where \(v^{\left( i, j\right) }\) is defined as:
In general, the fitness of \(v^{\left( i, j\right) }\) is evaluated on context vector v by replacing the elements of the individual from the ith subproblem having the representative elements of individual \(I^{\left( i, j\right) }.\)
CC is therefore comprised of three main phases: (1) problem decomposition, (2) subproblem evolution, and (3) collaboration and evaluation.
Problem decomposition
The first phase of CC is how to decompose a large problem into subproblems generally depends on the problem structure [30]. If the problem is decomposed statically, it will have one element in each subproblem, whereas if the problem is decomposed dynamically, the grouping of elements into subproblems will be different than with the former. One objective of this paper is to review existing CCbased problem decomposition techniques and propose a suitable decomposition method for feature selection. Hence, CC problem decomposition is described in detail in "Literature review" section.
Subproblem evolution
Once the problem is decomposed into subproblems, each subproblem is allocated to a subpopulation. Each subpopulation is optimized individually either through a homogeneous or a heterogeneous evolutionary optimizer [30]. Optimizations of subpopulations can be carried out either sequentially or in parallel. In the sequential case, only one subpopulation evolves in each generation [66]. In contrast, in the parallel case, all subpopulations evolve in each generation simultaneously [67]. The most widely used evolutionary optimizer in this area is a genetic algorithm (GA), whereas differential evolution (DE) [68] is the most effective optimizer for CC.
Collaboration and evaluation
After subproblem optimization, subpopulations cooperate to build a complete solution to the problem. The fitness (objective function) of an individual is evaluated by selecting a collaborator individual from each subpopulation. The performance of this collaboration is specified as the fitness value to a individual being evaluated. Individuals having the best collaborating performance are joined together to discover the final solution to the problem at the end of a CC process [30]. 1 + 1 collaboration [37], the 1 + N collaboration model [69], and reference sharing (RS) [30] are examples of collaboration models used in CC.
Methodology
In this paper, a CCbased feature selection framework in Big Data with a random feature grouping (RFG) is introduced, called CCFSRFG. Considering correlations to be linearly associated with a dataset’s records, for example, in a network traffic dataset, a correlation measure, such as a linear correlation coefficient, can be applied to measure the linear dependency between two random features. However, there are many realworld problems where the correlation between the features can be nonlinear as well. Therefore, a linear correlation study cannot measure the nonlinear dependency between two features. As a consequence, irrespective of whether the dependency between two features is linear or nonlinear, selecting a subset of features from the dataset that maximize classification accuracy is more appropriate [70]. Accordingly, the feature selection framework, CCFSRFG, with FRG as a decomposer, is proposed to select a suitable subset of features without considering its correlation. The RFG will increase the chance of optimizing interacting features together. The proposed methodology of CCFSRFG is displayed in Fig. 1.
The main idea behind this new RFGbased cooperative coevolution feature selection (CCFS) framework is to dynamically decompose the feature vector into msdimensional subdatasets \(\left( n = m \cdot s\right) \). The fundamental difference between this new approach and the previously studied CCEAFS [19] approach is that CCFSRFG decomposes the feature vector dynamically to increase the probability of grouping interacting features together for subsequent optimization phase, which can lead to improving solution quality; while CCEAFS decomposes the feature vector statically starting from the feature indexed at 1, which cannot ensure the grouping of interacting features and may result in a lowquality solution. Formally, the proposed CCFSRFG can be described as follows:
A dataset D consisting of n features, i.e., \(D = \left\{ f_1, f_2, f_3, \ldots , f_n\right\} \). D is decomposed randomly into m subdatasets with \(s \left( s < n\right) \) features in each subdataset:
Each subdataset is represented using a subpopulation in CCFSRFG. Here, s is the number of features in each individual (i.e., s features of a subdataset). Consider the size of each subpopulation (sp) is sz. An example of subpopulation \(sp_1\) consisting s individual can be the following:
1 in an individual indicates that the feature in the corresponding is selected for the feature subset selection; 0 indicates that the feature is not selected for the feature subset selection. An individual in any subpopulation is evaluated by joining collaborators (i.e., individuals) from other subpopulations. For example, to evaluate individual \(ind_1\) in subpopulation \(sp_1\), s.t. collaborator \(ind_3\) from subpopulation \(sp_2\) and collaborator \(ind_2\) from subpopulation \(sp_3\), these three individuals are joined together to build a complete solution for the dataset with a reduced number features. Consider a random decomposition of 9 features into three subpopulations \(\left( s = 4\right) \), is assumed with \(sp_1\left\{ ind_1\right\} \) = \(\left\{ f_3, f_9, f_7, f_2\right\} \), \(sp_2\left\{ ind_2\right\} \) = \(\left\{ f_6, f_1, f_5, f_8\right\} \), and \(sp_3\left\{ ind_4\right\} \) = \(\left\{ f_4\right\} \). If features \(\left\{ f_7, f_2\right\} \) from \(sp_1\left\{ ind_1\right\} \), \(\left\{ f_1, f_5\right\} \) from \(sp_2\left\{ ind_2\right\} \), and \(\left\{ f_4\right\} \) from \(sp_3\left\{ ind_4\right\} \) are selected because of a binary (0 or 1) representation of features, the complete solution with sorted feature indices can be defined as follows:
The solution with this reduced number of features is then evaluated by the ML classifiers to measure accuracy, sensitivity, and specificity performance. The best individual with a reduced number of features and the highest classification accuracy is achieved by a penaltybased wrapper objective function introduced in the previously studied CCEAFS approach [19]. The objective function for this is defined as:
where \(f_1 = T_c / T\) and \(f_2 = S / N\).
f is the overall objective function; \(w_1\) and \(w_2\) are two control parameters for the objective functions \(f_1\) and \(f_2\), which are used to adjust the penalty term for \(f_1\) and \(f_2\), with \(w_1\) + \(w_2\) = 1; T is the total number of test or train samples in the dataset (the test or train samples depend on the classification mode of using crossvalidation or the supplied test set);
\(T_c\) is the number of correctly classified instances in the test or train samples; S is the number of features selected in the subset; and N is the total number of features in the dataset.
For CCFSRFG1, the best individuals from other subpopulations are used as collaborators from generation 1 onwards, whereas in the case of CCFSRFG2, for all generations, random individuals from other subpopulations are used as collaborators. The process continues until it reaches a fixed number of generations, or until no better fitness is achieved over the generations.
Datasets from the UCI ML repository have been gathered, and Microsoft Excel and WEKA^{Footnote 4} used to preprocess the datasets. The preprocessing stage mainly deals with the dataset conversion from CSV to the AttributeRelation File Format (ARFF) to make it compatible with the experimental environment. The datasets were evaluated using six ML classifiers: NB, SVM, kNN, J48, RF, and LR. The performance of these classifiers was measured in terms of accuracy, sensitivity, and specificity. CCFSRFG was employed to the datasets to decrease the number of features. The datasets with reduced dimensions were then evaluated using the same six ML classifiers, and the performance of each classifier was measured using the aforementioned metrics. The performance results obtained by the classifiers with and without FS were investigated, and the effect of FS on the performance of the classifiers was analyzed.
Algorithms 1–2 are the pseudocodes of the proposed CCFSRFG framework with two implementations of RFG. The fundamental difference between algorithms CCFSRFG1 and CCFSRFG2 has been indicated by line 32 in Algorithm 1 and line 26 and 33 in Algorithm 2, respectively. A JAVAbased implementation of the framework is available at GitHub.^{Footnote 5}
In the next section, a new novel random feature grouping (RFG) is proposed with its three variants to used as the decomposer for CCFSRFG for decomposing the dimension of a dataset into lowerdimensional subdatasets.
A novel random feature grouping technique
The n 1dimensional decomposition strategy groups a single feature into a single subcomponent. For example, if there are 9 features in a dataset, the 1dimensional grouping will be like the following for i individuals for every generation:
For each generation of an evolutionary process, the grouping will be fixed. Similarly, an \(m\cdot s\)dimensional dataset (m = 3 subcomponents, s = 4 features in a subcomponent) can have the following grouping with 9 features for all individuals in every generation:
Similar to n 1dimensional grouping, a \(m\cdot s\)dimensional grouping also maintains the same group components throughout the evolutionary process.
The proposed random feature grouping (RFG) can group features in dataset into different groups using three different ways based on the motivation from [9, 14, 35, 39].
RFG1
An ndimensional dataset is decomposed randomly into msubcomponents and the features in the subcomponents are fixed for every generation. For example, if a dataset has 9 features, the RFG1 groups 9 features into 3 subcomponents \(\left( s = 4\right) \) features) in the first generation for i individuals the following way:
This will be maintained within the same group components for all individuals and for all generations (from 0 to g), i.e., the groups will be fixed for further generations and only a single time at the start of an evolutionary process, the problem will be decomposed randomly into subproblems. Theorem 1 states the probability of grouping interacting features using RFG1.
Theorem 1
Given I individuals, the probability of grouping v interacting features \(\left\{ f_1, f_2, \ldots , f_v\right\} \) into a single subcomponent for at least i individuals in any generation based on the probability function of more frequent grouping for function optimization problems can be defined as [14]:
where I is the number of individuals, v is the number of interacting features, s is the number of subcomponents (i.e., number of subproblems or number of subpopulations), random variable F is the number of times v interacting features are grouped into the same subcomponent, \(F \geqslant i,\) and \(i \leqslant I.\)
Here, the term \({\left( \frac{1}{s^{v1}}\right) }^r\) indicates the probability of grouping v features into a single subcomponent for the first r individuals, and the term \({\left( 1  \frac{1}{s^{v1}}\right) ^{I  r}}\) indicates the probability of grouping the same number of v features into a subcomponent for the remaining \(Ir\) individuals. The proposed RFG1 approach implies that the grouping components will remain the same for every individual, and this is why the value of r is 1 here.
Therefore, the probability of grouping v interacting features \(\left\{ f_1, f_2, \ldots , f_v\right\} \) into a subcomponent irrespective of the number of individuals in any generation by RFG1 is defined as:
For example, given s = 3 and v = 4: \(P\left( F \geqslant i\right) = {\frac{1}{3^{41}}} = 0.03704\); for s = 3 and v = 5: \(P\left( F \geqslant i\right) = {\frac{1}{3^{51}}} = 0.01235\). This means that if the number of interacting features increase, the probability decreases. Figure 2 shows the probability of grouping interacting features randomly into a single subcomponent with the increase in the number of interacting features for any individual in any generation of an evolutionary process.
It can be observed from the graph that since in RFG1, the features are grouped randomly only once at the beginning of an evolutionary process, the probability of grouping 9 features tends to zero irrespective of the number of individuals. However, if the number of interacting features is small, the probability of grouping is large, which is independent of the number of individuals shown in Fig. 2. The figure shows that when the number of interacting features is about 10, the probability of grouping these features into a single subcomponent is nearly zero. The probability of grouping interacting features randomly into a single subcomponent in term of the number of individuals in any generation of an evolutionary process is shown in Fig. 3. It can be seen that since the features are grouped randomly only once at the beginning of the evolutionary process, for any number of interacting variables, the probability will not be changed. For example, whether the number of individuals is 0 or 100, for \(v = 3\), the probability remains the same.
Algorithm 3 is the pseudocode of the proposed random feature grouping technique (RFG1).
RFG2
An ndimensional dataset is decomposed randomly into m subcomponents in every generation unlike RFG1, in case of which the dataset is decomposed randomly only once. However, similar to RFG1, in RFG2, all individuals will have the same features in the same subcomponents for any given generation. For example, for a dataset with 9 features, if the first generation follows the grouping of features for all individuals as illustrated in the case of RFG1, the RFG2 groups 9 groups into 3 subcomponents (s = 4 features) in the second generation randomly as follows:
In this strategy, in each generation, feature grouping will be changed and there will be a probability for every feature to be a subcomponent with interacting features. This will also increase the selection probability of a feature into the feature subset selection. RFG2 can ensure the grouping of any number of interacting features in a subcomponent similar to RFG1. Therefore, Theorem 1 holds not only for RFG1, but also for RFG2, in terms of defining the probability of grouping interacting features.
Algorithm 4 is the pseudocode of the proposed random feature grouping technique (RFG2).
RFG3
An ndimensional dataset is decomposed randomly into m subcomponents in every generation and all individuals have the same features in the various subcomponents in each generation. For example, if a dataset has 9 features, RFG3 groups 9 groups into 3 subcomponents \(\left( s = 4\right) \) for all generations randomly and for all individuals with random features as follows:
In this method, in each generation, the grouping of features will be changed for all individuals. RFG3 can increase the probability for every feature to be a subcomponent with interacting features and can also increase the selection probability of features into subset selection. RFG3 can ensure the grouping of any number of interacting features in a subcomponent similar to the more frequent random grouping (DECCML) [14], which is often used for grouping interacting variables for function optimization problems. Equation (10) also holds for RFG3, which is adapted from [14].
For example, for i = 30, s = 3 and v = 4,
For i = 30, s = 3 and v = 5,
This means that over 30 individuals, the probability of grouping 4 interacting features into a single subcomponent for at least one individual is about 0.68, whereas for 5 interacting features, it is approximately 0.31. This indicates that the probability of grouping interacting features will be lower if the number of interacting features increases over the number of individuals. Figure 4 shows the probability of grouping interacting features randomly into a single subcomponent with the increase in the number of interacting features. As seen in the case of RFG1, from Fig. 4, it can be observed that if the number of interacting features is 10, the probability of grouping these features tends to be zero. However, with the same number of interacting features, the probability is increased for at least one cycle significantly with more individuals.
Figure 5 illustrates the effect of increasing the number of individuals I on grouping with an increased number of interacting features into one subcomponent. It can be observed that a random grouping for every individual can increase the probability of grouping interacting features into a single subcomponent regardless the number of interacting features. For instance, for \(v=2, 3\), and 4, the highest probability of grouping features into a single subcomponent can be observed with 100 individuals.
Results and discussions
To evaluate our algorithms, experiments have been performed on seven datasets, which have been collected from the publicly available UCI machine library repository.
Dataset details
Table 3 lists the datasets used in the experiments.
The seven different datasets have been used with increasing complexities. The datasets have been selected with a dimensionality between 30 and 2000 and samples between 62 and 8992. These include datasets with a low number of features, datasets with a high number of samples, and datasets with a high number of features and datasets with a low number of samples. Dataset descriptions can be found in the UCI ML Repository and Princeton University Genomics Repository.
The CC parameters
The common CC parameters used in the experiments are listed in Table 4.
The problem decomposition parameters used in the experiments are listed in Table 5.
The common GA parameters used in the experiments are listed in Table 6.
In the case of GA optimization, the binary representation of the population is used, in which a binary 1 indicates that a feature is selected and a binary 0 indicates that a feature is not selected from the dataset. Subpopulations were initialized randomly at generation 0. For CCEAFS and CCFSRFG1, in generation 0, since there is no previous history, to evaluate an individual in a subpopulation, random collaboration has been performed to collaborate with individuals from other subpopulations. In the subsequent generations, the best individuals from the previous generation were used as the collaborators for evaluating an individual in a subpopulation. For CCFSRFG2, in every generation, a random collaboration was performed to collaborate with individuals from other subpopulations. Collaboration performance, i.e., the fitness value was assigned to the individual being evaluated. The best individuals were combined from all subpopulations to obtain the best individual in a generation. To evaluate an individual in any subpopulation, the parameters for weightings \(w_1\) and \(w_2\) were set to 0.6 and 0.4, respectively. A maximum number of 10,000 generations were allowed as a terminating condition for the evolutionary process while verifying that there is no further improvement in the fitness value. In the case of CCEAFS, the lack of further improvement check was checked over 50 consecutive generations, and for CCFSRFG, over 100 consecutive generations.
Evaluation measures
The quality of a machine learning model is usually measured by multiple evaluation metrics. In this article, these are accuracy, sensitivity, and specificity.
Performance evaluation of classifiers with CCFSRFG
For the experiments, six widely used classifiers (NB, SVM, kNN, J48, RF, and LR) have been used. First, the datasets have been tested with these classifiers without feature selection. Second, CCFSRFG1 and CCFSRFG2 have been used to reduce the number of features in the datasets. All six classifiers have been used to evaluate the performance of dimensionality reduction, i.e., feature selection for five datasets and because of higher computational resource requirement, only naïve Bayes has been applied to the QSAR Oral Toxicity and Colon Cancer Dataset. Figures 6, 7, 8, 9, 10, 11, 12 show the comparative performance evaluation of classifiers using FS on each dataset in terms of accuracy, sensitivity, and specificity.
Simulation results from Fig. 6 on the Wisconsin Breast Cancer Dataset show that the use of RFG in CC decomposition significantly improves the performance of both variants of the CCFSRFG framework compared to the static decomposition of CCEAFS.
It can be observed that all classifiers are equally good in terms of accuracy, sensitivity, and specificity when using CCFSRFG compared to using CCEAFS. The highest classification accuracy of 96.49% was achieved by the LR classifier when combined with CCFSRFG2. The specificity measure was similarly better for CCFSRFG variants than the specificity obtained using CCEAFS. With the exception of SVM + CCFSRFG2, the sensitivity obtained by the CCFSRFG variants was better than that of CCEAFS. While CCFSRFG1 and CCFSRFG2 both perform comparatively better than CCEAFS, CCFSRFG1 is the better of the two in most cases.
The performance measures of all classifiers using FS on the Dermatology Dataset in Fig. 7 indicate that with the exception of the kNN and J48 classifiers, all classifiers perform better with RFG variants than the static decomposition of CCEAFS.
The classification accuracy for this dataset was obtained by NB + CCFSRFG2, which is 97.54%. With kNN + CCFSRFG2, a 3% reduction in accuracy was observed, and a similar reduction (about 2%) was noted with J48 + CCFSRFG1. A few cases, for example, SVM + CCFSRFG1 and RF + CCFSRFG1, resulted in a 100% sensitivity. In the case of kNN + CCFSRFG2 and LR + CCFSRFG2, not only sensitivity was 100%, but also specificity.
According to the performance results of all classifiers with an FS on Divorce Dataset (see Fig. 8), it can be seen that in terms of accuracy, NB, SVM, kNN, J48, and RF in collaboration with CCFSRFG1 perform better than the other variant and CCEAFS.
In the case of LR, it equally performs good in terms of accuracy using CCEAFS and CCFSRFG1. The highest classification accuracy achieved by most of the classifiers was almost 100%. In a few cases, for example, NB and SVM, the same accuracy was achieved by CCEAFS and CCFSRFG2. It is clear that except kNN + CCFSRFG2, J48 + CCFSRFG2, and LR + CCEAFS, a 100% sensitivity was achieved by the feature selection process. However, the specificity achieved is smaller compared to other performance measures, which is especially true for SVM + CCFSRFG2 (65.24%).

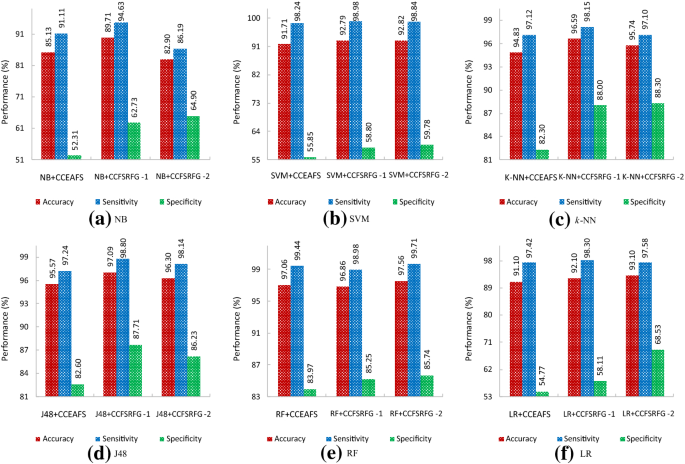

Figure 9 illustrates the performance results of all classifiers with feature selection on Musk Dataset.
From this simulation, it can be observed that the highest classification has been obtained by the RF classifier when applied with CCFSRFG1 (97.56%). In terms of static decomposition (CCEAFS) and dynamic decomposition (CCFS with a variant of RFG), it can be seen that in most cases, the dynamic decomposition perform better than the static decomposition in all measures, except two cases in which the performance measures have not been reduced significantly (e.g., NB + CCFSRFG2 and RF + CCFSRFG1). Apart from classification accuracy, the sensitivity achieved by all classifiers was above 90%; however, specificity was only between 54.77 and 88.30%.
The performance evaluation results of classifiers on the Pulmon Dataset are displayed in Fig. 10.
The figure shows that a 100% classification can be achieved by SVM, kNN, and LR classifiers when they are used with a dynamic decomposition (RFG1 or RFG2) technique. In all cases, CCFSRFG1 performs better than CCEAFS except by RF where it equally performs good with CCEAFS. However, CCFSRFG2 performs equally better only in the case of the SVM classifier. In a few cases, CCFSRFG2 performs slightly better than CCEAFS. With the exception with J48 classifier, in all other cases, the sensitivity and the specificity obtained by each classifier were 100%.
The NB classifier performance on the QSAR Oral Toxicity Dataset in Fig. 11 shows that in terms of accuracy and sensitivity, all feature selection approaches are equally good. However, it also shows that the RFG1 variant in the CCFS framework performs better in terms of the aforementioned measures. In contrast, the CCFSRFG1 results in a much lower specificity compared to CCEAFS and CCFSRFG2. The highest accuracy, sensitivity, and specificity achieved by the NB classifier on this dataset were 92.55%, 97.62%, and 58.03%, respectively.
Figure 12 shows the performance of the NB classifier on the Colon Cancer Dataset in terms of accuracy, sensitivity, and specificity.
In this case, the random grouping with its two variants in CCFS framework perform equally better than the static decomposition in the CCEAFS framework. Within the CCFSRFG variants, CCFS with RFG1 performs much better than the CCFS with RFG2. The accuracy, sensitivity, and specificity obtained by CCFSRFG1 were 88.71%, 82.50%, and 100%, respectively.
The experimental results for all of the datasets used in this paper are summarized in Tables 7, 8, 9, 10, 11, 12, 13.
Table 7 shows the summary results for the Wisconsin breast cancer dataset.
The table indicates that all classifiers are equally good in terms of accuracy, sensitivity, and specificity measures when they are used with CCbased FS framework with RFG1 and RFG2, with an exception of SVM, the classifier performs better without using feature selection. It can be observed that the feature reduction rate varies among the classifiers. For example, both CCEAFS and CCFSRFG1 reduce features in the dataset by 93.33% with the NB, RF, and LR classifiers, and 90% with SVM and kNN. Although J48 can reduce features in the dataset by 96.67% when combined with CCEAFS, a higher performance can be achieved when combined with CCFS and RFG variants. In most cases, CCFSRFG2 achieves higher performance results, however, the feature reduction rate is not lower compared to the other variant and CCEAFS.
The summary of results for the Dermatology Dataset is listed in Table 8.
From the table, it can be observed that all classifiers are equally good in terms of accuracy, sensitivity, and specificity, regardless whether they are used with or without CCFS. However, when the classifiers are used with CCFS, a feature reduction rate between 70.59 and 85.29% can be achieved. CCFSRFG1 reduces the number of features by 1 to 3 features; however, CCFSRFG2 cannot reduce the number of feature significantly to CCEAFS.
From the summary results of the Divorce Dataset in Table 9, it can be observed that all classifiers result in a higher performance in terms of accuracy, sensitivity, and specificity when used with CCFSRFG1, and the number of features is reduced to only 2, except for SVM, where the number of features is 3. The rate of feature reduction varies between 75.93 and 96.30%.
The summary of results for the Must Dataset in Table 10 indicates that in terms of accuracy, sensitivity, and specificity, NB, kNN, and J48 can achieve the highest classification accuracy with a much reduced number of features when combined with CCFSRFG1.
The other classifiers can also reduce the number of features to a very low level without significantly reducing classification accuracy and other measures. The maximum number of features can be reduced by RF + CCFSRFG1 (from 166 to only 7) with a reduction rate of 95.78%. Overall, the feature reduction rate by the classifiers varies from 87.95 to 95.78%, when they are used with a feature selection process with RFG1, which clearly indicates superior performance over CCEAFS approaches. While the number of feature reduction by CCFSRFG2 lies between 56 to 65, classification accuracy is higher than CCEAFS in most cases, although at the cost of more number of features for CCFSRFG2 compared to CCEAFS.
When the dataset has a large number of features and a low number of samples, as in the case of Pulmon Dataset, it can be seen from the summary results in Table 11 that CCFSRFG1 can reduce the number of features much more than CCEAFS.
kNN + CCFSRFG1 can reduce the number of features from 432 to only 25 (feature reduction rate of 94.21%) with a 100% accuracy. This accuracy can also be achieved by SVM + CCFSRFG1, SVM + CCFSRFG2, and LR + CCFSRFG1; however, the feature reduction rate is less than that of kNN + CCFSRFG1. With the exception by J48, all classifiers achieved a 100% sensitivity and specificity.
With a large number of features (1024) in QSAR Oral Toxicity Dataset, it can be seen from the summary results in Table 12 that the NB classifier can reduce the number of features substantially (to only 60) when NB is combined with CCFSRFG1.
With this framework, NB also can obtain a higher classification rate of 92.55% compared to the 79.78% of NB without using any feature selection. NB can reduce the number of features to a very lower number whether used with a CCbased FS framework using static decomposition method or with a dynamic decomposition method, such as RFG. However, it can be clearly predicted that NB performs very well when it is used with CCFSRFG1, compared to other feature selection combinations.
The summary results of the Colon Cancer Dataset are recorded in Table 13.
Similar to the QSAR Oral Toxicity Dataset, the Colon Cancer Dataset also has a large number of features. This is why NB + CCFSRFG1 performs much better in terms of accuracy, sensitivity, and specificity than NB + CCEAFS or NB + CCFSRFG2. A 96.35% feature reduction can be observed for NB + CCFSRFG1 on the Colon Cancer Dataset.
According to the experiments, when the dimensionality of a dataset is reduced using feature selection, the performance measures in terms of accuracy, sensitivity, and specificity are not degraded in a significant rate. In a few cases, it can be observed that the classifiers perform better with feature selection than without it. Because of the search algorithm, the selected subset of features is not unique for every classifier. If the subset of features evaluated by two different classifiers is the same, the underlying search algorithm returns the same subset of features with the two independent executions. The classifiers are only used to evaluate the selected subset of features, thereby improving classification accuracy in each generation. It can also be seen that random feature grouping (RFG) introduced in this paper significantly improves classification performance. As studied in the literature, decomposition strategy plays an important role in the performance of a CCbased framework. The experimental results obtained here confirm the role of dynamic decomposition methods. In this paper, three variants of RFG have been proposed, the first two of which tested using all seven datasets. The second variant, RFG2, which allows a dataset to be decomposed in every generation of an evolutionary process, achieved a higher classification performance than RFG1, in case of which the dataset is decomposed randomly only once (at the beginning of an evolutionary process). RFG2 can ensure the grouping of interacting features in the same subcomponent; however, it fails to reduce the number of features significantly (compared to RFG1). Although RFG2 achieves a higher classification performance in a few cases this comes at a cost of more features than with RFG1 or CCEAFS. RFG2 could not perform better than RFG1 and static decomposition because of the collaboration technique used (i.e., an individual from a subpopulation with the collaboration of individuals from the rest of each subpopulation) for the problem. In the case of CCEAFS and CCFSRFG1, in the very first generation (where there is no previous information available), a random collaboration technique can be used to perform the collaboration. From the second generation onwards, the best individuals at the time can be used from the previous generation to perform the collaboration for all individuals. However, in the case of CCFSRFG2, for every generation, only a random collaboration technique is used to perform the collaboration in every generation. The best individuals at the time cannot be used from the previous generation as collaborators for subsequent generations for CCFSRFG2 because of the random group components in every generation. Random group components (i.e., the features in a subpopulation) are usually different from the group components of previous generations. Hence, if the best individual from a previous generation collaborates with an individual in the current generation, the same features might collaborate twice or multiple times, which results in a contradictory situation, because the features represented as both 0 and 1 would indicate not being selected and being selected at the same time in the subset. Thus, when the same feature is included in collaborating individuals twice or multiple times with the same or different representation, a formation of a complete solution is not possible. This concludes that beyond an appropriate decomposition method, a suitable collaboration technique is also needed for a CCbased FS framework, which is yet to be investigated. Alhough RFG3 was proposed as a third variant of random feature grouping this also relies on a proper collaboration technique.
Feature selection is an essential preprocessing step in various Big Data analytics, for example, anomaly detection for cybersecurity data. Cybersecurity data analysis is very important to indicate vulnerabilities and unveil security breaches, such as via detecting network inconsistencies. Examples of applying feature selection before anomaly detection include a hierarchical feature selection for DDoS mitigation [71], an ensemble feature selection for intrusion detection [72], and clustering and correlationbased feature selection for intrusion detection [73]. Hence, our proposed cooperative coevolutionbased feature selection with the proposed random feature grouping (CCFSRFG) can be applied in any domain of Big Data.
Conclusion and future work
Following an extensive literature review on problem decomposition approaches using CC, this paper investigated the application of CC with a dynamic decomposition for feature selection. It proposed a random feature grouping algorithm for feature selection using CC, and evaluated its performance of six ML classifiers on seven datasets. The experiments indicated that the feature selection process does not degrade the performance of the classifiers significantly. We also analyzed the effect of feature selection on different datasets, covering datasets with many samples and few features, as well as datasets with few samples and many features.
The comparative analysis of the performance results of the classifiers in terms of accuracy, sensitivity, and specificity validate the effectiveness of the proposed CCbased feature selection algorithm (CCFSRFG) with the novel dynamic decomposition technique, random feature grouping (RFG), for feature selection problems. In most cases, the proposed FS approach with RFG1 results in a better performance than the static decomposition approach (CCEAFS) and when using without feature selection. Although a suitable problem decomposition technique for feature selection may result in better performance, a suitable decomposition strategy by itself is not sufficient to achieve the full potential of CCbased approaches. CCbased approaches also require an appropriate optimizer to evolve each subpopulation and a proper collaboration technique to build a complete solution. For example, CCFSRFG2 may perform better with efficient feature reduction when using other collaboration model. Therefore, as future work, a proper collaboration model will be investigated for the proposed CCFSRFG approach. In addition, CCFSRFG will be combined with other optimizers.
Availability of data and materials
Not applicable.
Change history
28 December 2020
An amendment to this paper has been published and can be accessed via the original article.
Abbreviations
 CC:

Cooperative coevolution
 CCEAFS:

Cooperative coevolutionary algorithm based feature selection
 CCFSRFG:

Cooperative coevolutionarybased feature selection with random feature grouping
 EA:

Evolutionary algorithm
 FS:

Feature selection
 IoT:

Internet of Things
 kNN:

kNearest Neighbor
 NB:

Naïve Bayes
 ML:

Machine learning
 RF:

Random forest
 RFG:

Random feature grouping
 RG:

Random grouping
 SVM:

Support vector machine
References
 1.
Rashid ANMB. Access methods for Big Data: current status and future directions. EAI Endorsed Trans Scalable Inf Syst. 2018. https://doi.org/10.4108/eai.28122017.153520.
 2.
Chakraborty B, Kawamura A. A new penaltybased wrapper fitness function for feature subset selection with evolutionary algorithms. J Inf Telecommun. 2018;2(2):163–80. https://doi.org/10.1080/24751839.2018.1423792.
 3.
Khalid S, Khalil T, Nasreen S. A survey of feature selection and feature extraction techniques in machine learning. In: 2014 science and information conference. 2014. p. 372–8 . https://doi.org/10.1109/SAI.2014.6918213.
 4.
Miao J, Niu L. A survey on feature selection. Procedia Comput Sci. 2016;91:919–26. https://doi.org/10.1016/j.procs.2016.07.111.
 5.
Rashid AB, Choudhury T. Knowledge management overview of feature selection problem in highdimensional financial data: cooperative coevolution and MapReduce perspectives. Probl Perspect Manag. 2019;17(4):340. https://doi.org/10.21511/ppm.17(4).2019.28.
 6.
Liu Y, Tang F, Zeng Z. Feature selection based on dependency margin. IEEE Transn Cybern. 2014;45(6):1209–21. https://doi.org/10.1109/TCYB.2014.2347372.
 7.
Stanovov V, Brester C, Kolehmainen M, Semenkina O. Why don’t you use evolutionary algorithms in big data? In: IOP conference series: materials science and engineering. Bristol: IOP Publishing; 2017. vol. 173, p. 012020. https://doi.org/10.1088/1757899x/173/1/012020.
 8.
Wang R, Zhang F, Zhang T, Fleming PJ. Cooperative coevolution with improved differential grouping method for largescale global optimisation. Int J BioInspired Comput. 2018;12(4):214–25.
 9.
Sun Y, Kirley M, Halgamuge SK. On the selection of decomposition methods for large scale fully nonseparable problems. In: Proceedings of the companion publication of the 2015 annual conference on genetic and evolutionary computation. New York: ACM; 2015. p. 1213–6. https://doi.org/10.1145/2739482.2768483.
 10.
Sun Y, Kirley M, Halgamuge SK. A recursive decomposition method for large scale continuous optimization. IEEE Trans Evol Comput. 2018;22(5):647–61. https://doi.org/10.1109/TEVC.2017.2778089.
 11.
Hu XM, He FL, Chen WN, Zhang J. Cooperation coevolution with fast interdependency identification for large scale optimization. Inf Sci. 2017;381:142–60. https://doi.org/10.1016/j.ins.2016.11.013.
 12.
Chen A, Ren Z, Yang Y, Liang Y, Pang B. A historical interdependency based differential grouping algorithm for large scale global optimization. In: Proceedings of the genetic and evolutionary computation conference companion. New York: ACM; 2018. p. 1711–5. https://doi.org/10.1145/3205651.3208278.
 13.
Li R, Zhang W, Zhao Y, Zhu Z, Ji S. Sparsity learning formulations for mining timevarying data. IEEE Trans Knowl Data Eng. 2015;27(5):1411–23. https://doi.org/10.1109/TKDE.2014.2373411.
 14.
Omidvar MN, Li X, Yang Z, Yao X. Cooperative coevolution for large scale optimization through more frequent random grouping. In: IEEE congress on evolutionary computation. New York: IEEE; 2010. p. 1–8 . https://doi.org/10.1109/CEC.2010.5586127.
 15.
Ling Y, Li H, Cao B. Cooperative coevolution with graphbased differential grouping for large scale global optimization. In: Li M, Xiong N, Tong Z, Du J, Liu C, Li K, Wang L, editors. 12th international conference on natural computation, fuzzy systems and knowledge discovery. New York: IEEE; 2016. p. 95–102. https://doi.org/10.1109/FSKD.2016.7603157.
 16.
Kamkar I, Gupta SK, Phung D, Venkatesh S. Stabilizing l1norm prediction models by supervised feature grouping. J Biomed Inform. 2016;59:149–68. https://doi.org/10.1016/j.jbi.2015.11.012.
 17.
GarcíaTorres M, GómezVela F, MeliánBatista B, MorenoVega JM. Highdimensional feature selection via feature grouping: a variable neighborhood search approach. Inf Sci. 2016;326(C):102–18. https://doi.org/10.1016/j.ins.2015.07.041.
 18.
Gan G, Ng MKP. Subspace clustering with automatic feature grouping. Pattern Recognit. 2015;48(11):3703–13. https://doi.org/10.1016/j.patcog.2015.05.016.
 19.
Rashid ANMB, Ahmed M, Sikos LF, HaskellDowland P. A novel penaltybased wrapper objective function for feature selection in big data using cooperative coevolution. IEEE Access. 2020;8:150113–29. https://doi.org/10.1109/ACCESS.2020.3016679.
 20.
Gao W, Hu L, Zhang P. Feature redundancy term variation for mutual informationbased feature selection. Appl Intell. 2020. https://doi.org/10.1007/s1048901901597z.
 21.
Guo Y, Cao X, Xu Y, Hong Q. Coevolution based feature selection for pedestrian detection. In: 2007 IEEE international conference on control and automation. New York: IEEE; 2007. p. 2797–801 . https://doi.org/10.1109/ICCA.2007.4376871.
 22.
Cao X, Xu Y, Wei C, Guo Y. Feature subset selection based on coevolution for pedestrian detection. Trans Inst Meas Control. 2011;33(7):867–79. https://doi.org/10.1177/0142331209103041.
 23.
Derrac J, García S, Herrera F. A first study on the use of coevolutionary algorithms for instance and feature selection. In: Corchado E, Wu X, Oja E, Herrero Á, Baruque B, editors. Hybrid artificial intelligence systems. Heidelberg: Springer; 2009. p. 557–564. https://doi.org/10.1007/9783642023194_67.
 24.
Derrac J, García S, Herrera F. IFSCoCo: instance and feature selection based on cooperative coevolution with nearest neighbor rule. Pattern Recognit. 2010;43(6):2082–105. https://doi.org/10.1016/j.patcog.2009.12.012.
 25.
Tian J, Li M, Chen F. Dualpopulation based coevolutionary algorithm for designing RBFNN with feature selection. Expert Syst Appl. 2010;37(10):6904–18. https://doi.org/10.1016/j.eswa.2010.03.031.
 26.
Wen Y, Xu H. A cooperative coevolutionbased Pittsburgh learning classifier system embedded with memetic feature selection. In: 2011 IEEE congress of evolutionary computation. New York: IEEE; 2011. p. 2415–22. https://doi.org/10.1109/CEC.2011.5949916.
 27.
Ebrahimpour MK, NezamabadiPour H, Eftekhari M. CCFS: a cooperating coevolution technique for large scale feature selection on microarray datasets. Comput Biol Chem. 2018;73:171–8. https://doi.org/10.1016/j.compbiolchem.2018.02.006.
 28.
Christo VE, Nehemiah HK, Brighty J, Kannan A. Feature selection and instance selection from clinical datasets using cooperative coevolution and classification using random forest. IETE J Res. 2020. https://doi.org/10.1080/03772063.2020.1713917.
 29.
Wang Y, Qu B, Liang J, Wei Y, Yue C, Hu Y, Song H. Twostage decomposition method based on cooperation coevolution for feature selection on highdimensional classification. IEEE Access. 2019;7:163191–201. https://doi.org/10.1109/ACCESS.2019.2946649.
 30.
Shi M, Gao S. Reference sharing: a new collaboration model for cooperative coevolution. J Heuristics. 2017;23(1):1–30. https://doi.org/10.1007/s1073201693229.
 31.
Chen W, Weise T, Yang Z, Tang K. Largescale global optimization using cooperative coevolution with variable interaction learning. In: Schaefer R, Cotta C, Kołodziej J, Rudolph G, editors. International conference on parallel problem solving from nature—PPSN XI. Heidelberg: Springer; 2010. p. 300–9. https://doi.org/10.1007/9783642158711_31.
 32.
Chandra R, Deo R, Bali K, Sharma A. On the relationship of degree of separability with depth of evolution in decomposition for cooperative coevolution. In: 2016 IEEE congress on evolutionary computation. New York: IEEE; 2016. p. 4823–30 . https://doi.org/10.1109/CEC.2016.7744408.
 33.
Li X, Tang K, Omidvar MN, Yang Z, Qin K, China H. Benchmark functions for the CEC 2013 special session and competition on largescale global optimization. Gene. 2013;7(33):8.
 34.
Potter MA, De Jong KA. A cooperative coevolutionary approach to function optimization. In: International conference on parallel problem solving from nature. Berlin: Springer; 1994. p. 249–57 . https://doi.org/10.1007/3540584846_269.
 35.
Omidvar MN, Li X. Evolutionary largescale global optimization: An introduction. In: Proceedings of the genetic and evolutionary computation conference companion, GECCO17. New York: ACM; 2017. p. 807–27. https://doi.org/10.1145/3067695.3067706.
 36.
Durand N, Alliot JM. Genetic crossover operator for partially separable functions. In: 3rd annual conference on Genetic Programming, 1998, Madison, United States—HAL. 1998.
 37.
Potter MA, Jong KAD. Cooperative coevolution: an architecture for evolving coadapted subcomponents. Evol Comput. 2000;8(1):1–29. https://doi.org/10.1162/106365600568086.
 38.
Shi YJ, Teng HF, Li ZQ. Cooperative coevolutionary differential evolution for function optimization. In: Wang L, Chen K, Ong YS, editors. Advances in natural computation. Heidelberg: Springer; 2005. p. 1080–1088. https://doi.org/10.1007/11539117_147.
 39.
Yang Z, Tang K, Yao X. Large scale evolutionary optimization using cooperative coevolution. Inf Sci. 2008;178(15):2985–99. https://doi.org/10.1016/j.ins.2008.02.017.
 40.
Yang Z, Tang K, Yao X. Multilevel cooperative coevolution for large scale optimization. In: 2008 IEEE congress on evolutionary computation (IEEE World Congress on Computational Intelligence); 2008. p. 1663–70 . https://doi.org/10.1109/CEC.2008.4631014.
 41.
Omidvar MN, Li X, Yao X. Cooperative coevolution with delta grouping for large scale nonseparable function optimization. In: IEEE congress on evolutionary computation; 2010. p. 1–8 . https://doi.org/10.1109/CEC.2010.5585979.
 42.
Mahdavi S, Shiri ME, Rahnamayan S. Cooperative coevolution with a new decomposition method for largescale optimization. In: 2014 IEEE congress on evolutionary computation. New York: IEEE; 2014. p. 1285–92 . https://doi.org/10.1109/CEC.2014.6900327.
 43.
Omidvar MN, Mei Y, Li X. Effective decomposition of largescale separable continuous functions for cooperative coevolutionary algorithms. In: 2014 IEEE congress on evolutionary computation; 2014. p. 1305–12 . https://doi.org/10.1109/CEC.2014.6900420.
 44.
Omidvar MN, Li X, Mei Y, Yao X. Cooperative coevolution with differential grouping for large scale optimization. IEEE Trans Evol Comput. 2014;18(3):378–93. https://doi.org/10.1109/TEVC.2013.2281543.
 45.
Sun Y, Kirley M, Halgamuge SK. Extended differential grouping for large scale global optimization with direct and indirect variable interactions. In: Proceedings of the 2015 annual conference on genetic and evolutionary computation. New York: ACM; 2015. p. 313–20. https://doi.org/10.1145/2739480.2754666.
 46.
Mei Y, Omidvar MN, Li X, Yao X. A competitive divideandconquer algorithm for unconstrained largescale blackbox optimization. ACM Trans Math Softw. 2016. https://doi.org/10.1145/2791291.
 47.
Omidvar MN, Yang M, Mei Y, Li X, Yao X. DG2: a faster and more accurate differential grouping for largescale blackbox optimization. IEEE Trans Evol Comput. 2017;21(6):929–42. https://doi.org/10.1109/TEVC.2017.2694221.
 48.
Wu S, Zou Z, Fang W. A dynamic global differential grouping for largescale blackbox optimization. In: Tan Y, Shi Y, Tang Q, editors. Advances in swarm intelligence. Cham: Springer; 2018. p. 593–603. https://doi.org/10.1007/9783319938158_56.
 49.
Sun Y, Omidvar MN, Kirley M, Li X. Adaptive threshold parameter estimation with recursive differential grouping for problem decomposition. In: Proceedings of the genetic and evolutionary computation conference. New York: ACM; 2018. p. 889–96. https://doi.org/10.1145/3205455.3205483.
 50.
Sun Y, Li X, Ernst A, Omidvar MN. Decomposition for largescale optimization problems with overlapping components. In: 2019 IEEE congress on evolutionary computation (CEC); 2019. p. 326–33 . https://doi.org/10.1109/CEC.2019.8790204.
 51.
Mahdavi S, Shiri ME, Rahnamayan S. Metaheuristics in largescale global continues optimization: a survey. Inf Sci. 2015;295:407–28. https://doi.org/10.1016/j.ins.2014.10.042.
 52.
Song A, Yang Q, Chen W, Zhang J. A randombased dynamic grouping strategy for large scale multiobjective optimization. In: 2016 IEEE congress on evolutionary computation; 2016. p. 468–75 . https://doi.org/10.1109/CEC.2016.7743831.
 53.
Mingming X, Jun Z, Kaiquan C, Xianbin C, Ke T. Cooperative coevolution with weighted random grouping for largescale crossing waypoints locating in air route network. In: Khoshgoftaar TM, Zhu X, editors. 23rd international conference on tools with artificial intelligence; 2011. p. 215–22 . https://doi.org/10.1109/ICTAI.2011.40.
 54.
Sun L, Lin L, Li H, Gen M. Cooperative coevolution algorithm with an MRFbased decomposition strategy for stochastic flexible job shop scheduling. Mathematics. 2019;7(4):318. https://doi.org/10.3390/math7040318.
 55.
Ding W, Wang J. A novel approach to minimum attribute reduction based on quantuminspired selfadaptive cooperative coevolution. Knowl Based Syst. 2013;50:1–13. https://doi.org/10.1016/j.knosys.2013.03.008.
 56.
Yi L, Wu X, Li X, Cui X. A meanfield formulation for optimal multiperiod meanvariance portfolio selection with an uncertain exit time. Oper Res Lett. 2014;42(8):489–94. https://doi.org/10.1016/j.orl.2014.08.007.
 57.
Jensen FV. Introduction to Bayesian networks. 1st ed. Berlin: Springer; 1996.
 58.
Cortes C, Vapnik V. Supportvector networks. Mach Learn. 1995;20(3):273–97. https://doi.org/10.1007/BF00994018.
 59.
Mucherino A, Papajorgji PJ, Pardalos PM. Knearest neighbor classification. In: Data mining in agriculture. New York: Springer; 2009. p. 83–106. https://doi.org/10.1007/9780387886152_4.
 60.
Xiaoliang Z, Hongcan Y, Jian W, Shangzhuo W. Research and application of the improved algorithm C4.5 on decision tree. In: 2009 international conference on test and measurement; New York: IEEE; 2009. vol. 2, p. 184–7 . https://doi.org/10.1109/ICTM.2009.5413078.
 61.
Breiman L. Random forests. Mach Learn. 2001;45(1):5–32. https://doi.org/10.1023/A:1010933404324.
 62.
Kurnaz FS, Hoffmann I, Filzmoser P. Robust and sparse estimation methods for highdimensional linear and logistic regression. Chemom Intell Lab Syst. 2018;172:211–22. https://doi.org/10.1016/j.chemolab.2017.11.017.
 63.
Reddy GT, Reddy MPK, Lakshmanna K, Kaluri R, Rajput DS, Srivastava G, Baker T. Analysis of dimensionality reduction techniques on big data. IEEE Access. 2020;8:54776–88. https://doi.org/10.1109/ACCESS.2020.2980942.
 64.
van den Bergh F, Engelbrecht AP. A cooperative approach to particle swarm optimization. IEEE Trans Evol Comput. 2004;8(3):225–39. https://doi.org/10.1109/TEVC.2004.826069.
 65.
Trunfio GA, Topa P, Wąs J. A new algorithm for adapting the configuration of subcomponents in largescale optimization with cooperative coevolution. Inf Sci. 2016;372:773–95. https://doi.org/10.1016/j.ins.2016.08.080.
 66.
Potter MA. The design and analysis of a computational model of cooperative coevolution. Ph.D. thesis, George Mason University, VA, United States; 1997.
 67.
Wiegand RP. An analysis of cooperative coevolutionary algorithms. Ph.D. thesis, George Mason University, VA, United States; 2003.
 68.
Storn R, Price K. Differential evolutiona simple and efficient heuristic for global optimization over continuous spaces. J Glob Optim. 1997;11(4):341–59. https://doi.org/10.1023/A:1008202821328.
 69.
Bucci A, Pollack JB. On identifying global optima in cooperative coevolution. In: Proceedings of the 7th annual conference on genetic and evolutionary computation. New York: ACM; 2005. p. 539–44 . https://doi.org/10.1145/1068009.1068098.
 70.
Ambusaidi MA, He X, Nanda P, Tan Z. Building an intrusion detection system using a filterbased feature selection algorithm. IEEE Trans Comput. 2016;65(10):2986–98. https://doi.org/10.1109/TC.2016.2519914.
 71.
Ko I, Chambers D, Barrett E. Unsupervised learning with hierarchical feature selection for DDoS mitigation within the ISP domain. ETRI J. 2019;41(5):574–84. https://doi.org/10.4218/etrij.20190109.
 72.
Binbusayyis A, Vaiyapuri T. Identifying and benchmarking key features for cyber intrusion detection: an ensemble approach. IEEE Access. 2019;7:106495–513. https://doi.org/10.1109/ACCESS.2019.2929487.
 73.
Bagui S, Kalaimannan E, Bagui S, Nandi D, Pinto A. Using machine learning techniques to identify rare cyberattacks on the UNSWNB15 dataset. Secur Priv. 2019;2(6):91. https://doi.org/10.1002/spy2.91.
 74.
Guyon I, Elisseeff A. An introduction to variable and feature selection. J Mach Learn Res. 2003;3:1157–82.
 75.
Xue B, Zhang M, Browne WN, Yao X. A survey on evolutionary computation approaches to feature selection. IEEE Trans Evol Comput. 2015;20(4):606–26. https://doi.org/10.1109/TEVC.2015.2504420.
 76.
Bommert A, Sun X, Bischl B, Rahnenführer J, Lang M. Benchmark for filter methods for feature selection in highdimensional classification data. Comput Stat Data Anal. 2020;143:106839. https://doi.org/10.1016/j.csda.2019.106839.
 77.
Shukla AK, Tripathi D. Detecting biomarkers from microarray data using distributed correlation based gene selection. Genes Genom. 2020. https://doi.org/10.1007/s1325802000916w.
 78.
Hancer E, Xue B, Zhang M. Differential evolution for filter feature selection based on information theory and feature ranking. Knowl Based Syst. 2018;140:103–19. https://doi.org/10.1016/j.knosys.2017.10.028.
 79.
Öziç MÜ, Özşen S. Ttest feature ranking based 3D MR classification with VBM mask. In: 25th signal processing and communications applications conference. New York: IEEE; 2017. p. 1–4. https://doi.org/10.1109/SIU.2017.7960591.
 80.
John G, Kohavi R. Wrappers for feature subset selection. Artif Intell. 1997;97(1–2):273–324. https://doi.org/10.1016/S00043702(97)00043X.
 81.
Wang A, An N, Chen G, Li L, Alterovitz G. Accelerating wrapperbased feature selection with knearestneighbor. Knowl Based Syst. 2015;83:81–91. https://doi.org/10.1016/j.knosys.2015.03.009.
 82.
Bron EE, Smits M, Niessen WJ, Klein S. Feature selection based on the SVM weight vector for classification of dementia. IEEE J Biomed Health Inform. 2015;19(5):1617–26. https://doi.org/10.1109/JBHI.2015.2432832.
 83.
Maldonado S, López J. Dealing with highdimensional classimbalanced datasets: embedded feature selection for SVM classification. Appl Soft Comput. 2018;67:94–105. https://doi.org/10.1016/j.asoc.2018.02.051.
 84.
Tibshirani R. Regression shrinkage and selection via the lasso. J R Stat Soc Ser B. 1996;58(1):267–88.
 85.
Biau G, Cadre B, Rouvìère L. Accelerated gradient boosting. Mach Learn. 2019;108(6):971–92. https://doi.org/10.1007/s10994019057871.
 86.
Tan CJ, Lim CP, Cheah YN. A multiobjective evolutionary algorithmbased ensemble optimizer for feature selection and classification with neural network models. Neurocomputing. 2014;125:217–28. https://doi.org/10.1016/j.neucom.2012.12.057.
 87.
Moslehi F, Haeri A. A novel hybrid wrapperfilter approach based on genetic algorithm, particle swarm optimization for feature subset selection. J Ambient Intell Humaniz Comput. 2020;11(3):1105–27. https://doi.org/10.1007/s12652019013645.
 88.
Nag K, Pal NR. A multiobjective genetic programmingbased ensemble for simultaneous feature selection and classification. IEEE Trans Cybern. 2015;46(2):499–510. https://doi.org/10.1109/TCYB.2015.2404806.
 89.
Soufan O, Kleftogiannis D, Kalnis P, Bajic VB. DWFS: a wrapper feature selection tool based on a parallel genetic algorithm. PLoS ONE. 2015. https://doi.org/10.1371/journal.pone.0117988.
 90.
Song XF, Zhang Y, Guo YN, Sun XY, Wang YL. Variablesize cooperative coevolutionary particle swarm optimization for feature selection on highdimensional data. IEEE Trans Evol Comput. 2020. https://doi.org/10.1109/TEVC.2020.2968743.
 91.
Kashef S, Nezamabadipour H. An advanced ACO algorithm for feature subset selection. Neurocomputing. 2015;147:271–9. https://doi.org/10.1016/j.neucom.2014.06.067.
 92.
Shukla AK. Feature selection inspired by human intelligence for improving classification accuracy of cancer types. Comput Intell. 2020. https://doi.org/10.1111/coin.12341.
 93.
Shukla AK, Singh P, Vardhan M. A new hybrid feature subset selection framework based on binary genetic algorithm and information theory. Int J Comput Intell Appl. 2019;18(03):1950020. https://doi.org/10.1142/S1469026819500202.
 94.
Shukla AK, Singh P, Vardhan M. Gene selection for cancer types classification using novel hybrid metaheuristics approach. Swarm Evol Comput. 2020;54:100661. https://doi.org/10.1016/j.swevo.2020.100661.
 95.
Zorarpacı E, Özel SA. A hybrid approach of differential evolution and artificial bee colony for feature selection. Expert Syst Appl. 2016;62:91–103. https://doi.org/10.1016/j.eswa.2016.06.004.
 96.
Zhang M, Ma J, Gong M, Li H, Liu J. Memetic algorithm based feature selection for hyperspectral images classification. In: 2017 IEEE congress on evolutionary computation. New York: IEEE; 2017. p. 495–502 . https://doi.org/10.1109/CEC.2017.7969352.
 97.
Han M, Ren W. Global mutual informationbased feature selection approach using singleobjective and multiobjective optimization. Neurocomputing. 2015;168:47–54. https://doi.org/10.1016/j.neucom.2015.06.016.
 98.
Hamdani TM, Won JM, Alimi AM, Karray F. Multiobjective feature selection with NSGA II. In: International conference on adaptive and natural computing algorithms. Berlin: Springer; 2007. p. 240–7. https://doi.org/10.1007/9783540716181_27.
 99.
Yuan Y, Xu H, Wang B. An improved NSGAIII procedure for evolutionary manyobjective optimization. In: Proceedings of the 2014 annual conference on genetic and evolutionary computation; 2014. p. 661–8 . https://doi.org/10.1145/2576768.2598342.
Acknowledgements
This research is supported by the Edith Cowan University (ECU) Higher Degree by Research Scholarship (HDRS) and the ECU School of Science Research Scholarship. The authors would like to thank Dr. Erchuan Zhang of the ECU School of Science to assist in defining the probability functions for the proposed random feature grouping decomposition strategies.
Funding
This work was not funded.
Author information
Affiliations
Contributions
BR conceived of the presented idea, developed the theory, implemented the research, and wrote the manuscript. BR, MA, and LS contributed to the design, and to the analysis of the results. All authors reviewed and approved the final manuscript.
Authors’ information
A. N. M. Bazlur Rashid: Since 2012, he has been an assistant professor (Computer) at Bangladesh University of Textiles. He is the author of a number of journal articles and conference papers. His research interests include evolutionary computation, machine learning, big data optimization, data science, knowledge discovery, and decision support systems.
M. Ahmed: His research intersects between data analytics and cybersecurity. He is a Senior Member of IEEE and member of Australian Computer Society/certified professional.
Leslie F. Sikos, Ph.D., is a computer scientist specializing in network forensics and cybersecurity applications powered by artificial intelligence and data science. He has industry experience in data center and cloud infrastructures, cyberthreat prevention and mitigation, and firewall management. Dr. Sikos holds professional certificates, and is a member of the IEEE Computer Society Technical Committee on Security and Privacy, and a founding member of the IEEE Special Interest Group on Big Data for Cybersecurity and Privacy.
Paul HaskellDowland is an Associate Professor, and the Associate Dean for Computing and Security in the School of Science at Edith Cowan University and is an associate member of the Centre for Security, Communications & Network Research at Plymouth University (UK). Paul has delivered keynotes, invited presentations, workshops, professional development/training and seminars across the world for audiences including RSA Security, Sri Lanka CERT, ITU and IEEE. He has appeared on local and national media (newspaper, radio and tv) commenting on current cyber issues as well as contributions through articles published in The Conversation. Paul has more than 20 years of experience in cyber security research and education in both the UK and Australia.
Corresponding author
Ethics declarations
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
The original online version of this article was revised: the incorrect second affiliation of Mohiuddin Ahmed was removed.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Rashid, A.N.M.B., Ahmed, M., Sikos, L.F. et al. Cooperative coevolution for feature selection in Big Data with random feature grouping. J Big Data 7, 107 (2020). https://doi.org/10.1186/s4053702000381y
Received:
Accepted:
Published:
Keywords
 Big Data
 Feature selection
 Cooperative coevolution
 Random feature grouping
 Machine learning
