Time series big data: a survey on data stream frameworks, analysis and algorithms


Big data has a substantial role nowadays, and its importance has significantly increased over the last decade. Big data’s biggest advantages are providing knowledge, supporting the decision-making process, and improving the use of resources, services, and infrastructures. The potential of big data increases when we apply it in real-time by providing real-time analysis, predictions, and forecasts, among many other applications. Our goal with this article is to provide a viewpoint on how to build a system capable of processing big data in real-time, performing analysis, and applying algorithms. A system should be designed to handle vast amounts of data and provide valuable knowledge through analysis and algorithms. This article explores the current approaches and how they can be used for the real-time operations and predictions.


The concept of big data was mentioned for the first time in a paper published in 1997 [1]. The authors called the problem of dealing with large data sets, “the problem of big data”. These large data sets were characterized by not fitting in the main memory, making it challenging or even impossible to analyze and visualize them. Even 25 years later, most computers cannot load 100 GB to memory, let alone process it.

In the current era in which data is produced at high rates, information has a decisive role, and most computers cannot process vast amounts of data; thus, it was necessary to create new ways to process the data. These aspects were the big impulse for the appearance of big data technologies.

The first approach to deal with big data sets was to divide them into smaller segments. However, even then, the segments could be very large in most cases. Besides, few computers were able to make this type of processing. To tackle this issue, frameworks started to appear to deal with batches of data. Nevertheless, none of these approaches deals with one big problem: what can be done if the data set keeps growing, and data continues to be received over time? To answer this question, several frameworks that deal with data streams have appeared.

The main goals of using big data are: (1) predicting future events, and (2) gaining insights and discovering relationships; in multidimensional and large sample-sized datasets [2]. However, these goals bring challenges in terms of computation and methods.

Predicting future events is also known as forecasting. Forecasting tasks foresee dealing with time series data. Processing and analyzing time series data in real-time can be a game-changer for an organization. This article will focus on time series data. Three tasks stand out on the analysis and prediction of time series data: monitoring, forecasting, and anomaly detection. These tasks benefit from being executed in real-time. Moreover, these tasks can be applied to many contexts and use cases. Therefore, it is important to use a streaming framework to process data as it arrives.

Anomaly detection in data streams is beneficial and essential for organizations to detect problems before they achieve more significant dimensions: for instance, to notice an intrusion before the intruder can steal or damage data. Another example is to detect unexpected traffic congestion and activate the responsible authorities. Therefore, the anomaly prediction connected to time series data will also be dealt in this article.

Using data streams in different contexts allows us to extract knowledge and make decisions in real-time (or near real-time). This article will explore how we can deal with big data, particularly, time series big data. This article will also analyse which algorithms can be applied to data to make forecasts and detect anomalies.

The main contributions of this work can be summarized as follows:

  • A comparative analysis of Stream Processing Engines (SPEs), including their characteristics and provenance, processing techniques, delivery of events, performance, and popularity.

  • A discussion on forecasting algorithms, including statistical and Machine Learning (ML) algorithms, and the advantages and disadvantages of using each type of algorithm.

  • A discussion on anomaly detection algorithms, the challenges of working with datasets containing anomalies, and the methods used to detect anomalies, such as statistical and ML approaches.

A comparative analysis of SPEs led us conclude that Spark is the most popular framework; however, Flink is better for data-intensive applications, and Heron scales better. Forecasting and anomaly detection methods bring value to organizations. While forecasting can allow better management of resources, anomaly detection can mitigate and eliminate problems. Regarding the type of methods used, statistical methods are usually lighter and more explainable, while machine learning methods are better when we have complex hidden patterns. The most recent published papers show a preference for deep learning techniques.


Working with huge amounts of streaming time series data can be a challenging task. With this in mind, we want to guide the reader on how this can be achieved. We will focus on three key relevant aspects:

  1. 1.

    Stream processing frameworks: these frameworks enable to process huge amounts of data, perform analysis, and apply algorithms in real-time.

  2. 2.

    Forecasting algorithms: these algorithms allow to predict future events. Therefore, they are essential for many organizations to perform informed decisions, manage resources, improve services, among others.

  3. 3.

    Anomaly detection algorithms: these algorithms allow to identify abnormal or unusual patterns. They can be early symptoms of something wrong, and we should be careful. They help us to improve security, quality, and efficiency.

Although the main focus of this work is the literature review on streaming frameworks, since we aim to work with time series data, we will also review the forecasting and anomaly detection algorithms; they play a crucial role in taking advantage of real-time processing capabilities. Therefore, with this survey, we aim to:

  1. 1

    Identify the most relevant state-of-the-art regarding both data streams and algorithms.

  2. 2

    Evaluate and compare different frameworks and methods to highlight each method or framework’s strengths, weaknesses, and limitations and when they should be applied.

  3. 3

    Provide a guide for future research by identifying gaps in the current literature, areas that need further investigation, and other opportunities.

Related work

This subsection provides an overview of other related surveys presented in the literature. Table 1 summarizes the subjects mentioned in the works presented in this article, both surveys and research works. In this section we will address the survey articles.

Table 1 Related work: summary

This article presents a literature review on how to process huge amounts of time series that are continuously being produced over time and need to be processed in real-time. Therefore, in Table 1, we consider papers regarding big data, stream processing, real-time processing, machine learning and deep learning, forecasting, and anomaly detection. In addition, we revised both surveys and research articles. Unfortunately, to the best of our knowledge, we did not find a paper analyzing all these topics. Nevertheless, we will compare our study with the most relevant works.

The most significant difference with work [9] regarding big data streams is that the authors of work [9] compared several tools, technologies, methods and techniques regarding data streams. However, we are more focused on data stream processing frameworks. In addition, the authors of [3] also discussed the concept of real-time associated with the processing of data streams, while the authors of [10] only perform a brief comparison of streaming processing frameworks. The authors of [10] conducted some practical evaluations of the streaming processing frameworks. Our survey presents a literature review. Similar to the work presented in [11], we are also researching progress in big data-oriented stream data mining; however, we focus on time series related problems, namely forecasting and anomaly detection.

Article structure

The remainder of this article is organized as follows. "Big data stream processing frameworks" section is focused on big data and data stream processing frameworks. It starts by discussing the problem definition, followed by existing solutions, it presents the elaborations and a summary. This section characterizes big data and discusses its relationship with data streams, forecasting methods, and anomaly detection. We also present frameworks for processing data streams, compare them, and discuss some example cases where each one can be applied. Next, "Analysis and algorithms for streaming data" section discusses algorithms that can be applied in the context of big data, namely forecasting concepts and methods ("Time series forecasting" section) and anomaly detection strategies ("Anomaly detection" section). In this section, we focus on statistical, ML, and Deep Learning (DL) methods and their advantages and disadvantages. Each of these 2 sections presents a similar organization. Finally, "Conclusions and future research directions" section presents the conclusions and the challenges envisaged for future work, as well as some future research directions.

Big data stream processing frameworks

Problem definition

The evolution of traditional systems to streaming systems brings new processing and analysis capabilities and challenges. Firstly, we are no longer limited to bounded data, since we can process bounded and unbounded data. We are no longer required to divide or process data into multiple steps. Usually, a single step is enough. Besides, we no longer have to wait long periods for data to be processed. As we receive data, we process and obtain results and insights.

Designing the architecture of an application is an important task that should be well thought out. Considering that the streaming processing is part of an entire system, as a first step in the deployment of this component, the system requirements should be analyzed and task prioritization shall be evaluated. Choosing a SPE is not different. Some of the desired requirements that might be considered for real-time data stream processing are:

  • Process large volumes of data;

  • Integrate data from multiple data sources;

  • Deal with data with different properties (multi-dimensional data, multiple entities, spatial-temporal dependencies);

  • Deal with bounded and unbounded data streams;

  • Deal with unsorted data, or delayed data;

  • Detect data anomalies;

  • Computation performance metrics (low latency, high throughput, high availability, high scalability).

As we stated before, the true value of big data comes from taking insights from the data and helping decision-makers. Therefore, efficient and precise algorithms implemented on scalable frameworks are needed to explore the data potentials. If we consider ML and DL in our analysis, we might add the model performance (error and training time) to the list. In the context of forecasting, metrics such as the Mean Squared Error (MSE) or \(\hbox {R}^{{\textbf {2}}}\)-Score can be useful [38]. In the case of anomaly detection, we may choose a high accuracy, high precision or even high recall method [16]. Since explanations play a crucial role in decision-making, the explainability of the ML model should also be considered [78].

There are several SPEs. Each SPE provides different features and has different properties. Moreover, each one can be more or less adequate according to the application.

Big data

The concept of big data has evolved through the years. First, big data started being depicted as a massive amount of data that does not fit in the main memory and requires more sophisticated ways of processing and visualizing [1]. This definition remains true; however, it is incomplete, since it is always being updated due to the data explosion [18] that occurred during the last decades. Defining big data is not a simple task because of its complexity. Figure 1 summarizes big data characteristics, challenges and opportunities.

Fig. 1
figure 1

Big data taxonomy—information collected from [2, 5, 15, 17, 19]

As previously mentioned, this massive amount of data is characterized by massive sample size and high dimensionality [2]. Besides, data can arrive at high velocities and different flow rates [19]. Moreover, data can come from different sources [2], making it more complex. Data stream frameworks can receive data from multiple sources and process huge volumes of data, continuously arriving at high velocities. Several factors increase the complexity of dealing with big data, such as the variety of data that can be received [19]. For example, we can receive numerical values, text, images, sounds, video, or a combination of more than one type. In addition, our data can have a temporal component that brings additional complexity to the problem.

The maximum potential of big data is achieved when we trust the data and take advantage of it by analyzing it. Thus, we must identify inaccurate and uncertain data and deal with it [19]. In this context, the importance of anomaly detection methods is highlighted, especially the real-time detection of anomalies in data streams to mitigate anomalies as soon they happen.

Some of these characteristics bring statistical, computational, and visualization problems. For example, we can have algorithm instability, noise accumulation, spurious correlation, incidental endogeneity, and measurement errors regarding statistical problems [2]. On the other hand, regarding computation problems, we have storage, scalability, and bottleneck problems [2, 79]. Finally, visualization can be complex or even impossible when we have high-dimensional data.

Statistical problems can bring dangerous consequences, since they can lead to wrong statistical inferences or false scientific discoveries. For instance, an excellent example of a spurious correlation is the strong correlation (99.79%) between “US spending on science, space, and technology” and “Suicides by hanging, strangulation and suffocation” [80]. As we can understand, these two phenomena are unrelated. This is a well-known phenomenon in statistics, meaning that correlation does not imply causality. However, spurious correlations can go unnoticed depending on the context and the available knowledge.

To summarize, big data requires demanding computational resources, and its potential is unlocked through trust in data analysis. Therefore, several streaming frameworks emerged to process big amounts of data with low latency, high throughput, and high scalability. Furthermore, anomaly detection methods are essential in data streams [19], since they can suffer security attacks, have malfunctioning devices, or something unexpected may occur. We can also execute these methods in batch; however, when applied to real-time streaming data, they achieve their full potential. Besides, big data allows to (1) forecast future events, and (2) gain insights and discover relationships in data [2], both being important tasks, especially for decision-makers.

Big data analysis, forecasting, and anomaly detection are achieved through statistical, machine learning, or deep learning methods. Note that deep learning is a subset of machine learning. Figure 2 depicts Google searching trends through the years, by keywords. Big data, machine learning, and deep learning have a growing trend over the years. On the other hand, anomaly detection had a very soft increase. The searching trend forecasting decreases and reaches its peak in 2022; however, we can use other terms to express forecasting, such as prediction. Note that Google trends do not allow complex queries.

Fig. 2
figure 2

Google research trends over time—data collected from [81]

We can apply big data to a vast amount of scientific fields. We will present examples of use cases and applications for analyzing time series data streams in real-time. We will also include some examples that benefit from forecasting or anomaly detection methods.

In finances and economics, monitoring the stock market, detecting fraud, or forecasting the performance of assets, are high relevant tasks. In [25], the authors used Artificial Neural Network (ANNs) and data streams to forecast stock prices. Monika Arya et al. [21] proposed a real-time method to detect credit card fraud in data streams, using ANNs with ensemble trees.

Regarding health care and well-being, monitoring patients and having real-time processing capabilities can save lives. For instance, Leo Kobayashi et al. [82] created a patient monitor system using streams and multimodal data fusion. Their approach allowed them to analyse the data, conduct experiments and develop and apply algorithms. Another interesting application is to monitor and forecast the spread of infectious diseases. For instance, Ensheng Dong et al. [83] created an interactive dashboard to monitor COVID-19 using data streams.

We can also find works that benefit from using frameworks to process data streams in informatics and communications, such as monitor resource usage or detect security attacks. In [4], the authors propose an internet traffic monitoring system using streaming frameworks. And in [7], Liu et al. perform resource management and scheduling.

Other main areas with big data characteristics are smart cities and industry 4.0. One significant advantage is that they allow the creation of living labs, creating a space for learning and innovation. We can find several works to monitor and improve urban mobility, monitor water consumption and detect water leaks [84], and forecast traffic flow [38], among many others. Leonhard Hennig et al. [23] built a system to extract mobility and industry events from data streams. Qinglong Dai et al. [13] used a data stream framework with customized changes to process data from smart grids. Still, in the context of energy systems, Philsy Baban [24] could process and validate real-time streaming data. In [8], Sahal et al. discussed streaming frameworks and other tools to perform predictive maintenance for railway transportation and wind energy.

As can be observed, we can find big data applications in several different fields. Society can benefit greatly from big data; however, big data can also be dangerous. In this article, we will not explore the “dark side” of big data. For instance, it can serve for mass surveillance and persecution or increase the disparities among minorities. However, we hope that governments and institutions use big data for good. In this context, it emerged a new research area: “fair AI”, whose biggest goal is to combat racism, sexism, and other types of discrimination against minorities [85].

Real-time data stream processing

We use the term “big data” to define huge amounts of data [1] and the term “stream” to express data continuously being created and arriving [86]. This data can come from different sources and have different formats; its processing is not always trivial, especially if it is required in real-time.

Big data applications can have five types of components: data sources, a messaging platform, a processing module, a storage mechanism, and a presentation module. The data sources can be, among others, Internet of Things (IoT) sensors and social networks. These sources of information usually come from users, devices or activity logs. The messaging platform is responsible for sending data between modules. The processing module can be a streaming processing framework to ensure real-time processing capabilities. The storage mechanism can be a database or a data warehouse. Processed data can be presented in different ways, such as a web application, a mobile application, and a technical report. Figure 3 depicts the components of big data applications.

Fig. 3
figure 3

Big data applications components

Existing solutions

Fundamental concepts

In "Problem definition" we mentioned application requirements that can restrict the choice of a SPE. Now, we will discuss fundamental concepts that make it possible to have different data-processing techniques.

We may consider three types of processing: batch-based, stream-based, or event-based [87]. Batch processing is characterized by processing bounded data streams with a beginning and an ending. On the contrary, stream processing is characterized by the processing of unbounded data streams that do not have a known end. Besides, the data processing is performed as data arrives. If our application requires that we generate alerts or triggers if our data meets some conditions, we have event-based processing.

Concerning the processing model, we also have three types: at most once, at least once, and exactly once. At most once processing does not guarantee that the data is processed or persisted. In case of failure, we may have to deal with missing data. Usually, applications that choose at most once processing are more concerned with latency than reliability. On the contrary, at least once processing may process or persist duplicated data, but at least it guarantees that every data is processed or persisted at least one time. At last, exactly once processing just processes or persists data once.

Window mechanisms specify how to divide the stream in order to aggregate time series data. There are six main processing techniques [26, 88]. The most basic mechanism is the single-pass in which we process each new sample only once. Several windowing mechanisms will be discussed. Nevertheless, a windowing mechanism can be defined as a function of the time or the number of events [27]. A sliding window mechanism is defined as a window with a fixed size that slides over the data stream [26]. Tumbling windows are non-overlapping sliding windows [88]. Session windows are similar to tumbling windows; however, in session windows, we have a gap between windows [88]. In a landmark window, it is specified a sample from which the window keeps growing [26]. This sample can be updated from time to time. At last, the damped window mechanism uses a fading mechanism in which, the most recent samples have a bigger weight, and, as time goes by, the samples loose their weight [26]. Figure 4 represents some of these window mechanisms.

Fig. 4
figure 4

Processing window mechanisms

Regarding stream-based processing, its methods can be considered stateless or stateful. If the processing is stateless, then the state is not preserved. We can use stateful processing if we want to know how many people buy a specific game per month. On the other hand, if the state is retained, the processing is stateful. This can be useful to measure how many people buy the game over time in a commulative maner.

Data processing frameworks

As aforementioned, we will discuss and compare different SPEs. We selected six SPEs: Apache Spark, Apache Flink, Apache Storm, Apache Heron, Apache Samza, and Amazon Kinesis. Besides, we decided to include Apache Hadoop for historical reasons.

HadoopFootnote 1 was the first framework that appeared to process large datasets using the MapReduce programming model. Hadoop is very scalable, since it can run on a single cluster, in a single machine, or spread on several clusters in multiple machines. Moreover, Hadoop takes advantage of distributed storage to improve performance by transmitting the code that processes the data instead of the data [89]. Besides, Hadoop provides high availability and high throughput. However, it can have efficiency problems when dealing with small files.

The major drawback of using Hadoop is that it does not support real-time stream processing. To deal with this problem, Apache Spark emerged. SparkFootnote 2 is a framework for processing batch and streaming data, and allows distributed processing. According to Matei Zaharia [90], the creator of Spark, Spark was designed to respond to three big problems of Hadoop:

  1. 1

    Avoid iterative algorithms that make several passes through the data;

  2. 2

    Allow real-time streaming;

  3. 3

    Allow interactive queries.

Instead of MapReduce, Spark uses Resilient Distributed Datasets (RDDs) that are fault-tolerant and can be processed in parallel. Spark also provides scalability, and since its early releases, it has proved to outperform Hadoop [33]. Spark is helpful for data science related projects. Besides its main component, Spark provides several libraries for Exploratory Data Analysis (EDA), ML, graph analysis, stream processing and SQL analytics.

Two years later, Apache FlinkFootnote 3 and Apache StormFootnote 4 were created. While Spark uses micro-batches for stream processing, Flink and Storm can perform stream processing natively. Flink can process batch and streaming data. In Flink, we can process streams with specific temporal requirements. For example, we may consider processing or event time. In case of event time, Flink allows to deal with delayed events. Besides, Flink provides watermark support, allowing a trade-off between latency and completeness of data. Storm and Flink are similar frameworks, generating some discussion regarding their differences [91] and which of the following stand out:

  1. 1

    Storm only allows stream processing;

  2. 2

    They both can perform stream processing with low latency;

  3. 3

    The API offered by Flink is more high-level and provides more functionalities;

  4. 4

    They have different strategies to provide fault tolerance (Storm employs record-level acknowledgements while Flink uses a snapshot algorithm).

Storm is a good streaming framework; however, its capabilities to scale are not enough for more demanding applications. Besides this, debugging and managing Storm can be complex tasks. In this context, Apache HeronFootnote 5 emerges, as the successor of Storm. A paper published in 2015 [34] announced this transition at Twitter.

Apache SamzaFootnote 6 is a framework that provides real-time processing, event-based applications, and Extract, Transform and Load capabilities. Samza provides several APIs and presents an architecture similar to Hadoop, but instead of using MapReduce, it has the Samza API, and it uses Kafka instead of the Hadoop Distributed File System.

Finally, Amazon KinesisFootnote 7 is the only framework presented in this article that does not belong to the Apache Software Foundation. Kinesis is actually a set of four frameworks instead of a data stream framework. In this work, we refer to Amazon Kinesis to talk about the Kinesis Data Streams framework to simplify. Kinesis can easily be integrated with Flink.


The processing frameworks present different properties, which makes it challenging to choose one framework without understanding the differences. Therefore, we should choose the framework that suits best our use case.

Firstly, we decided to look at the nature of each framework. Although several frameworks belong to the Apache ecosystem, most were not created by Apache. They were later integrated into the Apache family through The Apache Incubator.Footnote 8 Table 2 resumes the nature of each one of them.

Table 2 Frameworks characteristics and provenance

Table 3 contains information about the processing techniques available (batch or stream) and the delivery of events (at most once, at least once, exactly once). As we already mentioned, Hadoop only provides batch processing. Storm and Heron only provide stream processing. All other frameworks offer both batch and stream processing. However, Spark provides stream processing through micro-batches. Regarding the delivery of events, most frameworks guarantee that the events are processed exactly once or at least once. Heron offers three types of delivery, the two mentioned above and at most once. Besides, these frameworks provide drivers for several programming languages, the most popular are Python and Java.

Table 3 Framework processing techniques and delivery of events

Performance-wise, some experiments have been conducted to compare the different SPEs. Note that it is difficult to make a fair comparison due to the lack of experiments that contemplate all frameworks. Therefore, we started by a performance comparison regarding the frameworks. This comparison considers the information available in the official documentation of each framework, which is present in Table 4. One of the most important characteristics when choosing a framework is the ability to process information in real-time. However, there needs to be a consensual definition of what real-time means. Gomes et al. [3] focused their study on this concept in the context of data streams and big data. According to the authors, there are different intents when discussing real-time. For example, real-time could mean an immediate response. Another possibility is the guarantee of low latency: some consider the time the system should answer, while others refer the time the system must answer. For a more fair comparison, in this discussion, we will focus on real-time as the property of having low latency.

Table 4 Performance comparation

Most of these frameworks present low latency, which is good when we are processing significant amounts of data and want to process it in real-time. Hadoop is the only one that is considered to have high latency. All frameworks present high throughput and high scalability. However, Hadoop only allows scaling vertically. Regarding fault tolerance mechanisms, all frameworks deal with fault tolerance.

After this initial study, we look for works that compare some of these frameworks to make an unbiased comparison. In 2015, Namiot et al. [10] made an introductory comparison of the properties of Storm, Spark, Samza, Apache Flume, Apache Kafka, Amazon Kinesis, and IBM InfoSphere.

Besides the noticeable differences between Hadoop and Spark, Pooja Choudhary et al. [28] conducted some experiments to compare these two frameworks. They concluded that Spark uses more memory than Hadoop, needing less execution time. However, the authors of [35] mentioned that Spark might not be the best framework if our application requires low latency and high throughput.

The authors of [29] compared the performance of Spark, Flink, and Storm under saturation conditions (the maximum streaming load that the frameworks could support without delay). This comparison is insightful if we want to choose the best framework for a data-intensive application. Flink presented the highest saturation level, while Storm had the worst CPU usage. Even when failure recovery mechanisms are activated, Storm performance decreases by 50%, while Flink only decreases 10%. Nevertheless, Spark can surpass Flink if we are not concerned with latency.

Inoubli et al. [12] performed experiments in which they compared Spark, Storm, Flink, and Samza. They observed that Spark achieved the worst processing rates compared to the other three frameworks. Flink and Samza were more efficient, especially when messages had a more considerable size. Flink CPU usage was lower; however, Flink could outperform Storm if the CPU consumption allowed was increased. Spark requires more RAM, less disk access, it is slower in processing messages, and uses less bandwidth.

In 2019, in the context of a smart city, Hamid Nasiri et al. [30] evaluated three different frameworks: Spark, Flink and Storm. They started by fixing the input rate and compared the performance with two nodes versus eight nodes. With two nodes, Flink presented the lowest latency and the highest throughput. Flink delivered a similar performance with a slightly higher throughput with eight nodes. The improvements on Spark and Storm were more significant, but Flink was still the best. On the other hand, Spark had the worst latency. With eight nodes, Spark presented a similar throughput to Flink; however, it reached the highest throughput peaks. They analyzed the impact of changing the input rate and the number of worker nodes. We can conclude that the performance of Flink is similar to Storm, even when using no acknowledgements in Storm. The most significant difference is the throughput in which Flink is better than Storm; however, Storm seems to scale better, and with eight nodes, Spark is the best of them all in terms of throughput. At last, they measured CPU and network utilization. Flink achieved the lowest CPU utilization and the highest network utilization. Storm and Spark achieved similar performances.

Kolajo et al. [9] compared 19 tools and technologies for data streaming; however, only half of them supported both batch and streaming processing. On another work [31], in 2019, the authors compared the performance of five stream processing systems: Storm, Flink, Spark, Kafka Stream, and Hazelcast Jet. Storm has the best memory consumption, and presents good stability. Flink presents the lowest latency. Spark presents the highest throughput and has a good compatibility with ML libraries.

In 2020, LinkedIn published a post [92] showing some improvements performed on Samza. These improvements provided Samza with more considerable throughput capabilities when compared with Flink.

Later in 2021, Krzysztof Wecel et al. [32] selected six frameworks, but has chosen to focus their analysis on comparing Spark and Flink. They concluded that Spark is more memory efficient while Flink is more CPU efficient. The authors also mentioned that, while performing their experiment, they found a problem that led to delays in the implementation phase: missing detailed documentation. We were already aware of this problem, especially with Flink.

Heron brings an extensive set of advantages to users that want to transit from Storm to a more scalable framework. The API available for Heron is compatible with the one available for Storm. Heron requires fewer resources (less CPU usage) and provides performance improvements (more throughput and less latency). Currently, Heron is in the incubating phase at The Apache Incubator [93].

To understand the frameworks popularity, we decided to perform two experiments using Scopus.Footnote 9 These experiments were performed on August 9th, 2022. In the first experiment, we try to understand the popularity of the different frameworks over the years. In the second experiment, we try to perceive how many publications exist when we consider different criteria.

For the first experiment, we created three queries. The example below contains the queries for the Apache Hadoop framework. Similar queries were performed for the remaining frameworks.


apache w/ hadoop


TITLE-ABS-KEY (apache w/ hadoop)



Firstly, we perform a general search using only the framework’s name. Secondly, we restrict papers with the framework’s name in the title, abstract or keywords. Lastly, we limit the subject area to papers published in the engineering field or computer science.

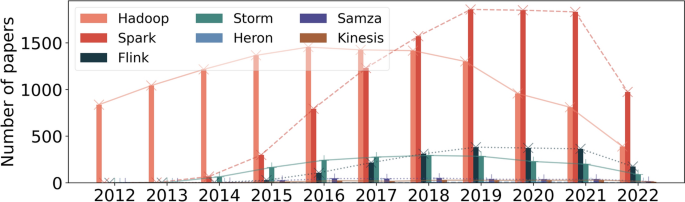

Figure 5 contains the results of the first query. We can visualize that Hadoop is the dominant framework in the first years. This happens because Hadoop is the oldest, and most frameworks did not exist or did not belong to the Apache Software Foundation at the time. The most popular streaming framework is Spark. Following Spark, the popularity of Flink and Storm is similar. Finally, Heron, Samza and Kinesis are the most unpopular frameworks.

Fig. 5
figure 5

Data processing frameworks: Popularity over the years first query

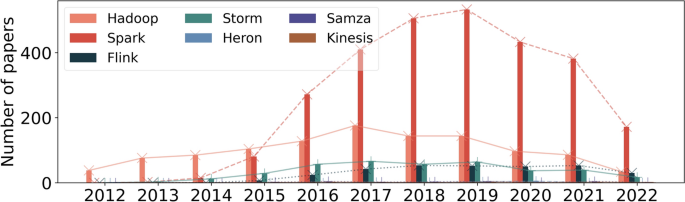

Figure 6 presents the results of the second query. When we restrict papers with the framework’s name in the title, abstract or keywords, we can visualize that Spark is the dominant framework. This might indicate that most papers that mention Hadoop only mention it because it was the first relevant framework. Another explanation is that Hadoop is the framework used in the study, but was not the subject of the study. Therefore, this second query is more focused on studying the framework, not its usage.

Fig. 6
figure 6

Data processing frameworks: Popularity over the years second query

What we can visualize in Fig. 6 is intensified in Fig. 7 when we limit the subject area. Figure 7 shows the results of the third query.

Fig. 7
figure 7

Data processing frameworks: Popularity over the years third query

In the second experiment, we evaluate the number of papers that considered stream-related concepts and algorithms. Our goal is to understand, for instance, how many articles that addressed forecasting also addressed streams. We started with two basic queries. First, query 4 helps to understand how many papers contain the word forecast or other words derivated from the word forecast, such as forecasting or forecasts. Query 5 helps to understand how many papers include anomaly detection or outlier detection. Query 6 is an additional query to understand how many papers also include ML or DL.




(anomaly w/ detection) OR (outlier w/ detection)


(machine w/ learning) OR (deep w/ learning)

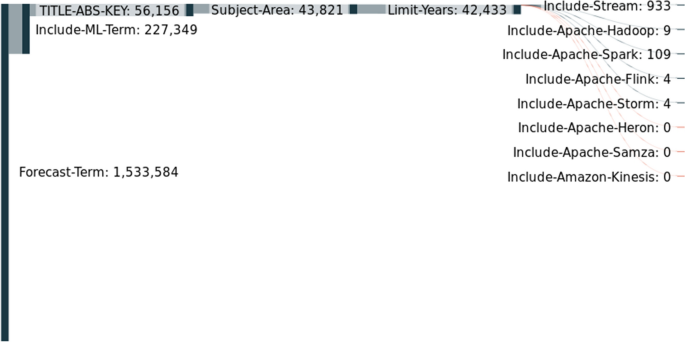

Figure 8 contains the results for forecasting terms. We start by performing query 4, and we named forecast-term. Then, we also included query 6, which we called ML-term. Then, we selected only the papers that had both terms in the title, abstract, or keywords. The next step was to limit by subject area (as in the first experiment). Then, we limited the search by the years from 2012 until 2023. Finally, we included different terms in order to answer our initial question. We separated the terms stream and the several frameworks. As we can visualize, we started with 1.5 million papers, and in the end, only 1 thousand had terms related to streams.

Fig. 8
figure 8

Forecast versus Stream

Figure 9 contains the results for anomaly detection. The only thing that changed with Fig. 5 was the initial term that, in this case, was the anomaly detection term, query 5. As we can visualize, we began with 136 thousand papers, and in the end, only five hundred had terms related to streams.

Fig. 9
figure 9

Anomaly detection versus Stream

Only a few papers consider streaming and forecasting concepts because a forecasting algorithm, to provide the most benefits, should perform real-time forecasting. Moreover, given the complexity of implementing a stream-based forecasting system and a forecasting algorithm, researchers can be more focused on developing one of these tasks when they publish their work. The same can be applied to anomaly detection concepts and other applications.


Choosing the best SPE is a critical engineering task that should consider the following. Foremost, only Spark, Flink, Samza and Kinesis allow both batch and stream processing. In addition, Spark and Flink do not allow missing or repeated data. However, Heron enables the choice of any delivery. Flink is the best framework for data-intensive applications, presenting the lowest latency and highest throughput. However, Storm seems to scale better. Recent studies have proven that Samza has a better throughput than Flink, and Heron scales better than Storm. Nevertheless, Spark and Storm are the most popular stream frameworks. Heron is a good substitute for Storm, allowing Storm users to transition easily.

Analysis and algorithms for streaming data

In the scope of ML, several tasks can take advantage of streaming technologies, such as regression, classification, clustering, forecasting, anomaly detection, and frequent pattern mining.

In this section, we decided to focus on two tasks related with time series: forecasting ("Time series forecasting" secrtion) and anomaly detection ("Anomaly detection" section).

Time series forecasting

Problem definition

Humans are constantly trying to predict the future. Millions of years ago, when we started counting time, we also began to make predictions. One of the questions that most hunt humanity, and that several societies, religions and individuals tried to guest, is when doomsday will occur. Several dates have been proposed over the years, but until now, none of them has been correct.

Forecasting is a prediction task in which we try to predict future events accurately. To make good forecasts, we should understand the phenomenon and the causes that influence the phenomenon. We can use historical data, events that may occur, and other information that may contribute to the forecasting task [94]. For example, when we look at the sky and see dark clouds, we can (most certainly) guess it will rain.

Accordingly, with the domain of our problem, we should look for data other than the phenomenon’s data. For instance, Wasiat Khan et al. [45] used data from social media and financial news to predict the stock market’s performance. However, the authors recognize that not all stocks are influenced the same way. Besides, the authors noticed that some stocks were more influenced by social media news, while others were more influenced by financial news. Ahmad Ali et al. [46] considered the spatial-temporal dependencies and several temporal patterns (current, daily, and weekly) to predict crow flows. The use of external factors, such as weather conditions, holidays, and events was also crucial in this context.

Forecasting tasks can be classified as short, medium or long-term forecasts [94]. These terms are used if the forecast is made for the near future, medium future or distant future. For instance, we may want to predict how many people will travel to a tourist destination in the next hour, in the next week, or in the next year.

Usually, short-term forecasting is only relevant in a short interval. Therefore, we might benefit from performing the forecasting in real-time or near-real-time. On the other hand, medium and long-term forecasting is not needed immediately; therefore, we can perform them offline.

Forecasting problems use time series data. A time series is the evolution of one variable (or more) over time. A time series is a stochastic process, time-indexed, thus making statistical properties relevant. When we only have one variable, we have a univariate time series. We have a multivariate time series when we have more than one variable. Usually, when we are in the presence of a univariate time series, we call it a time series [94,95,96].

Fig. 10
figure 10

Forecasting methods

Time series data is similar to streaming data, since we can look at the data arriving from the streaming with a temporal component and a sequential order. However, this does not mean that all data from streams are time series, even though they might have a timestamp associated.

Existing solutions

There are three types of forecasting methods: historical, statistical, and ML. Historical methods only look at past values to forecast new ones. The most popular historical method is the Historical Average (HA), which can be found in the literature [47], especially as a baseline. Statistical methods are mainly based on the Auto Regressive (AR) method. They are also considered usually as a baseline. For instance, we can find Auto Regressive Integrated Moving Average (ARIMA) in work [47]. ML approaches, particularly DL, have been highlighted more recently, and several novelty methods have been proposed.

We can find forecasting works related to energy consumption and pricing. Bangzhu Zhu et al. [48] used an SVM-based method with mixture kernels to forecast carbon prices. Razak Olu-Ajayi et al. [49] predicted the energy consumption of buildings using ML and DL models, and concluded that ANNs are more suitable to make predictions. In [50], Zhang et al. proposed a Multi-view Ensemble Learning Model (MELM) to forecast traffic of base stations to save power in cellular networks. Their multi-view methods had four views: a temporal, a spatial, one dedicated to events, and the last view for residual information. For the temporal component, they analyzed the auto-correlation, the trend, and the seasonality of the data, and they used the Seasonal Auto Regressive Integrated Moving Average (SARIMA) to perform short and long-term forecasting. They used a spreading model based on a grid system to observe and capture the spatial dependencies. The authors observed that different regions have a different number of users, and they observed mobility transferring from nearby regions. They used a decision tree to capture the influence of events, since they cause changes in traffic. They considered four types of events (holidays, weather, concerts, and news). For the residual information, they used a top-k regression tree.

Another explored topic is related to traffic. To predict the flow of crowds, in [51] it is proposed a framework called Forecasting Citywide Crowd Flows (FCCF). The authors used human mobility data, weather conditions, and road network data. First, they divided the human mobility data into two edge flow categories: inflow and outflow. Besides that, they split the region into small regions. Then, they decomposed the flows into seasonal, trend, and residual and built a model for each one of the flows. For the seasonal and trend components, they created an Intrinsic Guassian Markov-Random-Field (IGMRF) for each component. For the residual, they explored the spatiotemporal dependence and built a spatiotemporal residual model that uses a Bayesian network. Then, the models were aggregated to give the final prediction.

The authors in [52] proposed a multi-view network model called Deep Multi-View Spatial-Temporal Network (DMVST-NET). They observed that, in most cases, including a region that presents a weak correlation with the region we want to predict decreases the model’s performance. Usually, distant regions are less correlated, but this is not always true. Considering this all, the authors chose to create three views: a view for the temporal component, another for the spatial component (they only consider nearby regions), and the last one for semantic relations (the regions are far away but present similar demands). They used a Long Short-Term Memory (LSTM) for the temporal component, a Convolutional Neural Network (CNN) for the spatial component, and a Graph Neural Network (GNN) to capture the semantic relations.

In [53], the Multi-Task Learning Temporal Convolutional Neural Network (MTLTCNN) method is proposed for short-term passenger demand prediction. The authors started by using a Spatio-Temporal Dynamic Time Warping (ST-DTW) algorithm to select the most relevant features. The proposed method is multi-task, having one task per region. Each task comprises a Temporal Convolutional Neural Network (TCNN), and the tasks share information between them, namely spatiotemporal correlations. Ahmad Ali et al. [46] proposed an ANN model based on graphs and convolution to predict crowd flows. In addition, they explored spatiotemporal dependencies and external factors. The authors of [47] proposed an architecture that uses graphs, convolution, and recurrency to forecast traffic. Their approach explores spatiotemporal dependencies.

In 2018, Spyros Makridakis et al. [39] published the results of the fourth edition of a forecasting accuracy competition. This competition discouraged the submission of complicated ML models that required high computational capabilities. Most of the best methods were combinations of statistical models. One of the best methods was a hybrid ML (using Recurrent Neural Network (RNN)) and a statistical approach (exponential smoothing). Unfortunately, some of the submitted methods were based only on ML and achieved the worst results. Later in 2021, Spyros Makridakis et al. [40] published the results of the fifth edition of the forecasting accuracy competition. The goal was to predict the sales of a retail company represented by 42.840 time series. Most of the competitors used LightGBM-based methods, a ML method based on trees. In the top five, the first two top methods were essentially a weighted combination of LightGBM models, the third winner was a weighted combination of a Neural Network (NN), the fourth place was a non-recursive LightGBM, and the fifth was a recursive LightGBM.

A literature review on deep learning methods for financial time series forecasting [43] presented eight methods commonly used: Deep Multi Layer Perceptron (DMLPs), RNNs, LSTMs, CNNs, Restricted Boltzman Machines (RBMs), Deep Belief Networks (DBNs), Autoencoders (AEs), and Deep Reinforcement Learning (DRL). The authors highlight the preference of researchers in using RNNs, specially LSTMs, with financial data. However, as the authors identified, CNNs and Graph-based networks still need to be explored when using financial data. Meanwhile, Masini et al. [44] reviewed both ML and DL methods for financial forecasting; their main focus was NN, regression trees, bagging, and regression. The authors emphasized the use of ML models (including DL models) in the presence of large datasets.

Table 5 resumes the revised works. In this comparison, we did not include the survey articles. As we can visualize, different approaches emerged over the last years for both ML and DL methods. Most of the authors used more than one metric to compare the methods.

Table 5 Comparison of forecasting methods

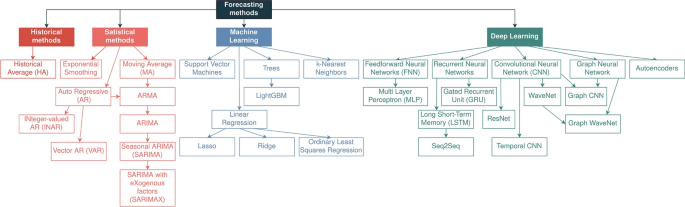

Figure 10 contains some of the methods used in forecast tasks. Forecasting may be accomplished using statistical methods or DL-based methods. Both approaches have advantages and disadvantages. Depending on the context, statistical methods may be more advantageous than DL methods and vice-versa. While statistical methods are explainable, they are usually more robust in short-time predictions, and they present the best results in short-time contexts. They are usually not suitable for long-term forecasting.

ANNs present some disadvantages. The first problem is to find the weights of the inputs. The training process will update the model weights in each iteration; however, the optimization algorithm used may not lead to the minimum error or loss and can lead to overfitting. The training process can be extensive, making its adoption difficult in some contexts. ANNs also require a lot of information and great computational power when compared with statistical methods.

One of the big problems with ML algorithms is the lack of transparency, especially in ANNs. ANNs are often seen as “black boxes” [41]. In order to solve this issue, a new topic has emerged in the scope of ML: explainable models. Explainability plays a crucial role in the understanding of a particular problem. A correct prediction is not always enough, since it can have real impacts in terms of security, ethics, mismatched objectives, privacy, and others [42].

The more relevant advantage of using DL based methods is the possibility of working with multidimensional data, in some cases exploring the relationships between space, time, and other factors that may influence the prediction. Statistical methods may be more beneficial regarding forecasting methods with real-time stream processing, since they are lighter. However, we should consider the application requirements, the data, and the threshold between execution time and other performance metrics.

We decided to compare the type of methods used in forecasting in terms of popularity over the years, highlighting the last years. Figure 11 contains the relationship between the number of documents retrieved from Scopus when we perform the query example Q7. As we can observe, the use of machine learning and deep learning for forecasting increased over the last few years.

Fig. 11
figure 11

Evolution of the popularity of type of methods regarding forecasting over the years. ML stands for Machine Learning, DL for Deep Learning, SL for Statistical Learning, and RL for Reinforcement Learning

Q7: :

TITLE-ABS-KEY ( forecasting AND ( “machine learning” OR “ml”) )

We also compared the methods used. Figure 12 contains the obtained results. Before 2018, the type of methods that were more mentioned were the ANNs. This can happen for two reasons: it was used the generic architecture of ANN, or the authors used the word when referring to a specific type of ANN. For instance, a LSTM is a type of ANN. Over the years, we can observe an increase in the use of LSTMs, CNN, RNNs, AE, and GNNs. The popularity of Deep Learning methods does not mean that the statistical ones are not important. It just reflects the evolution and trends of research methods.

Fig. 12
figure 12

Evolution of the popularity of methods regarding forecasting over the years. ANN stands for Artificial Neural Network, SVM for Support Vector Machine, LSTM for Long Short-Term Memory, A &S for ARIMA and SARIMA, RNN for Recurrent Neural Network, CNN for Convolution Neural Network, FNN for Feedforward Neural Network, AE for Autoencoder, GNN for Graph Neural Network, DBN for Deep Belief Network, LGBM for LightGBM, HA for Historical Average and RBM for Restricted Boltzmann Machines


Forecasting is an essential task when working with time series datasets. We can have different forecasting horizons, such as short, medium, and long-term. We can apply this type of method to different contexts and use cases.

Classical methods are mainly based on Auto-Regression. Regarding machine learning methods, LightGBM proved to be efficient. In the case of deep learning methods, the most used are based on LSTMs, CNNs, AEs, and GNNs. As we discussed, all methods have their positive and negative aspects. In addition, the application and intent of the problem can make the choice of the technique easier to select.

Anomaly detection

Problem definition

An anomaly occurs when something unexpected happens. We can observe anomalies in our daily lives, for instance, a cold day (as if it were winter) in the middle of the summer. We can visualize the anomalies in data. If we look for the chart that contains the daily temperatures measured in the summer, we would see an anomalous point in relation to the other points. However, not all anomalies are expressed in the same way. Anomalies can be classified by their nature, they can be a point anomaly, a contextual anomaly, or a collective anomaly [54].

A point anomaly can be identified when we compare it with the rest of the data [55]. Remembering the “cold day in the middle of the summer” example, if we only had data from the summer, we would have a point anomaly if the observed temperature was very different from all others.

A contextual anomaly happens in a particular context [55]. If we had data from the entire year, we would observe that in the winter there are low temperatures. The point is anomalous because it happens in the summer and not in the winter. This is similar to a conditional anomaly, which depends on the context to be classified as an anomaly.

A collective anomaly is a collection of points that are considered anomalous when compared with the remaining dataset [56]. They can be, for instance, an abrupt change in the temperature of the summer. Another example would be a day in which it is verified a smaller variation of temperatures. As we know, temperatures are higher in the summer. However, we can have fluctuation throughout the day. From the examples above, we can conclude that anomalies can also be present in time series, and can be isolated outliers or abrupt changes.

There are several challenges associated with the detection of anomalies. Anomalies are not always known or noticeable, and it is difficult to define what may be considered as anomalous. Besides that, there is always some noise associated with the anomaly detection. As an example, network attacks can change, evolve, and adapt, marking this as a complex problem, and allowing negative impacts to happen from the presence of false negatives and false positives in the analysis [54, 57].

Existing solutions

Anomalies are known for being rare in datasets. It is because of that property that they are considered anomalies. In a dataset containing anomalies, and if our goal is to identify them, we will have a class imbalance problem. This problem is amplified when dealing with big data. There are three different techniques to solve this issue [16]:

  • Data-based techniques: using sampling methods, we can reduce the level of imbalance;

  • Algorithm-based techniques: we can reduce the bias towards the majority group;

  • Hybrid techniques.

Learners can have difficulties identifying anomalies, especially in highly imbalanced datasets, such as decision trees and logistic regression [16]. Moreover, some classification metrics are more sensitive to imbalanced classes. Regarding the evaluation metrics, some metrics are highly affected and are not recommended, such as accuracy and error rate. Other metrics, such as precision, and recall, can be used, but they alone are usually not enough [16]. The F-measure metric is a weighted average of precision and recall and is highly used in this context.

To detect anomalies, statistical learning approaches can be used. In [58], Hochenbaum et al. used seasonal decomposing to extract the trend and the seasonal components. They proposed two techniques: the seasonal Extreme Studentized Deviate (ESD), and the seasonal hybrid ESD, which adds the median and the Median Absolute Deviation.

Some methods to detect anomalies are signal-based. In [59], the authors could effectively detect sharp increases in the local variance using wavelet filters and pseudo-spline filters. In [97], Muñoz et al. used correlation-based techniques.

Principal Component Analysis (PCA) based approaches were explored in [60, 61]. In [60], the authors applied wavelet transformations to network traffic data. Then, it is applied PCA to extract the nature of anomalies. Finally, they use a mapping function to detect the anomalies. In [62], the authors could also localize the source of anomalies by incorporating the network structure information with the PCA model. They used the Karhunen Loève Expansion to get spatial and temporal correlations. In [61], the authors proposed the use of Minimum Covariance Determinant (MCD) with Robust Principal Component Analysis (rPCA). As PCA might have issues associated with introducing the outliers in the subspace, rPCA tackles it, with a computational cost. The use of MCD helps to ease the computational cost.

We can also find in the literature approaches based on the k-Nearest Neighbors (KNN) algorithm. In [63], the authors proposed a Transductive Confidence Machine (TCM) with KNN for online anomaly detection. They could improve their results by applying instance selection. The authors of [22] compared Naive Bayes, Support Vector Machine (SVM), and decision trees, and in [36] it is used Naive Bayes.

Fig. 13
figure 13

Anomaly detection methods

Several works are based on ANNs, such as [37, 64,65,66,67,68,69,70,71,72,73,74]. In [64], motivated by the presence of a high rate of false alarms and improving accuracy, Hussain et al. proposed a FeedForward Neural Network (FNN) to detect anomalies in cellular networks. They accomplished high accuracy and a low False Positive Rate (FPR), proving the usefulness of FNNs. The work in [65] used a LSTM to detect network attacks through the anomalies present in data. They tested two types of baselines. In the first one, they only used cleaned data to train the model (without anomalies). In the second one, they used dirty data to train the model (with anomalies). They concluded that the dirty baseline models achieved the best results, which is good when no completely clean dataset exists. In [66], it is proposed the Parallel Subagging-GRU-based network (PSB-GRU)Parallel Subagging-GRU-based network (PSB-GRU) method. The model uses a Gated Recurrent Unit (GRU) network for long-term dependencies, a genetic algorithm to optimize the training process, the Spark platform to improve train efficiency, and subagging smoothly to improve the model’s generalization.

In [67], it is compared the performance of several RNN-based methods. The authors concluded that LSTM networks achieve the best results in terms of performance; however, the other RNN-based network also achieved good results. The works in [65,66,67] allow to conclude that sequential NN are suitable to detect anomalies. In [68], it is proposed a CNN-based method to extract spatio-temporal and other features from data with a threshold-based separation method to detect anomalies. The architecture had four convolutional layers. They achieved good results; however, they recognize that they need a more lightweight method to perform online anomaly detection. The authors of [74] also used a CNN. They were able to achieve better performance, in some cases, in architectures with one convolutional layer when compared with two or three convolution layers. However, their methods did not outperform RNN-based methods. The authors of [69] explored how CNNs can fail. The authors concluded that a one-pixel attack can mislead CNN-based networks. Increasing the number of layers (three convolution and three pooling layers) and retraining contributes to a more robust detection.

The authors of [70] proposed an ensemble method based on RBM and SVM. They tested their method in real time and achieved good performance. The work in [71] used Self-Organizing-Maps (SOM). Their model is computationally light, presenting results with a very low delay. In [37] the authors also use SOM with k-medoids, and they perform a two-step clustering. They achieved fast online detection and a multistage decision to distinguish different anomalies. In [72] it is proposed an autoencoder-based method with convolution. The use of autoencoders allowed the authors to capture non-linear correlations between features. The use of convolution has also reduced the training time. In [73], stacked autoencoders are used with a one-class classification model. The use of autoencoders allows the selection of the most relevant features and the reduction of data dimensionality.

Other approaches, such as the one proposed by [75, 76] are tensor-based. A tensor is a structure similar to a multidimensional array with three or more dimensions. When we have one dimension, we have a vector (denoted as a first-order tensor), and if we have two dimensions, we have a matrix (second-order tensor) [76]. In [75], the proposed method is based on tensor decomposition. The method in [76] is based on tensor factorization, and we have a two-phase anomaly detection. Tensor-based methods are useful when we have complex data with high-dimensional orders.

Table 6 resumes the revised works for anomaly detection. We can visualize different types of methods. In anomaly detection, one of the most important tasks is the fair evaluation of the methods. Usually, in an anomaly detection problem, we have the class imbalance problem, as mentioned above. To compare better the evaluation metrics used, we decided to create Table 7. False Positive Rate, True Positive Rate, and accuracy are the most frequently used metrics. The class imbalance highly affects the accuracy, and this metric should not be used, especially without other metrics.

Table 6 Comparison of anomaly detection methods in literature
Table 7 Evaluation metrics used in anomaly detection problems


Figure 13 contains some methods used in anomaly detection. Traditional statistical methods can fail in the face of big data and data with several dimensions. On the other side, ML methods can deal with high dimensionality. Supervised methods achieve good performance in detecting anomalies [6]. However, they have problems detecting new unseen types of anomalies. Unsupervised methods are good at detecting new anomalies [14].

Figure 14 contains the evolution of the popularity of the type of anomaly detection methods over the last few years. The use of statistical methods decreased while the use of deep learning methods increased. Currently, most of the published works use machine learning and deep learning. Similarly, Fig. 15 contains the evolution of the popularity of techniques over the last few years. As we can observe, methods such as PCA, SVM, and KNN lost popularity over time, while the focus evolved to the use of CNNs, RNNs, LSTMs and AE.

Fig. 14
figure 14

Evolution of the popularity of type of methods regarding anomaly detection over the years. ML stands for Machine Learning, DL for Deep Learning, SL for Statistical Learning, and RL for Reinforcement Learning

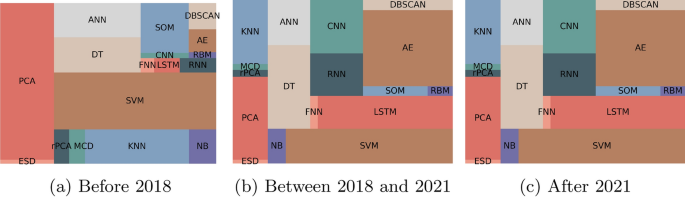

Fig. 15
figure 15

Evolution of the popularity of methods regarding anomaly detection over the years. ESD stands for Extreme Studentized Deviate, PCA for Principal Component Analysis, rPCA for Robust Principal Component Analysis, MCD for Minimum Covariance Determinant, KNN for k-Nearest Neighbors, NB for Naive Bayes, SVM for Support Vector Machine, DT for Decision Trees (and includes random forest), ANN for Artificial Neural Network, FNN for Feedforward Neural Network, LSTM for Long Short-Term Memory, RNN for Recurrent Neural Network, CNN for Convolution Neural Network, SOM for Self-Organizing-Maps, RBM for Restricted Boltzmann Machines, AE for Autoencoder and DBSCAN for Density-Based Spatial Clustering of Applications with Noise


As can be concluded from the above information, there are several methods that can be applied to anomaly detection. Regardless of the chosen method, we must take into consideration some problems associated with the nature of the data. The first class of problems that the methods can be vulnerable to are data poisoning attacks. In this context, a data poisoning attack might be something that we consider normal, being abnormal in the training phase. In [77], the authors deal with this problem by separating the training phase from the learning process.

Different methods should be considered when dealing with anomalies in data streams, since there is not one single method able to detect all types of anomalies. Furthermore, data streams are very susceptible to data poisoning attacks, since the use of supervised methods does not know the most recent data and needs to be regularly updated. Moreover, we should evaluate, once more, the threshold between execution time and other performance metrics. Finally, in the context of big data and ML, we should take into account that we are dealing with a class imbalance problem.

Conclusions and future research directions

Data by itself can have no value for organizations and society. However, we can transform data into knowledge and improve decision-making through analysis. Nevertheless, dealing with big data can be a complex problem, especially when the data keeps growing over time. In this context, Stream Processing Engines emerged. They are an essential tool for processing big data in real-time. In this work, we presented some frameworks to process data streams in real-time, and we compared them. Spark is not a native streaming framework since it uses micro-batches, which brings some performance issues. However, Spark is the most popular framework with several exploratory data analysis and machine learning modules. On the other side, Flink can deal better with data-intensive applications, while Heron seems to scale better.

We also presented approaches to deal with common big data problems, such as forecasting and anomaly detection in real-time. Applying these algorithms in real time can be very beneficial for organizations. For instance, the use of forecasting can help organizations to optimize the use of services and resources. On the other side, using anomaly detection algorithms can prevent or minimize problems before they happen, such as network attacks. Finally, we discussed statistical, machine learning, and deep learning approaches. Statistical methods are more explainable and computationally lighter. On the other side, machine learning methods deal better with complex data and can predict longer times.

As future research directions, we would like to suggest real-time analytics and algorithms over big data time series streams. Namely, having time series related machine learning and deep learning algorithms take advantage of online learning for providing real-time analysis, forecasts, and anomaly detection. Another possible research direction is the development of explainable methods focused on time-series.

Availability of data and materials

Not applicable.












  1. Cox M, Ellsworth D. Application-controlled demand paging for out-of-core visualization. In: Proceedings of the 8th Conference on Visualization ’97. VIS ’97, pp. 235–244. IEEE Computer Society Press, Washington, DC, USA, 1997.

  2. Fan J, Han F, Liu H. Challenges of Big Data analysis. Natl Sci Rev. 2014;1(2):293–314.

    Article  Google Scholar

  3. Gomes EHA, Plentz PDM, Rolt CRD, Dantas MAR. A survey on data stream, big data and real-time. Int J Netw Virtual Organ. 2019;20(2):143–67.

    Article  Google Scholar

  4. Zhou B, Li J, Wang X, Gu Y, Xu L, Hu Y, Zhu L. Online internet traffic monitoring system using spark streaming. Big Data Mining Anal. 2018;1(1):47–56.

    Article  Google Scholar

  5. Thudumu S, Branch P, Jin J, Singh J. A comprehensive survey of anomaly detection techniques for high dimensional big data. J Big Data. 2020.

    Article  Google Scholar

  6. Es-Samaali H, Outchakoucht A, Benhadou S, Mounnan O, Abou El Kalam A. Anomaly detection for big data security: a benchmark. In: 2021 the 3rd International Conference on Big Data Engineering and Technology (BDET). BDET 2021, Association for Computing Machinery, New York, NY, USA 2021, pp. 35–39.

  7. Liu X, Buyya R. Resource management and scheduling in distributed stream processing systems: a taxonomy, review, and future directions. ACM Comput Surv. 2020.

    Article  Google Scholar

  8. Sahal R, Breslin JG, Ali MI. Big data and stream processing platforms for industry 4.0 requirements mapping for a predictive maintenance use case. J Manuf Syst. 2020;54:138–51.

    Article  Google Scholar

  9. Kolajo T, Daramola O, Adebiyi A. Big data stream analysis: a systematic literature review. J Big Data. 2019;6(1):47.

    Article  Google Scholar

  10. Namiot D. On big data stream processing. Int J Open Info Technol. 2015;3(8):48–51.

    Google Scholar

  11. Wu Y. Network big data: a literature survey on stream data mining. J Softw. 2014.

    Article  Google Scholar

  12. Inoubli W, Aridhi S, Mezni H, Maddouri M, Mephu Nguifo E. A comparative study on streaming frameworks for big data. In: Ziviani A, Hara CS, Ogasawara ES, de Macêdo JAF, Valduriez P, editors. LADaS@VLDB. Rio de Janeiro:; 2018. p. 17–24.

    Google Scholar

  13. Dai Q, Qian J. A distributed stream data processing platform design and implementation in smart cities. In: 2020 IEEE 3rd International Conference on Electronic Information and Communication Technology (ICEICT), 2020, pp. 688–693.

  14. Ahmed M, Choudhury N, Uddin S. Anomaly detection on big data in financial markets. In: 2017 IEEE/ACM International Conference on Advances in Social Networks Analysis and Mining (ASONAM), 2017, pp. 998–1001

  15. L’Heureux A, Grolinger K, Elyamany HF, Capretz MAM. Machine learning with big data: challenges and approaches. IEEE Access. 2017;5:7776–97.

    Article  Google Scholar

  16. Johnson J, Khoshgoftaar T. Survey on deep learning with class imbalance. J Big Data. 2019;6:27.

    Article  Google Scholar

  17. Luo Y, Du X, Sun Y. Survey on real-time anomaly detection technology for big data streams. In: 2018 12th IEEE International Conference on Anti-counterfeiting, Security, and Identification (ASID), 2018, pp. 26–30.

  18. Zhu Y, Zhong XY. Data explosion, data nature and dataology. Brain Inform. 2009;5819:147–58.

    Article  Google Scholar

  19. Gandomi A, Haider M. Beyond the hype: big data concepts, methods, and analytics. Int J Inf Manag. 2015;35(2):137–44.

    Article  Google Scholar

  20. Trifunovic N, Milutinovic V, Salom J, Kos A. Paradigm shift in big data supercomputing: dataflow vs. controlflow. J Big Data. 2015.

    Article  Google Scholar

  21. Arya M, Sastry GH. Deal-’deep ensemble algorithm’ framework for credit card fraud detection in real-time data stream with google tensorflow. Smart Sci. 2020;8(2):71–83.

    Article  Google Scholar

  22. Zhao S, Chandrashekar M, Lee Y, Medhi D. Real-time network anomaly detection system using machine learning. In: 2015 11th International Conference on the Design of Reliable Communication Networks (DRCN), 2015, pp. 267–270.

  23. Hennig L, Thomas P, Ai R, Kirschnick J, Wang H, Pannier J, Zimmermann N, Schmeier S, Xu F, Ostwald J, Uszkoreit H. Real-time discovery and geospatial visualization of mobility and industry events from large-scale, heterogeneous data streams. In: Proceedings of ACL-2016 System Demonstrations. Association for Computational Linguistics, Berlin, Germany 2016, pp. 37–42.

  24. Baban P. Pre-processing and data validation in IOT data streams. In: Proceedings of the 14th ACM International Conference on Distributed and Event-Based Systems. DEBS ’20. Association for Computing Machinery, New York, NY, USA 2020, pp. 226–229.

  25. Kovacs A, Bogdandy B, Toth Z. Predict stock market prices with recurrent neural networks using NASDAQ data stream, 2021, pp. 449–454.

  26. Bahri M, Bifet A, Gama J, Gomes HM, Maniu S. Data stream analysis: foundations, major tasks and tools. WIREs Data Min Knowl Discov. 2021;11(3):1405.

    Article  Google Scholar

  27. Namiot D, Sneps-Sneppe M, Pauliks R. On data stream processing in IOT applications. In: Galinina O, Andreev S, Balandin S, Koucheryavy Y, editors. Internet of things, smart spaces, and next generation networks and systems. Cham: Springer; 2018. p. 41–51.

    Chapter  Google Scholar

  28. Choudhary P, Garg K. Comparative analysis of spark and hadoop through imputation of data on big datasets. In: 2021 IEEE Bombay Section Signature Conference (IBSSC), 2021, pp. 1–6.

  29. Karakaya Z, Yazici A, Alayyoub M. A comparison of stream processing frameworks. In: 2017 International Conference on Computer and Applications (ICCA), 2017, pp. 1–12 .

  30. Nasiri H, Nasehi S, Goudarzi M. Evaluation of distributed stream processing frameworks for IOT applications in smart cities. J Big Data. 2019.

    Article  Google Scholar

  31. Shahverdi E, Awad A, Sakr S. Big stream processing systems: an experimental evaluation. In: 2019 IEEE 35th International Conference on Data Engineering Workshops (ICDEW), 2019, pp. 53–60.

  32. Wecel K, Szmydt M, Stróżyna M. Stream processing tools for analyzing objects in motion sending high-volume location data. Bus Inf Syst. 2021;1:257–68.

    Article  Google Scholar

  33. Zaharia M, Chowdhury M, Franklin MJ, Shenker S, Stoica I. Spark: cluster computing with working sets. In: Proceedings of the 2nd USENIX Conference on Hot Topics in Cloud Computing. HotCloud’10. USENIX Association, USA 2010, p. 10

  34. Kulkarni S, Bhagat N, Fu M, Kedigehalli V, Kellogg C, Mittal S, Patel JM, Ramasamy K, Taneja S. Twitter heron: stream processing at scale. In: Proceedings of the 2015 ACM SIGMOD International Conference on Management of Data. SIGMOD ’15. Association for Computing Machinery, New York, NY, USA 2015, pp. 239–250.

  35. Salloum S, Dautov R, Chen X, Peng PX, Huang JZ. Big data analytics on apache spark. Int J Data Sci Anal. 2016;1:145–64.

    Article  Google Scholar

  36. Ding N, Gao H, Bu H, Ma H. Radm:real-time anomaly detection in multivariate time series based on bayesian network. In: 2018 IEEE International Conference on Smart Internet of Things (SmartIoT), 2018, pp. 129–134.

  37. Qin X, Tang S, Chen X, Miao D, Wei G. Sqoe kqis anomaly detection in cellular networks: fast online detection framework with hourglass clustering. China Commun. 2018;15(10):25–37.

    Article  Google Scholar

  38. Almeida A, Brás S, Oliveira I, Sargento S. Vehicular traffic flow prediction using deployed traffic counters in a city. Futur Gener Comput Syst. 2022;128:429–42.

    Article  Google Scholar

  39. Makridakis S, Spiliotis E, Assimakopoulos V. The m4 competition: results, findings, conclusion and way forward. Int J Forecast. 2018;34(4):802–8.

    Article  Google Scholar

  40. Makridakis S, Spiliotis E, Assimakopoulos V. M5 accuracy competition: results, findings, and conclusions. Int J Forecast. 2022.

    Article  Google Scholar

  41. Karlaftis MG, Vlahogianni EI. Statistical methods versus neural networks in transportation research: differences, similarities and some insights. Transp Res Part C Emerg Technol. 2011;19(3):387–99.

    Article  Google Scholar

  42. Carvalho DV, Pereira EM, Cardoso JS. Machine learning interpretability: a survey on methods and metrics. Electronics (Switzerland). 2019.

    Article  Google Scholar

  43. Sezer OB, Gudelek MU, Ozbayoglu AM. Financial time series forecasting with deep learning: a systematic literature review: 2005–2019. Appl Soft Comput. 2020;90: 106181.

    Article  Google Scholar

  44. Masini RP, Medeiros MC, Mendes EF. Machine learning advances for time series forecasting. J Econ Surv. 2023;37(1):76–111.

    Article  Google Scholar

  45. Khan W, Ghazanfar MA, Azam MA, Karami A, Alyoubi K, Alfakeeh A. Stock market prediction using machine learning classifiers and social media news. J Ambient Intell Humaniz Comput. 2022.

    Article  Google Scholar

  46. Ali A, Zhu Y, Zakarya M. Exploiting dynamic spatio-temporal graph convolutional neural networks for citywide traffic flows prediction. Neural Netw. 2022;145:233–47.

    Article  Google Scholar

  47. Guo K, Hu Y, Qian Z, Liu H, Zhang K, Sun Y, Gao J, Yin B. Optimized graph convolution recurrent neural network for traffic prediction. IEEE Trans Intell Transp Syst. 2021;22(2):1138–49.

    Article  Google Scholar

  48. Zhu B, Ye S, Wang P, Chevallier J, Wei Y-M. Forecasting carbon price using a multi-objective least squares support vector machine with mixture kernels. J Forecast. 2022;41(1):100–17.

    Article  MathSciNet  Google Scholar

  49. Olu-Ajayi R, Alaka H, Sulaimon I, Sunmola F, Ajayi S. Building energy consumption prediction for residential buildings using deep learning and other machine learning techniques. J Build Eng. 2022;45: 103406.

    Article  Google Scholar

  50. Zhang S, Zhao S, Yuan M, Zeng J, Yao J, Lyu MR, King I. Traffic prediction based power saving in cellular networks: a machine learning method. In: Proceedings of the 25th ACM SIGSPATIAL International Conference on Advances in Geographic Information Systems. SIGSPATIAL ’17. Association for Computing Machinery, New York, NY, USA 2017)

  51. Hoang MX, Zheng Y, Singh AK. FCCF: Forecasting citywide crowd flows based on big data. In: Proceeding of the 24rd ACM International Conference on Advances in Geographical Information Systems (ACM SIGSPATIAL 2016). ACM SIGSPATIAL 2016, 2016.

  52. Yao H, Wu F, Ke J, Tang X, Jia Y, Lu S, Gong P, Ye J, Li Z. Deep multi-view spatial-temporal network for taxi demand prediction. In: McIlraith, S.A., Weinberger, K.Q. (eds.) Proceedings of the Thirty-Second AAAI Conference on Artificial Intelligence, (AAAI-18), the 30th Innovative Applications of Artificial Intelligence (IAAI-18), and the 8th AAAI Symposium on Educational Advances in Artificial Intelligence (EAAI-18), New Orleans, Louisiana, USA, February 2-7, 2018, pp. 2588–2595. AAAI Press, 2018.

  53. Zhang K, Liu Z, Zheng L. Short-term prediction of passenger demand in multi-zone level: temporal convolutional neural network with multi-task learning. IEEE Trans Intell Transp Syst. 2020;21(4):1480–90.

    Article  Google Scholar

  54. Junior G, Rodrigues J, Carvalho L, Al-Muhtadi J, Proença M. A comprehensive survey on network anomaly detection. Telecommun Syst. 2019.

    Article  Google Scholar

  55. Chandola V, Banerjee A, Kumar V. Anomaly detection: a survey. ACM Comput Surv 2009.

  56. Ahmed M, Naser Mahmood A, Hu J. A survey of network anomaly detection techniques. J Netw Comput Appl. 2016;60:19–31.

    Article  Google Scholar

  57. Zhu M, Ye K, Xu C-Z. Network anomaly detection and identification based on deep learning methods. In: Luo M, Zhang L-J, editors. Cloud computing–CLOUD 2018. Cham: Springer; 2018. p. 219–34.

    Chapter  Google Scholar

  58. Hochenbaum J, Vallis OS, Kejariwal A. Automatic anomaly detection in the cloud via statistical learning. CoRR abs/1704.07706 (2017). 1704.07706

  59. Barford, P., Kline, J., Plonka, D., Ron, A.: A signal analysis of network traffic anomalies. In: Proceedings of the 2nd ACM SIGCOMM Workshop on Internet Measurment. IMW ’02. Association for Computing Machinery, New York, NY, USA 2002, pp. 71–82.

  60. Jiang D, Yao C, Xu Z, Qin W. Multi-scale anomaly detection for high-speed network traffic. Trans Emerg Telecommun Technol. 2015;26(3):308–17.

    Article  Google Scholar

  61. Matsuda T, Morita T, Kudo T, Takine T. Traffic anomaly detection based on robust principal component analysis using periodic traffic behavior. IEICE Trans Commun E100.B(5), 2017, pp. 749–761 .

  62. Jiang R, Fei H, Huan J. A family of joint sparse PCA algorithms for anomaly localization in network data streams. IEEE Trans Knowl Data Eng. 2013;25(11):2421–33.

    Article  Google Scholar

  63. Li Y, Lu T, Guo L, Tian Z, Qi L. Optimizing network anomaly detection scheme using instance selection mechanism. In: GLOBECOM 2009–2009 IEEE Global Telecommunications Conference, 2009, pp. 1–7.

  64. Hussain B, Du Q, Zhang S, Imran A, Imran MA. Mobile edge computing-based data-driven deep learning framework for anomaly detection. IEEE Access. 2019;7:137656–67.

    Article  Google Scholar

  65. Radford BJ, Apolonio LM, Trias AJ, Simpson JA. Network traffic anomaly detection using recurrent neural networks. CoRR 2018.

  66. Tao X, Peng Y, Zhao F, Yang C, Qiang B, Wang Y, Xiong Z. Gated recurrent unit-based parallel network traffic anomaly detection using subagging ensembles. Ad Hoc Netw. 2021.

    Article  Google Scholar

  67. Ravi V, Kp S, Poornachandran P. Evaluation of recurrent neural network and its variants for intrusion detection system (IDs). Int J Inf Syst Model Des. 2017;8:43–63.

    Article  Google Scholar

  68. Nie L, Li Y, Kong X. Spatio-temporal network traffic estimation and anomaly detection based on convolutional neural network in vehicular ad-hoc networks. IEEE Access. 2018;6:40168–76.

    Article  Google Scholar

  69. Ogawa, Y., Kimura, T., Cheng, J.: Vulnerability assessment for machine learning based network anomaly detection system. In: 2020 IEEE International Conference on Consumer Electronics–Taiwan (ICCE-Taiwan), 2020, pp. 1–2 .

  70. Garg S, Kaur K, Kumar N, Rodrigues JJPC. Hybrid deep-learning-based anomaly detection scheme for suspicious flow detection in SDN: a social multimedia perspective. IEEE Trans Multimedia. 2019;21(3):566–78.

    Article  Google Scholar

  71. Sarasamma ST, Zhu QA, Huff J. Hierarchical kohonenen net for anomaly detection in network security. IEEE Trans Syst Man Cybern Syst. 2005;35(2):302–12.

    Article  Google Scholar

  72. Chen Z, Yeo C, Lee B-S, Lau C. Autoencoder-based network anomaly detection. 2018 Wireless Telecommunications Symposium (WTS), 2018, p. 1–5.

  73. Dai S, Yan J, Wang X, Zhang L. A deep one-class model for network anomaly detection. IOP Conf Ser Mater Sci Eng. 2019;563: 042007.

    Article  Google Scholar

  74. Kwon, D., Natarajan, K., Suh, S., Kim, H., Kim, J.: An empirical study on network anomaly detection using convolutional neural networks. 2018 IEEE 38th International Conference on Distributed Computing Systems (ICDCS), 2018, pp. 1595–1598.

  75. Kasai H, Kellerer W, Kleinsteuber M. Network volume anomaly detection and identification in large-scale networks based on online time-structured traffic tensor tracking. IEEE Trans Netw Serv Manag. 2016;13(3):636–50.

    Article  Google Scholar

  76. Xie K, Li X, Wang X, Xie G, Wen J, Cao J, Zhang D. Fast tensor factorization for accurate internet anomaly detection. IEEE/ACM Trans Netw. 2017;25(6):3794–807.

    Article  Google Scholar

  77. Moustafa N, Choo K-KR, Radwan I, Camtepe S. Outlier dirichlet mixture mechanism: adversarial statistical learning for anomaly detection in the fog. IEEE Trans Inf Forensics Secur. 2019;14(8):1975–87.

    Article  Google Scholar

  78. Zhou J, Gandomi AH, Chen F, Holzinger A. Evaluating the quality of machine learning explanations: a survey on methods and metrics. Electronics. 2021.

    Article  Google Scholar

  79. Buhl H, Roeglinger M, Moser F, Heidemann J. Big data: a fashionable topic with(out) sustainable relevance for research and practice? Bus Inf Syst Eng. 2013;5:65–9.

    Article  Google Scholar

  80. Vigen T. Spurious correlations. 2022. Accessed 7 Sep 2022.

  81. Google: google trends. 2022. Accessed 07 Sept 2022.

  82. Kobayashi L, Oyalowo A, Agrawal U, Chen S-L, Asaad W, Hu X, Loparo KA, Jay GD, Merck DL. Development and deployment of an open, modular, near-real-time patient monitor datastream conduit toolkit to enable healthcare multimodal data fusion in a live emergency department setting for experimental bedside clinical informatics research. IEEE Sensors Lett. 2019;3(1):1–4.

    Article  Google Scholar

  83. Dong E, Du H, Gardner L. An interactive web-based dashboard to track COVID-19 in real time. Lancet Infect Dis. 2020;20(5):533–4.

    Article  Google Scholar

  84. Schultz W, Javey S, Sorokina A. Smart water meters and data analytics decrease wasted water due to leaks. J Am Water Works Assoc. 2018;110(11):24–30.

    Article  Google Scholar

  85. Feuerriegel S, Dolata M, Schwabe G. Fair AI: challenges and opportunities. Bus Inf Syst Eng. 2020.

    Article  Google Scholar

  86. Confluent: what is streaming data? How it works, examples, and use cases. 2022. Accessed 30 Aug 2022.

  87. Flink A. Stateful computations over data streams. 2022. Accessed 28 Jun 2022.

  88. Flink A. Windows: Apache Flink. 2022. Accessed 28 Jul 2022.

  89. Lam C. Hadoop in action. 1st ed. USA: Manning Publications Co.; 2010.

    Google Scholar

  90. of the ACM C: Apache spark: a unified engine for big data processing on VIMEO. 2022. Accessed 21 Jul 2022.

  91. Hueske F. What is/are the main difference(s) between Flink and Storm? Stack Overflow. Accessed 28 Jun 2022.

  92. Zhang Y. Building a better and faster Beam Samza runner: LinkedIn engineering. Accessed 30 Jun 2022.

  93. Foundation TAS. Apache Heron. A realtime, distributed, fault-tolerant stream processing engine. 2022. Accessed 30 Aug 2022.

  94. Hyndman RJ, Athanasopoulos G. Forecasting: principles and practice. 3rd ed. Melbourne: OTexts; 2021.

    Google Scholar

  95. Pal A, Prakash P. Practical time series analysis: master time series data processing, visualization, and modeling using python. UK: Packt Publishing; 2017.

    Google Scholar

  96. Brownlee J. Introduction to time series forecasting with python: how to prepare data and develop models to predict the future. Machine Learning Mastery, San Juan, Puerto Rico, 2017.

  97. Muñoz P, Barco R, Serrano I, Gómez-Andrades A. Correlation-based time-series analysis for cell degradation detection in son. IEEE Commun Lett. 2016;20(2):396–9.

    Article  Google Scholar

Download references


Not applicable.


This work is supported by FEDER, through POR LISBOA 2020 and COMPETE 2020 of the Portugal 2020 Project CityCatalyst POCI-01-0247-FEDER-046119. Ana Almeida acknowledges the Doctoral Grant from Fundação para a Ciência e Tecnologia (2021.06222.BD). Susana Brás is funded by national funds, European Regional Development Fund, FSE, through COMPETE2020 and FCT, in the scope of the framework contract foreseen in the numbers 4, 5 and 6 of the article 23, of the Decree-Law 57/2016, of August 29, changed by Law 57/2017, of July 19.

Author information

Authors and Affiliations



Conceptualization: AA; Data curation: AA; Formal analysis: AA; Investigation: AA; Methodology: AA; Software: AA; Validation: AA, SB; Visualization: AA; Writing—original draft: AA; Funding acquisition: SS; Project administration: SS; Supervision: SB, SS, FCP; Writing—review & editing: SB, SS, FCP. All authors read the final manuscript.

Corresponding author

Correspondence to Ana Almeida.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Almeida, A., Brás, S., Sargento, S. et al. Time series big data: a survey on data stream frameworks, analysis and algorithms. J Big Data 10, 83 (2023).

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI:
