An alternative approach to dimension reduction for pareto distributed data: a case study
Journal of Big Data volume 8, Article number: 39 (2021)
Abstract
Deep learning models are tools for data analysis suitable for approximating (nonlinear) relationships among variables for the best prediction of an outcome. While these models can be used to answer many important questions, their utility is still harshly criticized, being extremely challenging to identify which data descriptors are the most adequate to represent a given specific phenomenon of interest. With a recent experience in the development of a deep learning model designed to detect failures in mechanical water meter devices, we have learnt that a sensible deterioration of the prediction accuracy can occur if one tries to train a deep learning model by adding specific device descriptors, based on categorical data. This can happen because of an excessive increase in the dimensions of the data, with a correspondent loss of statistical significance. After several unsuccessful experiments conducted with alternative methodologies that either permit to reduce the data space dimensionality or employ more traditional machine learning algorithms, we changed the training strategy, reconsidering that categorical data, in the light of a Pareto analysis. In essence, we used those categorical descriptors, not as an input on which to train our deep learning model, but as a tool to give a new shape to the dataset, based on the Pareto rule. With this data adjustment, we trained a more performative deep learning model able to detect defective water meter devices with a prediction accuracy in the range 87–90%, even in the presence of categorical descriptors.
Introduction
When data scientists write a book on how a supervised deep learning project is to be structured, what it is lived at the beginning, i.e., when input data are analyzed, takes up only the first third, or so. The bulk of the story, in fact, is usually considered what happens next: with the model training and validation process, and then with the testing phases of the outcomes [1].
Unfortunately, the first phase of data analysis and preparation is almost never considered as a silver bullet, and it often remains an underinvested branch in the deep learning practice. In some sense, our scientific community has not been as effective at developing strategies to construct reliable datasets as we have with those to learn from them. But that needs to change, under the penalty of severe consequences, ranging from inaccurate predictions to the lack of explainability of our models [2, 3]. Further, the progress we need to achieve cannot be in the abundance of data we collect, alone. It should be also in our ability to make sure that our project actually benefits from the particular data we choose. Focusing all into a huge amount of data can be a good premise, in fact; yet, not asking any questions about their usage, role and the value that can be drawn from it, will turn that premise into the first motivation behind a failure. In other words, data is just an initial representation of a situation, but key remains the way we analyze it. We go so far as to say that data is there, mostly to stimulate an accurate analysis. Whether a single piece of data is either descriptive or predictive, or even prescriptive, in nature, is just what can be understood through an indepth analysis of that data [4,5,6,7].
In this context, the target of our study is to demonstrate that putting a proper data analysis at the core of a deep learning project can assist one in identifying the most accurate data descriptors for that project. While it is well known in fact that, in computing, a data descriptor is just a structure containing information that describes data, yet data descriptors for deep learning can span several diverse aspects, as the data’s provenance and type, up to its storage schema. In essence, descriptors encapsulate a basic knowledge about the data, and can thus be used as starting points for the construction of a trustworthy dataset on which a deep learning model can be safely trained.
Along this line, in this paper we describe a deep learning design experience, where we had initially a trouble on developing an appropriate deep learning model able to detect failures in mechanical water meter devices, because we tried to train that model by merging together the numerical information relative to water consumption with some device descriptors based on categorical information, thus resulting into an explosion in data dimensionality, that soon determined a deterioration of the prediction accuracy [8, 9]. After several unsuccessful experiments conducted with alternative methodologies that either permitted to reduce the data space dimensionality or employed more traditional machine learning algorithms, we changed the training strategy. In essence, we moved towards an accurate statistical analysis of the initial data, culminating with the application of an approximation of the 80/20 Pareto rule, that made us understand that categorical descriptors could not be part of the contents our model had to learn. Starting from this changed perspective, we devised a new strategy where categorical descriptors were used just as a driver for data selection, rather than being fed as input to the model. This way, we kept under control the dimensionality of the learning space and, at the same time, we achieved satisfying results of model prediction accuracy, in terms of detection of defective devices, reaching values in the range from 87 to 90%.
Anticipating a part of the final results shown in this paper, we introduce Fig. 1, where the Z, X and Y variables represent, respectively, the prediction accuracies, obtained in the following three different situations: (1) The deep learning model is trained only with numerical data (X); (2) The deep learning model is trained with a mix of numerical and categorical data (Y); (3) The deep learning model is trained with a selection of numerical data, based on a Pareto analysis conducted on the categorical data (Z).

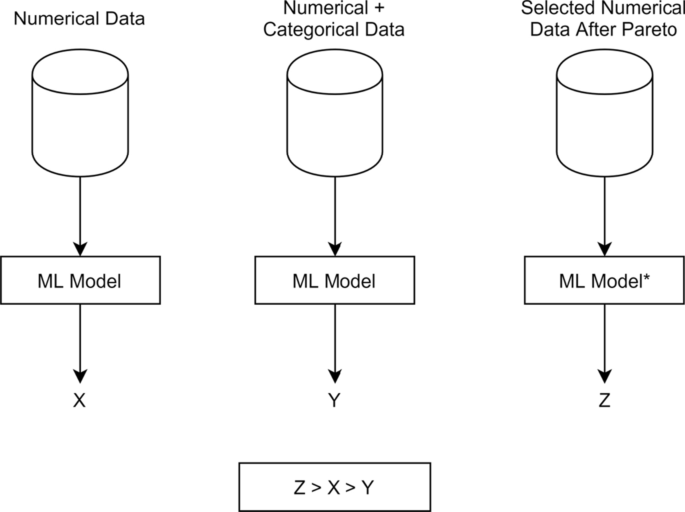

As portrayed in Fig. 1, and discussed at length in the remainder of the paper, Z (90%) outperforms Y (83%).
In conclusion, in this paper we demonstrate that it is possible to train a deep learning model that achieves excellent prediction accuracy levels, even in the presence of both numerical and categorical descriptors. This approach was devised to select the training data, based on a Pareto analysis conducted on the categorical descriptors, thus avoiding the explosion of the data space dimensions while keeping intact the statistical coherence of the portion of the dataset selected for training. We have provided empirical evidence that this approach maintains its validity even if compared with more traditional space dimension reduction methodologies and classical machine learning algorithms, as well.
The remainder of this paper is structured as follows. In the Section devoted to the Related work, the focus is put on what can happen to the dimensions of a learning space when categorical variables are employed, along with a survey on the techniques usually adopted to manage this situation. In the Methodology Section: (i) we present the initial dataset on which we have worked, (ii) we illustrate some (unsuccessful) deep learning model training experiments that employed classical techniques to reduce the data dimensionality space, (iii) we describe the approach through which this initial dataset was reshaped, along with an analysis that demonstrates that these data readjustment operations do not change the statistical coherence of the selected data, and (iv) we finally illustrate how those data can be used to train a deep learning model. In the Section devoted to describing the Results, instead, we present and discuss the results we achieved with our approach. The Section devoted to the Discussion supplies: (i) some reflections on the advantages and limitations of our approach, along with a comparison with some alternative machine learning methods, and) (ii) a practical guide on how to use our classifier culminating with the adoption of the additional technique of Bagging, able to further increase the model performances. The final Section provides the Conclusions and terminates the paper with some concluding remarks.
Related work
At the core of this paper lies the question if all types of descriptors should be presented to a deep learning model in a way that is opaque to most of the designers, rather than subjecting them to an accurate data analysis before using them for training. In particular, this problem exacerbates when we have to deal with two very different types of data: i.e., numerical vs. categorical. In fact, while numerical data are measurable in nature, and easily manageable, categorical data, instead, represents a collection of information, that can be divided into groups; e.g., black and white; and, as such, they can take on numerical values (for example: 1 indicating black, and 2 indicating white), but those numbers do not have a precise mathematical meaning. This is the reason why working with categorical descriptors can easily lead to an increase of the dimensions of the space under investigation. This phenomenon may go so fast that the available data become sparse, with a consequent loss of statistical significance [10].
To understand this phenomenon, take, for example, one of the most common techniques applied to encode categories into numerical values: the onehot encoding technique [11, 12]. Consider a categorical variable with the following values: Yes, No, and Prefer not to say. They can be encoded with the following vectors {[1, 0, 0], [0, 1, 0], [0, 0, 1]}. This produces a new, threedimensional space, with a total amount of twentyseven points. However, the only interesting points remain three, and are orthogonal, equidistant, and sparse. Simply said, we have yielded a threedimensional vector space, with a new dimension for each original value (yes, no, prefer not to say). Unfortunately, things can even get worse. If we had three categories, each with three values, we would get a ninedimension space, as this would come with the product of the number of categories times the number of possible values [13, 14].
Hence, a general problem can be posed: how to manage categorical variables, while keeping the dimensionality of the resulting space under control. To this aim, many statistical techniques have been proposed in literature that are used to face this problem. Typically, the recurrent idea behind all those methods is as follows:

i.
Consider a high dimensional categorical space.

ii.
Apply a procedure for reducing the number of variables, without loss of information.

iii.
Identify new variables with greater meaning, and finally,

iv.
Keep as the ultimate target that of maintaining visible a lot of points, in this reduced space, to be used as representative examples on which a supervised learning model can be trained.
What is also very common is the fact that the procedure for reducing the dimensionality rests upon the idea of representing the categorical space with a few orthogonal (uncorrelated) variables that capture most of its [15]. In the remainder of this Section, we are going to provide a few details on the principal techniques of this family. Before beginning with this review, we briefly anticipate here that our method will be different. We will avoid to use categorical descriptors as input to the model to be trained. Instead, they will be used as a driver for data selection, thus eliminating, from the start, the need for a dimensionality reduction of the categorical space.
Among the traditional methods mentioned above, probably, the Correspondence Analysis (with all its variants) is the most known one. Akin to the Principal Component Analysis, the Correspondence Analysis (or CA) provides a solution for projecting a set of data onto lowerdimensional plots. Essentially, CA aims at visualizing the rows and the columns of a contingency table as points in a lowdimensional space, so that a global view of the data is made available, yet easily interpretable [16,17,18]. Identically derived from the Principal Component Analysis, we have the CATegorical Principal Components Analysis (or CATPCA). Here, again, the final goal is to reduce the data dimensions by projecting them onto a lowdimensional plane, with the plus that the relationships among observed variables are not assumed to be linear [19].
Of interest in this field, it is also the socalled MultiDimensional Scaling (MDS) technique. Technically speaking, MDS is used to translate information about the pairwise distances among a set of n objects into a configuration of n points, mapped into an abstract Cartesian space. In essence, this technique is proven to be useful to display the information contained in a distance matrix, while providing a form of nonlinear dimensionality reduction [20, 21]. Sometimes, also some kind of structural equation modeling is employed to individuate groups, or subtypes, in the case of multivariate categorical data. These are called latent classes, as detailed in the following references [22,23,24,25].
Another interesting technique, in the context of multivariate statistics, is that of Binning. Here the target is somewhat different, since, at the basis, we have a form of data quantization. Essentially, all the data values falling into a given interval (the bin, indeed) are all replaced by a single representative value. A typical example, which is provided to explain this technique, is that of representing the ages of a group of people with intervals of consecutive years, rather than with each single age value [26]. Needless to say, going for binning is a delicate choice, since some pieces of information can come sacrificed. Nonetheless, it may result in a valid option when dealing with categorical variables, because a large amount of less frequent values, which could increase the dimensions of the resulting space, can be instead all grouped under a unique generic value (e.g., Other). This way, we yield just one dimension for an entire group of categorical values.
In the following Sections, instead, we will illustrate an alternative approach, where some categorical descriptors were put to good use in this complex context, without any need for dimension reduction. Rather than becoming a portion of the examples on which the learning algorithm was trained, they will be used to select the data to be presented to the learning algorithm.
Methodology
We now present, first, some preliminary information relevant to the present study, second, a description of the methods we used to innovate our approach.
Dataset description: type of variables, deep learning and prediction accuracy
As already mentioned, we were presented with the problem of designing a deep learning model able to predict the imminent failure of a device that measures water consumption in a water distribution network. Initially, we worked on a huge realworld dataset, fed with about one million mechanical water meter devices and with over fifteen million water meter readings of consumed water, supplied by a company that distributes water over a large area in Northern Italy. This large dataset spanned a period in time, from the beginning of 2014 to the end of 2018. To train our deep learning model, at the end of a long validation process which is described at length in [8, 9], we decided to use a smaller dataset, comprised of just those water meter devices, with at least three valid numerical readings. This dataset contained exactly 17,714 devices; where 15.652 were nondefective ones, and the remaining 2.062 were defective.
This dataset can be summarized by means of its eight main attributes, as reported in Table 1. Besides the first attribute, relative to the ID of the water meter, the second and third attributes are of numerical type and are used to report how much water is consumed with the passage of time (Readings and Readings Dates). The final attribute (i.e., 8) does not require any explanation.
Instead, attributes from 4 to 7 represent categorical information about the meter devices with the following meaning: the attribute # 4 is the type of material of which the meter is constructed (this attribute can take on 98 different values) and from now on, we will identify this attribute with the categorical variable A. The attribute # 5 represents the specific type of the device (this attribute can take on 45 different values). From now on, we will identify this attribute with the categorical variable B. The attribute # 6 accounts for the manufacturer of the meter (this attribute can take on 48 different values). We will identify this attribute with the categorical variable C. The attribute # 7 represents the type of usage of the meter (this attribute can take on 14 different values). We will identify this attribute with the categorical variable D.
Before proceeding further, we need now to verify if a correlation exists between the values that our four categorical variables (A, B, C and D) can take on and the labels we assign to the devices (i.e., defective, nondefective). In fact, if this correlation existed, there would be no need to develop a complex deep learning model to predict the failure of a given device: it would be sufficient to check if a given device either possesses or not that certain characteristic. This is, for example, the unfortunate case when all the devices in a batch, constructed of a given material (or manufactured by a certain producer) are defective.
To rule out this hypothesis, we began by developing a preliminary correlation analysis, based on the use of both the Cramér's V technique and the Theil's U index.
Starting with the Cramér's V technique, we tried to verify the existence of a possible statistical correlation between (the values that) each categorical variable (may take on) and the labels (that is, either defective or nondefective) assigned to our devices. Essentially, this method measures the association between two variables, using a Pearson's chisquared statistic [27] and returning results in the continuous interval [0, 1]; where, on one side, 0 indicates no association between the investigated variables, while on the contrary 1 means that a correlation exists. It is based on the following formula: \(V = \sqrt { \frac{{\chi^{2} }}{{\min \left( {k  1, r  1} \right)n}}} .\) In our case: \(\chi^{2}\) is a chisquared statistic conducted on n, the total number of water meter devices, r is the number of values that a given categorical variable may take on, and k is the number of different labels that can be assigned to a given device (i.e., defective and nondefective).
In Table 2, we report the results we got with the Cramér's V analysis we conducted for each categorical variable. As shown in Table 2, the results indicate a very low correlation between each of our categorical variables and the labels, with numerical results ranging from 0.14 to 0.32.
To have a further confirmation that A, B, C and D did not correlate directly with the devices of our dataset, we used also another technique, namely the Theil's U analysis [28]. It measures, again, the plausible degree of an association between two variables, returning a result in the continuous interval [0, 1]. Theil's U values can be computed based on the following formula: \(U\left( {X{}Y} \right) = \frac{{H\left( X \right)  H\left( {XY} \right) }}{H\left( X \right)}.\) Here, X and Y are two discrete (random) variables. In our case: X is one of our categorical variables, while Y represents the label. H(X) is the entropy of X, and H(XY) is its conditional entropy. The results of our Theil’s U analysis are reported in Table 3. Again, the results of Table 3 confirm a low correlation between our categorical variables and the labels, with a maximum value of just 0.13.
What we can conclude, at this point, is that there is no statistical correlation between our categorical variables and the labels we assigned to our devices. This allows us to rule out the hypothesis that predictions can be made by simply observing the values that a categorical variable takes on, and simultaneously encourages us to continue on the road of a more complex predictive model.
At this point, we developed a deep learning model, whose main characteristics were as follows. It was based on two parallel inputs, in order to handle both the numerical time series returned by the water readings and the categorical input. The output of these two parallel branches was then concatenated and finally combined in two layers of the model to achieve the final prediction. It is worth mentioning that the complete architecture of deep learning model was already described in [8]. Rather, it is of some importance to remind that it was implemented using the Keras and Tensorflow frameworks, with Adam as the optimization algorithm, for eighty epochs. To measure the accuracy of the predictions, we resorted to the wellknown performance metrics termed Area Under the Curve (AUC) of the Receiver Operating Characteristic (ROC).
Further, each experiment was developed in the following way. First, we used the 80% of the available devices for a traditional tenfold cross validation procedure [29]. The results of this tenfold cross validation procedure was given in terms of the AUCROC metric, and its associated standard deviation. Then, we used again the portion of 80% of the devices to train our model and, finally, we tested the prediction ability of the model with the remaining unseen 20% of data. In particular, we developed four different experiments, where respectively:

1.
In the first experiment, only the available numerical values were used, that is the total amount of readings associated to our 17,714 devices;

2.
In the second experiment, we used both the readings of our 17,714 devices and the categorical values mentioned above (i.e., A, B, C and D). In this case, the correspondent data were prepared using the onehot encoding technique, with the resulting categorical space dimensionality increased up to 205. This is the result of the sum of the different types of the four categorical descriptors (98 + 45 + 48 + 14 = 205);

3.
In the third experiment, we used again both the readings of our 17,714 devices and the categorical values mentioned above (A, B, C and D). Like before, the categorical data were prepared using the onehot encoding technique, but the learning space dimensionality was decreased down to 128, by applying the Principal Component Analysis (PCA) technique [17], with a sum of variances of all individual principal components approximately equal to 90%.

4.
In the fourth experiment, we used again both the readings of our 17,714 devices and the already mentioned categorical values (A, B, C and D), encoded with the onehot encoding technique. In this case, the learning space dimensionality decreased down to 48, by virtue of the application of the Binning technique [26]. It is to note, here, that the 48 onehot values used for Binning were obtained by selecting the top values for each categorical variable, according to a Pareto distribution (that is, appearing in the 90% of the dataset), and finally adding 1, for the “other bin” that comprised all the remaining infrequent values.
The results of these four experiments are reported in Table 4 (third and fifth columns), where the prediction accuracy of various learning models is returned in term of the AUCROC metric, as achieved during both the initial tenfold cross validation phase (where also the standard deviation value is reported in the fourth column) and the testing phase.
If we look at the prediction accuracy value achieved without the introduction of the categorical variables (experiment #1, 86%), it is evident the impossibility to achieve a better prediction accuracy with the introduction of the additional information provided by the categorical variables (experiment #1, 83%), as a result of the increase of the learning space dimensions. Not only that, but also an attempt to reduce the dimensions of that space, using traditional techniques like PCA and Binning, either provided no real benefit (experiment #4, 85%, Binning) or caused a further deterioration of the prediction accuracy (experiment #3, 81%, PCA).
In essence, we have found a case where there is no way to obtain an improvement of the accuracy of the predictions if categorical data are added, whatever technique is employed.
At that precise point, we took the decision to adopt an alternative method which is described in the following Subsection.
Dimension reduction with a Pareto analysis
Given the failure of the experiments where we tried to increase the prediction accuracy by adding categorical information, we decided to better enquire on how the values taken by each categorical variable were distributed over our 17,714 water meter devices.
In Fig. 2, histograms are plotted that begin to reveal an important fact. There are many devices that possess a given characteristic (or take on a specific value) of a certain categorical variable, while many other characteristics/values are scarcely relevant for those devices.
If we better analyze Fig. 2, we see that we have four plots, each one for each analysed categorical variable. From top to bottom: A, B, C and finally D. In each plot, one can read the number of devices that possess a certain characteristic (or value) for that categorical variable, using the scale set at the leftmost side of the yaxis of the Figure, while the n different characteristics (or values), for each categorical variable, are distributed over the xaxis. Obviously: n = 98 with A; n = 45 with B; n = 48 with C and n = 14 with D. It goes without saying that the higher is a histogram, the more are the devices possessing that given categorical characteristic.
There is another information portrayed in Fig. 2: for each categorical variable, we have a dotted curve with the cumulative percentage distribution of those n values over our devices. For example, if we consider the dotted curve for the A variable and then we look at scale set at the rightmost side of Table 2, we can recognize that the ten most frequent characteristics (out of 98) are present in almost the 90% of the devices. As an additional note: Fig. 2 has been drawn only for the defective meter devices. For the sake of conciseness, we have omitted to report an additional Figure for nondefective devices, as it would show very similar results.
At the end, a careful analysis of Fig. 2 reveals that the distribution of the categorical characteristics possessed by our 17,714 devices is shaped like a quasiPareto function [29].
As to this choice of identifying with a Pareto distribution the curves according to which the categorical values possessed by our devices is shaped, we could notice that there is a wide hierarchy of several other powerlaw or Pareto distributions (known, for example, as Pareto type I, II, III, IV and Feller–Pareto distributions). However, our intent, here, is simply to emphasize that our empirical observation of the curves of Fig. 2 shows that the typical 80–20 Pareto rule, stating that 80% of outcomes are due to 20% of causes, precisely reflect the situation under investigation. Only the adoption of a quasiPareto function fits well the trend of our four categorical variables where just a few of the most frequent values would provide a contribution in terms of knowledge representation of this phenomenon. In other words, what happens is that, given a categorical variable, just a small subset of its characteristics (or values) is possessed by the most part of the water meter devices. On the contrary, a lot of values (or characteristics) that a categorical variable can take on are not representative of any device.
Table 5 better summarizes this aspect numerically. For each categorical variable, it reports: (i) the number n of all the characteristics (or values) a given variable can take on, (ii) the number of the most frequently used characteristics, and finally (iii) the number of devices (both defective and nondefective) that possess those most frequent characteristics. In essence, what emerges from Table 5 is that, on average, around the 90% of meter devices possess about the 20% of characteristics (or values) of a given categorical variable.
By virtue of this analysis, we took the decision to reconsider how to make appropriate use of the categorical descriptors. Definitely: not as input data on which to train the model, but as relevant information to take into account to reshape the training dataset. In essence, the idea at the basis of our approach is that of employing the most frequent characteristics (of a given categorical variable) to select the water meter devices on which a deep learning model should be trained. Simply put, the approach can be described as follows:

1.
Given a categorical variable, we train a deep learning model with just those water meter devices (and corresponding numerical readings) that possess the most frequent characteristics (of that variable). At the end of this first step, this strategy returns four deep learning models, one for each categorical variable in use. We can call them, respectively: DLM_A, DLM_B, DLM_C, and DLM_D. Obviously, each model can return a different prediction, each one with its associated accuracy.

2.
At the end of point 1 above, we have four different predictions, returned by the four trained models. These predictions can be then further managed to produce a unique and final comprehensive value. Different methods can be used to this specific aim; among many alternatives, we have chosen to adopt a specific strategy, termed bagging, that will be better explained in a next Section (i.e., Discussion).
To give a visual impression of our methodology, we consider of great utility the following graphical scheme, portrayed in Fig. 3, that succinctly summarizes the main steps of the Paretoinspired path we have described above.
Of relevant importance is also a description of the technical structure of the (four) deep learning models we have employed. We provide this description with the graphical scheme of Fig. 4, where our typical deep learning model is presented.
In particular, our typical deep learning model is comprised of the following layers: (i) an input layer taking as input two timeseries: the former representing the water consumption measurements, and the latter representing the passage of time between consecutive readings, (ii) a Long ShortTerm Memory (LSTM) recurrent layer with 32 neurons, (iii) a first Dense layer with 32 neurons, and a Rectified Linear Unit (ReLU) as its activation function, (iv) a second Dense layer with 128 neurons, and a Rectified Linear Unit (ReLU) as its activation function, (v) finally the Output layer. The Keras and the Tensorflow frameworks were used as usual to manage the above model. As per the LSTM layer, it could be interesting to note that we used the standard implementation of the LSTM layer as proposed in [30].
In addition, the following Tables 6, 7 and 8 report the hyperparameters used in our experimental setup, respectively for the Dense layers, the LSTM layer and the Adam optimizer. Not only, but it is also worth mentioning that crossentropy was used as the loss function and each model was trained with batch size 512, for 80 epochs.
To conclude this Section, there is another serious technical problem which is as follows.
Typically, when one decides to clean a given dataset, prior to subjecting it to a learning process, adequate validation procedures are to be conducted to check if the resulting dataset is coherent with the initial one.
This is exactly our case, since we need to reflect on the statistical meaning and validity of the Pareto operations we have carried out with the aim to reshape our initial dataset, yielding four different subsets of devices (i.e., A, B, C and D), and the correspondent learning models (DLM_A, DLM_B, DLM_C, and DLM_D).
In essence, we need to conduct an analysis to understand whether the readjustment of our data has transformed/altered our dataset, from a statistical viewpoint, or it has been left unaltered.
This analysis has been focused on the following facts.
Since the most important contents of our dataset consist in the water meter readings that report how much water has been consumed, per each meter device, we could conclude that no relevant statistical alteration has been made while reshaping the dataset, if the average value of the consumed water measured by all the meter devices comprised in the initial dataset is not different from the average value of the consumed water measured by the devices of all the four final subsets (A, B, C and D), obtained after the selection based on the Pareto rule.
In simple words, we are looking for a confirmation to the statistical hypothesis that the average quantity of consumed water, as reported in the readings comprised in the initial dataset of meter devices, is not different from that corresponding average values reported in those readings belonging to the four sets of devices, chosen after the Pareto selection.
Based on this idea, we conducted two different statistical tests. With the first, we assumed normal distributions (with known values for the average and standard deviation values of the consumed water) and proceeded with a Z test. We tested the null hypotheses (i.e., the two average values are equal) with a significance α factor equal to 0.01.
As seen from the results we have reported in Table 9, the null hypothesis is never rejected, i.e., we have no evidence that the average quantity of consumed water measured by the devices of the initial dataset, say µ, is different from the average quantities of consumed water measured by the devices belonging to all the four sets selected with the Pareto rule, call these averages: µA, µB, µC and µD.
Not only, but we repeated the same kind of test, yet with a different statistic. Simply, we tried to use a Student’s T test (with an unknown standard deviation). This should be intended just as an additional attempt to confirm the previous statistical results and, in fact, not surprisingly, we got very similar outcomes, as shown in Table 10.
To conclude this point, while it is true that, in general, data cleaning operations can bring to a kind of a statistical paradox, when the initial dataset is significantly different from the final one, in our case we have no statistical evidence that the most important information comprised in our dataset (the amount of consumed water) has been altered by the Pareto operations that have produced the four different sets of meter devices, on which our corresponding learning models have been trained.
Results
Before showing the results got with the four deep learning models discussed before, we devote some time to provide the important following information.
The first fact to mention is that, for each model training activity, we split each subset of the meter devices (both defective and nondefective) into two separate portions. The first one consisted of the 80% of the total quantity of meter devices (devices) that were used only for the tenfold cross validation procedure and for the training activity. Instead, the remaining 20% of devices (with their readings) were used for the testing phase. As to the metrics used for measuring the prediction results returned by our models, we made use of a set of the most popular formulas. While the most significant one remains the AUCROC metrics, whose complex definition can be read here [31], we provide a succinct definition of the other ones.
To understand them, it is fundamental the meaning of the following concepts: TP (or true positives) is the number of defective devices, predicted as defective by a prediction model; TN (or true negatives) is the number of nondefective devices, predicted as nondefective by the model; FP (or false positives) is the number of nondefective devices, erroneously predicted as defective by the model, and finally FN (or false negatives) is the number of defective devices, erroneously predicted as nondefective by the model.
Given these preliminary definitions, the following formulas (1, 2, 3, 4, 5, 6, 7) correspond, respectively, to the following concepts of Positive Predictive Value (PPV), Negative Predictive Value (NPV, True Positive Rate (TPR), True Negative Rate (TNR), F1score on Positives, F1score on Negatives and Accuracy.
Another relevant fact to remind is that in our study our dataset was split over two different sets (defective and nondefective devices), whose dimensions were very different. The issue of imbalanced sets is of great relevance when they are used for training a learning model, thus needing an adequate management [32, 33]. To this aim, in all the training experiments we have carried out, we have used the traditional SMOTE technique included in the imbalancedlearn Python Library. This has allowed us to balance the two sets of devices, by augmenting that set of the defective ones.
The results of the oversampling operations we have carried out on the minority class (defective meters) are reported in the fourth column (SMOTEADDED) of the following Tables 11 and 12, for all the four learning models obtained after the application of the Pareto rule. Obviously, the SMOTE added devices reported in the fourth column of Table 11 are those used for the training activity, while the SMOTE added devices reported in the fourth column of Table 12 are those used for tenfold cross validation procedure.
Precisely, In Table 11, for each learning model, in the second and in the third columns we show the quantity of devices (nondefective and defective), used during the tenfold cross validation procedure and the training phase, while in the fifth and in the sixth columns the number of devices is shown that were used during the testing phase. It goes without saying that each device comes with its associated readings.
Similarly, in Table 12, for each learning model, we report, in the second and in the third columns, the portion of devices (nondefective and defective), used during the training of the tenfold cross validation procedure (i.e., 9 FOLDS), while in the fifth and in the sixth columns we report the portion of devices used during the testing of that tenfold cross validation procedure (1 FOLD). Again, one should consider that the relative readings associated to each device.
Now, we are ready to show the results, as returned by each of the four deep learning models obtained after the application of the Pareto rule (namely, DLM_A, DLM_B, DLM_C, and DLM_D).
These results are shown following the path of the various procedures with which our learning model was trained. The first used one was a tenfold cross validation procedure [34]. It is well known that crossvalidation is primarily used in these cases to estimate the skill of a learning model on unseen data. That is, in order to estimate how the model is expected to perform when it will be used to make predictions on data not used during the training of the model. This is a very popular method because it is simple and because it typically results in a less optimistic estimate of the prediction accuracy than that will be returned with the train/test method. In our case, with our tenfold crossvalidation, we randomly partitioned our train data (i.e., second and third columns of Table 11) into 10 equal size subsamples. Of these 10 subsamples, 9 subsamples were used as training data (second, third and fourth columns of Table 12), while a single subsample was retained as the validation data for validating the model (columns fifth and sixth of Table 12). Then we repeated our crossvalidation process 10 times (the folds), with each of the 10 subsamples used exactly once as the validation data. The 10 results from the folds were finally averaged (with also the computation of the standard deviation values). These results are reported in Table 13 using the AUCROC metric.
Encouraged by the results of our tenfold cross validation procedure, we passed to the traditional training and testing activity, performed on the devices of Table 11. Obviously, the training phase was conducted on the 80% portion of the data (second, third and fourth columns of Table 11), while the final test was conducted on the 20% of the (unseen) data (fifth and sixth columns of Table 11). The results are provided in the terms of the metrics we have introduced above, precisely: Positive Predictive Value (PPV), Negative Predictive Value (NPV), True Positive Rate (TPR), True Negative Rate (TNR), F1score on Positives (F1 on P), F1score on Negatives (F1 on N), Accuracy and AUCROC.
The following considerations are in order, now. First, it worth reminding that a deep learning model, typically, returns a probability value, ranging from 0 to 100%. In our specific case, the closer we are to 0%, the more is plausible the decision that that device is nondefective; instead, the closer we are to 100%, the more is plausible the decision that that device is defective. Second, we used the probability value of 0.7 as a threshold, over which a given device is definitely predicted as defective. The decision for the 0.7 threshold comes from the fact that this the cutoff point that allows to both maximize the true positive rate and minimize the false positive rate in the corresponding ROC curve in our specific case. Since we have employed the tenfold cross validation procedure as the first step of our experimentation, 0.7 was computed as the average between the optimal thresholds achieved over the ten validation runs.
We would like to conclude by highlighting the fact that the prediction accuracy returned by our models, whose examples were selected with the Pareto rule, range from 87 to 88%. If we compare this result with the AUCROC value of 83% (obtained with a model trained with both the numerical and categorical variables, experiment #2, Table 4), we can observe a not negligible improvement. Nonetheless, this improvement could appear more limited if we look at other alternatives that either do not make use of categorical variables (86%, experiment #1, Table 4) or do exploit some dimension reduction procedure, like Binning, for example (85%, experiment #4, Table 4). Nonetheless, even in this case, we deem as important to have proposed a new and original method able to increase the prediction accuracy in the presence of categorical variables. Nonetheless, a more detailed discussion about the advantages and the limitations is provided developed in the Section below.
Discussion
The present discussion aims at emphasizing both the advantages and the possible limitations of the approach we have proposed to treat categorical, high dimensional data.
First, it is important to mention that this paper starts from the consideration that many of the existing feature subset selection methods, that are commonly used for machine learning, cannot be easily extended to the case of categorical datasets, with an extremely large volume of examples.
Our proposed approach has proven to be useful in all those cases with categorical descriptors when it can be shown that the training data are distributed following a (quasi) Pareto statistical distribution. This should not be considered as a limitation, because the field of application may extend very far from the field we have chosen for our study (i.e., the predictive maintenance of water meter devices) up to very hot current research topics, like for example computational epidemiology [35, 36] and COVID19 data modeling [37, 38] as well, where this kind of unbalanced statistical data distributions often occur.
Second, another intriguing issue is that it could seem that, in our training process, we have mixed notions from two different genres (feature selection using the Pareto rule and deep leaning). To this aim, we would like to emphasize the fact that while it is true that one of the strong advantages of a deep learning model is its inherent hierarchical feature selection along the successive level of increasing abstraction in detecting patterns, many practical situations exist where the data have huge dimensions and are also very sparse. In those cases, it becomes difficult to use a pure deep learning approach, due to the limited number of neurons typically present in the input layer. In those specific situations, a good practice can be that of using adequate projection algorithms that decrease the number of features to a reasonable number, which can be then tackled by deep learning. When this happens, we should interpret such a procedure more as a feature extraction procedure, rather than a feature selection, which is more typical with classical machine learning algorithms. In simple words, the new features that are extracted are somewhat meaningless from the point of view of the deep learning method, yet their extraction can be useful to drive the learning process, in some specific cases. This has been exactly also our case. Not only, but a new type of literature is emerging that describes similar situations, like for example in [39,40,41].
This latest issue has another interesting implication which can be summarized with the question if more traditional machine learning classification algorithms, like Support Vector Machines, for example, could perform better with respect to the deep learning models we have utilized selected based on the Pareto rule. To investigate on this subject, we have carried out an additional experiment, where more traditional machine learning algorithms were used. We employed two classical machine learning algorithms like SVM (Support Vector Machine classifier) and CART (Classification and Regression Trees), referenced respectively as [42] and [43] and developed within the context of a Python sklearn implementation. Results from these experiments are shown in Table 14. In particular, in the second and in the third columns of Table 14 the AUCROC values are reported, along with the correspondent standard deviation values, obtained with a tenfold cross validation procedure. In the fourth column of Table 14, we show the AUCROC values achieved during the final testing phase.
As it is evident from a comparison of these results with those from Table 15, traditional machine learning algorithms have provided, in our case, prediction accuracy performances that are worse than that obtained with the method proposed in this paper, thus confirming the validity of our choices.
Third, it is important to provide an answer to a more practical question that could emerge at this point of the discussion: How can our method be serviceably if applied to any of the meter devices that are utilized to measure water consumption in our case? In other words, if we have to make a prediction on a new meter device, how can we proceed? The answer to this question relies on the simple application of the following procedure. We should, first, consider that device, and check if it possesses the categorical characteristics of either the variable A or B or C or D. If that device possesses any of the categorical characteristics of interest, we can use the corresponding model (either DLM_A, or DLM_B, or DLM_C, or DLM_D) to make our predictions. Instead, in the negative case, we should not use our models to make a reliable prediction for that device, and we should resort to a more traditional approach.
However, it should be noticed that the likelihood that a device does not possess any of those characteristics, at least in the context of the dataset we have studied, is quite low; i.e., below 10% on average, as our Pareto analysis has demonstrated.
Fourth and final. The approach we have proposed can be seen as a method that can be used in combination with additional techniques, useful to improve its predictive performances. Think of the Bagging technique, for example [44]. We could use it, in fact, whenever we have a device that possesses the characteristics of all the four models together, in the following way. We could use each different model, in isolation, to return its prediction results for that given device, and then we could average over all those returned results, to produce a unique and comprehensive prediction. Obviously, we can expect that this Bagging strategy, at least with our dataset, can work only for a limited quantity of meter devices; yet it could provide finer predictions, whenever applicable.
Following this reasoning and to conclude this Section, we have tried to test the aforementioned Bagging strategy on that subset of our meter devices (both defective and nondefective) that possessed the categorical characteristics of all the four models (DLM_A, DLM_B, DLM_C, and DLM_D). This intersection counted 2304 nondefective devices and 313 defective ones. The results of this final testing experiment are shown in Table 16. As shown in Table 16, we have an improvement of the most important metrics, especially Accuracy and AUCROC that has increased up to the value of 90%.
Conclusions
We have developed a deep learning model able to predict if a device that measures water consumption in a water distribution network is either defective or not. The model was based on both the measurements of consumed water and on the categorical (technical) characteristics that a device possesses.
The novelty of our approach rests upon the idea of exploiting those categorical characteristics to better select the sets of devices on which the model goes trained.
Avoiding the use of those categorical characteristics as a direct input to the model has removed the danger of an explosion of the dimensions of the learning space, and with this approach we have reached predictive accuracies ranging from 87 to 90%, for an amount of 90% of the available devices.
The approach we have proposed was devised to select the training data based on a Pareto analysis conducted on the categorical descriptors, thus avoiding the explosion of the data space dimensions while keeping intact the statistical coherence of the portion of the dataset selected for training.
We have provided empirical evidence that this approach maintains its validity even if compared with more traditional space dimension reduction methodologies and classical machine learning algorithms.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Abbreviations
 DL:

Deep learning
 DLM:

Deep Learning Model
 PCA:

Principal correspondence analysis
 CA:

Correspondence analysis
 CATPCA :

Categorical principal components analysis
 MDS:

MultiDimensional scaling
 AUC ROC:

Area under the curve receiver operating characteristic
 LSTM:

Long shortterm memory
 ReLU:

Rectified linear unit
 TP:

True positives
 TN:

True negatives
 FP:

False positives
 FN:

False negatives
 PPV:

Positive predictive value
 NPV:

Negative predictive value
 TPR:

True positive rate
 TNR:

True negative rate
 F1 on P:

F1score on positives
 F1 on N:

F1score on negatives
 SVM:

Support vector machines
 CART:

Classification and regression trees
References
 1.
Goodfellow I, Bengio Y, Courville A. Deep learning. Cambridge: MIT Press; 2016.
 2.
Alam S, Yao N. The impact of preprocessing steps on the accuracy of machine learning algorithms in sentiment analysis. Comput Math Organ Theory. 2019;25:319–35. https://doi.org/10.1007/s1058801892668.
 3.
Gonzalez Zelaya CV. Towards explaining the effects of data preprocessing on machine learning. In: 2019 IEEE 35th international conference on data engineering (ICDE), pp. 2086–2090. IEEE; 2019.
 4.
Mirri S, Roccetti M, Salomoni P. Collaborative design of software applications: the role of users. Hum Centric Comput Inf Sci. 2018;8:6. https://doi.org/10.1186/s1367301801296.
 5.
Roccetti M, Prandi C, Mirri S, Salomoni P. Designing humancentric software artifacts with future users: a case study. Hum Centric Comput Inf Sci. 2020;10:8. https://doi.org/10.1186/s1367302002136.
 6.
Gillies M, Fiebrink R, Tanaka A, et al. HumanCentred Machine Learning. In: Proceedings of the 2016 CHI conference extended abstracts on human factors in computing systems, pp 3558–3565. New York, NY: ACM; 2016.
 7.
Delnevo G, Roccetti M, Mirri S. Intelligent and good machines? The role of domain and context codification. Mobile Netw Appl. 2019. https://doi.org/10.1007/s11036019012337.
 8.
Roccetti M, Delnevo G, Casini L, Cappiello G. Is bigger always better? A controversial journey to the center of machine learning design, with uses and misuses of big data for predicting water meter failures. J Big Data. 2019;6:7.
 9.
Roccetti M, Delnevo G, Casini L, Salomoni P. A Cautionary Tale for Machine Learning Design why we Still Need HumanAssisted Big Data Analysis. Mobile Netw Appl. 2020. https://doi.org/10.1007/s11036020015306.
 10.
Trunk GV. A problem of dimensionality: a simple example. IEEE Trans Pattern Anal Mach Intell. 1979;3:306–7. https://doi.org/10.1109/TPAMI.1979.4766926.
 11.
Palaniappan R, Mandic DP. Biometrics from brain electrical activity: a machine learning approach. IEEE Trans Pattern Anal Mach Intell. 2007;29:738–42. https://doi.org/10.1109/TPAMI.2007.1013.
 12.
Cerda P, Varoquaux G, Kégl B. Similarity encoding for learning with dirty categorical variables. Mach Learn. 2018;107:1477–94. https://doi.org/10.1007/s1099401857242.
 13.
Akram T, Lodhi HMJ, Naqvi SR, et al. A multilevel features selection framework for skin lesion classification. Hum Cent Comput Inf Sci. 2020;10:12. https://doi.org/10.1186/s1367302000216y.
 14.
James AP, Dimitrijev S. Ranked selection of nearest discriminating features. Hum Cent Comput Inf Sci. 2012;2:12. https://doi.org/10.1186/21921962212.
 15.
Shen Y, Mardani M, Giannakis GB. Online categorical subspace learning for sketching big data with misses. IEEE Trans Signal Process. 2017;65:4004–18. https://doi.org/10.1109/TSP.2017.2701333.
 16.
Payne TR, Edwards P.Dimensionality reduction through correspondence analysis. University of Southampton Institutional Repository. 2020; https://eprints.soton.ac.uk/263091/. Accessed 29 Apr 2020.
 17.
Markopoulos PP, Kundu S, Chamadia S, Pados DA. Efficient L1norm principalcomponent analysis via bit flipping. IEEE Trans Signal Process. 2017;65(16):4252–64. https://doi.org/10.1109/TSP.2017.2708023.
 18.
Loslever P, Laassel EM, Angue JC. Combined statistical study of joint angles and ground reaction forces using component and multiple correspondence analysis. IEEE Transa Biomed Eng. 1994;41:1160–7. https://doi.org/10.1109/10.335864.
 19.
Saukani N, Ismail NA. Identifying the components of social capital by categorical principal component analysis (CATPCA). Soc Indic Res. 2019;141:631–55. https://doi.org/10.1007/s1120501818422.
 20.
Yang L. Alignment of overlapping locally scaled patches for multidimensional scaling and dimensionality reduction. IEEE Trans Pattern Anal Mach Intell. 2008;30:438–50. https://doi.org/10.1109/TPAMI.2007.70706.
 21.
Sammon JW. A nonlinear mapping for data structure analysis. IEEE Trans Comput C. 1969;18:401–9. https://doi.org/10.1109/TC.1969.222678.
 22.
Formann AK. Constrained latent class models: theory and applications. Br J Math Stat Psychol. 1985;38:87–111. https://doi.org/10.1111/j.20448317.1985.tb00818.x.
 23.
LacosteJulien S, Sha F, Jordan MI. DiscLDA: discriminative learning for dimensionality reduction and classification. In: Koller D, Schuurmans D, Bengio Y, Bottou L, editors. Advances in neural information processing systems 21. Red hook: Curran Associates Inc; 2009. p. 897–904.
 24.
Zhang Z, Jordan MI. Latent variable models for dimensionality reduction. In: Artificial intelligence and statistics, pp 655–662. New York: PMLR; 2009.
 25.
White A, Wyse J, Murphy TB. Bayesian variable selection for latent class analysis using a collapsed Gibbs sampler. Stat Comput. 2016;26:511–27. https://doi.org/10.1007/s1122201495425.
 26.
Omura K, Kudo M, Endo T, Murai T. Weighted naïve Bayes classifier on categorical features. In: 2012 12th international conference on intelligent systems design and applications. pp 865–870. IEEE; 2012.
 27.
Cramér H. Mathematical methods of statistics. Princeton mathematical series, vol. 9, pp. 1–57. Princeton Press; 1999.
 28.
Fox KA. Review of economic forecasts and policy. Am Econ Rev. 1959;49:711–6.
 29.
Pareto V. Cours d’economie politique. J Polit Econ. 1898. https://doi.org/10.1086/250536.
 30.
Hochreiter S, Schmidhuber J. Long short term memory. Neural Comput. 1997;9:1735–80.
 31.
Huo J, Gao Y, Shi Y, Yin H. Crossmodal metric learning for AUC optimization. IEEE Trans Neural Netw Learn Syst. 2018;29:4844–56. https://doi.org/10.1109/TNNLS.2017.2769128.
 32.
Wong Y, Kamel A, Mohamed S. Classification of imbalanced data: a review. Int J Pattern Recognit Artif Intell. 2011. https://doi.org/10.1142/S0218001409007326.
 33.
Somasundaram A, Reddy US. Data imbalance: effects and solutions for classification of large and highly imbalanced data In: Proceedings of the of 1st international conference on research in engineering, computers and technology; 2016.
 34.
Gareth J, Witten D, Hastie T, Tibshirani R. An introduction to statistical learning: with applications in R. Springer texts in statistics Springer; 2017.
 35.
Lau MSY, Grenfell B, Thoma M, Bryan M, Nelson K, Lopman B. Characterizing superspreading events and agespecific infectiousness of SARSCoV2 transmission in Georgia USA. PNAS. 2020;117:22430–5. https://doi.org/10.1073/pnas.2011802117.
 36.
LloydSmith JO, Schreiber SJ, Kopp PE, Getz WM. (2005) Superspreading and the effect of individual variation on disease emergence. Nature. 2005;438:355–9. https://doi.org/10.1038/nature04153.
 37.
Mirri S, Delnevo G, Roccetti M. Is a COVID19 second wave possible in EmiliaRomagna (Italy)? Forecasting a future outbreak with particulate pollution and machine learning. Computation. 2020;8:74. https://doi.org/10.3390/computation8030074.
 38.
Salomoni P, Mirri, S, Ferretti S, Roccetti M. Profiling Learners with Special Needs for Custom eLearning Experiences, a Closed Case? In: 2007 proceedings of the ACM international conference proceedings series, 225, pp. 84–92. ACM; 2007.
 39.
Xu SS, Mak MW, Cheung CC. Deep neural networks versus support vector machines for ECG arrhythmia classification In: Proceedings of 2017 IEEE international conference on multimedia & expo workshops, vol. 1. pp. 127–132, IEEE; 2017. Doi: https://doi.org/10.1109/ICMEW.2017.8026250.
 40.
Ntakaris A, Mirone G, Kanniainen J, Iosifidis A. Feature engineering for midprice prediction with deep learning. IEEE Access. 2019. https://doi.org/10.1109/ACCESS.2019.2924353.
 41.
Yu L, Sun X, Tian S, Shi X. Drug and nondrug classification based on deep learning with various feature selection strategies. Curr Bioinform. 2018;13(3):253–9. https://doi.org/10.2174/1574893612666170125124538.
 42.
Cortes C, Vapnik V. Supportvector networks. Mach Learn. 1995;20(3):273–97.
 43.
Lawrence RL, Wright A. Rulebased classification systems using classification and regression tree (CART) analysis. Photogram Eng Remote Sens. 2001;67(10):11371142.9.
 44.
Ditzler G, LaBarck J, Ritchie J, et al. Extensions to Online Feature Selection Using Bagging and Boosting. IEEE Trans Neural Netw Learn Syst. 2018;29:4504–9. https://doi.org/10.1109/TNNLS.2017.2746107.
Acknowledgements
We are indebted towards the company that has provided us with the data of interest. To guarantee its privacy, we keep it here anonymized.
Funding
Not applicable.
Author information
Affiliations
Contributions
All the authors contributed equally to this manuscript.
Authors' information
Marco Roccetti is Full Professor of Computer Science at the University of Bologna (Italy). He was a former Director of the PhD Program on Data Science and Computation at the University of Bologna. He was also a Visiting Scholar at the University of California Los Angeles and a Visiting Scientist at the International Computer Science Institute in Berkeley. His current research interests include: human–machinebigdata interaction and humanintheloop methods.
Giovanni Delnevo is pursuing a Doctorate Degree on Data Science and Computation at the University of Bologna. His main research interests include: machine learning and human machine interaction.
Luca Casini is a PhD Candidate at the Data Science and Computation Program at the University of Bologna. His main research interests include: deep Learning and issues of humanAI interaction.
Silvia Mirri is an Associate Professor at the Department of Management of the University of Bologna. She holds a Ph.D. in Computer Science from Department of Computer Science, University of Bologna. She has been a Visiting Researcher at the Adaptive Technology Resource Centre, University of Toronto, Ontario, Canada. Her interests include Big data accessibility and related issues.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
Not applicable (no humans or animal involved).
Consent for publications
Not applicable.
Competing interests
Not applicable: none of the authors have any competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Roccetti, M., Delnevo, G., Casini, L. et al. An alternative approach to dimension reduction for pareto distributed data: a case study. J Big Data 8, 39 (2021). https://doi.org/10.1186/s40537021004288
Received:
Accepted:
Published:
Keywords
 Deep learning models
 Categorical data
 Learning space dimensions
 Pareto analysis
 Imbalanced datasets
 Dataset coherence analysis
 Principal component analysis
 Binning
 Machine learning
