Performance Analysis of Intrusion Detection Systems Using a Feature Selection Method on the UNSW-NB15 Dataset

Abstract

Computer networks intrusion detection systems (IDSs) and intrusion prevention systems (IPSs) are critical aspects that contribute to the success of an organization. Over the past years, IDSs and IPSs using different approaches have been developed and implemented to ensure that computer networks within enterprises are secure, reliable and available. In this paper, we focus on IDSs that are built using machine learning (ML) techniques. IDSs based on ML methods are effective and accurate in detecting networks attacks. However, the performance of these systems decreases for high dimensional data spaces. Therefore, it is crucial to implement an appropriate feature extraction method that can prune some of the features that do not possess a great impact in the classification process. Moreover, many of the ML based IDSs suffer from an increase in false positive rate and a low detection accuracy when the models are trained on highly imbalanced datasets. In this paper, we present an analysis the UNSW-NB15 intrusion detection dataset that will be used for training and testing our models. Moreover, we apply a filter-based feature reduction technique using the XGBoost algorithm. We then implement the following ML approaches using the reduced feature space: Support Vector Machine (SVM), k-Nearest-Neighbour (kNN), Logistic Regression (LR), Artificial Neural Network (ANN) and Decision Tree (DT). In our experiments, we considered both the binary and multiclass classification configurations. The results demonstrated that the XGBoost-based feature selection method allows for methods such as the DT to increase its test accuracy from 88.13 to 90.85% for the binary classification scheme.

Introduction

The rapid pace at which technologies such as the Internet, Internet-of-Things (IoT) and communication systems is advancing has caused hackers to evolve with a higher velocity in terms of their capabilities. These criminals strive to discover new ways to compromise computer networks security. Therefore, Intrusion Detection Systems (IDSs) inherently become critical components in a computer network. An IDS is defined as a hardware or a software system that monitors an organization’s computer network for imminent and potential threats or attacks. Moreover, an IDS is capable of responding to any malicious transactions and report them accordingly [1]. IDSs are categorized in 3 broad classes, namely, node or host based IDS (HIDS) (Fig. 1), network or distributed IDS (DIDS or NIDS) (Fig. 2) and Hybrid IDS (HYIDS) (Fig. 3). This classification is based on the specific IDS operation philosophy. HIDS runs on a single node computer system and it is concerned with the security related to its host. In contrast, a DIDS runs on a distributed computer network and analyses the traffic at the network level for suspicious activities. HYIDS is a combination of DIDS and HIDS [2, 3].

Fig. 1
figure1

Host IDS: This image illustrate the design philosophy of an Host IDS

Fig. 2
figure2

Network IDS: This figure depicts the design philosophy of a DIDS

Fig. 3
figure3

Hybrid IDS: This figure depicts the design philosophy of a HYIDS

Moreover, all classes of IDSs can be assorted into the following categories: signature-based, anomaly-based and hybrid-based. A signature-based IDS uses an existing data store of previously intercepted attacks in order to detect intrusions. In contrast, an anomaly-based IDS is concerned with the behaviour of the network. It constantly checks for activities that constitute unusual behaviour and flags them. Finally, hybrid-based IDS is a combination of both anomaly-based and signature-based IDSs [4,5,6].

The primary philosophical design goal of an IDS is to minimise instances of false positive alarms and to increase its detection accuracy. Therefore, the design and implementation of any IDS must take that philosophy in consideration [7]. In recent years, Machine Learning (ML) based IDSs have emerged as the leading systems in the intrusion detection research domain. ML gives systems the ability of learning and improving by using previous data. In other words, ML based computer programs do not need to be explicitly engineered (programmed). They are capable of learning by themselves [8]. Broadly speaking, there exist the following sorts of ML philosophies, namely, supervised ML and unsupervised ML. In the case of supervised ML, models are learned using data that is labelled [9]. In the instance of unsupervised ML, the data that is used to train models is unstructured (unlabelled) [10].

In this research, supervised ML methods and more specifically, the binary and multiclass classifications tasks, are considered. The classification procedure happens when a supervised ML model is tasked to predict a discrete value [11]. The datasets used to train the models in this set-up are generally large and possess a high dimensional feature space. Due to that dimensionality, it is often time consuming to train and test supervised ML models. Therefore, it is critical to perform feature engineering processes to drop the number of features required for the training and testing phases [2, 12]. For the work presented in this paper, a filter-inspired feature reduction technique using the feature importance measures generated by the XGBoost Algorithm [13] is considered. Unlike the wrapper-based feature extraction approach; the filter-inspired feature extraction technique performs the feature space reduction process without the intervention of the classifier used for the final predictions [14]. Furthermore, a thorough literature review is conducted and the results obtained by the various ML methods that were surveyed are compared to those obtained in this research.

In our experimental processes, we applied the following supervised ML methodologies for IDS: k-Nearest-Neighbour (kNN), Logistic Regression (LR), Artificial Neural Network (ANN), Support Vector Machine (SVM) and Decision Tree (DT). We apply the XGBoost methodology over the UNSW-NB15 dataset [15, 16] to calculate the feature importance measure for each feature so as to generate a reduced and optimal feature vector. Furthermore, we have conducted a performance analysis that involves the binary classification and the multiclass classification schemes for each of the selected ML algorithms.

The reminder of this work is structured as follows. Firstly, an account of related work is presented. An highlight of all the ML techniques that are used in this research is provided. Moreover, the details about the UNSW-NB15 dataset are given. Furthermore, the proposed IDS approach is explained as well as all the algorithms involved during the experimental processes. A summary of all the experimental processes and discussions is then presented. The last section of this paper is the conclusion.

Related Work

The researchers in [17] implemented the Genetic Algorithm (GA) in conjunction with the Logistic Regression(LR) wrapper based feature selection methodology over the UNSW-N15 and KDDCup99 datasets. In this research, the Weka simulation tool was used. After multiple simulations, the results showed that the GA-LR coupled with the DT classifier attained a detection score of 81.42% as well as a FAR of 6.39% with 20 features out the 42 features present within the UNSW-NB15 feature space. With regards to the KDDCup99 dataset, the GA-LR in conjunction with the DT classifier obtained a detection score of 99.90% and a FAR rate of 0.105% using 18 features.

The authors in [18] presented a filter-based approach using multiple filters for Distributed Denial of Service (DDoS) detection. The filter methods that were used includes: Information Gain, Chi-Square and Gain Ratio, ReliefF. In a bid to demonstrate the capability of this system, the researchers employed the NSL-KDD attack detection dataset. For the classification process the authors employed the Decision Tree (DT) algorithm trained and validated with the help of the k-fold cross-validation method where \(k=10\). The experimental results showed that with only 13 features out of the 42 features (full feature space); the DT classifier was able to obtain a detection accuracy score equal to 99.67% as well as a false alarm rate (FAR) equating 0.42%. However, this research did not dive deep into the study of the multiclass classification problem of the NSL-KDD.

In [19], an IDS coupled to a filter-inspired input reduction approach was introduced. In this work, the different datasets including the Kyoto 2006, the KDDCup99 as well as the NSL-KDD were utilized for assessment. The authors in this work considered a Flexible Mutual Information (FMI) technique in order to assert the correlation that could exist between different input variables. The FMI is a non-linear correlation measure. The classifier used in the experiments is the Least Square SVM (LS-SVM). The results showed that for the NSL-KDD, with 18 features, the LS-SVM FMI achieved a FAR 0.28% and an accuracy 99.94%. In the instance of KDD Cup 99, the LS-SVM FMI obtained an overall accuracy of 78.86% and in the case of Kyoto 2006 +, the LS-SVM FMI attained a detection rate of 97.80% with a FAR rate of 0.43% on iteration 10.

The authors in [20] implemented an IDS using a filter-based method methodology with the aim to drop the number of input attributes (features) required to perform the training and testing of their model. The DT classifier was used in together with a correlation input selection technique. The dataset utilized in the experimental processes is the NSL-KDD. 14 features were selected after the filter was applied on the feature space. Moreover, the author considered the multiclass classification setting that included all five classes of attacks within the NSL-KDD as well as the binary classification configuration. The experimental outcome demonstrated that the system yielded an accuracy of 83.66% for the multiclass configuration and 90.30% for the binary setting.

In [21], the researchers implemented a feature reduction method for intrusion detection system using the Pigeon Inspired Optimizer (PIO). The PIO is a bio-inspired algorithm influenced from the flight of white pigeons. These birds constantly regulate their flight position by referring to that of the best bird in the flock [22]. In this work, the following two types of PIO were considered: Sigmoid PIO and Cosine PIO. The the UNSW-NB15, the NSL-KDD and the KDDCup99 intrusion detection sets were considered. The Sigmoid PIO selected 10 features and the Cosine PIO selected 7 features of the KDDCup99. The Sigmoid PIO selected 18 features and the Cosine PIO selected 5 features of the NSL-KDD. The Sigmoid PIO selected 14 features and the Cosine PIO selected 5 features of the UNSW-NB15. With regards to accuracy, the Sigmoid PIO achieved an accuracy of 94.7% using the KDDCup99, 86.9% over the NSL-KDD and 91.3% on the UNSW-NB15. In contrast, Cosine PIO obtained 96.0% on the KDDCup99, 88.3% over the NSL-KDD and 91.7% on UNSW-NB15.

Janarthanan and Zargari [23] implemented a number of feature selection algorithms through the UNSW-NB15 in an effort to select an optimal feature space. Using the Weka tool, the following algorithms were implemented: attribute evaluator (CfsSubsetEval), Greedy Stepwise and Information Gain and the Ranker Method. After various simulations, two subset were considered. The authors used the Kappa Statistic measure to evaluate the effectiveness of each subset. Many classifiers were considered during the experiments; however, the RF classifier was selected as the best method in terms of its overall performance. The first subset with 8 significant features achieved a Kappa Score of 0.6891 and an accuracy of 75.6617% over test dataset. The second subset using only 5 significant features achieved a Kappa score of 0.7639 and an accuracy of 81.6175%.

Vikash and Ditipriya [24] implemented an IDS system that was validated using the UNSW-NB15 dataset. In this research, the authors considered a feature reduction technique that was inspired from the Information Gain methodology. This filter-based feature extraction technique resulted in the selection of 22 most important attributes. Moreover, the IDS proposed in this work utilized an integrated rule-based model that used multiple Tree-based classifiers in order to carry out the the classification process. The performance of this system was mainly measured using the Attack Accuracy (AAc) achieved on the test data, the F-Measure (FM) and False Alarm Rate (FAR). The results show that the proposed IDS obtained an AAc of 57.01%, an FM of 90% and a FAR of 2.01%. The results obtained in this research can be improved when considering alternative ML algorithms that could be integrated in replacement to a strict adherence to Tree based methods.

In [25], the researchers introduced a feature extraction algorithm based on Particle Swarm Optimization (PSO), Firefly Optimization (FO), Grey Wolf Optimization (GO) and Genetic Algorithm (GA). These methods were applied iteratively on the UNSW-NB15 dataset in order to discover which feature subset would produce an optimal attack detection accuracy. After several experiments, a feature subset containing 30 features was selected. Furthermore, the J48 Tree based model and the SVM models were used in order to conduct the classification process. The main performance criteria considered in this study were the Accuracy, the False Positive Rate (FPR), the False Negative Rate (FNR) as well as the FM. The experiments were carried out on the UNSW-NB15 training subset and the binary classification scheme was implemented. The results demonstrated that the proposed J48 model achieved a training accuracy of 90.484%, an FPR of 14.950% and an FM of 90.172%. Additionally, the proposed SVM model achieved a training accuracy of 90.119%, an FM of 89.808%, an FPR 15.391% and an FNR of 3.130%.

Maajid and Nalina [26] implemented a feature reduction method based on the RF algorithm in order to generate the Feature Importance (FI) score of each attribute present in the UNSW-NB15 dataset. The FI algorithm is a ranking system whereby the feature with the highest FI is the most important attribute in the classification process with regards to the target variable (class). After several experiments, a feature subset containing 11 attributes was selected. For the classification procedure, the authors considered the following ML approaches: kNN, DT, Bagging Meta Estimator (BME), XGBoost and RF. In order to assess the performance of these methods, the accuracy and the F-Measure scores obtained on test data were used as the principal metrics. The RF algorithm obtained the best results with an AC of 75.56% and an FM of 73.00%.

In [27], a two-stage ensemble model for IDS using the Rotation Forest and Bagging algorithms was proposed. This multiple stage meta classifier model used a majority voting approach to decide on the best course of action. Additionally, a feature selection method using the Particle Swam Optimization (PSO), the GA and the Ant Colony Optimization (ACO) was implemented. The PSO-GA-ACO technique was applied on UNSW-NB15 and 19 optimal features were extracted. In order to validate their two-stage model, the researchers used the 10-fold cross-validation technique in conjunction with the hold-out method. The performance metrics considered in this work were the AC, the FPR, the sensitivity and the Precision. Therefore, for the binary classification scheme, the methodology proposed in this work achieved an AC of 91.27%, a precision of 91.60% and a sensitivity of 91.30% over the UNSW-NB15 test subset.

Zong et al. [28] proposed an IDS using a two-stage (TS) classifier model based on the RF classifier. The Information Gain (IG) method was used to select the attributes required for the binary classification process. The authors used the one-hot encoding technique in order to transform the categorical features of the UNSW-NB15 dataset. In the first stage, the IG-TS is concerned with the detection of minority classes and in the second phase, the IG-TS carries out the detection of majority classes. The results of each stage in then combined to provide the final prediction. The researchers used the AC and the FAR as performance metrics. After several experiments, the IG-TS achieved an AC of 85.78% and a FAR of 15.78%.

In [29], a two-stage model using the RepTree algorithm for NIDS was presented. To assess the performance of this method, the authors used the UNSW-NB15 dataset amongst others. In the first stage of the framework, the classifier subdivides the network traffic into the following 3 categories: UDP, TCP and Other (Other kinds of network traces). In the second stage, the RepTree classifies the anomalies recorded in the initial stage and performs the attacks predictions. Moreover, the framework proposed in this research used the IG and Consistency (IGC) method to reduce the feature space. The results for the binary classification scheme showed that the TS-RepTree achieved an accuracy of 88.95% over the test dataset with about 20 most relevant features. The drawback of this research is the fact that the authors only considered one metric to evaluate the performance of their framework.

Gao et al. [30] proposed an IDS using an incremental approach of the Extreme Learning Machine (IELM) in conjunction with an Advanced Principal Component (APCA) algorithm. The APCA has the role to adaptively select the most relevant features required by the IELM so as to perform an optimal attack prediction. The researchers used the UNSW-NB15 in to evaluate the performance of the proposed IDS framework. The accuracy obtained on the test data was the most important metric considered in order to arrive at their conclusion. In addition, the authors also contemplated other metrics such as the detection rate (DR) and the FAR. The experimental results showed that the IELM-APCA obtained an accuracy of 70.51%, a DR of 77.36% and a FAR of 35.09%.

In [31], an IDS adapted to the Edge-of-Things (EoT) was presented. The EoT is a paradigm that takes the Internet of Things (IoT) to the next level whereby it becomes possible for data to be processed and transferred from Cloud Servers to Edge devices such as hand-held computers, mobile phones, laptops, IoT devices, etc. with minimal delay. The EoT-IDS is composed a feature selection module that uses the correlation method to select the best attributes. Moreover, once the feature subset is picked, it is fed into a Deep Belief Network (DBN) classifier to carry out the predictions. The authors used the UNSW-NB15 to assess the efficiency of their proposed system. The accuracy obtained on test data was used as the main performance metric. The authors conducted the experiments using several structures of DBN networks whereby the best configuration (layer 1 = 64 hidden units, layer 2 = 60 hidden units and the serial number of the DNB architecture was 28) achieved an accuracy of 85.73% for the binary classification process.

Kaiyuan et al. [32] proposed an NIDS framework that used the One-Side Selection (O-SS) method to reduce the amount of noisy data records within the majority classes. Moreover, the authors utilized a synthetic approach (Synthetic Minority Over Sampling—SMOS) to increase the number of minority examples within the dataset. Furthermore, Convolutional Neural Networks (CNN) were employed for extracting the spatial attributes and Bidirectional Long-Short Term Memory (Bi-LSTM) models were used to select the temporal attributes. The combination of CNN-Bi-LSTM is the DL model that the authors used to conduct the predictive tasks. To evaluate the proposed framework, the researchers used the UNSW-NB15 and NSL-KDD intrusion detection datasets, and they considered the accuracy obtained on test data as the main performance metric. The results showed that the CNN-Bi-LSTM attained accuracies of 77.16% and 83.58% for each dataset respectively.

Overview of ML Methods

The following sections provide a review of the supervised ML approaches that are used in this work.

Support Vector Machine

Support Vector Machine (SVM) happens to be one of the most flexible ML model that is able to conduct both classification and regression tasks. SVM is amongst one of the foremost well known models in ML research. The objective of the SVM model is to partition a given dataset into different classes in a bid to discover the optimal hyperplanes. Some of the pros of using SVM include the fact that it tends to perform effectively for high dimensional input spaces. Furthermore, the SVM model allows for selection of a variety of Kernel functions in the decision making process. One of its disadvantages is that, it requires careful tuning in general and especially when the input dimension is greater than the number of examples [33].

Logistic Regression

Logistic Regression (LR) is a ML technique that is primarily employed for the binary classification task although it is termed as “regression”. The LR can also be used for the multiclass classification tasks whereby the learning algorithm employs the one-vs-rest methods. The LR model applies the sigmoid function or its variations to a linear ML model. The output of this operation is squashed between [0, 1]. An output that is closer to 1 determines the probability of a given class. The mathematical formulation is described in Eqs. 1, 2 and 3 [34].

$$\begin{aligned} & {\text{ Linear }} {\text{ Model: }} y = b + w_{1}x_{1}+ w_{2}x_{2} + \cdots + w_{n}x_{n} \end{aligned}$$
(1)
$$\begin{aligned}& {\text{ Sigmoid }} {\text{ Expression: }} \sigma (k) = \frac{1}{1+e^{-k}} \end{aligned}$$
(2)
$$\begin{aligned}& {\text{ Logistic}} {\text{ Regression: }} \sigma (y) = \frac{1}{1+e^{-y}} \end{aligned}$$
(3)

In the above formulation, y is processed by \(\sigma\).

Artificial Neural Network

Artificial Neural Network (ANN) is a ML philosophy that mirrors the inner workings of the biological neurons. The most basic component of an ANN is referred to as a node or a neuron. An ANN with an input layer that is processed by one hidden layer to provide an output is alluded to as a Perceptron. ANN that possesses multiple hidden (middle) layers are sometimes called Feed-forward ANN or Multilayer Perceptrons (MLP) [35]. Neurons in an ANN are processed via an activation expression such as the Sigmoid \(\sigma (k) = \frac{1}{1+e^{-k}}\), a Rectified Linear Unit (ReLU) \(f(k)=max(0,k)\), an Hyperbolic Tangent \(tanh(t)= \frac{1-e^{-2t}}{1+e^{-2t}}\) or a variation of those functions. A visual representation of an ANN is illustrated in Fig. 4 [36, 37].

Fig. 4
figure4

ANN: This figure shows a graphical representation of simple ANN

Decision Tree

Decision Tree (DT) is a supervised ML technique that is employed for classification and regression tasks. The model resulting from the decision making process is shaped like a tree. This makes DT less complex to interpret by the user. Moreover, various ML tools allow for the visualization of the resulting trees [38].

k-Nearest-Neighbour

The k-Nearest-Neighbour (kNN) ML algorithm is capable of conducting both supervised and unsupervised processes. For instance, kNN is the basis of many of the clustering algorithms in use today [39]. In this research, we used the kNN method in its supervised ML flavour. This technique bases itself on the Standard Euclidean Metric (EM). The EM is a distance that separates two points (instances) in a space [40]. Lets p and q denote two instances in an Euclidean space Z, the EM between q and q, \(\Delta (p,q)\), is computed as follows:

$$\begin{aligned} \Delta (p,q)= \sqrt{ \sum _{i=1}^r (q_k - q_k)^2 } \end{aligned}$$
(4)

r denotes the maximum number of instances within the space Z. The kNN technique finds the identity (label) of an example \(r_0\) within Z by calculating the EM separating \(r_0\) and its k closest instances within Z and the label (class) of \(r_0\) is selected with reference to the class of its k related neighbouring instances.

UNSW-NB15 Dataset

For our experimental processes we utilize the UNSW-NB15 attacks dataset [41]. In its clean format, the UNSW-NB15 contains 42 features as shown in Table 1. Out of the 42 features, 3 instances are non-numeric (categorical) features and 39 are numeric in nature.

The UNSW-NB15 is subdivided in the following main datasets: UNSW-NB15-TRAIN, which is employed for training various models and the UNSW-NB15-TEST (100%) which is employed for testing the trained models. In our work, we further split the UNSW-NB15-TRAIN in the following two partitions: the UNSW-NB15-TRAIN-1 (75% of the full training set) for training and the UNSW-NB15-VAL (25% of the full training set) for validation before testing. This second partition is used as a sanity check for the results obtained during the training process. When using this strategy, it is crucial to avoid that a model trains on the evaluation or the test set because it could lead to a phenomenon known as data leakage. Data leakage occurs during the training process when a model sees information that is not supposed to and therefore introducing a bias in the final model. This in turn leads to a poor model performance on previously unseen data [42].

The UNSW-NB15 contains instances with the following categories of network attacks: Backdoor, Shellcode, Reconnaissance, Worms, Fuzzers, DoS, Generic, Analysis, Shellcode and Exploits. Moreover, Table 2 provides the details and the values distribution of each attack class within the data subsets.

Table 1 UNSW-NB15 list of features
Table 2 UNSW-NB15 instances repartition

The Proposed Approach

The architectural design of the system proposed in this research is detailed in Fig. 5. The first block is all about data processing. This process is often referred to as the data engineering. This step is critical for a successful learning process. Data processing has three steps, namely, cleaning, normalization and feature selection. The feature selection process is conducted using a filter-based method inspired by the XGBoost algorithm for generating feature importances scores. Once the required feature vector is selected; the next process involves model training using the training set. A trained model is then validated with the validation set. Finally, the test dataset is used to test the validated model. The procedure described above happens in an iterative manner till a tuned and fit model is found.

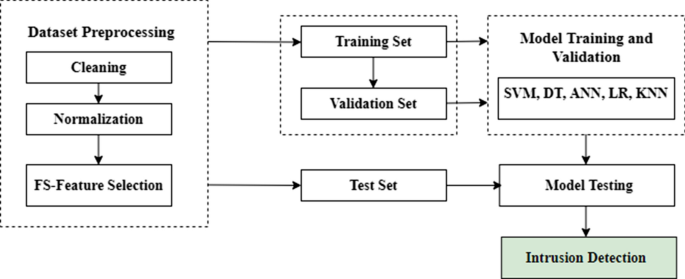

Fig. 5
figure5

ML based IDS Architecture: this figure depicts the architecture of the IDS system explored in this paper

Feature Normalization

The high numerical value of various features have an impact on the learning process on ML approaches such as SVM, LR, ANN and kNN. Also, the training of high dimensional datasets requires a great deal of computational resources. To mitigate those issues, data is often scaled using methods such as the Z-score standardization, Decimal scaling, Max normalization and Min–Max scaling [43]. The choice of which method to use is often based on the application. We use the Min–Max scaling (Eq. 5) in our data processing step.

$$\begin{aligned} {\text{ Min-Max}} {\text{ scaling }} {\text{ of }} {\text{ feature }} {\text{ F: }} F_{norm}= \frac{F-F_{min}}{F_{max}-F_{min}} \end{aligned}$$
(5)

Given a dataset with an input vector (feature space) represented by \(U(f_1, \ldots ,f_n)\), \(1<n < N\), where N is the total number of instances (features) in the space, the standardization computation happens as described in Algorithm 1.

figurea

XGBoost Technique

The basic concept with the XGBoost algorithm is to train an Ensemble (Group) Tree Model in an incremental fashion with a penalty parameter, \(\theta\), that is added to reduce the complexity of the model. The goal is to minimize the expression in Eq. 6. The mathematical formulation is explained below:

Let \({\hat{y}}^{(t)}\) designate the prediction of the k-th example at the t-th increment, the objective function is then expressed below:

$$\begin{aligned} L^{(t)} = \sum _{k=1}^{n} l(y_k, {\hat{y}}_{k}^{(k-1)} + f_t(X_i)) + \theta (f_t) \end{aligned}$$
(6)

where L is the loss function. The goal of the XGBoost method consist in minimizing the above objective function using the following simplified second-order expression:

$$\begin{aligned} {\tilde{L}}^{(t)} = \sum _{k=1}^{n} [g_k f_t(X_k) + \frac{1}{2}h_k f_{t}^{2}(X_k)] + \theta (f_t) \end{aligned}$$
(7)

where \(g_k = \partial _{{\hat{y}}^{(t-1)}}l(y_k,{\hat{y}}^{(t-1)})\) and \(h_k = \partial _{{\hat{y}}^{(t-1)}}^2 l(y_k,{\hat{y}}^{(t-1)})\). \(g_k\) and \(h_k\) denote the first and the second order expressions of the gradients with regards to the loss function. The XGBoost algorithm has the ability to compute a score for each feature given a dataset. This score metric is labelled as the Feature Importance (FI) [44]. In this research, we use the FI measure as a means to decide which inputs are important for the learning and classification procedures. The pseudo-code explaining the XGBoost method of generating the feature importances using Scikit Learn is described in Algorithm 2.

figureb

We have applied the XGBoost method over the UNSW-NB15 dataset and the outcome have yielded 19 features as detailed in Table 3.

Table 3 UNSW-NB15 selected features using the XGBoost method

Experiments, Results and Discussions

Hardware and Environment Setting

The experiment presented in this work are conducted on a DELL 153000 Inspiron 3580 loaded with the Windows 10 Operating System with the following processor: Intel(R) Core(TM) i7-8568U CPU @ 1.80GHz to 1.99 GHz. The ML models are built, trained, evaluated and tested on the Scikit-Learn ML Python framework [45]. Scikit-Learn is a versatile open source platform that is constructed on top of matplotlib, NumPy and Scipy Python libraies. Moreover, Classification, Regression and Clustering tasks can all be conducted using Scikit-Learn.

Performance Metrics

There exist an number of metrics to evaluate ML based IDS systems; however, this research aims to maximize the correct predictions of instances in the test dataset. The main measure to look at is the Accuracy(AC) defined below:

$$\begin{aligned} Accuracy = \frac{TN + TP}{FP+FN+TP+TN} \end{aligned}$$
(8)

whereby the TP stand for True Positive and is the rate of examples correctly identified as attacks. TN, True Negative, is the rate of legitimate traffic classified as legitimate. FP, False Positive, sometimes referred to as Type I error, is the rate of legitimate traffic classified as attacks. FN, sometimes referred to as Type II error, is the rate of legitimate traffic classified as intrusions. Additional metrics we consider in this paper are the Recall, the Precision and \(F1_{score}\) defined below:

$$\begin{aligned} Precision= & {} \frac{TP}{TP + FP} \end{aligned}$$
(9)
$$\begin{aligned} Recall= & {} \frac{TP}{TP + FN} \end{aligned}$$
(10)
$$\begin{aligned} F1_{score}= & {} 2\frac{Precision . Recall}{Precision+Recall} \end{aligned}$$
(11)

The F1Score is defined as the harmonic mean of the expression in (9) and (10). Moreover, some applications are designed to be Precision or Recall oriented. In order to achieve that in the training process, the \(F_{\beta }\) defined below can be tuned:

$$\begin{aligned} F_{\beta } = \frac{(1+\beta ^2)TP}{(1+\beta ^2)TP + \beta FN + FP} \end{aligned}$$
(12)

where the parameter \(\beta\) can adjusted based on the application. In our research however, we use the \(F1_{score}\) which is a trade-off between the Precision and the Recall.

Experiments and Results

Our experimental design was categorized in two main processes whereby we considered the following ML techniques: ANN, LR, kNN, SVM and DT. In the first step of the experiments, we employed the full feature space (42 features) of the UNSW-NB15 for the binary setting and for the multiclass configuration. In the second phase, we introduced the feature selection method using the XGBoost algorithm. Subsequently, a reduced feature vector containing 19 attributes (Detailed in Table 3) was generated. Using the optimal feature vector, we conducted the experiments that involved the binary classification step along with the multiclass classification procedure. The results of our experimental processes are listed in Tables 4, 5, 6, 7 whereby Table 4 provides the results obtained by the ML methods for the binary classification technique using the full feature space of the UNSW-NB15. Table 5 lists the results attained by the ML algorithms for the binary classification scheme using the reduced feature vector. Tables 6 and 7 list the results achieved by the ML algorithms for the multiclass classification task using the full feature space and the reduced feature vector, respectively. In each table, Tr. AC is the accuracy obtained on training data. Val. AC denotes the accuracy obtained on validation data and Test AC represents the accuracy obtained on test data.

With regards to ANNs, all our experiments used the Adam solver which is stochastic gradient-based method that is suitable for large datasets in lieu of the standard Stochastic Gradient Descent (SGD). The ANNs were designed using a single hidden layer that could have the following number of neurons: \(hidden\_layer\_size = \{5, 10, 15, 30, 50, 100\}\). The learning rate was adaptive. As depicted in Table 4, the ANN network that achieved the highest performance obtained an accuracy rate of 86.71% over the test set with the help of 150 neurons at an adaptive learning rate of 0.02.

For the LR method, the random state was set at 10 with a maximum iteration number of 1000. The results show that it obtained 79.59% and 77.64% of accuracy rates over the test set with regards to the binary classification utilizing the entire and reduced feature space respectively as detailed within Tables 4 and  5.

Using the kNN method, we trained multiple models with the number of neighbours set as follows: \(number\_of\_neighours = \{3, 5 , 7 , 9, 11\}\). The results show that in the case of the multiclass classification setup, a kNN classifier with 3 neighbours achieved a test score of 83.18% utilizing the entire feature space. In the instance of the reduced feature dimension, the kNN method obtained a test accuracy of 84.46% using 9 neighbours without overfitting.

The SVM method using the Radial Basis Function (RBF) as its kernel obtained a test accuracy of 62.42% and 60.89% using the full and reduced input space, respectively, with regards to the binary detection. In contrast, for the multiclass detection, the SVM obtained test accuracies of 61.09% and 61.53% using 42 and 19 features, respectively. The tuned parameters of the SVM classifier were as follows: \(C = 1.12\) (regularization parameter), \(gamma =\)scale’ and \(kernel =\)rbf’.

In the case of the DT classifier, we conducted experiments using different models based on the trees maximum depth. The depth values could assume of the following numbers: \(maximum\_depth\_values = \{2, 5 , 7 , 8, 9 \}\). The outcome shows that the DT obtained a test accuracy of 88.13% using 42 features in the instance of the binary classification setup whereas it obtained a test score of 85.85% utilizing 19 features. The DT obtained a better test accuracy score compared to other ML methods when running the binary classification utilizing the entire feature dimension as well as the reduced one.

Table 4 Results using 42 features—binary classification
Table 5 Results using 19 features—binary classification
Table 6 Results using 42 features—multiclass classification
Table 7 Results using 19 features—multiclass classification

Discussions

After several iterations of experiments, the majority of ML methods used in this research improved on their test accuracies for the multiclass classification scheme by reducing the dimension of the feature vector from 42 to 19. In the instance of ANN, there has been an increase from 75.62% (42 features with 30 neurons in the hidden layer) to 77.51% (19 features and 15 neurons in the hidden layer). This shows that using only the most important features as reduced the complexity of the ANN method by halving the number of nodes required in the ANN network. This can also be seen in the trade-off between the precision (75.50%) and the recall (77.53%) through the test set. This produced a F1-Score of 77.28%. Moreover, the ANN method performed the best in terms of the AC , the Precision and the Recall obtained on test data. Additionally, a confusion matrix (Fig. 6) for the ANN multiclass classification process has been computed to evaluate the performance of individual attack classes present in the UNSW-NB15 whereby class 0 = Normal, class 1 = Generic, class 2 = Exploits, class 3 = Fuzzers, class 4 = DoS, class 5 = Reconnaissance, class 6 = Analysis, class 7 = Backdoor, class 8 = Shellcode, class 9 = Worms. The diagonal in Fig. 6 (From the top left to the bottom right) determines the efficiency of the ANN ML method for each class. The darker the square, the more accurate the prediction with regards to a given class. The results show that the classifier performs well for class 0–5. However, class 7–9 are minority classes within the UNSW-NB15 and therefore, the classifier underperformed.

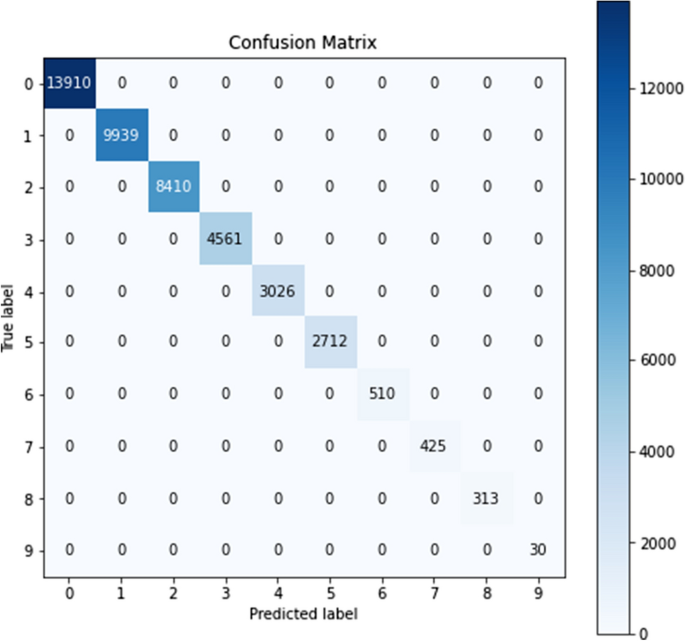

Fig. 6
figure6

Confusion Matrix: ANN Algorithm

In the instance of kNN ML approach, the accuracy for multiclass classification increased from 70.09% (using the 42 features) to 72.30% (using the 19 features generated by the XGBoost method) on the test set. Whereas, the XGBoost-LR did not improve on the accuracy of the stand alone LR (using the full feature vector) for the multiclass classification schemes as well as the binary one.

In the case of the DT classifier, the test accuracy has increased from 66.03 to 67.57% using the 42 and 19 features, respectively, for the multiclass classification scheme. Moreover, for the binary classification process, the DT has increased the test accuracy from 88.13 to 90.85% employing the entire and the reduced feature dimensions of the UNSW-NB15 respectively. The results demonstrated the XGBoost helped in improving the DT algorithm predictive capabilities.

The use of the SVM method with the optimal input vector (19 features) has resulted in a test accuracy increase from 61.09 to 61.53% in the instance of the multiclass configuration. Moreover, for the binary classification scheme, the SVM approach increased its validation accuracy from 70.63 to 75.51%.

Moreover, in comparison to the work presented in [17] whereby the GA-LR-DT was used; the XGBoost-DT attained a test accuracy score of 90.85% as compared to 81.42% obtained by the GA-LR-DT (input dimension of 20 attributes of the UNSW-NB15). Furthermore, the results obtained in this paper are superior to those obtained in [21] whereby the Sigmoid PIO selected 14 optimal features of the UNSW-NB15 and obtained an accuracy score of 91.30% through the validation dataset. In comparison, the XGBoost-ANN, the XGBoost-kNN and the XGBoost-DT obtained validation accuracies of 93.66%, 94.73% and 93.81%, respectively, as detailed in Table 5. Finally, in Table 8, a comparison between the methods proposed in this paper against those surveyed in the literature show that the DT-XGBoost outperformed all other ML methods for the binary scheme and in the instance of the multiclass configuration, the ANN-XGBoost was the better option.

Table 8 Methods

Conclusion

This research explored the application of the XGBoost algorithm for feature selection in conjunction with multiple ML techniques including ANN, kNN, DT, LR and SVM in order to implement accurate IDSs. The UNSW-NB15 dataset was utilized to assess the performance of these methods. In this work, the binary and the multiclass classification settings were considered. Furthermore, the XGBoost based attribute selection method was applied over the UNSW-NB15 and as a result, 19 optimal features were selected. To put our research into perspective, we carried out a thorough literature review whereby various techniques for feature selection applied to the UNSW-NB15 dataset were reviewed. Moreover, we compiled a summary of the performance results obtained by the various classifiers in the literature and we compared them to those obtained in our proposed methodology. Initially, we carried out the experiments using the proposed ML approaches over the full feature space of the UNSW-NB15 dataset. Thereafter, we ran the experiments using the reduced feature vector that was generated by the XGBoost feature extraction algorithm proposed in this work. The experimental results demonstrated that using a reduced (optimal) feature vector has its merits in terms of reducing the models complexity as well as increasing the detection accuracy on test data. A notable instance is the XGBoost-ANN. It managed to reduce number of neurons in the hidden layer by 50 percent the number of nodes in the stand alone ANN. Moreover, the XGBoost-kNN and the XGBoost-DT have also registered an improvement of their performance over unseen data (test data). Additionally, a study of the performance of individual classes within the UNSW-NB15 using the ANN-XGBoost algorithm demonstrated that this method performs optimally when predicting the majority classes (class 0–6) and it underperforms with regards to the minority classes (class 7–9). In further work, we intend to use a synthetic oversampling algorithm to increase the occurrence of the minority classes within the UNSW-NB15 dataset during the training process. Furthermore, we plan to implement the XGBoost-based feature selection technique utilizing the NSL-KDD dataset and assess its performance in comparison to existing state of the art methods.

Availability of data and materials

The datasets used during the current study are available in the UNSW repository page, https://www.unsw.adfa.edu.au/unsw-canberra-cyber/cybersecurity/ADFA-NB15-Datasets/ [46].
