Pairwise document similarity measure based on present term set
Journal of Big Data volume 5, Article number: 52 (2018)
Abstract
Measuring pairwise document similarity is an essential operation in various text mining tasks. Most of the similarity measures judge the similarity between two documents based on the term weights and the information content that two documents share in common. However, they are insufficient when there exist several documents with an identical degree of similarity to a particular document. This paper introduces a novel text document similarity measure based on the term weights and the number of terms appeared in at least one of the two documents. The effectiveness of our measure is evaluated on two realworld document collections for a variety of text mining tasks, such as text document classification, clustering, and nearduplicates detection. The performance of our measure is compared with that of some popular measures. The experimental results showed that our proposed similarity measure yields more accurate results.
Introduction
In text mining, a similarity (or distance) measure is the quintessential way to calculate the similarity between two text documents, and is widely used in various Machine Learning (ML) methods, including clustering and classification. ML methods help learn from enormous collections, known as big data [1, 2]. In big data, which includes masses of unstructured data, Information Retrieval (IR) is the dominant form of information access [3]. Among ML methods, classification and clustering help discover patterns and correlations and extract information from largescale collections [1]. These two techniques also offer benefits to different IR applications. For example, document clustering can be applied to the document collection to improve search speed, precision, and recall or to the search results to provide more effective information presentation to user [3]. Document classification is also used in vertical search engines [4] and sentiment detection [5].
In largescale collections, one of the challenging issues is to identify documents with high similarity values, known as nearduplicate documents (or nearduplicates) [6,7,8]. Integration of heterogeneous collections, storing multiple copies of the same document, and plagiarism are the main causes for the existence of nearduplicates. These documents increase processing overheads and storage. Detecting and filtering nearduplicates can address these issues and also improve the search quality [6]. Using a similarity measure is a quantitative way to define two documents as nearduplicates [7].
For a collection of text documents, an appropriate document representation model is required, such as Vector Space Model (VSM) [9]. According to VSM, each document is represented as an Mdimensional vector in which each dimension corresponds to a vocabulary term or a feature. The exact ordering of terms in the document is also discarded (the BagofWords Model [3]). The vocabulary includes all terms that appear in the document collection. A term or feature can be a single word, multiple words, a phrase^{Footnote 1} or other indexing units [9, 10]. The weight of a term represents the importance of it in the relevant document and is assigned by a term weighting scheme [11]. Term frequency (tf) [3], inverse document frequency (idf) [12], or multiplication of tf and idf (tfidf) [13,14,15] are commonly used term weighting schemes. In largescale text document collections, using VSM results sparse vectors, i.e., most of the term weights in a document vector are zero [16, 17]. High dimensionality can be a problem for computing the similarity between two documents.
Using VSM, there are numerous measures to calculate pairwise document similarity. For instance, Euclidean distance is a geometric measure used to measure the distance between two vectors [18, 19]. Cosine similarity compares two documents with respect to the angle between their vectors [11]. Similar to two previous measures, Manhattan distance is also a geometric measure [20, 21]. For two 0–1 vectors,^{Footnote 2} the Hamming distance [17] is the number of positions at which the stored term weights are different. The Chebyshev distance [16] between two vectors is the greatest of absolute differences along any dimension. A similarity measure for text processing (SMTP) [17] is used for comparing two text documents. SMTP can also be extended to measure the similarity between two document collections. Heidarian and Dinneen [18] proposed a novel geometric measure to determine the similarity level between two documents. An InformationTheoretic measure for document Similarity (ITSim) is a similarity measure based on information theory [22]. Based on the Suffix Tree Document (STD) model, Chim and Deng [23] proposed a phrasebased measure to compute the similarity between two documents. Sohangir and Wang [16] proposed a new document similarity measure, named Improved SqrtCosine (ISC) similarity. Jaccard coefficient [24] calculates the ratio of the number of terms used in both documents to the number of terms used in at least one of them.
In context of document classification and clustering, there have been numerous researches on the effectiveness of different similarity measures. For instance, Subhashini et al. [25] evaluated the clustering performance of different measures on three web document collections. The results of their experiment showed that Cosine similarity performs better than Euclidean distance and Jaccard coefficient. Hammouda and Kamel [9] proposed a system for web document clustering. In their system, a phrasebased similarity measure was used to calculate the similarity between two documents. D’hondt et al. [11] proposed a novel dissimilarity measure for document clustering, called pairwiseadaptive. This Cosinebased measure selects the K most important terms of each document based on their weights and reduces the dimensionality to the document’s most important terms. Thus, pairwiseadaptive has lower computational burden and is applicable in high dimensional document collections. Lin et al. [17] used SMTP for text clustering and classification.
Moreover, the effect of various similarity measures on the performance of nearduplicates detection has been investigated in recent researches. For instance, Rezaeian and Novikova [8] used Hamming distance to discover plagiarism in Russian texts. Xiao et al. [7] proposed a new algorithm, which is useful in detecting nearduplicate documents. They adopted their proposed algorithm to commonly used similarity measures, such as Jaccard coefficient, Cosine similarity, and Hamming distance. Hajishirzi et al. [26] proposed a new vector representation for documents. Using their method, Jaccard coefficient and Cosine similarity provide higher nearduplicates detection accuracy.
As explained in more detail in “Proposed similarity measure” section, most of the similarity measures judge the closeness of two documents to each other based on the term weights. Although, term weights provide important information about the similarity between two documents, sometimes similarity judgment based on the term weights alone is not sufficient. The motivation behind the work in this paper is that we believe that pairwise document similarity should be based not only on the term weights but on the number of terms appeared in at least one of the two documents, as well. In this paper, we propose a new measure to compute the similarity between two text documents. In this symmetric measure, the similarity increases as the number of terms used in both documents, present terms, and the information content associated with these terms increases. Furthermore, the terms used in only one of the two documents, presenceabsence terms, contribute to the similarity measurement.
We conduct a comprehensive experiment to evaluate the effectiveness of our proposed measure on the performance of several text mining applications, including nearduplicates detection, singlelabel classification, and Kmeans like clustering. The obtained results show that our proposed similarity measure improves the efficiency of these algorithms. The rest of this paper is organized as follows: “Related work” presents the background of similarity measures. “Proposed similarity measure” section introduces the proposed similarity measure. “Methods” and “Results and discussion” sections discuss experiment details and experimental results, respectively. Finally, the conclusion and the discussion about future work are given in the last section.
Related work
In this paper, the VSM is selected as the document representation model; \( \vec{d} \) is the vector of document d. Furthermore, M and N indicate the size of vocabulary and the number of documents in the document collection, respectively. Some of the measures have been briefly reported in the previous section, but this section covers some popular measures for computing the similarity between two text documents.
Cosine similarity [16] computes the Cosine of the angle between \( \overrightarrow {{d_{1} }} \) and \( \overrightarrow {{d_{2} }} \):
where \( \left {\vec{d}} \right \) is the Euclidean norm of the vector \( \vec{d} \) and \( \overrightarrow {{d_{1} }} . \ \overrightarrow {{d_{2} }} \) denotes the inner product of \( \overrightarrow {{d_{1} }} \) and \( \overrightarrow {{d_{2} }} \). Using positive term weights, Cosine similarity ranges from 0 to 1.
Euclidean distance [27] between two documents is defined as follows (w_{ji} is the ith term weight in document j):
Manhattan distance or “sumnorm” [28] computes the sum of absolute differences between the respective coordinates of two document vectors:
Chebyshev distance or “maxnorm” [19] is the greatest of absolute differences along any coordinate of two document vectors:
Jaccard coefficient [29] measures the overlap between two documents each represented by a set:
Using realvalued features, Extended Jaccard coefficient (EJ) [24] is a lengthdependent similarity measure:
Lin [28] proposed an informationtheoretic definition of similarity. According to his definition, the similarity between two objects is the ratio of information which two objects share in common to the information describing both objects. ITSim [22] was proposed with respect to Lin’s definition of similarity:
where \( p_{d, t} \) is the normalized occurrence of term t in document d and π(t) is the fraction of the collection documents containing term t.
SMTP [17] calculates the similarity between two documents and considers a constant penalty, λ, for any presenceabsence term:
where λ is calculated according to the properties of the document collection and \( \sigma_{i} \) is the standard deviation of all nonzero weights for term i in the training set.
Proposed similarity measure
Problem definition
When comparing two documents, terms can be partitioned into three groups [17]: (1) the terms that occur in both documents (present terms), (2) the terms that occur in only one of the two documents (presence–absence terms), and (3) the terms that occur in none of the two documents (absent terms). According to this partitioning, there are six preferable properties for a document similarity measure [17]:

1.
The presence or absence of a term is more important than the difference between two nonzero weights of a present term.

2.
The similarity degree between two documents should decrease when the difference between two nonzero weights of a present term increases.

3.
The similarity degree should decrease when the number of presenceabsence terms between two documents increases.

4.
Two documents are least similar to each other, if there is no present term between them.

5.
The similarity measure should be symmetric:
$$ {\text{Similarity }}\left( {{\text{d}}_{ 1} ,{\text{ d}}_{ 2} } \right) \, = {\text{Similarity }}\left( {{\text{d}}_{ 2} ,{\text{ d}}_{ 1} } \right) $$
6.
The distribution of term weights in the document collection should contribute to the similarity measurement.
According to these properties, the measures described in “Related work” section have one or more deficiencies. For example, Cosine similarity does not satisfy Properties 3 and 6, and Euclidean distance does not meet Properties 1, 3, 4, and 6 [17].
Although SMTP was proposed based on these properties, some drawbacks influence its performance and accuracy: First, SMTP cannot calculate similarity when the standard deviation of a particular term is (or tends to) zero. Nagwani [30] proposed an improvement to cover this imperfection and added a supplementary condition to (10). A new version of \( N_{*} \left( {d_{1i} ,d_{2i} } \right) \) is given in (12) and the equations for \( SMTP\left( {d_{1} ,d_{2} } \right) \), \( F\left( {d_{1} , d_{2} } \right) \), and also \( N_{\mathop \cup \nolimits } \left( {d_{1i} ,d_{2i} } \right) \) were not changed.
Second, λ is determined according to the properties of document collection, therefore all presenceabsence terms have identical importance; that is, the weight of presenceabsence terms has no contribution to the similarity measurement and also the weight distribution is only taken into consideration for the present terms.
Careful examination of similar documents in different instances showed that two documents with the highest similarity degree use almost identical term sets. In other words, the more terms two documents have in common, the more similar they are. In such cases, some of the wellknown measures cannot recognize the most similar documents. The following example clarifies the case. Suppose three documents d_{1}, d_{2}, and d_{3} with four terms and tf as term weighting scheme. Further, the terms are not shared by all the documents of the collection. Our goal is to find the most similar document to d_{1}.
Example 1
Using Manhattan distance, the distance between d_{1} and d_{2} and also the distance between d_{1} and d_{3} is 10. This same similarity indicates that both d_{2} and d_{3} share same amount of information with d_{1}, however, a clear difference can be seen between the number of present terms; d_{1} and d_{2} use same term set, but d_{1} and d_{3} only share one term in common. Using Cosine similarity, the similarity between d_{1} and d_{2} is 0.763, and the similarity between d_{1} and d_{3} is 0.831. Although d_{1} and d_{2} both use same term set, Cosine similarity selects d_{3} as the most similar document to d_{1}.
Example 2
In another example, suppose we have three documents as follows:

d_{1} = “this garden is different because it only has different types of vegetables.”

d_{2} = “different types of vegetables are growing in this garden. This garden only has vegetables.”

d_{3} = “different types of vegetables growing in your garden can have different benefits for your health.”
The vocabulary contains 7 terms: 〈 types, different, garden, vegetables, growing, benefits, health 〉, and document vectors are as follows:
It is obvious that both documents d_{1} and d_{2} talk about one types of garden, which contains only vegetables. But the third document talks about types of vegetables which are beneficial for your health. Although, the second document is the most similar one to the first document, EJ and Euclidean distance select d_{3} as the most similar document to d_{1}:
As can be seen from previous examples, the measures described in “Related work” section, such as EJ, Euclidean, Manhattan, and Cosine, are insufficient to determine the most similar documents, because they judge the similarity between two documents based on the term weights alone. Based on these observations, we conclude that an appropriate similarity measure should take the number of present terms into account to achieve more accurate similarity value.
However, the number of present terms offers efficient benefits to the similarity calculation between two documents, but it alone is not sufficient. Third example clarifies this case (we have the same assumption mentioned in Example 1).
Example 3
In this example, if we want to find the most similar document to d_{1}, the number of present terms alone cannot help, because d_{2} and d_{3} both have 4 terms in common with d_{1}. Using Manhattan distance, the distance between d_{1} and d_{2} is 12 and the distance between d_{1} and d_{3} is 3. If we use Cosine similarity, the similarity between d_{1} and d_{2} is 0.9569 and the similarity between d_{1} and d_{3} is 0.989. Accordingly, in this example, both Manhattan distance and Cosine similarity accurately recognize the most similar document to d_{1}. Therefore, it is possible that two documents use same term set but have different contents, because the associated terms have different weights. In such cases, most of the similarity measures can accurately judge the similarity between documents.
The third example shows that the number of present terms alone cannot capture all the similarity information between documents and the term weights are still required. But in cases like Examples 1 and 2, the number of present terms can help to find documents with the highest similarity degree.
Pairwise document similarity measure
In this section, we introduce the proposed similarity measure. As explained earlier, the number of present terms and their weights play an important role in accurately judging the similarity between the documents and help find the most similar ones. The idea is that the shared information content created by more number of present terms is more informative than that created by fewer present terms. In other words, if two documents use similar term sets, they tend to have more similar content and theme.
Based on this idea, we add a new property to the preferable properties mentioned earlier for a similarity measure:

7.
Similarity degree should increase when the number of present terms increases.
We also suggest ignoring 6th property, which is related to the weight distribution of terms in the document collection. According to 6th property, the importance of a term in the document collection (discrimination power [3]) is essential and the term with higher idf is more informative. But this property can be involved in the term weighting scheme rather than the similarity measure. This makes the process of assessment easier and we can also check the effect of different term weighting schemes on the performance of similarity measures. For example, if we use tfidf as the term weighting scheme, the importance of rare terms, which have higher idf, is considered in similarity measurement. Table 1 shows the lack of preferable properties in the similarity measures mentioned in “Related work” section.
Based on the modified version of preferable properties for a similarity measure, we propose a new similarity measure, called PDSM (pairwise document similarity measure). PDSM is defined in (13):
Where intersection and union of two documents are calculated as follows (w_{ji} > 0 is the ith term weight in document j):
PF(d_{1}, d_{2}) and AF(d_{1}, d_{2}) are the number of present terms and the number of absent terms, respectively. To avoid DividebyZero error, 1 is added to numerator and denominator. Like most of the similarity measures, such as Cosine similarity and Euclidean distance, the time complexity of PDSM is linear to the dimensionality of the document vector (i.e. O(M)). We assess PDSM based on the modified version of preferable properties for the similarity measure in the following.
Property 1
Let d_{1} and d_{2} be two documents and vocabulary contains one term, and w_{i} be the ith term weight. Consider the following two cases (a, b, c > 0): (1) d_{1} = 〈a〉, d_{2} = 〈b〉, and (2) d_{1} = 〈c〉, d_{2} = 〈0〉. In the first case, PDSM(d_{1}, d_{2}) > 0 and in the second case PDSM(d_{1}, d_{2}) = 0. Obviously, the importance of presence and absence of terms is considered in PDSM.
Property 2
Let d_{1}, d_{2}, and d_{3} be three documents and vocabulary contains one term, and w_{i} be the ith term weight. Consider the following case (a, b, c > 0 and a > b > c): d_{1} = 〈a〉, d_{2} = 〈b〉, and d_{3} = 〈c〉. Then we have
Since b > c, the similarity between d _{ 1 } and d _{ 2 } is greater than that between d _{ 1 } and d _{ 3 }
Property 3
Let d _{ 1 } , d _{ 2 } , and d _{ 3 } be three documents and vocabulary contains M terms, and w _{ i } be the ith term weight. Consider the following case (a, b, c > 0 and a < b < c): d _{ 1 } = 〈x _{ 1 } , x _{ 2 } , x _{ 3 } ,…, x _{ a } , 0, 0,…, 0〉, d _{ 2 } = 〈y _{ 1 } , y _{ 2 } , y _{ 3 } ,…, y _{ b } , 0, 0, …, 0 〉, d _{ 3 } = 〈z _{ 1 } , z _{ 2 } , z _{ 3 } ,…, z _{ c } , 0, 0,…, 0 〉. If
Then we have
Since the number of presenceabsence terms between d_{1} and d_{3} is greater than that between d_{1} and d_{2}, the similarity degree between d_{1} and d_{2} is greater than that between d_{1} and d_{3}.
Property 4
If there is no present term between two documents, then
Consequently PDSM(d _{ 1 } , d _{ 2 } ) has minimum value of \( \frac{0}{{d_{1} \cup d_{2} }} = 0 \) . Moreover, when d _{ 1 } and d _{ 2 } are identical and d _{ 1 } has t nonzero terms (w _{ i } > 0 is the ith term weight), we have
Therefore, for any two documents d _{ 1 } and d _{ 2 } we have
Property 5
For any two documents d_{1} and d_{2}, PDSM (d_{1}, d_{2}) is symmetric. Equations (14) and (15) are independent of the order of terms. PF(d_{1}, d_{2}) and AF(d_{1}, d_{2}) are determined by the number of present and absent terms, respectively, therefore, are orderindependent. Thus,
Property 6
As stated earlier, this property can be involved in the term weighting scheme.
Property 7
Let d _{ 1 } , d _{ 2 } , and d _{ 3 } be three documents, vocabulary contains M terms, and w _{ i } be the ith term weight. If
Then
Consequently
Since the number of present terms between d _{ 1 } and d _{ 3 } is less than that between d _{ 1 } and d _{ 2 } , PDSM(d _{ 1 } , d _{ 2 } ) is greater than PDSM(d _{ 1 } , d _{ 3 } ). At the end of this section, we give an example to illustrate how PDSM calculates the similarity between two documents.
Example 4
Suppose we have the vectors of two documents, d_{1} and d_{2}, in seven dimensions. We use tf as the term weighting scheme.
Then, using PDSM, the similarity between d_{1} and d_{2} is
Methods
In order to test the effectiveness of our proposed similarity measure, we apply PDSM in several text mining applications, including the shingling algorithm for nearduplicate documents detection [3], k Nearest Neighbors (kNN) for singlelabel classification [3], and Kmeans clustering [31, 32]. In this experiment, the VSM is selected as the document representation model. Further, the programming languages used are C and Python. The experiment is performed on the machine which its properties are represented in Table 2.
In the context of kNN and Kmeans, we compare the performance of PDSM with that of other four measures, Euclidean distance, Cosine similarity, EJ, and Manhattan. Moreover, to see the effect of different term weighting schemes on the performance of PDSM, we employ some popular weighting schemes, including tf and tfidf. We also apply the Cosine normalization factor (16) [33] to tf and tfidf (tfnormal and tfidfnormal).
In the shingling algorithm, we use PDSM and Jaccard coefficient as the similarity measure.
Applications
This section gives a brief description for three applications used in this experiment.
Kmeans clustering
Kmeans [31] is one of the mostly used clustering algorithms. It is generally very fast and simple. Using Kmeans, the document collection is clustered as follows (the number of clusters, K, is specified in advance):

1.
K documents are selected randomly as initial cluster centers or seedpoints.

2.
Each document d in the document collection is assigned to one of the K clusters whose center is closest to d. The closeness between the cluster centers and d is calculated by a similarity measure or distance metric.

3.
For each cluster, c_{i}, its center is set to the mean of the documents in c_{i}.

4.
Steps 2 and 3 are repeated until a stopping criterion is met (e.g. until all cluster centers converge or a fixed number of iterations has been completed).
kNN classification
When each document in the document collection belongs to only one category, kNN [3] is one of the wellknown classification algorithms. Generally, in the context of classification, documents of the collection are partitioned into two separate sets: a training set, which is used to learn a classifier, and a test set, which is used to evaluate the performance of the learned classifier. Using kNN classification, the category (class) of a given document d is obtained as follows (the parameter k is specified in advance):

1.
Using a similarity measure or distance metric, the closeness between d and all the documents in the training set is calculated.

2.
The class of d is assigned to the majority class of its k nearest neighbors.
The shingling algorithm
Shingling [6] is a wellknown solution to the problem of detecting nearduplicate documents. In the shingling algorithm, each document is converted to a set of all consecutive sequences of k terms, called kshingles, where k is a parameter. Two documents are nearduplicate, if their kshingles are nearly the same. In this algorithm, a similarity measure is used to measure the degree of overlap between kshingles. Jaccard coefficient is the commonly used similarity measure in the shingling algorithm. If the similarity of two documents is more than a given threshold, the algorithm regards them as nearduplicates otherwise original ones.
Document collections
In this experiment, we use two document collections, named Reuters8 (R8) [34, 35] and WebKB [34, 35], respectively. WebKB and R8 are publicly available in [35]. Table 3 shows the properties of R8 and WebKB.
The ModApte split of Reuters21,578 collection contains documents appeared in Reuters newswire in 1987. This collection is manually collected and labeled. R8 [34] is one of the subsets of Reuters21,578 and contains only singlelabeled documents. R8 contains 8 of the 10 most frequent classes containing at least one training and one test document. Category (class) distribution for the R8 collection is presented in Table 4.
The WebKB collection contains web pages collected by the World Wide Knowledge Base (Web→KB) project of the CMU^{Footnote 3} text learning group in 1997. These documents belong to the computer science departments of various universities and are manually classified into 7 categories. In the version used in this experiment, three categories were ignored, because they only contained a few pages from each university or the differences among the documents of each category were high [34]. In the WebKB collection, documents are randomly split into training and test sets. Category (class) distribution for the WebKB collection is presented in Table 5.
Porter stemmer [36] has been applied to both collections and stop words [37] and words with less than three characters are also removed.
To investigate the performance of PDSM in detecting nearduplicate documents, we have prepared two various document sets (Table 6), WebKB_NDD [38] (WebKB_near duplicate detection) and R8_NDD [38] (R8_near duplicate detection), which are subsets of WebKB and R8,^{Footnote 4} respectively. Each set contains 1000 documents selected randomly. Moreover, we manually changed the content of some documents to create nearduplicates.
Evaluation metrics
In order to investigate the quality of clusters created by Kmeans with different similarity measures, ACcuracy (AC) (17) and Entropy (En) (18) [17] are adopted. AC tells us how many documents with the identical label are assigned to the same cluster. The higher the AC, the better the cluster is. On the other hand, En gauges the homogeneity of the cluster [9]. The higher the entropy of a cluster, the more inferior the cluster is.
In the ith cluster, n_{i} is the cluster size, max_{i} is the majority number of documents with the identical label, and \( {\text{n}}_{\text{i}}^{\text{j}} \) is the number of documents with label j.
To evaluate the kNN classifier’s quality, we use ACcuracy [17] (AC) (19). AC compares predicted label of each document, c’_{i}, with its target label, c_{i}.
where N’ is the size of the test set. For the ith document, if c’_{i} = c_{i}, then \( E\left( {c_{i} , c_{i}^{'} } \right) \) = 1, otherwise 0.
The performance of the shingling algorithm is evaluated by precision (20) and recall (21) [6, 8]:
tp is the number of nearduplicates detected correctly, fp is the number of completely different documents detected as nearduplicates, and fn is the number of nearduplicates that are not recognized.
As a more complete criterion, Fmeasure (22) [3, 6, 8] is the weighted harmonic mean of recall and precision. This measure trades off precision versus recall.
Results and discussion
In this section, we provide the results of our experiments and compare the performance of PDSM with that of other similarity measures used in kNN, Kmeans, and the shingling algorithm.
Classification results
In this section, kNN classification results are presented. For WebKB and R8, we trained the kNN classifier on the training set and evaluated it on the test set, using AC defined in Eq. (19).
Figure 1 shows the classification accuracies obtained by kNN with different measures using different values of k (k = 1 –15) on the test set of WebKB and R8, respectively, in tf weighting scheme. The results show that PDSM outperforms the other measures in all cases. Further, the performance of Cosine is very close to that of EJ in both WebKB and R8.
Tables 7 and 8 show the classification accuracies obtained by kNN with different measures using different values of k (k = 1–15) on the test set of WebKB and R8, respectively, in tfidf weighting scheme. Again, PDSM performs better than the others in all cases, regardless of the values of k.
Figure 2 presents the average accuracies obtained by kNN with different measures on the test set of WebKB and R8, respectively, in tf and tfidf weighting schemes. The results show that PDSM offers the best performance in AC for both document collections. In this experiment, Manhattan distance has the worst performance in all cases.

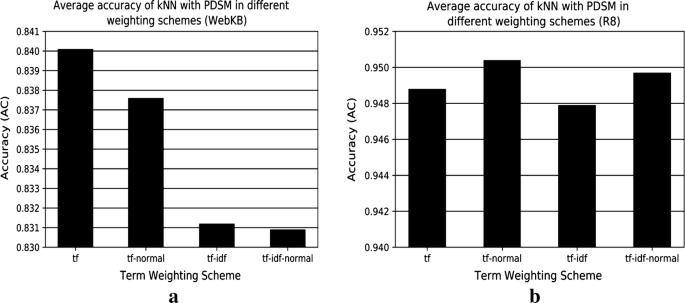

Figure 3 shows the effect of different term weighting schemes and also Cosine normalization factor on the average accuracy of kNN with PDSM on the test set of WebKB and R8, respectively. As shown in this figure, tf and tfnormal offer the best performance in WebKB and R8, respectively; however, they are less informative than tfidf or tfidfnormal and do not carry any information about the discrimination power of terms.
Clustering results

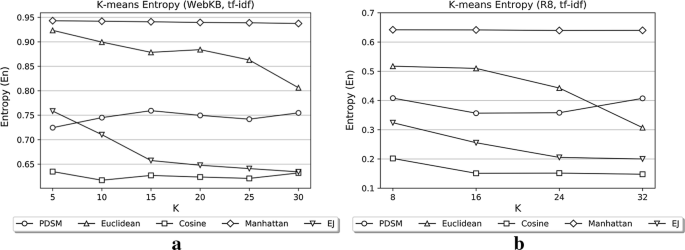

The results of Kmeans clustering are presented in this section. In this experiment, we performed Kmeans on the combination of the test set and the training set and the quality of the clustering was evaluated by AC and En (Eqs. (17) and (18), respectively). Because seedpoints are selected randomly, Kmeans was executed 10 times. Thus, we are confident that results are not obtained by chance. We also applied different values of K to Kmeans. Therefore, the results are not biased by any values of K.
Figure 4 shows the clustering accuracies obtained by Kmeans with different measures using different K values on WebKB and R8, respectively, in tf weighting scheme. From this figure, Cosine results in a higher AC value and PDSM works well. Figure 5 shows the En values obtained by Kmeans with different measures on WebKB and R8, respectively, in tfidf weighting scheme. Similarly, Cosine results in a higher AC value and PDSM works well. For example, for K = 5, Cosine achieves the best performance in AC for WebKB and PDSM is the runnerup.
Table 9 shows the AC values obtained by Kmeans with different values of K (K = 5–30) on WebKB in tfnormal weighting scheme. As shown in this table, PDSM offers the best performance in AC for WebKB when K is 5 and 10. The overall results show that Manhattan distance achieves the worst performance in AC and En.
Tables 10, 11, and 12 shows the category distribution in clusters generated by 5means with PDSM, Euclidean, and Cosine, respectively, on WebKB in tfnormal weighting scheme. Based on these tables, PDSM performs better than the others and is more successful in putting together documents with the same labels in the same cluster.
Tables 13 and 14 show the category distribution in clusters produced by 8means with PDSM and Cosine, respectively, on R8 in tfidf weighting scheme. From Tables 13 and 14 and Fig. 5b, the overall clustering results show that Cosine achieves the best performance in En for R8, although PDSM is more successful than Cosine in putting together documents with the same label in the same cluster. For instance, PDSM puts together 73.72% of documents with label Earn in the same cluster, which is 36.09% more than Cosine. As another example, PDSM puts together 75.77% of documents with label Moneyfx in the same cluster, which is 24.57% more than Cosine.

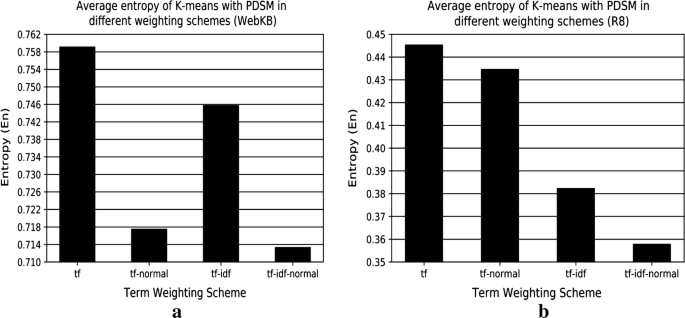

Figure 6 shows the effect of different term weighting schemes and also Cosine normalization technique on the En values obtained by Kmeans with PDSM on WebKB and R8, respectively. tfidfnormal offers the best entropy for both WebKB and R8.
Nearduplicates detection results
In this section, the results of PDSM performance in detecting nearduplicate documents are given. To evaluate the quality of results, we used precision, recall, and Fmeasure (Eqs. (20), (21), and (22), respectively). We performed the shingling algorithm with PDSM and Jaccard coefficient on WebKB_NDD and R8_NDD. We also considered different values of shingle size to see the effect of k on the performance of similarity measures. Furthermore, the threshold of similarity was 0.5. The number of occurrences of shingle, s, in document, d, was considered as the weighting scheme.
Tables 15 and 16 show precision, recall, and Fmeasure obtained by the shingling algorithm with PDSM and Jaccard coefficient, respectively, on WebKB_NDD. From these tables, PDSM offers the best performance in precision, recall, and Fmeasure. Jaccard coefficient is runnerup; however, it performs as well as PDSM for k = 4 and k = 5.
Tables 17 and 18 show precision, recall, and Fmeasure obtained by the shingling algorithm with PDSM and Jaccard coefficient, respectively, on R8_NDD. As can be seen from these tables, PDSM outperforms Jaccard coefficient, regardless of k values. Jaccard also performs as well as PDSM in terms of recall.
Conclusion and future research
We have presented a novel similarity measure between two text documents. For each pairwise comparison between two documents, the term weights and the number of present terms contribute to the similarity between both related vectors. Moreover, the proposed measure satisfies preferable properties for a similarity measure. For example, the larger the number of presenceabsence terms, the more dissimilar the two documents are. We also added a new property to these preferable properties: the similarity degree should increase when the number of present terms increases. This property is also satisfied by our proposed measure. To investigate the effectiveness of our proposed measure, we applied it in kNN classification, Kmeans clustering, and the shingling algorithm for nearduplicates detection on two realworld document collections. We also used the new similarity measure in different term weighting schemes. Our proposed measure yields better results than other popular measures of similarity.
Although the proposed similarity measure is aimed at comparing two text document vectors, it could be easily adapted to any vector type, such as vector representations of terms based on the contexts in which they appear in a collection [39]. Also, the experimental results have shown that the performance of the proposed measure could depend on the type of application, the document collection, and the term weighting scheme. It would be a very interesting topic to investigate the performance of our measure in other ML applications that use similarity measures, such as hierarchical agglomerative clustering and recommendation systems. Moreover, our intention is to investigate the usage of our proposed measure on other popular and largescale document collections, such as the 20 Newsgroups [40], and see its effect on the performance of ML algorithms compared to traditional measures, such as ITSim.
Notes
 1.
A sequence of words.
 2.
The presence and absence of a term in the document vector is represented by 1 and 0, respectively.
 3.
Central Michigan University.
 4.
Preprocessed version.
Abbreviations
 AC:

ACcuracy
 CMU:

Central Michigan University
 CPU:

Central Processing Unit
 EJ:

extended Jaccard coefficient
 En:

entropy
 idf:

inverse document frequency
 IR:

information retrieval
 ITSim:

informationtheoretic measure for document similarity
 kNN:

k nearest neighbors
 ML:

Machine Learning
 NDD:

near duplicate detection
 PDSM:

pairwise document similarity measure
 R8:

Reuters8
 RAM:

Random Access Memory
 SMTP:

similarity measure for text processing
 STD:

Suffix Tree Document
 tf:

term frequency
 VSM:

Vector Space Model
 WebKB:

World Wide Knowledge Base (Web→KB)
