A new effective method for labeling dynamic XML data

Article metrics

  • 903 Accesses

Abstract

Query processing based on labeling dynamic XML documents has gained more attention in the past several years. An efficient labeling scheme should provide small size labels keeping the simplicity of the exploited algorithm in order to avoid complex computations as well as retaining the readability of structural relationships between nodes. Moreover, for dynamic XML data, relabeling the nodes in XML updates should be avoided. However, the existing schemes lack the capability of supporting all of these requirements. In this paper, we propose a new labeling scheme which assigns variable-length labels to nodes in dynamic XML documents. Our method employs the FibLSS encoding scheme that exploits the properties of the Fibonacci sequence to provide variable-length node labels of appropriate size. In XML updating process, we add a new section only in the new node’s label without relabeling the existing nodes while keeping the order of nodes as well as preserving the structural relationships. Our labeling method is scalable as it is not subject to overflow, and as the number of nodes to be labeled increases exponentially, the size of labels grows linearly, which makes it suitable for big datasets. It also has the best performance in computational processing costs compared to existing approaches. The results of the experiments confirm the advantages of our proposed method in comparison to state-of-the-art techniques.

Introduction

XML is a semi-structural and standard document format to exchange data. Elements in XML documents are regular and there are structural relationships between them [1]. In fact, processing queries in XML should recognize these structural relationships. They also should determine the order of elements in a document. Node labeling in XML data is one way to increase the efficiency of query processing. Labeling means allocating a unique identifier to each node in XML documents [2]. A labeling scheme encompasses traversal or browsing the document, analyzing the elements, and assessing available relationships between elements. So, it should generate small enough labels in order to be processed efficiently both in initial label assigning as well as when queries are issued.

A challenging problem of the existing labeling schemes is the need for relabeling nearly all the existing nodes after inserting new nodes in XML documents. While update in XML data is a usual operation in many real-world applications, e.g. stream data, relabeling will influence the query performance, especially when large-size labels are assigned to the nodes. In this paper, we introduce a new method to label XML documents. In this method, we pay attention to the evaluation criteria of labeling schemes, so besides the efficiency of the method, it can optimize queries on dynamic XML data without relabeling the existing nodes.

The labeling method supports the structural relationships, AD (Ancestor–Descendant), PC (Parent–Child), DO (Document Order)Footnote 1 and Sibling relations, between nodes. The method uses a simple algorithm to produce small-size labels. Experimental results show that the proposed method is efficient in terms of the label size, labeling time, querying time and update/insertion time. The results are compared against state-of-the-art labeling methods.

In the following, we provide a summary of the related works in “Related works” section. Our proposed method is introduced in “Proposed method” section. In “Results and discussion” section, the results of the experiments are reported and analyzed in terms of several performance criteria. The paper is concluded in “Summary and conclusions” section, followed by “Future work” section which gives some perspectives on future works.

Related works

Several methods have been proposed for labeling XML documents. Existing methods can be summarized and can be grouped into four categories:

  • Range-based labeling schemes: These schemes are characterized by incorporating <START, END> arguments to the labels [3]. The START and END components of a label determine the start and the end of the corresponding position of nodes in the XML tree. The schemes under this category [1, 3,4,5,6,7,8,9,10] can determine AD relationships. Labels’ size in these schemes are compact. The depth of the tree does not influence the size of the labels. The main challenge of these schemes is they do not support dynamic XML documents. That is, after inserting new nodes, relabeling is inevitable. Inability to detect all the structural relationships is another weakness of the range based labeling schemes.

  • Prefix-based labeling schemes: In the schemes in this category [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25], each node label involves the label of its ancestor besides its own. The structural relationships are determined by looking at the labels. However, the size of the labels increases especially for nodes occurring in deeper levels of the XML tree, yielding more storage overhead. Moreover, inserting a new node in the rightmost places at a level does not need to re-label other nodes but inserting in elsewhere will affect the label of other nodes. In [26], the deleted labels are reused for encoding newly inserted nodes, which could effectively lower the label size.

  • Multiplication based labeling schemes: These schemes [5, 27,28,29,30,31,32,33,34,35] use prime numbers with multiplication and division operations to determine the relationships among the nodes. Prime numbers are exploited in order to support the uniqueness of the labels. However, this leads to an exploded space overhead as well as computation overhead for determining the order of nodes in the document.

  • Vector based labeling schemes: These schemes use a vector order [36,37,38,39,40,41]. The methods in this category are defined based on vector ordering and commonly are orthogonal to the other schemes, i.e. they can be applied to other labeling schemes. The basic problem in these schemes is their computation time overhead for general cases of a new node insertion as well as for querying nodes in different levels.

Our proposed scheme exploits the advantages of prefix-based labeling schemes and provides solutions to overcome their disadvantages.

Proposed method

In this section, we provide a detailed presentation of how the whole process of node labeling is taken place. Firstly, we illustrate how to label the nodes using an example. Then, we describe how a newly inserted node is labeled and how the order of nodes is preserved, and how the structural relationships among nodes are determined. Also, we analyze the label size requirements of our labeling method.

The proposed labeling method uses binary bit values (0 and 1) for specifying the identity of a node. For a node in an XML tree, we keep the level at which the node is in the tree, the identifier of its parent, and the node’s identifier, which we denote respectively by <Level, Parentid, Selfid>, where Selfid is the identifier of the node itself. By the “label”, we mean the whole collection composed of the three parts.

Binary values are used for each of the three parts with appropriate minimum length. For example, for a length of one bit, the first node takes Selfid 0 and the second one takes 1 in a given level. To label the third node in that level, two bits are required and the third node takes 00 for its Selfid, the fourth takes 01, and so on. When new nodes are inserted, the label of the existing nodes remains unchanged. To preserve the uniqueness of the labels, some bits are added to the end of Selfid. We call the augmented bits ‘update identifier’, which is denoted by UpID. Note that our labeling method keeps the ordering of nodes and supports the structural relationships among them. Figure 1 depicts an example XML tree with nodes labeled by the proposed method.

Fig. 1
figure1

An XML tree labeled by the proposed method

As shown in Fig. 1, the length of the labels is variable; so, we should take this into account in the labeling scheme. To do this, a fixed label length could be assigned for all nodes. In this way, there is no need to store the size of labels. However, it is clear that a fixed length label storage schemes are subject to overflow by the update process which requires the relabeling of all existing nodes [30]. Alternatively, it is possible to use a variable length labeling scheme which requires the size (length) of the label to be stored in addition to the label itself. It is not the case to use a fixed length of bits for storing the variable size of the labels because the original fixed-length of bits will eventually be too small, requiring all existing nodes to be relabeled, or this leads to significant wastage of storage space if a very large fixed-length of bits is used [42]. In other words, not only labels should have variable sizes but also the length field of the labels should be stored, and be identified, using a variable length scheme. Thus, we store each label’s length using the encoding method called FibLSS [43] along with the label itself, just before it.

FibLSS encoding

The FibLSS method uses the Fibonacci numbers sequence. It is defined such that each term in the sequence is the sum of the previous two terms:

$$\begin{aligned} & The \, Fibonacci \, sequence \, is \, given \, by \, the \, recurrence \, relation \, F_{n} = \, F_{n - 1} + \, F_{n - 2} \\ & For \, n \ge 2, \, where \, F_{0} = 0 \, and \, F_{ 1} = 1. \\ \end{aligned}$$

Note that, every positive integer n has a unique representation as the sum of one or more distinct non-consecutive Fibonacci numbers called Zeckendorf representation. For each positive integer n, there is a positive integer N such that:

$$n = \mathop \sum \limits_{k = 0}^{N } \in_{k} F_{k} \quad {\text{where}} \in_{k} {\text{is }} 0 \;{\text{or }}1,\; {\text{and}} \in_{k} * \in_{k + 1} = 0$$

The Zeckendorf representation of a positive integer is unique because no two consecutive Fibonacci terms occur in the Zeckendorf representation to build the Fibonacci label encoding scheme.

Given a binary encoded bit-string label Nnew = 110101, the length of Nnew is firstly determined, i.e. 6 bits. The Zeckendorf representation of 6 is 5 + 1 = 1 × 1 + 0 × 2 + 0 × 3 + 1 × 5. So, the binary string is “1001”. Since the last bit in the Fibonacci coded binary string of a Zeckendorf representation is always “1”, an extra “1” bit is appended to the end of the bit string to act as a delimiter, separating the length of a node label from the label itself. Thus, the binary string for the length is now “10011”. The length of the label is encoded and stored before the label itself. Hence, the label Nnew (110101) is encoded and stored using the Fibonacci label storage scheme as 10011110101.

Label size analysis

To label the nodes at each level of the XML tree, the number of bits used starts from 1, i.e. the length field. We can identify two nodes with one bit. Afterward, the number of bits increases one bit and we can identify four nodes with two bits. Likewise, the number of nodes we can encode with n bits is 2n. So, the number of total bits used to encode nodes with 1 up to the n bits, denoted by B, is computed using the following equation:

$$B = \mathop \sum \limits_{i = 1}^{n} i \times 2^{i} = \left( {n - 1} \right) \times 2^{n + 1} + 2$$
(1)

Equation 1 can be proved by induction. Let N be the maximum number of nodes to be encoded. It can be obtained from the following relation:

$${\text{N}} = 2^{ 1} + 2^{ 2} + 2^{ 3} + \cdots + 2^{\text{n}} = {2}^{{{\text{n}} + 1}} - 2\to n = log_{2}^{N + 2} - 1$$
(2)

By substituting Eq. 2 in Eq. 1 we will have:

$$\begin{aligned}B & = \left( {n - 1} \right) \times 2^{n + 1} + \,2 = \left[ {\left( {log_{2}^{N + 2} - 2} \right) \times \left( {N + 2} \right)} \right] + \, 2 \\ & = Nlog_{2}^{N + 2} \, + \,2log_{2}^{N + 2} \,- \,2N \,-\, 2 \end{aligned}$$
(3)

Consequently, to assign the unique identifiers to N nodes each with an appropriate length, i.e. at least 1 bit and at most n bits, the total storage requirement of the labeling scheme is \(Nlog_{2}^{N + 2} + 2log_{2}^{N + 2} - 2N - 2\) bits. Note that, this is the total storage which is needed in the worst case. However, for the average case, as the number nodes to be encoded using the FibLSS encoding increases exponentially, the growth rate in the number of bits required to encode nodes is linear [43].

Algorithm 1 provides a summarized illustration of how labels are assigned to the nodes based on the FibLSS encoding scheme.

figurea

Updating the document

An important issue in labeling XML documents is the “updating process”. Particularly, the insertion of new nodes to the XML tree should not influence the label of the other nodes. Our proposed method avoids relabeling due to the technique used for labeling nodes when new nodes are inserted.

Inserting new nodes occurs in three general cases: inserting a node before the leftmost node, inserting a node after the rightmost node, and inserting a node between any two nodes at any position. We review each of these cases and explain how the proposed method overcomes such cases.

Case 1: Insert a node before the leftmost node

For this case, the label of the inserted node becomes the label of the leftmost node concatenated with a more “0” bit as its UpID. For example, in Fig. 2 the leftmost node in the second level has the label “2,1,0”. Thus, the label of the inserted node A would be “2,1,0.0”. Then, node B is inserted and its label will be “2,1,0.00”.

Fig. 2
figure2

Insert a node before the leftmost node

Case 2: Insert a node after the rightmost node

The label of the inserted node is the label of the rightmost node concatenated with a more “1” bit as its UpID. For example, in Fig. 3 the rightmost node has the label “3,10,1”. Therefore, the label of the inserted node C will be “3,10,1.1”. Then, node D is inserted and its label will be “3,10,1.11”.

Fig. 3
figure3

Insert a node after the rightmost node

If E and F (Fig. 4) are inserted in the XML tree as the children of node C, their labels will become “4,1.1,0” and “4,1.1,1”, respectively.

Fig. 4
figure4

Insert child of nodes with UpID

Case 3: Insert a node between any two nodes at any position

In such cases, the size of labels of the two neighbor sibling nodes is compared. If the size of the left sibling node’s label is less than or equal to the size of the right sibling, we add a more ‘0’ bit to UpID of the right node. This means that the new node has been inserted between these nodes as its left and right siblings. Otherwise, the label of the inserted node is the label of left sibling node concatenated with a more “1” bit to its UpID.

Due to the method of assigning labels to the nodes the size of identifiers increases from left to right. So, the length of each node’s ID is smaller than the one of its right neighbors. Hence, the label size of the left node is greater than its right neighbor if UpID of left node’s label is not null.

For example, in Fig. 5 node G is inserted between nodes with labels “2,00,00” and “2,00,01”. The left sibling node has the SelfID “00” and the right sibling node has the SelfID “01”. The length of the two labels is equal and the right node has not UpID. Hence, the label of G is the SelfID of the right node concatenated by a “0” bit as its UpID, i.e. “2,00,01.0”. Then, node H is inserted into the tree. The Labels of the left and the right neighbors of node H are “2,00,00” and “2,00,01.0”, respectively. The label of node H is formed by the right node’s UpID concatenated with a “0” bit (“2,00,01.00”) because the size of the left node’s label is less than that of the right node. Also, node I is insert between the nodes with respective labels (“2,00,01.0” and “2,00,01”). The SelfIDs of these nodes are “01.0” and “01”. Since the length of the left node’s label is greater than that of the right node, we concatenate the label of the left node with a more “1” bit to obtain the label of the inserted node, I, which is “2,00,01.01”.

Fig. 5
figure5

Insert nodes at any position

Algorithm 2 summarizes the node insertion process discussed above.

figureb

Order of labels

Primarily, the ordering between nodes is determined according to the size and the binary value of the labels. Here we only consider the SelfID for simplicity and omit the Level and the ParentID which are clear in a given context node. We label the nodes of a given level from left to right using appropriate label sizes starting from 1 bit, up to whatever is needed.

After inserting a node and updating the XML tree, we add the UpID part to the node’s label, just after its SelfID. Therefore, for insert operation, only the UpID part of the inserted nodes are changed. The following rules are used to determine the order of two nodes A and B in a given context:

  1. (a)

    Without considering UpIDs, if SelfID of A is less than B’s SelfID then A is in the left of B, e.g. 1 < 00.001 and 1 < 1010 and 10 < 11.

  2. (b)

    Without considering UpIDs, if SelfID of A is equal to B’s SelfID then we should compare their UpIDs. If UpID of A is less than B’s UpID then A is in the left of B. Two UpIDs are compared according to the following rules:

  3. (1)

    If the UpID of a label is not null and start with 0 then it is smaller than the label that its UpID is null and if the UpID of a label starts with 1, then it is greater than the label that has no UpID.

  4. (2)

    The lexicographical comparison of UpIDs is used if the UpIDs have the same size.

  5. (3)

    If the length of A’s UpID is less than the length of B’s UpID and A’s UpID is the prefix of B’s, then if the first bit after the prefix string of A is 1 then B’s UpID is greater than A’s UpID otherwise A’s UpID is the greater one.

  6. (4)

    If the length of A’s UpID is greater than B’s and B’s UpID is the prefix of A’s UpID then, if the first bit after the prefix string of B is 1 then A’s UpID is less than B’s UpID otherwise A’s UpID is the greater one.

For example: 0.000 < 0.00 < 0.001 < 0.0 < 0.01 < 0 < 1.00 < 1.0 < 1.01 < 1 < 00.0 < 00.01 < 00 < 01.

Determining structural relationships

To have an efficient XML query processing, the labeling scheme should determine the structural relationships. The proposed labeling scheme can determine P–C, A–D and sibling relationships among arbitrary nodes.

P–C relationship

In an XML tree to specify P–C relationship between node A with label <LevelA, ParentIDA, SelfIDA> and node B with label <LevelB, ParentIDB, SelfIDB> it suffices to compare ParentID of a node with SelfID of the other node. It means, if ParentIDA = SelftIDB and LevelA = LevelB + 1 then A is the child of B. For example, node A with label “2,00,01.001” is the child of node B with label “1,0,00” because ParentIDA = SelftIDB = 00 and LevelA = 2 = LevelB + 1=1 + 1.

A–D relationship

We can determine the A–D relationship like to the P–C relationship as a recursive function. It repeats this recursive function |LevelA–LevelB| times.

Sibling relationship

In an XML tree, node A with label <LevelA, ParentIDA, SelfIDA> and node B with label <LevelB, ParentIDB, SelfIDB> should be in the same level to have the sibling relationship. That is, ParentIDA = ParentIDB and LevelA = LevelB. For example, node A with label “2,00,01.011” is the sibling of node B with label “2,00,01.001” since ParentIDA = ParentIDB = 00 and LevelA = LevelB = 2.

Results and discussion

To evaluate the proposed method for labeling XML documents, we compare it with two leading methods, namely IBSL and P–Containment [5]. The P–Containment method has the difficulty with relabeling when inserting nodes in the XML tree. We solve this problem by applying our method to it. In this way, we implement the mapping function to convert integers allocated to parameters Start, End, and Parent_Start to the binary bit string, and we call it NP–Containment.

There are four sets of tests in this performance evaluation: the first set compares the storage requirement of three schemes. The second set analyzes labeling time. The third set examines the query performance and the last set investigates update performance.

Experimental setting

We conduct the performance evaluations on a Pentium (R) Dual-Core CPU E5300 @2.60 GHz 2.60 GHz and 4.00 GB of RAM Windows 7 Professional computer. We implement all schemes using Visual C#. net 2008. To avoid the discrepancy, we run each performance test 6 times. We ignore the first run and take the average value.

Characteristics of the datasets

The datasets used in the performance evaluations are “Lineitem”, “Treebank_e”, and “Orders” that are accessible online on the internet [44]. The XMark datasets were generated using xmlgen of the XMark: Benchmark Standard for XML Database Management [45] with factors 0.02 and 0.3. Table 1 presents the characteristics of the datasets.

Table 1 Characteristics of the datasets

Storage requirement

In this section, we evaluate the storage space required for storing the labels generated by each of the labeling schemes. We save labels in a file in the formats shown in Table 2.

Table 2 Label format of schemes

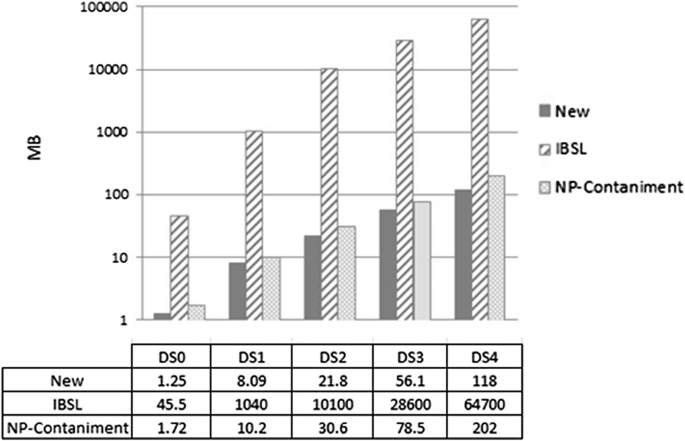

Figure 6 shows the total amount of storage required for labels to be generated by each of the three methods when executed on the datasets.

Fig. 6
figure6

Storage requirement

In the experiments, no compression is used. The storage requirement of IBSL is more than that of the other methods. This is expectable, as IBSL is a prefix-based scheme and its label size depends on the number of children of every node, i.e. the fan-out of XML documents. Regarding Table 1, the maximum fan-out of dataset Orders is 15,000. Therefore, it uses 15,001 bits (1 bit zero and 15,000 bits one) to signify the last child of a given node. Moreover, this scheme is based on a fix-length approach, i.e. the children of an intended node have the same label size. However, new needs maximum 17 bits for this case, where all the children of a node do not have the same label size.

Figure 7 presents the maximum length of labels generated by the three competing methods.

Fig. 7
figure7

Largest size of labels

The label’s length is the number of bits that assigned to SelfID for the IBSL as well as New schemes, and the sum of the Start length and End length for the NP–Containment scheme. The New scheme stores the length field of SelfID and SelfID itself. Nevertheless, the size of the labels generated by New is still much smaller than that of IBSL, and outperforms NP–Containment.

Overall, regarding all the datasets, the New method has the least storage requirement, and its average label size is 19% and 63.53% of IBSL’s and NP–Containment’s label sizes, respectively. The maximum label size of the New scheme is 0.04% of IBSL and 33.88% of NP–Containment, on average for all the datasets in our experiments.

Labeling time

We study the time required to label a given XML document. Figure 8 shows the time required for labeling. It is the average labeling time taken from five tests we performed on each dataset. The labels are generated by applying depth-first strategy by all the three labeling schemes.

Fig. 8
figure8

Labeling time

Figure 8 shows that for all the five datasets. The New scheme is faster than IBSL, especially for bigger data sets. Also, the labeling time for the NP–Containment scheme (that is, P–Containment combined with the New labeling scheme in order of contextualization) is as good as New’s time. However, notice that the P–Containment method has to relabel all nodes when new nodes are inserted. IBSL manipulates longer node labels as it stores the label of the parent (hence the label of its ancestors) of an intended node in addition to SelfID. Therefore, this method requires much more time for the labeling process. Considering all the datasets, the New method generates required labels almost 12.74 times faster than IBSL.

Query response time

For performance evaluation in updates, we investigate the time needed to process the queries. It stores labels in the tables of a relational database. To optimize queries and increase the efficiency of the update operations, we consider two table storing information about datasets. The first table includes the name of each node, its text, and label. The second table stores node attributes name and their values with the foreign key that is the primary key of the first table.

We store the labels of New in three fields including NodeLevel, ParentID, and SelfID. The primary key of the first table is SelfID along with NodeLevel. For NP–Containment, the relational table contains the name of every node, its text, Start, End, and Parent_Start values. At the update time, We use New to generate inserted nodes’ labels. We implemented the IBSL scheme for which the relational table includes the name of each node, its text and the values of SelfID and ParentLabel.

We have implemented all schemes by the depth-first traversal method. We applied this evaluation on Xmark (0.02) database. The table for the elements includes 33,140 records and 7384 records for the attributes.

Table 3 shows the studied queries. The “number of retrieved nodes” is the count of records retrieved as the query response.

Table 3 Evaluated queries

Figure 9 presents the results. For the New method, the time needed for queries, Q1 to Q5, is 80% of the NP–Containment time on average, but for query Q6, NP–Containment has been 1.3 times faster.

Fig. 9
figure9

Queries response times

To answer query Q6, the New method should check one more condition than NP–Containment; i.e. the comparison of the levels to determine P–C relation. This additional operation justifies why the NP–Containment scheme operates faster than the New method.

In query Q6, where it retrieves all descendants for the “site” node, IBSL acts better than the other two methods because it is a full prefix-based scheme and can quickly determine the A–D relationships. Therefore, IBSL is 40.9 times faster than New. New and NP–containment use a recursive algorithm to determine A–D relationship, hence, they need more time to process such queries. For the queries Q1 to Q5, New is 15.9 and 1.3 times faster than IBSL and NP–Containment respectively, on average.

Updating time

In this part of the performance evaluation, we test the time needed to insert new nodes in various positions of the XML tree. Figure 10 illustrates the results.

Fig. 10
figure10

Updating time

For this test, we insert 5 nodes in the leftmost place of the first level. Figure 10 shows the average time needed for the insertions as “Left_ins”. Then we insert 5 nodes in the rightmost place with an average time expressed as “Right_ins”. After that, we add 5 nodes in between the sixth and the seventh nodes in this level, with an average time denoted by “Middle_ins”.

According to the results, our method needs less time than the others. As we apply New for labeling in NP–Containment, it runs faster than IBSL for insertion. New is 2.8 and 1.4 times faster than IBSL and NP–Containment respectively, on average.

Summary and conclusions

In this paper, we provided an overview of the existing state-of-the-art methods for labeling dynamic XML data which have been investigated during the past years. Considering dynamic XML, the existing methods do not fulfill all the performance requirements at the same time. An XML labeling method should support the structural relationships among nodes as well as avoid relabeling any existing node and keep the order of nodes when new nodes are inserted into the XML tree. Moreover, scalability and efficiency are the two essential requirements to be fulfilled by a labeling method. We proposed a novel labeling method which exploits the FibLSS encoding for labeling XML documents. We discussed the efficiency of the proposed scheme and tested it considering the label size, labeling time, querying time and node insertion time. We compared this evaluation with IBSL and P–Containment which are among the leading labeling schemes in labeling the literature. Our method is scalable as it avoids relabeling and it has a linear growth for label size. Moreover, it supports structural relationships while keeping the order of nodes. Our experimental evaluation demonstrated that the proposed method outperforms existing methods in terms of several essential requirements, especially the computational processing costs, the storage cost while keeping the order and relationships among nodes without any relabeling.

Future work

The proposed scheme is suitable and usable for both static and dynamic documents. We will apply this scheme to different labeling approaches, especially “range-based” methods that have a small storage size and high efficiency. We will also conduct more comparative studies on the efficiency of our method for a wider range of XML queries. Besides, some investigations are required for supplying more compact representations of the labels.

Notes

  1. 1.

    Following sibling and preceding sibling.
