An optimized approach for community detection and ranking

Journal of Big Data20163:22

https://doi.org/10.1186/s40537-016-0058-z

Received: 28 August 2016

Accepted: 3 November 2016

Published: 10 November 2016

Abstract

Community structures and relation patterns, and ranking them for social networks provide us with great knowledge about network. Such knowledge can be utilized for target marketing or grouping similar, yet distinct, nodes. The ever-growing variety of social networks necessitates detection of minute and scattered communities, which are important problems across different research fields including biology, social studies, physics, etc. Existing community detection algorithms such as fast and folding or modularity based are either incapable of finding graph anomalies or too slow and impractical for large graphs. The main contributions of this work are twofold: (i) we optimize the Attractor algorithm, speeding it up by a factor depending on complexity of the graph; i.e. the more complex a social graph is, the better result the algorithm will achieve, and (ii) we propose a community ranker algorithm for the first time. The former is achieved by amalgamating loops and incorporating breadth-first search (BFS) algorithm for edge alignments and to fill in the missing cache, preserving a constant of time equal to the number of edges in the graph. For the latter, we make the first attempt to enumerate how influential each community is in a given graph, ranking them based on their normalized impact factor.

Keywords

BetweennessBreadth-first searchCommunity strengthComplex networksJaccard indexModularity

Introduction

Communities are essentially the strength of connection patterns among members of online social networks. Such connections as friendship over Facebook or following a cooking page on Instagram result in generation of voluminous data, causing a wide array of relationships. Graph theory is utilized to depict relations between community nodes while statistical properties of nodes are used to find the patterns. Node centrality defines community boundaries and impacts adjacencies [1]. Optimization of the quality function, i.e. modularity, is represented as eigenvectors of the network matrix [2].

Community detection algorithms have been around for some time now; however, with the growing size of todays networks, how to find small communities in big graphs, with billion of nodes and edges, is a major challenge. Graphs of Online Social Networks (OSN) such as Facebook, Twitter, etc. are growing every day. This growth introduces both large and small communities, for instance those with less than 100 members. There is a need for an algorithm capable of finding both large and small communities efficiently, in terms of time and processing overhead. Moreover, finding anomalies and communities outliers also prove challenging [3, 4]. A key undertaking would be to rank these communities after detecting them. For example, Facebook has over 20,000 communities and it is important to calculate which community has more influence over the entire members in the graph. A higher rank for a community implies a higher probability of active and influential members. Being able to find communities’ ranks helps us with (a) analyzing the network graph and relations, (b) finding the most suitable data mining techniques, (c) predicting the information flow, and (d) comprehending public sentiment.

In this study, detecting and characterizing communities are discussed. Optimized Attractor algorithm is introduced which finds communities using Jaccard distance, similar to Attractor algorithm; however, the performance of our approach does not deteriorate for much bigger or smaller graphs, unlike Attractor. Furthermore, a novel algorithm is introduced to rank the communities using the ratio of intra-community and inter-community links between links. Unlike most community detection algorithms, Optimized Attractor normalizes the size of communities based on a threshold. The performance of Optimized Attractor was measured on known benchmarks, where it outperforms modularity-based methods.

The rest of this paper is organized as following: "Related work" section reviews an indispensable comparison for existing community detection algorithms, be it from Betweenness algorithm to modularity maximization approaches to. "Our approach" section introduces the proposed method, Optimized Attractor, after discussing the required preliminaries. "Analysis" section depicts an exhaustive analysis of performance and time complexity of Optimized Attractor. Discussion of the results and future directions are given in "Discussion and future work" section. "Conclusion" section outlines the concluding remarks.

Related work

Communities in the graphs are detected and defined based on similarity between their vertices; i.e. a community is a group of nodes with the highest degree of similarity between the vertices under that community in the graph. There are various methods to calculate the similarity values between nodes. Four of the most famous ones are Jaccard similarity, Cosine similarity, Pearson correlation, and Euclidean distance. After calculating the similarity between all nodes in the graph, all similar nodes will be placed in the same community and dissimilar edges between nodes will be cut out. However, after finding communities there is a need to find the ranking for these communities. Community detection is a helpful tool to analyze big and complex networks such as social media networks. Various methods have been used in order to find network communities. Back in 2002, Girvan and Newman [5] used Betweenness algorithm to find modularity change value. The way it worked was that every node was put in its own community initially. Then, the modularity value was calculated using Eq. 1. Next, the neighboring node with the highest Q value was combined with the designated community. Time complexity for the mentioned method is \(N^3\). Newman [6] introduced a new method the next year which reduced the time complexity from the lowest value of \(M^2\) for normal matrices to \(N^3\) on sparse matrices to \(((M+N)N)\) or \(N^2\) on sparse matrices. Greedy algorithm [7] was introduced by Clauset and Newman the following year and improved the time complexity of the latter method to N \(log^2\) n. In 2005, External Optimization method was introduced by Duch and Arenas [8]. In this method, Duch and Arenas [8] have reached a better accuracy by using external optimization to optimize modularity, sacrificing the operational speed. Time complexity for this algorithm is \(N^2 log^2 n\) which is slower than the Greedy method. Modularity formula:
$$\begin{aligned} Q&= \sum _{r} (e_{rr}- a_{r}^2) \end{aligned}$$
(1)
Optimized version of modularity:
$$\begin{aligned} Q&= \frac{1}{2} m\sum _{i,j} A_{ij}-\frac{d_{i}d_{j}}{2m}(\delta _{i,j}) \end{aligned}$$
(2)
On the other hand, Shao and Han developed a new algorithm called attractor based on distance dynamic [9]. Time complexity of Attractor algorithm is E which is counted as linear. Although it is faster than N-cut [10], Modularity, edge Betweenness [5], greedy and et, it is a bit slower than algorithms proposed by Louvan [12] and Infomap [13], and Metis [14]. The Louvan method [12] starts every node as a separate community; then in each iteration, it calculates the similarity between two communities and mixes them together.
The attractor method introduced by Shao et al. [9] uses the concept of distance instead of similarity. In this method, the similarity of nodes have been calculated by Eq. 3 as you can see the Jaccard similarity [16] has been used. Next the value found will get subtracted from one in order to find the distance between two nodes.
$$\begin{aligned} S(s,e)&=1-\dfrac{\varUpsilon (s) \cap \varUpsilon (e)}{\varUpsilon (s) \cup \varUpsilon (e)} \end{aligned}$$
(3)
Next step is to find the initial distance for all the nodes in the graph. There are three types of relation ship between the nodes in this algorithm. The first one is when two nodes are connecting directly. The distance between to direct relationship is calculated through Eq. 4
$$\begin{aligned} DC =-\left( \dfrac{1-S(s,e) }{deg(s)}+\dfrac{1-S(e,s) }{deg(e)}\right) \end{aligned}$$
(4)
The second type is defined as the impact of mutual neighbors of two nodes on their direct link. In which is counted as a positive impact. It being counted positive, comes from the fact that having mutual interests usually makes a relationships stronger. The equation is shown in Eq. 5
$$\begin{aligned} MC &= -\sum _{m \in MN}\left( \dfrac{(1-S(m,s)).(1-S(m,e)) }{deg(s)} \right. \\ &\quad+\left. \dfrac{(1-S(m,e)).(1-S(m,s)) }{deg(e)}\right) \end{aligned}$$
(5)
The last type is shown in Eq. 6 . The third type of impact is from exclusive neighbors. Having different or against interest can cause the relationships to become more distance. So the third type will usually be a positive impact on the link value between start and end node.
$$\begin{aligned} XC &=-\sum _{x \in XN(s)} \left( \dfrac{(1-S(x,s)).(1-S(x,s)) }{deg(s)}\right. \nonumber \\&\quad-\left. \sum _{x' \in XN(e)} \dfrac{(1-S(x',e)).(1-S(x',e)) }{deg(e)}\right) \end{aligned}$$
(6)
$$\begin{aligned} S(s,e,t+1) =S(s,e,t)+DC(t)+MC(t)+XC(t) \end{aligned}$$
(7)

Our approach

Network structure evolves as time changes [17]. In this paper, G represents a graph. Every G contains set of nodes N and set of edges E. C is used to show set of communities. Every edge that connects two communities together is called as a between edge and shown bye \(e_{b}\) . \(n_{s}^e\) and \(n_{t}^e\) are two nodes in the sides of an edge, they are called starting and target node respectively. A counter is used to identify and counts the number of edges in which they have only one side in a community and the other side belongs to another community. And another counter is used to count number of edges that have nodes in different communities. Later counter is represented by \((\gamma )\). The number of nodes in each community is shown by \((\eta )\). Finally, rank of every community is recorded as \(R_{c}\). The method used to calculate community rank is based on the number of nodes inside reach community and the total number of nodes in the graph. After finding the number of between edges for each community, the rank can be counted by dividing this number by all the nodes in the graph except for those already in the community. In this study, communities were found using an optimized version of Attractor algorithm. As it was explained in "Related work" section, Attractor algorithm works base on distance between nodes and their inclusive and exclusive neighbors. However, it was found that Attractor algorithm could work faster by removing the last loop of algorithm. In fact, the communities are found in the third loop by filtering the distance matrix. So, wherever the distance between two node is equal to one the edge should be cut from the graph. But this action could be applied with reversing the filtering function meaning taking the distances wherever it is equal to zero we could keep the edge in fact. Three major effort has been put in this study:
  • First a breadth-first search (BFS) [18] is added to the algorithm before going thorough the initial distance calculations. It helps the program run almost ten percent faster (an algorithm for traversing or searching tree or graph data structures). It starts at the tree root (or some arbitrary node of a graph, sometimes referred to as a ‘search key’) and explores the neighbor nodes first, before moving to the next level neighbors [18].

  • The original Attractor algorithm has been optimized by the method explained in "Algorithm" section. Using this optimization method, the program runs faster by a factor of almost one fifth. (shown in Table 1 ).

  • A new algorithm called “Community Ranker” is introduced. As the name suggest, CR (Community Ranker) method finds a value for each community that was found by Algorithm 1. How communities have been ranked is provided in "Algorithm" section by Algorithm 2.

Table 1

Comparison between Attractor and Optimized Attractor

Data set

Attractor

Optimized Attractor

OA and BFS

Karate Club

0.012278

0.012091

0.011930

American Football

0.119706

0.101960

0.101330

Polbooks

0.149019

0.138020

0.137216

Friendship

446.488900

325.466700

305.337700

Amazon

379.636510

297.4342910

285.840700

Road

327.805610

317.141900015

303.112400

All the numbers are in milliseconds

Preliminaries

Social networks are graphs created by members of social media. These graphs are made from social media members and the relationships between them in forms of nodes and edges respectively. A friendship on the Facebook is an example of a two-sided (undirected) connection and following somebody’s page Instagram or tweeter is an example of a one-sided (directed) connection and a connections in DBLP (Digital Bibliography & Library Project) network is an example of a weighed edge. In social networks, connections between people reveal a lot of information about the graph and communities existing in the graph. A community is a group of people with mutual interest. As same as real life in every social-media, there exist various communities. This communities are made from members of social media and their pages. Example of communities could be friendship groups or groups of people with same occupations or simply groups of people with same interests. In social graphs, relationship inside the community and relationships outside are respectively shown by internal edges and external edges. Number of internal-edges are dense within a community where number of external edges are low. In contrast between two separate communities there is no internal edge but a small number of external edges are existed. Among all the communities that exist in social media, there is a need to distinguish those who are active and more important in the graph. Figuring out the active communities can help with advertisings tasks, statistics and analyses needed for suggestions, searches and trend analytics. In addition, finding the ranking list of communities shows how important each community is. Communities with higher ranks have a better communication inside and outside the community. Local computations are good for big graphs. Community detection methods are divided into two subgroups. The first well known method is to cluster vertexes based on their similarity. And the second method is graph partitioning base on sparse cut.

Notations

Adjacency matrix is a matrix of the size \(n\times n\) where n is the number of nodes in the graph. It has ones whenever two nodes are connected and zero otherwise. Every connection between two nodes is defined as an edge. Edges can be directed or undirected. Directed edges are those that connect two nodes in only one way. Undirected edges connect two nodes two-sided only with one edge. However, to show more features of nodes, for example the importance of each nod and edges connected to that node, there are weights defined for each edge. In this paper nodes are shown as n and the set of nodes is shown with N. Edges and set of edges are shown as l and L. Communities and the set of communities c and C. Start and end node are represented as s and \(R_{c}\) represents Rank of community c. And the number of nodes in each communities is represented by \(\eta\). Also number of edges between two communities are show as \(\gamma\). S is used to keep the similarity value. Mutual and exclusive neighbors are shown with m and x. And finally, neighboring Set is represented as \(\varUpsilon\).

Algorithm

Analysis

Time complexity analysis

The time complexity function of the existing Attractor algorithm is improved. Note that the improved version is working faster without sacrificing any accuracy. Overall, the latter linear time complexity is O(\(|E| + k |E|\)) which is reduced by (T|E|) time. Even though Attractor and Optimized Attractor both have linear time complexities, the Optimized Attractor is faster by a factor of O(T.|E|) . As shown in Fig. 1, the optimized version of Attractor performs faster as the number of nodes and edges grow.

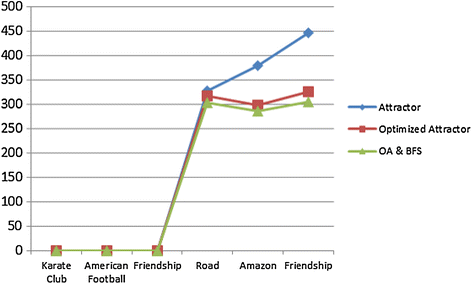

Fig. 1

Comparison chart for Attractor, Optimized Attractor without BFS , and OA with BFS

The reason for this phenomenon is that the process of finding communities was done using three loops in the original algorithm, which was performed over every graph edge. The Optimized Attractor reduces this to two loops; i.e. the algorithm is improve with a constant of |E| for every datasets with edge number of |E|. Hence, Attractor time complicity which is O(\(|E| + k |E|+ T|E|\)) changed to O(\(|E| + k|E|\)); therefore, it runs faster with constant factor of O(|E|). Note that K is the average number of exclusive neighbors for two linked nodes and T is a constant number which is \(3\le T\le 50\). In OA, T is removed as all the calculations of third loop are compensated in second loop. The way, this has been possible is that instead of having third loop, all the filtering and flagging will be done in the second loop where similarities are being counted.

In the second algorithm (Community Ranker), the time complexity is \(O(|C|+|E|)\). The given time is coming from the number of communities and the number of existing edges in each community. The time complexity for CR is O(C), where C is the number of communities.

Experimental analysis

This experiment was performed on a computer with Intel Xeon(R) E5-1607 @ 3GHz processors and 16 GB RAM. A single core was used to run the algorithm. All the nodes and edges were loaded in the machines main memory before calculating the time spent for the Attractor or community Ranker algorithm. All the proposed algorithms were implemented in Python programming language, and the library used was networkx [18]. A matplotlib library was used for the Plots draw from the graphs.

Data set

To be able to illustrate the performance of Optimized Attractor algorithm, the most commonly used datasets for community detections have been chosen and used in this experiment. Data sets used are all real world datasets. We used the famous Karate Club dataset [19] which is used in almost all community detection related problems. The second commonly used dataset in this work is American football [20] with 115 nodes. The other datasets used are PolBooks–Krebs’ Amazon books [21], Theory collaboration network [22], Brightkite [23], Pennsylvania road network [24], Amazon product co-purchasing network, and ground-truth communities [25]. More details about datasets used in this study are given in Table 2.
Table 2

The studied datasets

Data set

Number of nodes

Number of edges

Karate Club

34

78

American Football

115

613

Polbooks

105

441

Friendship

58,228

214,078

Amazon

334,863

925,872

Road

1,088,092

1,541,898

Discussion and future work

The result of comparison between Optimized Attractor, Attractor and OA & BFS time performance is shown in Table 1. The optimization shows it’s most effect on Amazon dataset. One can see the difference is almost 25% faster than the previous result. With these point being mentioned the only concerned remained is the accuracy of the proposed method, in which is addressed in Table 3. Not only the accuracy did not degrade but also it shows that Optimized Attractor has a better level of accuracy. For PolBooks dataset, the accuracy of Modularity method is 0.85 where the accuracy of Optimized Attractor is 1. The result of Optimized Attractor for datasets Karate and Football are shown in Figs. 2 and 3. Communities divisions are demonstrated with different colors.
Table 3

Similarity analysis of the Optimized Attractor

Data set

Attractor

Modularity

Karate Club

1

0.916128

American Football

1

0.952536

Polbooks

1

0.854031

Fig. 2

Community distribution on Karate dataset, λ 4.5

Fig. 3

Community distribution on Football dataset, λ 4.5

As for Community Ranker algorithm, it’s shown in Table 4 it takes less than a millisecond to rank a network with more than a million nodes. For the smaller datasets, the time consumed is almost close to zero. However this should be considered that all the communities have already been detected and loaded to the system. The time shown in the Table 4 shows only the execution time for ranking system.
Table 4

Top four communities

Data set

Num of comm

Max nodes

Min nodes

Process time

Karate Club

3

17

1

0.001000

American Football

12

14

5

0.001000

Polbooks

4

44

1

0.001000

Friendship

15,280

15,280

1

0.132000

Amazon

33,931

1494

1

0.613000

Road

22,978

876,500

1

0.992000

Also the results for top four communities in Karate, Football and Polbooks datasets are shown in Fig. 4.
Fig. 4

Ranking of top four communities, Lambda 4.5

Conclusion

In this paper, we proposed a method achieving a better performance as shown in Table 5. As the networks specially social networks grow to more complex, the needs of dealing with the new sophisticated data grows. Community detection algorithm proposed in this paper improves the speed and performance of finding communities.
Table 5

Notations and symbols

Notation

Definition and description

G

Given graph

N, n

Set of nodes, node

L, l

Set of links, link

C, c

Set of community, community

\(\eta\)

Number of nodes in each C

\(R_{c}\)

Rank of community c

\(\gamma\)

Number of edges between two C

\(e_{b}\)

Designated edges between two C

\(n_{s}^e \;{\rm and}\; n_{t}^e\)

Nodes on the side of an edge

S

Similarity value

s, e

Start and end node

m, x

Mutual, exclusive neighbor

\(\varUpsilon\)

Neighboring set

Summary of findings

We proposed a ranking system for communities in which rate communities based on their influence on the rest of network. As the interest in finding top communities and top nodes in each community grows, various methods have been developed to discover the ranking pattern. Our algorithm uses centrality concept to find top communities in each dataset. In this method, the number of intra community offspring of each node is counted and compared to the total number of nodes in the dataset and then a method of normalization is applied. As a result, the proposed algorithm can find how topology important a node can be (more offspring to outside communities shows more influence).

Future work

We hope our results will motivate more studies on community ranking system. And having findings not only based on node relation but also on content base relations between nodes such as, comments, likes or follows. The speed and performance of finding communities is improved in this work but still there is a need to improve the accuracy related issues. Also the proposed algorithm can find community as an individual but there are a lot of nodes in which are common between different communities and can not be pointed as members of a specific communities. So there is a need to find the common part known as overlapping communities.

Declarations

Authors' contributions

MP, as the first author, performed the primary literature review, data collection and experiments, and also drafted the manuscript. JZ and ST worked with MP to develop the algorithm, the paper, and the framework. All authors read and approved the final manuscript.
