Large scale performance analysis of distributed deep learning frameworks for convolutional neural networks

Abstract

Continuously increasing data volumes from multiple sources, such as simulation and experimental measurements, demand efficient algorithms for an analysis within a realistic timeframe. Deep learning models have proven to be capable of understanding and analyzing large quantities of data with high accuracy. However, training them on massive datasets remains a challenge and requires distributed learning exploiting High-Performance Computing systems. This study presents a comprehensive analysis and comparison of three well-established distributed deep learning frameworks—Horovod, DeepSpeed, and Distributed Data Parallel by PyTorch—with a focus on their runtime performance and scalability. Additionally, the performance of two data loaders, the native PyTorch data loader and the DALI data loader by NVIDIA, is investigated. To evaluate these frameworks and data loaders, three standard ResNet architectures with 50, 101, and 152 layers are tested using the ImageNet dataset. The impact of different learning rate schedulers on validation accuracy is also assessed. The novel contribution lies in the detailed analysis and comparison of these frameworks and data loaders on the state-of-the-art Jülich Wizard for European Leadership Science (JUWELS) Booster system at the Jülich Supercomputing Centre, using up to 1024 A100 NVIDIA GPUs in parallel. Findings show that the DALI data loader significantly reduces the overall runtime of ResNet50 from more than 12 h on 4 GPUs to less than 200 s on 1024 GPUs. The outcomes of this work highlight the potential impact of distributed deep learning using efficient tools on accelerating scientific discoveries and data-driven applications.

Graphical Abstract

Introduction

In the past few years, deep neural networks have become powerful tools to solve problems from different scientific disciplines. Especially in the field of image recognition, significant advancements have been made using Convolutional Neural Networks (CNNs) and Transformers [1, 2]. As the size of the datasets used for training and the model sizes continuously increase, their training becomes more and more computationally expensive. Therefore, it is of utmost importance to find suitable and efficient methods to reduce the training runtime by as much as possible.

Using High-Performance Computing (HPC) systems, it is possible to accelerate the training and model generation processes, i.e., by intelligently subdividing the problem and using massively parallel hardware for efficiently distributing the computational load. The two main strategies for distributing the training of neural networks to different workers, where a worker is usually a Graphics Processing Unit (GPU), are model and data parallelism  [3]. The former method splits the neural network and distributes it across the workers. In contrast, the latter splits the input data and the network is trained with different batches per worker. At the end of an epoch, all gradients are merged to apply the same update to the network’s weights on every worker. The Message Passing Interface (MPI) is frequently used to communicate the parameters between the workers in either a synchronous or asynchronous way. In the synchronous case, an AllReduce operation is executed for gradient reduction, while in the asynchronous case, a single central parameter server receives all gradient updates from the workers and performs the optimization step. For the asynchronous case, the overall performance is limited by the network bandwidth of the parameter server and depends on the amount of data to transmit per worker. The usage of alternative strategies such as asynchronous ring communications or employing MPI can alleviate this bottleneck. In general, with an increasing number of computational nodes, the communication to share the gradients becomes the main bottleneck. To minimize this communication overhead, the number of gradient reductions has to be reduced.

The focus of this study is on data parallelism, as it offers benefits for neural networks of any size when trained on large datasets, whereas model parallelism is primarily advantageous for network architectures that do not fit onto a single GPU. Consequently, data parallelism holds an advantage in its ability to cater to a wider range of neural network architectures, whereas model parallelism is better suited for handling larger neural networks that face memory limitations. The standard approach to scale Deep Learning (DL) trainings on large HPC systems is to increase the global batch size BS, which may, however, lead to insufficient validation accuracies  [4]. To retain a sufficient accuracy, modifications to the training process are frequently necessary, which may also affect the parallel performance. It is furthermore challenging to apply the right framework for a specific learning task that involves large input data or models, and at the same time, benefit from the computational power of HPC systems.

The motivation of this study is to provide guidance in this direction. To this end, the performance in terms of accuracy and scalability of the parallel frameworks—Horovod [5], PyTorch-Distributed Data Parallel (PyTorch-DDP) [6] and DeepSpeed [7] are evaluated on the European HPC system Jülich Wizard for European Leadership Science (JUWELS) [8] Booster module (place 12 in Top500 [9] as of 08/2022). These three frameworks are easily accessible as they are open-source and have gained high popularity in recent years. Their analysis supports the research community to decide on a framework. The benchmarks are performed using the popular ImageNet dataset [10] and three residual neural networks (ResNets) with 50, 101, and 152 layers  [1] to enable generic comparison with established benchmark studies.

The main contributions of this study are as follows:

• A comprehensive scalability analysis and comparison of training ResNet50, ResNet101, and ResNet152 on ImageNet with Horovod, PyTorch-DDP, and DeepSpeed, using the DALI and native PyTorch data loaders ranging on up to 1024 GPUs is performed. The results demonstrate that in combination with the native PyTorch data loader, DeepSpeed shows the best performance on a small number of GPUs, while Horovod and PyTorch-DDP outperform it when using a larger number of GPUs. However, in comparison, the use of DALI leads to higher throughput and improves scalability for all ResNet architectures.

• An assessment of the influence of step-wise, cosine, and exponential learning rate annealing on the validation accuracy for different batch sizes ranging from $BS=256$ to 65,536 is performed. These findings reveal that cosine annealing delivers superior performance on small and medium batch sizes, while exponential annealing achieves the highest accuracy for the largest batch size.

The paper is structured as follows. The established distributed DL frameworks as well as the challenges that arise when scaling the training to large HPC systems are discussed in "Related work" section. In "Overview of the benchmark setup" section, an overview of the experimental setup is given. Subsequently, "Benchmark results" section presents the main benchmark results from a computational perspective. Finally, "Summary, conclusion, and outlook" section summarizes the findings, draws conclusions, and gives an outlook to future work.

Related work

The ImageNet dataset, originally introduced for the ImageNet Large Scale Visual Recognition Challenge (ILSVRC), features 1,281,167 training images and 50,000 validation images divided into 1000 object classes [10]. This dataset is commonly used in the literature as an important benchmark to test algorithms, where their performance is measured through validation accuracy V [11], which is computed from correctly classified validation images.

AlexNet [12] (a CNN) was one of the first machine learning models to achieve high accuracy on the ImageNet dataset in the ILSVRC 2012. Since then, multiple improvements have been made to the original network structure [13], yielding the current ResNet architecture [1] with a varying amount of convolutional layers. Although Transformer architectures [14] have recently been shown to achieve even better results in image classification tasks, CNNs are still widely used due to lower training duration, low energy usage, and their good scalability [15, 16].

Many distributed DL frameworks exist for scaling especially neural network models to multiple workers in an HPC environment. A literature review is given in [17] and an in-depth performance analysis is presented in [3]. One of the first frameworks to scale to a large number of computational nodes equipped with Central Processing Units (CPUs) was DistBelief by Google [18] using an asynchronous Stochastic Gradient Descent (SGD) method. Others, such as Petuum [19] or Project Adam [20] have improved this idea, e.g., by introducing dynamic scheduling. With FireCaffe [21], the focus shifted towards using GPU clusters and synchronous gradient reduction methods.

The most common DL libraries such as TensorFlow [22] from Google, PyTorch from Facebook, and MXNet [23] from Apache, have their unique distributed training strategies. Other frameworks such as HeAT [24] take a more general approach to distributed machine learning by providing a scalable NumPy-like [25] Application Programming Interface (API) to enable all kinds of data analytics, not being limited only to neural networks. While all of these frameworks mainly focus on enabling data parallelism, more recently Microsoft introduced the ZeRO [26] and DeepSpeed [7] frameworks that can train models with billions of parameters through model parallelism. A small scale study (up to four GPUs) of the performance of TensorFlow and FireCaffe on different HPC systems is available in  [27]. An overview of the frameworks and their parallelism and communication strategies are shown in Table 1.

The present work solely focuses on synchronous communication and data-parallel functionality of the commonly used frameworks. Horovod, PyTorch-DDP, and DeepSpeed are all compatible with the HPC system’s job scheduler SLURM [28] and the InfiniBand communication pattern by default, while the distributed versions of MXNet and TensorFlow are not.

Table 1 Overview of distributed DL frameworks, adapted from [6, 17]

In the literature, various tests using a ResNet50 on the ImageNet dataset exist. In the original ResNet paper [1], it takes 29 h to train the network for 90 epochs on eight NVIDIA Tesla P100 GPUs with a batch size of $BS=256$. Subsequently, the training time is reduced to 1 h on 256 NVIDIA Tesla P100 GPUs [4]. Finally, in [29], a training time of only 74 s on 2048 NVIDIA Tesla V100 GPUs is achieved. The current benchmark record is 28.8 s as of 10/2022   [30], where TPUs have been used instead of GPUs. To train a ResNet50 in such a short time, the authors increase the batch size to $BS=8192$ and $BS=81{,}920$. A large BS value, however, usually leads to a reduction in generalization performance. To prevent this, several hyperparameter modifications are applied in [29] to reach a V comparable to that of [1]. Therefore, the learning rate LR is scaled linearly with respect to the number of workers. This is motivated by the fact that with fewer weight updates, the learning rate has to be increased to achieve similar gradient adjustments compared to using a small learning rate with more frequent gradient updates. However, this linear scaling rule does not apply to all cases, i.e., during the start of the training, where a lot of parameters are subject to changes, a large learning rate may prohibit the optimizer from converging. Therefore, a warm-up technique is used that slowly increases the learning rate during the first five epochs [31]. Another technique reported to improve the accuracy when training with a large BS is label-smoothing [32], which is a regularization method adapted to classification models. Using larger ResNet architectures, such as the ResNet101 or ResNet152, leads to slightly improved V values  [1].

In this work, the learning rate warm-up, learning rate scaling, and the label-smoothing techniques are used to stabilize the training with the default SGD optimizer with relatively large BS values. Additionally, three different learning rate schedules are explored and their performance in terms of V is analyzed.

Overview of the benchmark setup

This section gives an overview of the main frameworks used in this study, i.e., Horovod is introduced in "Horovod" section, PyTorch in "PyTorch-distributed data parallel" section, DeepSpeed in "DeepSpeed" section, and the data loaders in "Data loaders and dataset compression" section. Furthermore, their communication operations are presented and examples of how to include them into actual Python code are provided. General issues that arise when scaling to a large amount of GPUs are addressed in "GPU scaling issues" section and the different ResNet architectures are introduced in "Residual neural networks" section. Three different learning rate scheduling methods with the potential of increasing the accuracy of the training are introduced in  "Learning rate scheduling" section. The hardware and software configuration of the supercomputer used for the benchmark tests is presented in "JUWELS HPC system and software stack" section.

Horovod

Horovod is an open-source distributed DL library originally developed by Uber for TensorFlow [5]. It is also supported as a backend library in the most common DL frameworks such as PyTorch and Apache MXNet. Minimal code changes are required to integrate Horovod into these DL frameworks. Code snippet  1 gives an example of how to integrate Horovod with PyTorch.

The work by Pumma et al. [33] provides an overview and an analysis of the communication patterns in Horovod. It is one of the first libraries to use a decentralized Ring AllReduce approach [34] to compute the gradient reduction instead of a single parameter server receiving all the updates, cf. "Introduction" section. It relies on low-level communication libraries such as MPI, the NVIDIA Collective Communications Library (NCCL) [35], or Facebook Gloo [36]. It is observed that the NCCL AllReduce yields superior performance on NVIDIA GPUs [6].

On a local worker level, the communication operations in Horovod are asynchronously handled by a separate background thread. This thread repeatedly checks for communication requests and performs the corresponding data transfers. Since these transfers may be requested asynchronously, the order of execution per worker may also be different. However, Horovod uses collective communication directives from other libraries and hence has to execute a consensus protocol to ensure consistency (in terms of order) across all workers. The process is summarized here:

• (i) One global background thread receives all the transfer requests from the local background threads.

• (ii) The global background thread puts the requests in the correct order and sends the list back to the local instances.

• (iii) Each local thread combines its local data and carries out the data exchange with the other workers via AllReduce.

This back and forth communication creates overhead that can limit the scalabilty of the framework.

In Horovod, the computations and communications are coupled with the ability to batch small AllReduce operations. This exploitation of batching communication operations is known as tensor fusion [5]. With this operation, the smaller data volumes are transferred across different workers by locally fusing the data that are ready to be reduced. Hence, fewer AllReduce operations are required. In large neural networks with large number of parameters, this operation is expected to yield huge parallel performance gains.

PyTorch-distributed data parallel

PyTorch is a machine learning framework primarily developed by Facebook AI Research. The PyTorch-DDP module features a built-in way to parallelize the training of neural networks across multiple workers, e.g, GPUs. Code snippet  2 shows an example of how DDP in PyTorch is used. Similar to Horovod, the PyTorch-DDP library uses an AllReduce paradigm (with the communication libraries NCCL, Gloo, or MPI) for updating the gradients used in deep neural networks. To trigger the communication operation, a custom ‘hook’ is registered in the internal automatic differentiation engine that is integrated into the backward pass operation of deep neural networks [6]. A separate code for managing the communication is hence not required.

Analogous to Horovod’s tensor fusion operation, PyTorch-DDP features gradient bucketing, where instead of an immediate AllReduce operation the algorithm waits for a few processor cycles once a batch of gradients is complete, and buckets (or ‘fuses’ in the sense of Horovod) multiple gradient parameters into a single parallel operation. Hence, the computation and communication are overlapped, thus skipping frequent gradient synchronization. A drawback of this method is a possible mismatch in the AllReduce operation if the reduction order is not the same across all processes—resulting in an incorrect reduction or data inconsistencies. This issue is addressed by bucketing the gradients in the reversed order obtained during the forward pass operation. This is motivated by the fact that the last layers of a network are likely the first ones to finish computation during the backward pass. Another issue is the skipped bucketed gradients that never enter the AllReduce operation. PyTorch-DDP handles this issue by a participation algorithm, which checks the output tensors during the forward pass to find all non-participated parameters (i.e., based on gradients that have not been updated) in the current iteration to be included in the next iteration.

DeepSpeed

The focus of DeepSpeed developed by Microsoft Research is on training large language models. These models usually feature several billion parameters and are trained on datasets from the natural language domain, which are significantly larger than most computer vision datasets. The main issue with these large language models is their massive memory footprint, a problem that is addressed with the ZeRO optimizer as part of DeepSpeed. This parallel optimizer eliminates memory redundancies by not only distributing the training data across workers but also the optimizer, gradient, and (if required) model parameters across workers. In contrast to the default data-parallel approach, the model is, therefore not necessarily replicated on each worker. Still, after each training step, an AllReduce communication step is necessary to ensure consistency. This is performed in a two-step process: first, different parts of the data are distributed to different workers with a ReduceScatter command, then each worker gathers the different chunks of data with an AllGather operation [26]. Code snippet 3 shows the integration of DeepSpeed within PyTorch, which is currently the only supported DL backend.

Data loaders and dataset compression

Two types of data loaders and corresponding dataset compressions are compared in this work. One of the data loaders is the native PyTorch data loader, which uses the raw ImageNet data in the JPG format. This data loader only supports raw image data and performs all pre-processing steps on the CPUs. The other data loader is the NVIDIA Data Loading Library (DALI) [37], where a compressed version (TFRecord) of the ImageNet dataset is used. DALI is an open-source framework to accelerate the data-loading process in DL applications by involving the GPU, following a pipeline-based approach. Usually, the GPU runs computations much faster compared to the data-loading speed of the CPU. The idea of DALI is to prevent the GPU from starving by moving the data-loading process to the GPU at an early stage. The GPU then performs the data pre-processing, such as image resizing, cropping, and normalization on the fly. By pipe-lining these operations and executing them directly on the GPU, DALI minimizes the amount of data that needs to be transferred between the CPU and GPU, which reduces the overhead associated with these operations. DALI supports multiple data formats and with its unified interface, it is easy to integrate into all common DL frameworks. With this seamless integration developers can exploit the full potential of their GPU-based systems without having to modify their existing workflows significantly or switch between different data loading libraries. While the main focus of DALI is the GPU-based approach, it also offers the possibility to use the CPU for all steps of the pipeline. In this case also the pre-processing is performed on the CPU. Initial benchmarks show a speed-up between 20-$40\%$ in throughput compared to the original PyTorch data loader [38].

It should be noted that in terms of actual disk space, the difference between the compressed TFRecord version of the ImageNet dataset (144 GB) and the raw JPG data (154 GB) is marginal. However, the file structure of the TFRecord dataset is much better suited for data loading in comparison to the over one million single image files in the raw dataset.

GPU scaling issues

GPU scaling in deep learning presents several challenges, including communication overhead, load balancing, and memory limitations. Communication overhead arises due to the constant synchronization and information exchange required between multiple GPUs during training. This overhead can reduce efficiency and performance as it grows with the number of GPUs. Solutions include using high-bandwidth, low-latency interconnects, and implementing efficient communication algorithms such as ring-based AllReduce methods [39, 40]. Load balancing is crucial for ensuring an even distribution of computational workload across all GPUs, maximizing resource utilization. An uneven workload distribution can lead to idle GPUs, wasting resources and increasing runtime. Dynamic load balancing algorithms and data or model parallelism techniques can help distribute tasks and data efficiently across multiple GPUs. Memory limitations pose a challenge when large models (or datasets) exceed a single GPU memory capacity, causing out-of-memory errors or forcing smaller batch sizes, which can negatively impact performance and convergence.

Residual neural networks

A prevalent challenge when training deep neural networks is the vanishing gradient problem, which leads to accuracy degradation [41]. ResNet architectures address this issue by introducing “skip-connections” that enable the training of deep networks without compromising accuracy. For larger vision datasets, ResNet50, ResNet101, and ResNet152 are the most widely adopted models. All models consist of one input layer and one fully-connected output layer but vary in the number of intermediate convolutional layers (48 vs. 98 vs. 150), see Fig. 1 for a visualization of the architecture. As a result, $3.8 \times 10^9$ floating-point operations per forward pass are needed for a ResNet50, $7.6 \times 10^9$ for a ResNet101, and $11.3 \times 10^9$ for a ResNet152. Although having more layers typically allows for the representation of more complex phenomena, it is essential to consider the trade-off between model complexity and training efficiency, as an increased number of floating-point operations leads to longer runtimes.

Fig. 1

Standard ResNet architecture with one input layer (in orange), a varying number convolutional layers (in purple) and a fully-connected output layer (in white). Figure adapted from  [1]

Learning rate scheduling

A known problem in large-scale distributed DL is the major drop in the validation accuracy V when using a large BS [4], regardless of the used framework, data loader, or optimizations (e.g., label-smoothing). A larger BS yields fewer optimization steps, thus compromising the accuracy of the optimizer. This issue is one of the key challenges in distributed DL. To avoid divergence of the training process for $BS\ge 32k$ on ImageNet, further optimizations, such as LR scheduling, are necessary. The most common approach for a LR schedule on the ImageNet dataset is a stepwise annealing method [1]. This schedule reduces the LR in regular intervals over time by an order of magnitude, i.e., in the ImageNet training, these intervals are set at epoch numbers 30, 60, and 80.

Since the LR schedule plays an important role in the performance of a model, different approaches exist in the literature. The cosine-annealing schedule [42] is supported by PyTorch and uses the cosine function for smoother LR annealing over time. In this case, the learning rate $LR_t$ at the current epoch t is defined by:

$$\begin{aligned} LR_t = LR_{min} + \frac{1}{2}(LR_{max} - LR_{min})\left[ 1 + \cos \left( \frac{t}{t_{max}}\pi \right) \right] , \end{aligned}$$

(1)

where $LR_{min}$ and $LR_{max}$ are the minimum and maximum values of the learning rate, and $t_{max}$ is the total number of epochs used in the training. This decays LR gradually at every epoch, compared to the sharp drops of the step-wise annealing. Another approach to LR scheduling is the exponential decay schedule. Here, the LR starts with a large value and is then decreased rapidly in the beginning and gradually afterwards in an exponential manner. The learning rate $LR_t$ at the current epoch t is given by:

$$LR_t = LR_{max}*\gamma ^t,$$

(2)

where the decay factor is usually set to $\gamma =0.95$. The comparison in Fig. 8a shows that this scheduling method decreases the learning rate at similar orders of magnitude as the step-wise scheduler but in a smoother way.

JUWELS HPC system and software stack

The benchmarks presented in "Benchmark results" section are performed on the JUWELS HPC system. This system has a Modular Supercomputing Architecture (MSA) [43] and consists of a cluster and a booster module. The experiments use the GPU-based JUWELS Booster module, which consists of 936 compute nodes, each equipped with two AMD EPYC Rome 7402 CPU with 2x24 cores, clocked at 2.8 GHz, 512 GB Dynamic Random Access Memory (DRAM), and four NVIDIA A100 GPU with 40 GB High Bandwidth Memory (HBM). The GPUs communications in a compute node are performed via NVLINK [44]. The interconnect between compute nodes is a Mellanox InfiniBand HDR network with DragonFly+ topology. Each compute node has four HDR host channel adapters. A Peripheral Component Inter-Connect Express (PCIe) Gen4 bus connects the components. In total, the JUWELS Booster is equipped with 3,744 GPUs and has 73 PFlops peak performance. Figure 2 shows the schematic of a single node.

The compressed and uncompressed ImageNet datasets are both stored on the SCRATCH partition of the JUWELS General Parallel File System  [45]. This partition is optimized for the storage of large data and features a high Input/Output (I/O) bandwidth.

Fig. 2

JUWELS Booster node schematic. Two AMD Epyc Rome CPUs are connected to four NVIDIA A100 GPU and the HDR HCAs via two PCIe Gen4 switches. The GPUs communicate via NVLINK

For running the experiments, the following software versions are deployed, which are available through JUWELS’ EasyBuild [46] software system:

• GCC 11.2.0

• OpenMPI 4.1.2

• Python 3.9.6

• CUDA 11.5

• PyTorch 1.11.0

• Horovod 0.24.3

• Deepspeed 0.6.3

• DALI 1.12.0 (virtual environment)

The number of CPU threads per data loader instance is set to 8.

Benchmark results

This section evaluates the performance of the three frameworks Horovod, PyTorch-DDP, and DeepSpeed with the native PyTorch and the DALI data loaders on the JUWELS Booster. The runtime T of training a ResNet50, a ResNet101, and a ResNet152 on the ImageNet dataset for 90 epochs with a batch size of $BS=64$ per GPU is measured and analyzed in "Efficiency" section. Additionally, the effect of three different learning rate schedulers on V is explored in "Accuracy" section.

Efficiency

The results for the ResNet50 training in terms of data throughput DT, measured in images i per second over the number of GPUs, are shown in Fig. 3. Overall, the DALI data loader (Fig. 3a) achieves a higher throughput of images compared to the native PyTorch data loader (Fig. 3b), and this is observed to be independent of the distributed DL framework. For the native data loader, the three frameworks show similar performances up to 64 GPUs. For a smaller number of GPUs, DeepSpeed shows the highest DT, but performance drops for a larger number of GPUs, where PyTorch-DDP performs the best. In summary, for all three frameworks, it is evident that the native data loader cannot match the performance of the DALI data loader.

Fig. 3

Throughput of different frameworks and DALI (a) and native (b) data loader for the ResNet50 case, averaged over three experimental runs. The variance between runs is small (in general $<5\%$) and therefore not shown

Fig. 4

Parallel efficiency of Horovod and PyTorch-DDP on up to 1024 GPUs with the DALI data loader for CPU- (a) and GPU-based (b) pre-processing with compressed ImageNet dataset for the ResNet50 case, averaged over three runs. Black line denotes the ideal case. The variance between runs is small (in general $<5\%$) and therefore not shown

For a consistent scalability comparison, the parallel efficiency metric $E_G$ is calculated as

$$\begin{aligned} E_G=\frac{S_G}{G}, \end{aligned}$$

(3)

where S is the speed-up and G is the number of workers. The speed-up $S_G$ is computed as

$$\begin{aligned} S_G=\frac{T_4}{T_G}, \end{aligned}$$

(4)

with reference runtime $T_4$, i.e., using four GPUs (one node on the JUWELS Booster). Note that $E_G$ of (or close to) unity is the ideal scenario with perfect scaling. The quantity $E_G$ is plotted in Fig. 4 for the DALI data loader over the number of GPUs. Note that the DeepSpeed framework cannot use the DALI data loader. It is clear that the tested frameworks show similar scaling performances. Independent of the hardware acceleration (pre-processing on CPU in Fig. 4a or GPU in Fig. 4b) and the framework, the $E_G$ value remains above 0.65 up to 1024 GPUs. The training with PyTorch-DDP using the CPU for data input performs slightly better than its Horovod counterpart on 256 and 512 GPUs. With 1024 GPUs, the trainings using CPU for data input achieve a higher $E_G$ value of 0.76 compared to the ones using GPU, which is at $E_G=0.68$. These findings show data loading with CPUs to be favorable for large-scale trainings. An analysis of the average CPU usages shows an occupancy of less than $40\%$ across all configurations. It is assumed that the computationally strong host CPUs make up for any performance gains achieved by transferring the image pre-processing onto the GPUs. For hardware setups with less powerful host CPUs, using the GPU-based DALI version could still improve performance.

Figure 5 presents the parallel efficiency results for the native PyTorch data loader. When compared to the scalability of the DALI data loader (see Fig. 4), the scaling performance of the tested frameworks is considerably worse. The $E_G$ values of the training with PyTorch-DDP using the native data loader (denoted as PyTorch-DDP-native in Fig. 5) drops below 0.44 already with 256 GPUs, whereas Horovod and DeepSpeed have $E_G$ values of 0.50 and 0.33, respectively on 128 GPUs. With 512 GPUs, all of the frameworks achieve an $E_G$ value of less than 0.24, indicating the limitations of the data loader on parallelization. The superior performance of the PyTorch-DDP-native data loader could be due to its better compatibility with the PyTorch-DDP framework.

Fig. 5

Parallel efficiency of Horovod, PyTorch-DDP and DeepSpeed on up to 512 GPUs with the native PyTorch data loader and raw ImageNet dataset for the ResNet50 case, averaged over three runs. Black line denotes the ideal case. The variance between runs is small (in general $<5\%$) and therefore not shown

Fig. 6

Parallel efficiency comparison of PyTorch-DDP on up to 1024 GPUs for different ResNets with DALI data loader (CPU-based) and compressed ImageNet dataset, averaged over three runs. The black line denotes the ideal case. The variance between runs is small (in general $<5\%$) and therefore not shown

Fig. 7

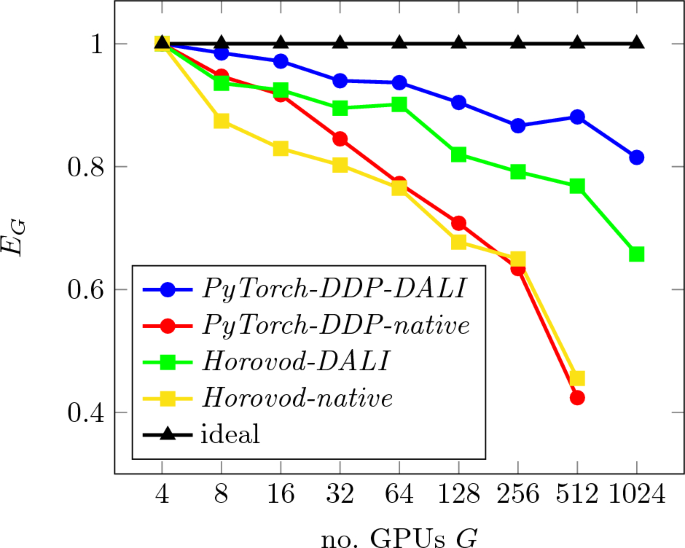

Parallel efficiency of Horovod and PyTorch-DDP on up to 1024 GPUs training a ResNet101 with the DALI data loader and compressed ImageNet dataset and native PyTorch data loader and uncompressed ImageNet dataset, averaged over three runs. Black line denotes the ideal case. The variance between runs is small (in general $<5\%$) and therefore not shown

Fig. 6 shows the scaling performance of three ResNet architectures using the DALI data loader and PyTorch-DDP framework. The ResNet50, 101, and 152 model show similar $E_G$ values up to 16 GPUs. On larger configurations with more GPUs, the ResNet152 achieves the highest $E_G$ values, reaching 0.81 on 1024 GPUs. When more than 512 GPUs are utilized, the ResNet50 achieves the lowest $E_G$ values. This behavior is expected, as a larger neural network means that more computation is necessary, which improves the computation to communication ratio and therefore also the scaling behavior. Nevertheless, the superiority of the DALI data loader over the native data loader can also be observed for the training with ResNet101 (see Fig. 7). On configurations with more than 32 GPUs, the DALI data loader clearly outperforms the native one in terms of scaling performance. Moreover, it is evident that PyTorch-DDP shows slightly better scaling performance than the Horovod framework (compare blue with green lines in Fig. 7).

For further verification of the results and a comparison of the DALI and native data loader, the NSys profiling tool [47] is used to analyze the amount of communication, computation, and data loading that takes place during the training runs of all three ResNet architectures, where the results are shown in Table 2 in terms of three quantities. These are: (i) the runtime share by the Compute Unified Device Architecture (CUDA) kernels to perform ‘communication’-related NCCL tasks (named communication), (ii) the runtime share to perform ‘computation’-related tasks with the cuDNN library  [48] (named computation), such as the time for the calculation of the convolutional layers, and (iii) the runtime share to execute ‘input/output’-related tasks, such as data loading (named I/O).

For both types of data loaders, the time percentage spent on communication increases with the number of workers, while the efforts for the computation and data loading processes reduce. This behavior is expected when scaling up tasks that require frequent communication on a cluster while keeping the size of the dataset constant. For a smaller number of GPUs, the difference in time spent executing the AllReduce commands is similar for the DALI and native data loader methods. However, this difference increases rapidly with more workers. For example, in the ResNet50 case with 512 GPUs, the native data loader spends $82.61\%$ of its time on communication, while the DALI data loader spends only $43.48\%$. A similar trend can be observed for the trainings with ResNet101 and ResNet152, where the native data loader spends 59.18 and $51.76\%$ of its time on communication, compared to $37.73\%$ and 40.36 for the DALI data loader, respectively. This substantial discrepancy could explain the poor scaling behavior of the native data loader. Regarding the computation time with the cuDNN library, it decreases for both data loaders as the number of GPUs increases, which is expected as the overall computational workload is distributed across a larger number of GPUs. For all three ResNet cases, the DALI data loader consistently exhibits higher computation percentages than the native data loader, suggesting that it effectively utilizes GPU resources. As for data loading, the time spent decreases as the number of GPUs increases for both data loaders. Although the relative data loading time is comparable between the two data loaders, it is important to emphasize that the DALI data loader is much faster in absolute timing. For example, in the ResNet152 case on 64 GPUs, the DALI data loader is responsible for $16.9\%$ of the total runtime which amounts to $\approx 25s$ in absolute timing. For the native data loader case, the relative value is roughly the same with $16.42\%$ of the total runtime, which, however, amounts to $\approx 47s$ in absolute timing. As expected, when comparing the three ResNet models it is evident that the communication overhead slightly reduces for smaller ResNet architectures, while the computation time increases as the size of the ResNet grows. Due to the low scaling performance of the native data loader, no evaluations on 1024 GPUs were performed for this case.

Table 2 Profiling CUDA kernel time in percent spent on communication operations via AllReduce, computations with the cuDNN library, and data loading functions

Accuracy

To investigate the issue of lower accuracy with a larger BS value, the effect of different learning rate schedules on the learning rate LR itself and V are explored in Fig. 8 for the training with ResNet50. The three methods deployed in this case are the step-wise, the cosine, and the exponential annealing methods, as described in "Learning rate scheduling" section. Fig. 8b depicts the evaluation of V using the different learning rate schedules over growing batch sizes. All three scheduling methods have similar performances up to $BS=4k$ (corresponds to 64 GPUs) with the exponential scheduling method being slightly worse than the others. At $BS=8k$ (128 GPUs), the first significant drop of V from $\approx 77\%$ to $74\%$ is observed. From $BS= 16k$ (256 GPUs), the quantity V drops consistently to lower values. For all three scheduling methods, there is a sharp drop of V for $BS=32k$ and $BS=65k$ (512 and 1024 GPUs). The difference in V is large for $BS=65k$, where $V\approx 52\%$, $V\approx 41\%$, and $V\approx 31\%$ for the exponential annealing, step-wise, and cosine annealing scheduling methods, respectively. It is interesting to observe that the exponential scheduling method outperforms the cosine annealing for $BS=32k$ and also the step-wise scheduling method for $BS=65k$, even though exponential scheduling starts with the worst V value even for $BS=256$. It is evident that none of the scheduling methods can avoid the drop in V for trainings with large BS values, however, a training with the exponential learning rate schedule is the most favorable for large BS. Figure 9 depicts the validation accuracy curves over the number of epochs for an exemplary training of a ResNet50 with $BS=65k$ with the three different learning rate schedules. While the learning curves show similar behaviour for the first 20 epochs, the exponential schedule outperforms the other two in the following 70 epochs by large margin.

Fig. 8

Analysis of different learning rate schedulers for ResNet50 training, showing learning rate over epochs (a) and validation accuracy over batch size (b). Note the original learning rate LR of 0.025 is scaled with the number of GPUs

Fig. 9

Validation accuracy V over the number of epochs for a ResNet50 training with $BS=65k$ on 1024 GPUs with different learning rate schedulers

Summary, conclusion, and outlook

In this study, three distributed DL frameworks, i.e., PyTorch-DDP, Horovod, and DeepSpeed were analyzed in combination with the DALI and native PyTorch data loader on the JUWELS Booster module on up to 1024 GPUs in terms of data throughput, the runtime, and the scaling performance. For this analysis, the ResNet50, ResNet101, and ResNet152 architectures were trained on the ImageNet dataset. Furthermore, the impact of the batch size on the validation accuracy and the effect of different learning rate scheduling methods were investigated for training a ResNet50.

The superiority of the DALI data loader over the native framework-based data loader in terms of scaling performance was evident. A parallel efficiency of over 0.85 on up to 256 GPUs and over 0.75 on 1024 GPUs for training ResNet50 was achieved. This value was over 0.80 on 1024 GPUs for training ResNet101 and ResNet152. It can be concluded that DALI is well suited to be used in large-scale distributed machine learning setups, regardless of the underlying framework or size of the neural network. Comparatively, the native PyTorch data loader could only achieve an efficiency of 0.45 for a training with 512 GPUs, hence, an even lower number of GPUs.

As the global batch size has to be increased with the number of GPUs, the good scaling performance can only be reached with a large global batch size, leading to a reduction in validation accuracy of the training. Even though no solution exists to address this problem, this work has shown that some mitigation was possible through choosing the right learning scheduling methods. An exponential learning rate scheduling method showed the best performance in terms of validation accuracy for a large batch size of 65k on 1024 GPUs for training ResNet50, whereas for smaller batch sizes, the cosine or step-wise annealing scheduling methods achieved better accuracies.

Overall, the total training time was reduced from $\approx 13$ h on 4 GPUs to $\approx$ 200 s on 1024 GPUs for training ResNet50 (234 times faster) and $\approx$ 17 h to $\approx$ 300 s for the Resnet152 case (204 times faster), respectively. This good scaling behavior proves the combined power of distributed DL and HPC when using the right tools and methods. Such short training times enable the developers to focus more on code and hyperparameter tuning, leading in the end to better models. In summary, researchers should scale their training with the usage of Horovod or PyTorch-DDP to as much GPUs as possible, until the degradation of the accuracy sets in.

There exist other distributed DL frameworks that could be analyzed in terms of performance on large HPC systems. Furthermore, on the hardware side, different processor architectures that are tailored for machine learning, e.g., TPUs or Graphocore IPUs [49], are emerging and will undoubtedly play a key role in distributed DL. In the future, these developments will be further investigated.

The issue with the accuracy drop for large batch sizes also requires further attention. Other promising techniques apart from learning rate scheduling methods include novel optimizers, e.g., NVLAMB [50]. A comprehensive hyperparameter tuning routine, which includes other optimizer-related parameters, such as weight-decay rate or momentum can also impact the performance.

While this work evaluated the data loaders and frameworks already at large scale, further scaling tests are needed for even bigger systems, e.g., Exascale machines. Therefore, larger datasets and more complex models will be required. Other model architectures such as Autoencoders or Transformers have shown great success on various tasks and hence might be a good choice.

Future directions of general big data research include developing more efficient and adaptive distributed DL algorithms to handle heterogeneous data sources, reduce storage and communication overheads in HPC systems, and perform energy efficiency training of DL models on massive datasets.
