IoT information theft prediction using ensemble feature selection

Abstract

The recent years have seen a proliferation of Internet of Things (IoT) devices and an associated security risk from an increasing volume of malicious traffic worldwide. For this reason, datasets such as Bot-IoT were created to train machine learning classifiers to identify attack traffic in IoT networks. In this study, we build predictive models with Bot-IoT to detect attacks represented by dataset instances from the Information Theft category, as well as dataset instances from the data exfiltration and keylogging subcategories. Our contribution is centered on the evaluation of ensemble feature selection techniques (FSTs) on classification performance for these specific attack instances. A group or ensemble of FSTs will often perform better than the best individual technique. The classifiers that we use are a diverse set of four ensemble learners (Light GBM, CatBoost, XGBoost, and random forest (RF)) and four non-ensemble learners (logistic regression (LR), decision tree (DT), Naive Bayes (NB), and a multi-layer perceptron (MLP)). The metrics used for evaluating classification performance are area under the receiver operating characteristic curve (AUC) and Area Under the precision-recall curve (AUPRC). For the most part, we determined that our ensemble FSTs do not affect classification performance but are beneficial because feature reduction eases computational burden and provides insight through improved data visualization.

Introduction

The IoT is a network of physical objects with limited computing capability [1]. In recent years, there has been rapid growth in the use of these smart devices, as well as an increasing security risk from malicious network traffic. Several datasets have been created for the purpose of training machine learning classifiers to identify attack traffic. One of the more recent datasets for network intrusion detection is Bot-IoT [2].

The Bot-IoT dataset contains instances of various attack categories: denial-of-service (DoS), distributed denial-of-service (DDoS), reconnaissance, and information theft. The processed full dataset was generated by the Argus network security tool [3] and is available from an online repository of several comma-separated values (CSV) files. Bot-IoT has 29 features and 73,370,443 instances. Table 1 shows the categories and subcategories of IoT network traffic for the full dataset.

Table 1 Bot-IoT: full set

In this work, we identify normal and attack type classes of Bot-IoT. The attack types we identify are from the information theft category and from its data exfiltration and keylogging subcategories. Hence, we evaluate three datasets, one composed of normal and information theft attack instances, another composed of normal and data exfiltration attack instances, and a third composed of normal and keylogging attack instances. The keylogging [4] subcategory refers to the interception of information sent from input devices, while the data exfiltration [5] subcategory broadly refers to the unauthorized transfer of data from a computer.

Each of the three datasets has 9543 instances labeled as Normal traffic. In addition, the Information Theft dataset has 1587 instances labeled as the information theft attack type, the data exfiltration dataset has 118 instances labeled as the data exfiltration attack type, and the keylogging dataset has 1469 instances labeled as the keylogging attack type. Based on the minority-to-majority class ratios (i.e., ratios of attack-to-normal instances), all three datasets have a class imbalance. To address the class imbalance, we use the random undersampling (RUS) [6] technique.

In all experiments, we employ the following eight learners: CatBoost [7], Light GBM [8], XGBoost [9], RF [10], DT [11], LR [12], NB [13], and a MLP [14]. To gauge the performance of these classifiers, the AUC and AUPRC metrics are used. Also, during training for some experiments, we apply hyperparameter tuning.

The crux of this study involves the comparison of results from experimentation with and without ensemble feature selection for the information theft, data exfiltration, and keylogging attack types. Feature selection reduces computational burden (i.e., speeds up training time) and provides data clarity (i.e., facilitates visual detection of patterns). In some cases, feature selection can improve classification performance and mitigate the effects of class imbalance [6]. Ensemble FSTs incorporate multiple feature ranking techniques to produce a combined method that is more efficient than its individual components [15]. Our ensemble FSTs are derived from both supervised and filter-based feature ranking techniques [16].

As far as we are aware, this is the first paper that exclusively evaluates the effect of ensemble feature selection on the Bot-IoT information theft category and subcategories. Furthermore, our use of eight different classifiers boosts the validity of our results.

The remainder of this paper is organized as follows: "Bot-Iot developmental environment" section describes the developmental environment and tools used to create Bot-IoT; "Related works" section discusses related Bot-IoT literature; "Methodology" section discusses preprocessing and classification tasks; "Results and discussion" section presents and analyzes our results; and "Conclusion" section concludes with the main points of this paper. In addition, Appendix A provides a list of features and their definitions, Appendix B contains tables of selected features, and Appendix C contains tables of tuned parameter values.

Bot-Iot developmental environment

Created in 2018 by the University of New South Wales (UNSW), Bot-IoT was designed to be a realistic representation of botnet attacks on IoT devices. The dataset was developed in a virtualized environment, with ten virtual machines hosted by an ESXi [17] hypervisor that accessed the Internet through a packet-filtering firewall. Fig 1 shows a schematic of the network within which Bot-IoT was created.

Fig. 1

Network diagram

The virtual machines were divided into three groups: IoT, Bots, and Supporting. Normal network traffic was generated by the Ostinato [18] tool, and IoT traffic was generated by the Node-Red [19] tool, along with several scripts run on a group of the virtual machines. Node-Red was used to simulate five IoT scenarios: a weather station, a smart refrigerator, motion activated lights, a smart garage door, and a smart thermostat. Attack traffic was generated using a variety of tools from the Kali Linux [20] suite, an open-source Linux distribution popular with penetration testers and others in the information security industry.

The IoT group of virtual machines comprised four machines running different operating systems. An Ubuntu server [21], which hosted some basic network services as well as the Message Queuing Telemetry Transport (MQTT) [22] protocol broker, was one of the most essential IoT virtual machines. In IoT networks, the MQTT protocol is used to share data between IoT devices and other clients using a publish/subscribe approach. It is utilized in a range of industries and provides a lightweight communications solution that uses less bandwidth. Mosquito MQTT [23] is the MQTT broker used in this testbed. Fig 2 provides an illustrative example of the MQTT broker involved in a data sharing task.

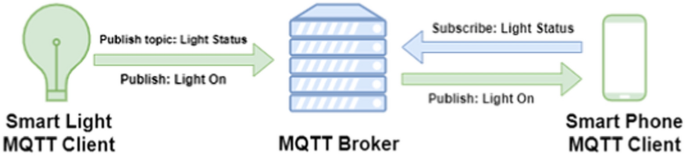

Fig. 2

MQTT example

The other three IoT virtual machines ran Ubuntu Mobile [24], Windows 7, and Metasploitable [25], among other operating systems. Ubuntu Mobile is a Linux-based mobile phone operating system that is based on the Ubuntu desktop operating system. Windows 7 is a deprecated version of the Microsoft Windows operating system. Rapid7 created and published Metasploitable, a Linux-based virtual machine with many built-in vulnerabilities. The flaws were purposely built into Metasploitable to allow it to be utilized in penetration testing laboratories. These three virtual machines used Node-Red to act as IoT clients and devices, communicating with the Ubuntu server using the MQTT protocol. These four machines combined served as the attack surface for the Bots group of virtual machines.

The Bots group was made up of four virtual machines intended to simulate a botnet, which is a collection of machines controlled and used by a criminal actor. The Kali Linux operating system was installed on each of the four machines. They were equipped with a large toolkit that was used to conduct various assaults against the IoT group. The Theft attacks were carried out with the help of exploits and tools from the Metasploit penetration testing framework [26].

The Supporting group assisted in the generation and collection of data within the testbed. These machines consisted of an Ubuntu tap and a pfSense [27] firewall. The Ubuntu tap virtual machine sat on the same virtual network as the IoT and Bots groups. It utilized a conventional Ubuntu operating system, but was configured with a promiscuous network interface controller (NIC) to operate in promiscuous mode. The automatic filtering of network traffic not intended for the host is disabled when the NIC is set to promiscuous mode. This allows packet analyzers like tcpdump [28] to record all traffic passing through the NIC. All communication to and from any of the IoT or Bots group of virtual machines was captured by the Ubuntu tap virtual machine. The pfSense firewall, which is the other virtual machine in the Supporting group, had both a local area network (LAN) interface and a wide area network (WAN) interface. The pfSense device served as the primary gateway out of the virtual network.

Related works

In this section, we highlight works associated with detecting malicious traffic in Bot-IoT. To the best of our knowledge, none of the related works have exclusively focused on detecting instances of information theft with ensemble FSTs.

Koroniotis et al. [29] proposed a network forensics model that authenticates network data flows and uses a deep neural network (DNN) [30] based on particle swarm optimization (PSO) [31] to identify traffic anomalies. The authors used the 5% Bot-IoT dataset, which they split in an 80:20 ratio for training and testing. The logistic cost function [32] was utilized, as it has been shown to be efficient at separating normal from attack traffic. The cost function is defined by the following equation [29]:

$$\begin{aligned} -\frac{1}{m}\sum _{i=1}^{m}( y_ilog(\hat{y_i})+(1-y_i)log(1-\hat{y_i})) \end{aligned}$$

(1)

To treat class imbalance, weights for normal traffic $w_0$ and attack traffic $w_1$ were incorporated into this cost function. This modified equation is defined as follows: equation [29]:

$$\begin{aligned} -\frac{1}{m}\sum _{i=1}^{m}( w_1y_ilog(\hat{y_i})+w_0(1-y_i)log(1-\hat{y_i})) \end{aligned}$$

(2)

The best scores obtained by the model for accuracy, precision, recall, and F-measure were 99.90%, 100%, 99.90%, and 99.90%, respectively. Model performance was evaluated against the reported performance of models from other studies. The authors state that their model outperformed these other models (NB, MLP, association rule mining (ARM) [33], DT, support vector machine (SVM) [34], recurrent neural network (RNN) [35], and long short-term memory (LSTM) [36]). Evaluating model performance from one study against reported model performance from a non-identical study is problematic, since there may be too many factors of variation in the external study to account for.

Using a convolutional neural network (CNN) [37] and CUDA deep neural network LSTM (cuDNNLSTM)¹ hybrid, Liaqat et al. [38] set out to prove that their proposed model could outperform a Deep Neural Network-Gated Recurrent Unit (DNN-GRU) [39] hybrid, as well as a long short-term memory-gated re-current unit (LSTM-GRU) [39] hybrid. The dataset sample contained 477 normal instances and 668,522 attack instances from Bot-IoT. During data preprocessing, the data was normalized, feature extraction was performed, and to address class imbalance, the number of normal instances was up-sampled to 2,400. The hybrid CNN-cuDNNLSTM model was shown to be the best performer with top scores of 99.99%, 99.83%, 99.33%, and 99.33% for accuracy, precision, recall and F-measure, respectively. We point out that the use of up-sampling techniques can sometimes result in overfitted models [40]. For this study, the authors have not provided adequate information on their up-sampling technique and the model-building process in order for us to rule out the occurrence of overfitting. Therefore, we believe that their proposed model should also be evaluated on out-of-sample data to reaffirm their results.

Mulyanto et al. [41] proposed a cost-sensitive neural network based on focal loss [42]. The cross-entropy loss function [43], which is widely used in neural network classification models, is integrated with focal loss to reduce the influence of the majority class(es) for binary and multi-class classification. A CNN and a DNN served as the neural network classifiers for this approach. The networks were trained on the NSL-KDD [44], UNSW-NB15, and Bot-IoT datasets. The Bot-IoT dataset sample contained about 3,000,000 instances. For binary classification, the cost-sensitive neural networks based on focal loss outperformed neural networks where the synthetic minority oversampling technique (SMOTE) [45] technique was applied and also outperformed plain neural networks. For Bot-IoT, top scores were obtained for the DNN cost-sensitive, focal-loss model: 99.83% (accuracy), 99.93% (precision), 96.89% (recall), and 98.30 (F-measure). We note that there is an inadequate amount of information provided on the preprocessing stage for Bot-IoT.

Ge et al. [46] trained a feedforward neural network [47] and an SVM on Bot-IoT to evaluate performance for binary and multi-class classification. About 11,175,000 Bot-IoT instances were selected. After feature extraction and data preprocessing, the dataset was split in a 64:16:20 ratio for training, validation, and testing, respectively. To address class imbalance, higher weights were assigned to underrepresented classes. Class weights for the training data were obtained by dividing the packet count for each class by the total packet count and then inverting the quotient. Classification results show that the neural network outperformed the SVM. For binary classification with the neural network, the best score for accuracy was 100%, while the best scores for precision, recall, and F-measure were all 99.90%. While multi-class classification scores were provided for the SVM classifier, binary classification scores were not. Hence, the binary classification scores for the neural network cannot be compared with classification scores for the SVM. This detracts from the authors’ conclusion that the feedforward neural network is the better classifier.

Finally, to detect DDoS attacks, Soe et al. [48] trained a feedforward neural network on 477 normal instances and about 1,900,000 DDoS instances from Bot-IoT. The dataset was split in a ratio of 66:34 for training and testing, and the SMOTE algorithm was utilized to address class imbalance. After the application of SMOTE during data preprocessing, the training dataset contained about 1,300,000 instances for each class, while the test dataset contained 655,809 normal instances and 654,285 DDoS instances. The data was then normalized. Precision, Recall, and F-measure scores were all 100%. We point out that there is a lack of information on data cleaning in the study. In addition, it is unclear why the authors believe that balancing the classes (positive to negative class ratio of 50:50) is the optimal solution. Also, in their paper, only the DT classifier is used, i.e., reliance on only one classifier.

We again note that after reviewing these five works, none were found to be solely based on Bot-IoT information theft detection. In addition, we use ensemble feature selection for building our predictive models.

Methodology

Data cleaning

As discussed in the next three paragraphs, there are six features in Bot-IoT that do not provide generalizable information [49].

The pkSeqID and seq features were removed because they are row or sequence identifiers and only provide information regarding order. Removing pkSeqID was obvious based on the definition provided by Koroniotis et al. [2]. However, removing seq was less so, as seq has been highly utilized in many studies [49]. Based on our consultation with the developers of the Argus network security tool and on our own investigation, we discovered that seq is a monotonically increasing sequence number pertaining to the records processed by the tool. With this clarification, we determined that it did not provide any additional relevant or generalizable information for our models.

The features stime and ltime are timestamps corresponding to the start packet time and last packet time for each instance. While they are useful for determining key features like duration or rate, this information is already provided by the features dur, rate, srate, and drate. With that information already present, we believe that both stime and ltime are unlikely to provide any additional information and may contribute to the overfitting of data by our models.

The saddr and daddr features pertain to the source and destination Internet Protocol (IP) addresses for each of the instances. While this information can provide highly relevant contextual information for security analysts, we chose to exclude it because private IP addresses can vary from network to network. Should a model learn to attribute a behavior based entirely or partially on the source or destination IP, it would be ineffective if tested against a dataset generated with different IP addresses.

We also discovered that many instances using Internet Control Message Protocol (c) have a hexadecimal value for the sport and dport features or are missing values for these features. Because of this, we changed all missing and hexadecimal ICMP values for sport and dport to -1 to indicate an invalid port value.

Data transformations

The flgs_number, fproto_number, sport, dport, and state_number categorical features were one-hot encoded. The one-hot encoding process, which was implemented by CatBoost’s Ordered Target Statistics², transforms categorical features into dummy variables. We also performed feature scaling to provide a [0,1] normalized range for all numerical features.

Data sampling

RUS is a technique to deal with class imbalance where we discard members of the majority class until the ratio of instances of majority and minority class members reaches a desired level. If the experiment involved RUS, we applied it to the training data only. The desired minority-to-majority class ratios we used RUS to obtain are those from [50], where the authors report yield strong results. These ratios are 1:1, 1:3, and 1:9. However, given the initial ratios of minority-to-majority class in the Information Theft dataset (1587:9543), it was only possible to do RUS for the 1:1 and 1:3 ratios.

Ensemble feature selection

A further preprocessing step we employed for some experiments is our ensemble FST. The FST is a two-step process. For the first step, we employed three filter-based feature ranking techniques. They are the information gain [51], information gain ratio [52], and Chi squared (Chi 2) [53] feature ranking techniques. We also ranked features according to four supervised learning-based feature ranking techniques. Feature importance lists from RF, CatBoost, XGBoost, and LightGBM served as the basis for the supervised feature ranking techniques.

We then took the 20 highest ranked attributes. We decided to use 20 features based on results of previous studies [54]. Therefore, we searched for features occurring in a set number of 7 rankings, where that number ranges from 4 to 7. Put another way, since we have 7 rankings, we require a majority of rankings to agree that a feature is among the 20 most important features in order to select it. This yielded 4 datasets sets of selected features, which we called the 4 Agree, 5 Agree, 6 Agree, and 7 Agree datasets. The tables in Appendix A show the features selected for the supervised-based feature ranking techniques, the filter-based feature ranking techniques, and the 4, 5, 6 and 7 Agree datasets.

Classifiers and performance metrics

This study involves four ensemble classifiers (CatBoost, Light GBM, XGBoost, and RF) and four non-ensemble classifiers (DT, LR, NB, and an MLP). These classifiers belong to various machine learning families of algorithms and are widely considered to be reliable [55]. CatBoost, Light GBM, and XGBoost were implemented with their respective self-named Python libraries, while the other classifiers were implemented with Scikit-learn.³

CatBoost, Light GBM, and XGBoost are gradient-boosted decision trees (GBDTs) [56], which are ensembles of sequentially trained trees. An ensemble classifier combines weak algorithms, or instances of an algorithm, into a strong learner. CatBoost relies on ordered boosting to order the instances used for fitting DTs. Light GBM is characterized by gradient-based one-side sampling and exclusive feature bundling. One-side sampling disregards a significant fraction of instances with small gradients, and exclusive feature bundling categorizes mutually exclusive features to reduce variable count. XGBoost utilizes a sparsity-aware algorithm and a weighted quantile sketch. Sparsity is defined by zero or missing values, and a weighted quantile sketch benefits from approximate tree learning [57] to support pruning and merging tasks. RF is also an ensemble of DTs, but unlike the GBDTs, it uses a bagging technique [58].

DT is a non-parametric approach that offers a simplistic tree-like representation of observed data. Each internal node represents a test on a specified feature, and each branch represents the outcome of a particular test. Each leaf node represents a class label. LR uses a sigmoidal function to generate probability values. Predictions for class membership are centered on a specified probability threshold. NB uses conditional probability to determine class membership. This classifier is considered “naive” because it operates on the assumption that features are independent of each other. An MLP is a type of artificial neural network with fully connected nodes. It utilizes a non-linear activation function and contains an input layer, one or more hidden layers and an output layer.

In our work, we used more than one performance metric (AUC and AUPRC) to better assess the challenge of evaluating classifiers. AUC is the area under the receiver operating characteristic (ROC) curve, which is a plot of true positive rate (TPR) versus false positive rate (FPR). This metric incorporates all classification thresholds represented by the curve [59] and is essentially a summary of overall model performance. AUPRC is the area under the Precision-Recall curve. This metric shows the trade-off between precision and recall for specific classification thresholds [60].

Parameters and cross validation

Before we trained our classifiers, we used default hyperparameters and/or tuned hyperparameters to help control the learning process. Hyperparameter tuning was effected by RandomizedSearchCV⁴, a module of Scikit-learn. We list these tuned parameters in Appendix B.

During training, we implemented ten iterations of stratified five-fold cross-validation, which means there are 50 performance scores obtained per classifier for each metric. For k-fold cross-validation, every instance is placed in a validation set once and placed in a training set k-1 times. This means that for five-fold cross-validation, every instance gets to be in a validation set once and in a training set four times. The stratified component of cross-validation aims to ensure that each class is equally represented across each fold [61]. Because we randomly shuffled instances before cross-validation, certain algorithms such as LR may yield different results when the order of instances is changed [62]. One way of addressing the undesirable effect of this randomness is by performing several iterations, as we have done [63]. Note that each AUC or AUPRC value shown in the classification performance tables is an average of the 50 performance scores.

High-level methodology overview

For each of the attack types (information theft, data exfiltration, and keylogging), we divided our experiments into those that did not use ensemble FSTs and those that used them. For the tasks that did not involve ensemble FSTs, we first performed experimentation where we did not use hyperparameter tuning or data sampling. Second, we performed experimentation where we applied data sampling. Third, we performed experimentation where we applied both data sampling and hyperparameter tuning. For the tasks that involved ensemble FSTs, feature selection was a necessary component for all three experimentation steps.

Results and discussion

In this section, we present results for classification performance, with and without the application of FSTs, and also present statistical analyses. Results are compartmentalized by attack type (information theft, data exfiltration, and keylogging).

Experiment names indicate the classifier used, whether we apply RUS (and in what ratio), and whether we apply hyperparameter tuning. For example, the experiment name “MLP Tuned RUS 1:3 6 Agree” indicates we use the MLP classifier, with hyperparameters tuned by RandomizedSearchCV, with RUS to a 1:3 ratio, and the 6 Agree FST. If there is no mention of RUS or a ratio in the experiment name this means we did not apply RUS.

Information theft

Information theft without ensemble feature selection

Table 2 contains results for experiments with default hyperparameters and no RUS. For AUC, the highest score of 0.99703 was obtained by CatBoost. For AUPRC, the highest score of 0.99984 was obtained by CatBoost.

Table 3 contains results for experiments with default hyperparameters after RUS is applied. For AUC, the highest score of 0.99842 was obtained by CatBoost with a balanced class ratio of 1:1. For AUPRC, the highest score of 0.99983 was obtained by CatBoost with a balanced class ratio of 1:1.

Table 4 contains results for experiments after RUS and hyperparameter tuning are applied. For AUC, CatBoost with a balanced class ratio of 1:1 obtained the highest score of 0.99803. For AUPRC, CatBoost with a minority-to-majority class ratio of 1:3 obtained the highest score of 0.99980.

Table 2 Classification results for the information theft dataset no sampling default hyperparameter values experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Table 3 Classification results for the information theft dataset with sampling and default hyperparameters experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Table 4 Classification results for the information theft dataset with sampling and tuned hyperparameters experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Information theft with ensemble feature selection

Due to the number of experiments performed, Tables 5 and 6 only report the best performance by classifier, over all combinations of RUS, hyperparameter tuning, and ensemble FSTs. Table 5 shows AUC scores obtained. CatBoost, with a class ratio of 1:3 and 5 Agree FST, yielded the highest score in this table of 0.99838. Table 6 shows AUPRC scores obtained. CatBoost with a 7 Agree FST and no RUS produced the highest score in this table of 0.99986.

Table 5 Maximum AUC by classifier for the information theft attack type; mean and standard deviations of AUC, (10 iterations of 5-fold cross-validation)

Table 6 Maximum AUPRC by classifier for the information theft attack type; mean and standard deviations of AUPRC, (10 iterations of 5-fold cross-validation)

Information theft statistical analysis

To understand the statistical significance of the classification performance scores, we run analysis of variance (ANOVA) tests. ANOVA establishes whether there is a significant difference between group means [64]. A 99% ($\alpha$ = 0.01) confidence level is used for our ANOVA tests. The results are shown in Tables 7 and 8, where Df is the degrees of freedom, Sum Sq is the sum of squares, Mean Sq is the mean sum of squares, F value is the F-statistic, and Pr(>F) is the p-value.

The first ANOVA test we run for Information Theft evaluates the impact of factors on performance in terms of AUC. As shown in Table 7, the p-value associated with every factor is practically 0. Therefore, we conclude all factors have a significant impact on performance in terms of AUC.

Table 7 ANOVA for classifier, RUS, hyperparameters and FST as factors of performance in terms of AUC

The second ANOVA test we run for information theft evaluates the impact of factors on performance in terms of AUPRC. As shown in Table 8, the p-value associated with every factor is practically 0. Therefore, we conclude all factors have a significant impact on performance in terms of AUPRC

Table 8 ANOVA for classifier, RUS, hyperparameters and FST as factors of performance in terms of AUPRC

Since all factors significantly impact performance for both AUC and AUPRC, Tukey’s Honestly Significant Difference (HSD) tests [65] are performed to determine which groups are significantly different from each other. Letter groups assigned via the Tukey method indicate similarity or significant differences in performance results within a factor.

With regard to AUC, we first apply the HSD test to the group classifier factor, with the results shown in Table 9. In this table, the highest ranked classifiers are the GBDT classifiers, followed by RF. Next, we cover the HSD test for the RUS factor. The results of this test, as shown in Table 10, reveal that undersampling, either to the 1:1 or 1:3 minority-to majority-class ratios yield similar performance, which is better than not using undersampling. For the hyperparameter tuning factor, the results of the HSD test provided in Table 11 indicate that hyperparameter tuning is generally better than the default hyperparameter values. Table 12 shows the HSD test results for the FST factor. Here, we find the only FST that has significantly worse performance than the others is the 7 Agree. Otherwise, using all features or any other FST yields similar results. Since the 6 Agree FST yields the smallest number of features in group ‘a’, we recommend using the features that the 6 Agree FST selects. Classifiers usually train faster on datasets with comparatively fewer features.

Table 9 HSD test groupings after ANOVA of AUC for the Classifier factor

Table 10 HSD test groupings after ANOVA of AUC for the RUS factor

Table 11 HSD test groupings after ANOVA of AUC for the hyperparameters factor

Table 12 HSD test groupings after ANOVA of AUC for the FST factor

In terms of AUPRC, the HSD test results for the group classifier factor, as shown in Table 13, indicate that the GBDT classifiers yield the best performance. However, unlike the case for performance in terms of AUC, the performance of RF, which is not a GBDT classifier, is not significantly less than that of the GBDT classifiers. The HSD test results for the RUS factor are provided in Table 14. It turns out that not doing RUS is the best choice. As shown in Table 15, the HSD test results for the hyperparameter tuning factor indicate that default hyperparameter values are the better choice. Finally, Table 16 provides HSD test results for the FST factor. These results are similar to those we see for performance in terms of AUC. Only the 7 agree FST yields a lower performance than other levels of FST. Therefore, the 6 Agree FST is preferred, since it has fewer features than the 4 Agree and 5 Agree FSTs.

Table 13 HSD test groupings after ANOVA of AUPRC for the Classifier factor

Table 14 HSD test groupings after ANOVA of AUPRC for the RUS factor

Table 15 HSD test groupings after ANOVA of AUPRC for the hyperparameters factor

Table 16 HSD test groupings after ANOVA of AUPRC for the FST factor

Information theft conclusion

The GBDT classifiers, and in some cases RF, yield similar performance. HSD test results indicate their performance is better than that of the other classifiers. While the ANOVA tests reveal that hyperparameter tuning is a significant factor, we see that hyperparameter tuning yields better performance in terms of AUC, but worse performance in terms of AUPRC. Therefore, we conclude that hyperparameter tuning is only necessary for optimizing performance in terms of AUC. For the case of performance in terms of AUC, undersampling has a positive impact on performance. However, for performance in terms of AUPRC, we see that the best strategy for RUS is to not use it. We find there is no impact on performance in terms of AUC or AUPRC when we apply the 4, 5, or 6 Agree FSTs, since the HSD test ranks these in the best performing group, along with the technique where we use all features. Furthermore, these techniques all outperform the 7 Agree FST. Since using fewer features yields performance equivalent to using all features, we conclude that we should use the 6 Agree FST in future work. The 6 Agree FST yields the smallest number of features, and model training is usually faster with fewer features.

Data exfiltration

Data exfiltration without ensemble feature selection

Table 17 contains results for experiments with default hyperparameters and no RUS. For AUC, the highest score of 0.98126 was obtained by CatBoost. For AUPRC, the highest score of 0.99446 was obtained by CatBoost.

Table 18 contains results for experiments with default hyperparameters after RUS is applied. For AUC, the highest score of 0.99011 was obtained by RF with a balanced class ratio of 1:1. For AUPRC, the highest score of 0.99148 was obtained by CatBoost with a minority-to-majority class ratio of 1:9.

Table 19 contains results for experiments after RUS and hyperparameter tuning are applied. For AUC, CatBoost with a minority-to-majority class ratio of 1:9 obtained the highest score of 0.99281. For AUPRC, CatBoost with a minority-to-majority class ratio of 1:9 obtained the highest score of 0.99292.

Table 17 Classification results for the data exfiltration dataset no sampling default hyperparameter values experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Table 18 Classification results for the data exfiltration dataset with sampling and default hyperparameters experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Table 19 Classification results for the data exfiltration dataset with sampling and tuned hyperparameters experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Data exfiltration with ensemble feature selection

Due to the number of experiments performed, Tables 20 and 21 only report the best performance by classifier, over all combinations of RUS, hyperparameter tuning, and ensemble FSTs. Table 20 shows AUC scores obtained. CatBoost, with a minority-to-majority class ratio of 1:9 and 4 Agree FST, yielded the highest score in this table of 0.99076. Table 21 shows AUPRC scores obtained. CatBoost with a 5 Agree FST and no RUS produced the highest score in this table of 0.99448.

Table 20 Maximum AUC by classifier for the data exfiltration attack type; mean and standard deviations of AUC, (10 iterations of 5-fold cross-validation)

Table 21 Maximum AUPRC by classifier for the data exfiltration attack type; mean and standard deviations of AUPRC, (10 iterations of 5-fold cross-validation)

Data exfiltration statistical analysis

As done previously for the Information Theft statistical analysis, we perform ANOVA tests for the Data Exfiltration dataset. The results are shown in Tables 22 and 23, where Df is the degrees of freedom, Sum Sq is the sum of squares, Mean Sq is the mean sum of squares, F value is the F-statistic, and Pr(>F) is the p-value.

The first ANOVA test we run for Data Exfiltration evaluates the impact of factors on performance in terms of AUC. As shown in Table 22, the p-value associated with every factor is practically 0. Therefore, we conclude all factors have a significant impact on performance in terms of AUC.

Table 22 ANOVA for classifier, RUS, hyperparameters and FST as factors of performance in terms of AUC

The second ANOVA test we run for data exfiltration evaluates the impact of factors on performance in terms of AUPRC. As shown in Table 23, the p-value associated with every factor is practically 0. Therefore, we conclude all factors have a significant impact on performance in terms of AUPRC

Table 23 ANOVA for classifier, RUS, hyperparameters and FST as factors of performance in terms of AUPRC

With regard to AUC, we begin with the HSD test applied to the group classifier factor, with the results shown in Table 24. In this table, the GBDT classifiers and RF show the best performance. However, CatBoost is ranked above all others. Next, we address the HSD test for the RUS factor. The results of this test, as shown in Table 25, indicate that the 1:1 or 1:3 class ratios yield the best performance. For the hyperparameter tuning factor, the results of the HSD test provided in Table 26 indicate that hyperparameter tuning is a better alternative than the default hyperparameter values. Table 27 shows the HSD test results for the FST factor. Here, we find the 7 Agree FST yields better performance than any other FST. This is an ideal result, since the less complex model with fewer features outperforms the models that have more features.

Table 24 HSD test groupings after ANOVA of AUC for the classifier factor

Table 25 HSD test groupings after ANOVA of AUC for the RUS factor

Table 26 HSD test groupings after ANOVA of AUC for the hyperparameters factor

Table 27 HSD test groupings after ANOVA of AUC for the FST factor

In terms of AUPRC, the HSD test results for the group classifier factor, as shown in Table 28, indicate that the GBDT classifiers and RF yield the best performance. The HSD test results for the RUS factor are provided in Table 29. It turns out that not doing RUS is the best choice. As shown in Table 30, the HSD test results for the hyperparameter tuning factor indicate that hyperparameter tuning is a better alternative than the default hyperparameter values. Finally, Table 31 provides HSD test results for the FST factor. Since the 6 Agree technique yields fewer features than the 4 Agree and 5 Agree techniques, we prefer the 6 Agree.

Table 28 HSD test groupings after ANOVA of AUPRC for the classifier factor

Table 29 HSD test groupings after ANOVA of AUPRC for the RUS factor

Table 30 HSD test groupings after ANOVA of AUPRC for the hyperparameters factor

Table 31 HSD test groupings after ANOVA of AUPRC for the FST factor

Data exfiltration conclusion

Similar to results for classifying the Information Theft attack type data, the GBDT classifiers yield the best performance, along with RF. For classifying the data exfiltration attack type, we find results for AUC and AUPRC with hyperparameter tuning are higher than those where we use default parameter tuning. As in the case with classifying the Information Theft dataset, there are mixed results for the application of RUS. For performance in terms of AUC, applying RUS to the data before training improves performance. However, for performance in terms of AUPRC, not using RUS yields better results. For classifying data exfiltration attack type data, if AUC is the more important metric, then the best FST for classification performance is the 7 Agree FST. However, if AUPRC is the more important metric, then the 6 Agree FST yields a dataset with the fewest features, but yields performance similar to using all features.

Keylogging

Keylogging without ensemble feature selection

Table 32 contains results for experiments with default hyperparameters and no RUS. For AUC, the highest score of 0.99643 was obtained by Light GBM. For AUPRC, the highest score of 0.99987 was obtained by CatBoost.

Table 33 contains results for experiments with default hyperparameters after RUS is applied. For AUC, the highest score of 0.99796 was obtained by CatBoost with a balanced class ratio of 1:1. For AUPRC, the highest score of 0.99981 was obtained by CatBoost with a balanced class ratio of 1:1.

Table 34 contains results for experiments after RUS and hyperparameter tuning are applied. For AUC, CatBoost with a balanced class ratio of 1:1 obtained the highest score of 0.99749. For AUPRC, CatBoost with a balanced class ratio of 1:1 also obtained the highest score of 0.99971.

Table 32 Classification results for the keylogging dataset no sampling default hyperparameter values experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Table 33 Classification results for the keylogging dataset with sampling and default hyperparameters experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Table 34 Classification results for the keylogging dataset with sampling and tuned hyperparameters experiments; mean and standard deviations of AUC and AUPRC, (10 iterations of 5-fold cross-validation)

Keylogging with ensemble feature selection

Due to the number of experiments performed, Tables 35 and 36 only report the best performance by classifier, over all combinations of RUS, hyperparameter tuning, and ensemble FSTs. Table 35 shows AUC scores obtained. CatBoost with a 6 Agree FST and a balanced class ratio of 1:1 yielded the highest score in this table of 0.99807. Table 36 shows AUPRC scores obtained. CatBoost with a 6 Agree FST and no RUS produced the highest score in this table of 0.99988.

Table 35 Maximum AUC by classifier for the keylogging attack type; mean and standard deviations of AUC, (10 iterations of 5-fold cross-validation)

Table 36 Maximum AUPRC by classifier for the keylogging attack type; mean and standard deviations of AUPRC, (10 iterations of 5-fold cross-validation)

Keylogging statistical analysis

As done previously for the Information Theft and data exfiltration datasets, we perform ANOVA tests for the Keylogging dataset. The results are shown in Tables 37 and 38, where Df is the degrees of freedom, Sum Sq is the sum of squares, Mean Sq is the mean sum of squares, F value is the F-statistic, and Pr(>F) is the p-value.

The first ANOVA test we run for keylogging evaluates the impact of factors on performance in terms of AUC. As shown in Table 37, the p-value associated with every factor is practically 0. Therefore, we conclude all factors have a significant impact on performance in terms of AUC.

Table 37 ANOVA for classifier, RUS, hyperparameters and FST as factors of performance in terms of AUC

The second ANOVA test we run for keylogging evaluates the impact of factors on performance in terms of AUPRC. As shown in Table 38, the p-value associated with all factors, except hyperparameter tuning (0.8137) is practically 0. Therefore, we conclude that only hyperparameter tuning does not have a significant impact on performance in terms of AUPRC.

Table 38 ANOVA for classifier, RUS, hperparameters and FST as factors of performance in terms of AUPRC

With regard to AUC, we begin with the HSD test applied to the group classifier factor, with the results shown in Table 39. In this table, the GBDT classifiers and RF show the best performance. Next, we cover the HSD test for the RUS factor. The results of this test, as shown in Table 40, indicate that the 1:1 or 1:3 class ratios yield the best performance. For the hyperparameter tuning factor, the results of the HSD test provided in Table 41 indicate that hyperparameter tuning is a better alternative than the default hyperparameter values. Table 42 shows the HSD test results for the FST factor. Here, we see that using the dataset with a larger number of features yields the best result.

Table 39 HSD test groupings after ANOVA of AUC for the classifier factor

Table 40 HSD test groupings after ANOVA of AUC for the RUS factor

Table 41 HSD test groupings after ANOVA of AUC for the hyperparameters factor

Table 42 HSD test groupings after ANOVA of AUC for the FST factor

In terms of AUPRC, the HSD test results for the group classifier factor, as shown in Table 43, indicate that the GBDT classifiers and RF yield the best performance. The HSD test results for the RUS factor are provided in Table 44. It turns out that not doing RUS is the best choice. Finally, Table 45 provides HSD test results for the FST factor. We prefer the 6 Agree FST since it yields performance similar to using all features, and it has the fewest features.

Table 43 HSD test groupings after ANOVA of AUPRC for the classifier factor

Table 44 HSD test groupings after ANOVA of AUPRC for the RUS factor

Table 45 HSD test groupings after ANOVA of AUPRC for the FST factor

Keylogging conclusion

As with other attack types, we see the GBDT classifiers yield the best performance. The HSD tests for the influence of hyperparameter tuning on results in terms of AUC show that hyperparameter tuning yields better performance. However, for performance in terms of AUPRC, hyperparameter tuning is not significant. Similar to what we observe with results for classifying data exfiltration attack types, we see that if performance in terms of AUC is most important, then data sampling yields better results. However, for results in terms of AUPRC, we find that not applying data sampling gives better results. For performance in terms of AUPRC, we obtain similar results when using the 4 Agree, 5 Agree, 6 Agree FSTs or using all features, since all are in the HSD group ‘a’. However, for performance in terms of AUC, the 4 Agree and 5 Agree FSTs are in category ‘ab’, while All Features is in category ‘a’. This indicates that for AUC, the ensemble FSTs slightly impact performance.

Conclusion

The Bot-IoT dataset is geared toward the training of classifiers for the identification of malicious traffic in IOT networks. In this study, we examine the effect of ensemble FSTs on classification performance for information theft attack types. An ensemble feature selection approach is usually more efficient than its individual FSTs.

To accomplish our research goal, we investigate three datasets, one composed of Normal and Information Theft attack instances, another composed of Normal and data exfiltration attack instances, and a third composed of normal and keylogging attack instances. In general, we observed that our ensemble FSTs do not affect classification performance scores. However, our technique is useful because feature reduction lessens computational burden and provides clarity.

Future work will assess other classifiers that are trained on the identical datasets used in our study. There is also an opportunity to evaluate classifier performance, with respect to information theft detection, on other IOT intrusion detection datasets.

Appendices

Appendix A

In this section, we provide a list of features and their definitions for the full processed Bot-IoT dataset (Table 46).

Table 46 Features and descriptions

Appendix B

Here, we report classification results where we use our ensemble FSTs. First, we report the 20 highest ranked features from each ranking technique in Tables 17 and 18. Throughout this case study the reader may notice a supervised feature ranking technique such as CatBoost or XGBoost may fail to yield 20 features. This is due to the fact that in some instances, classifiers do not assign importance to all features in a dataset. These rankings are followed by a report of which features are in each of the 4 Agree, 5 Agree, 6 Agree, and 7 Agree datasets (Tables 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58).

Feature selection for information theft

Table 47 Features by supervised ranking feature importance

Table 48 Features by filter-based feature importance

Table 49 Results of the 4-Agree and 5-Agree FSTs

Table 50 Results of the 6-Agree and 7-Agree FSTs

Feature selection for data exfiltration

Table 51 Features by supervised ranking feature importance

Table 52 Features by filter-based feature importance

Table 53 Results of the 4-Agree and 5-Agree FSTs

Table 54 Results of the 6-Agree and 7-Agree FSTs

Feature selection for keylogging

Table 55 Features by supervised ranking feature importance

Table 56 Features by filter-based feature importance

Table 57 Results of the 4-Agree and 5-Agree FSTs

Table 58 Results of the 6-Agree and 7-Agree FSTs

Appendix C

In this section, we report tuned hyperparameter values. Due to the number of experiments, we do not report hyperparameter values for every experiment. We report hyperparameter values for classifiers that yields best performance in terms of AUC or AUPRC over the possible levels of data sampling we employ. Since RandomizedSearchCV employs stochastic techniques for discovering hyperparameters, it may discover different settings for hyperparameter values over 10 iterations of 5-fold cross validation. Therefore, we report the mode (most frequently occurring) value of hyperparameters that RandomizedSearchCV discovers.

If RandomizedSearchCV does not discover hyperparameter values different from a classifier’s default values, we do not report a table of hyperparameters for that classifier. For default values of MLP, NB, DT, LR, and RF classifiers’ hyperparameters please see the Scikit-learn classifier documentation ⁵, for XGBoost’s default hyperparameter values we refer to XGBoost documentation ⁶, for CatBoost default hyperparameter values we refer the reader to the CatBoost documentation ⁷, and for Light GBM default hyperparameter values, please consult their documentation ⁸.

Information theft hyperparameters

Information theft without ensemble feature selection

Here, we report hyperparameter values for classifiers that yield results we report in Tables 2, 3 and 4 (Tables 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70).

Table 59 Modes of DT tuned hyperparameter values for experiments with the information theft dataset

Table 60 Modes of DT tuned hyperparameter values for experiments with the theft dataset

Table 61 Modes of XGBoost tuned hyperparameter values for experiments with the information theft dataset

Table 62 Modes of XGBoost tuned hyperparameter values for experiments with the information theft dataset

Table 63 Modes of LR tuned hyperparameter values for experiments with the information theft dataset

Table 64 Modes of LR tuned hyperparameter values for experiments with the information theft dataset

Table 65 Modes of MLP tuned hyperparameter values for experiments with the information theft dataset

Table 66 Modes of MLP tuned hyperparameter values for experiments with the information theft dataset

Table 67 Modes of RF tuned hyperparameter values for experiments with the information theft dataset

Table 68 Modes of RF tuned hyperparameter values for experiments with the information theft dataset

Table 69 Modes of XGBoost tuned hyperparameter values for experiments with the information theft dataset

Table 70 Modes of XGBoost tuned hyperparameter values for experiments with the information theft dataset

Information theft with ensemble feature selection

Here, we report hyperparameter values for classifiers that yield results we report in Tables 5 and 6 , after the application of ensemble FSTs (Tables 71, 72, 73, 74, 75 ).

Table 71 Modes of DT tuned hyperparameter values for experiments with the information theft dataset

Table 72 Modes of LR tuned hyperparameter values for experiments with the information theft dataset

Table 73 Modes of LR tuned hyperparameter values for experiments with the information theft dataset

Table 74 Modes of MLP tuned hyperparameter values for experiments with the information theft dataset

Table 75 Modes of RF tuned hyperparameter values for experiments with the information theft dataset

Data exfiltration hyperparameters

Data exfiltration without ensemble feature selection

Here, we report hyperparameter values for classifiers that yield results we report in Tables 17, 18 and 19 (Tables 76, 77, 78, 79, 80, 81, 8283, 84, 85, 86, 87, ).

Table 76 Modes of DT tuned hyperparameter values for experiments with the data exfiltration dataset

Table 77 Modes of DT tuned hyperparameter values for experiments with the data exfiltration dataset

Table 78 Modes of XGBoost tuned hyperparameter values for experiments with the data exfiltration dataset

Table 79 Modes of XGBoost tuned hyperparameter values for experiments with the data exfiltration dataset

Table 80 Modes of LR tuned hyperparameter values for experiments with the data exfiltration dataset

Table 81 Modes of LR tuned hyperparameter values for experiments with the data exfiltration dataset

Table 82 Modes of MLP tuned hyperparameter values for experiments with the data exfiltration dataset

Table 83 Modes of MLP tuned hyperparameter values for experiments with the data exfiltration dataset

Table 84 Modes of RF tuned hyperparameter values for experiments with the data exfiltration dataset

Table 85 Modes of RF tuned hyperparameter values for experiments with the data exfiltration dataset

Table 86 Modes of XGBoost tuned hyperparameter values for experiments with the data exfiltration dataset

Table 87 Modes of XGBoost tuned hyperparameter values for experiments with the data exfiltration dataset

Data exfiltration with ensemble feature selection

Here, we report hyperparameter values for classifiers that yield results we report in Tables 20 and 21 , after the application of ensemble FSTs (Tables 88, 89, 90, 91, 92).

Table 88 Modes of DT tuned hyperparameter values for experiments with the data exfiltration dataset

Table 89 Modes of XGBoost tuned hyperparameter values for experiments with the data exfiltration dataset

Table 90 Modes of LR tuned hyperparameter values for experiments with the data exfiltration dataset

Table 91 Modes of MLP tuned hyperparameter values for experiments with the data exfiltration dataset

Table 92 Modes of MLP tuned hyperparameter values for experiments with the data exfiltration dataset

Keylogging hyperparameters

Keylogging without ensemble feature selection

Here, we report hyperparameter values for classifiers that yield results we report in Tables 32, 33 and 34 (Tables 93, 94, 95, 96, 97, 98, 99, 100, 101102, 103, 104).

Table 93 Modes of DT tuned hyperparameter values for experiments with the keylogging dataset

Table 94 Modes of DT tuned hyperparameter values for experiments with the keylogging dataset

Table 95 Modes of XGBoost tuned hyperparameter values for experiments with the keylogging dataset

Table 96 Modes of XGBoost tuned hyperparameter values for experiments with the keylogging dataset

Table 97 Modes of LR tuned hyperparameter values for experiments with the keylogging dataset

Table 98 Modes of LR tuned hyperparameter values for experiments with the keylogging dataset

Table 99 Modes of MLP tuned hyperparameter values for experiments with the keylogging dataset

Table 100 Modes of MLP tuned hyperparameter values for experiments with the keylogging dataset

Table 101 Modes of RF tuned hyperparameter values for experiments with the keylogging dataset

Table 102 Modes of RF tuned hyperparameter values for experiments with the keylogging dataset

Table 103 Modes of XGBoost tuned hyperparameter values for experiments with the keylogging dataset

Table 104 Modes of XGBoost tuned hyperparameter values for experiments with the keylogging dataset

Keylogging with ensemble feature selection

Here, we report hyperparameter values for classifiers that yield results we report in Tables 35 and 36 , after the application of ensemble FSTs (Tables 105, 106, 107, 108, 109).

Table 105 Modes of DT tuned hyperparameter values for experiments with the keylogging dataset

Table 106 Modes of XGBoost tuned hyperparameter values for experiments with the keylogging dataset

Table 107 Modes of LR tuned hyperparameter values for experiments with the keylogging dataset

Table 108 Modes of MLP tuned hyperparameter values for experiments with the keylogging dataset

Table 109 Modes of MLP tuned hyperparameter values for experiments with the keylogging dataset
